Audio-Technica VM520EB/H
Audio-Technica VM520EB/H

Audio-Technica VM520EB/H

169 €
VAT included

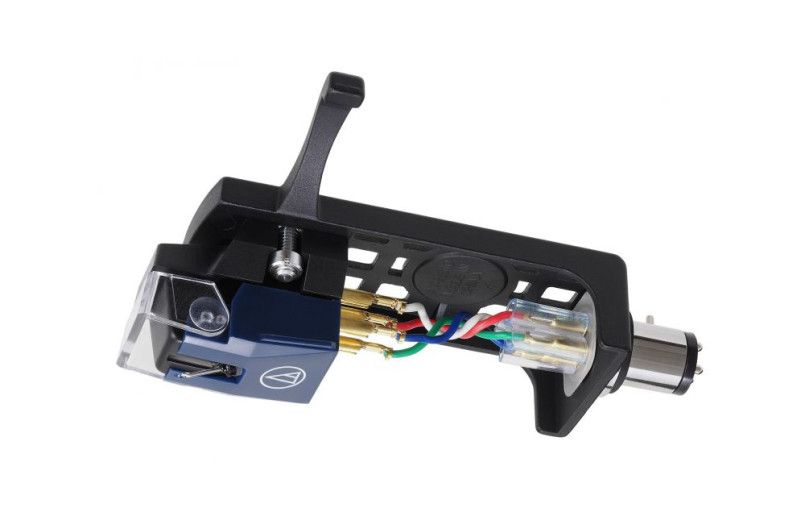

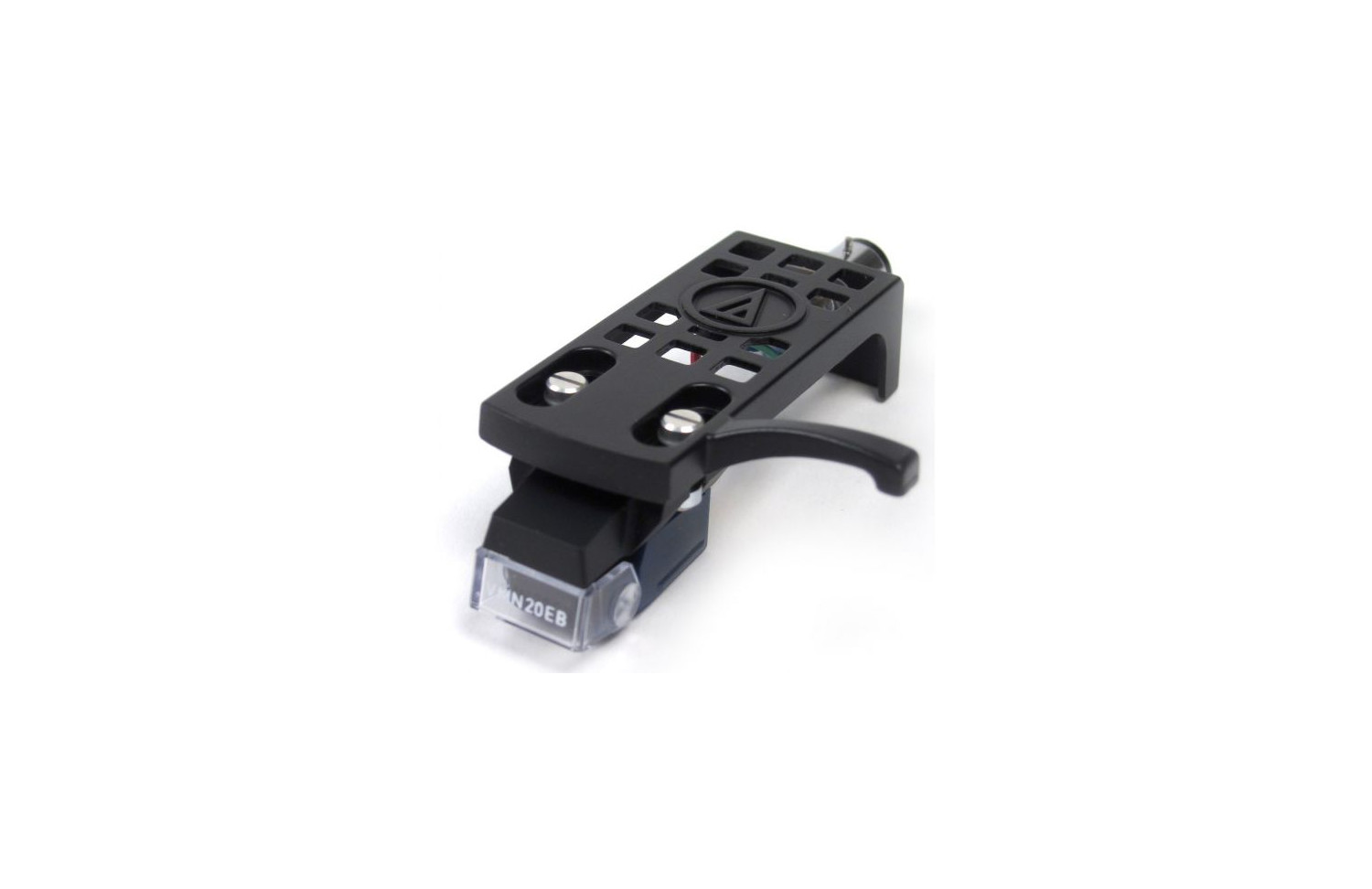

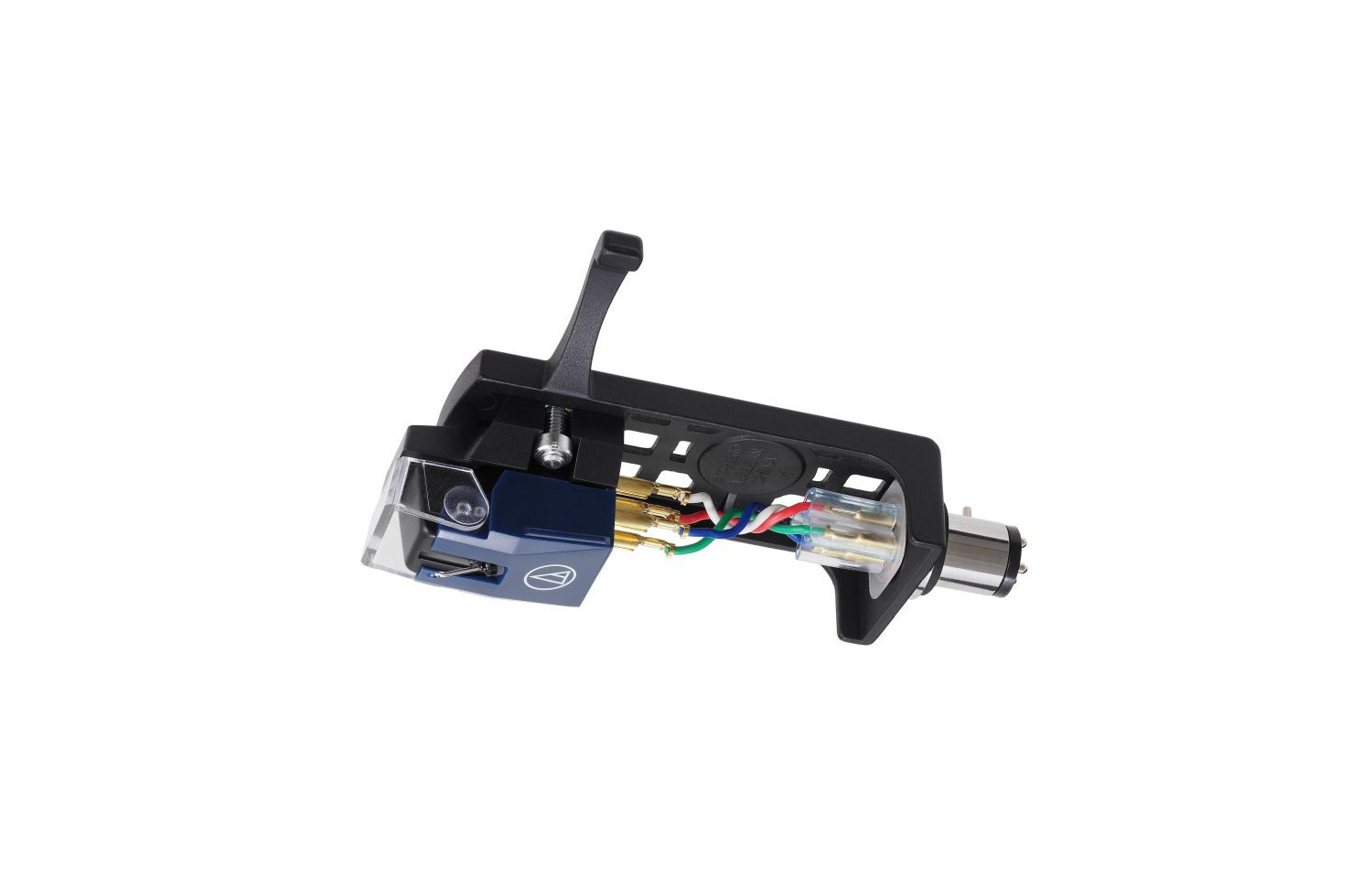

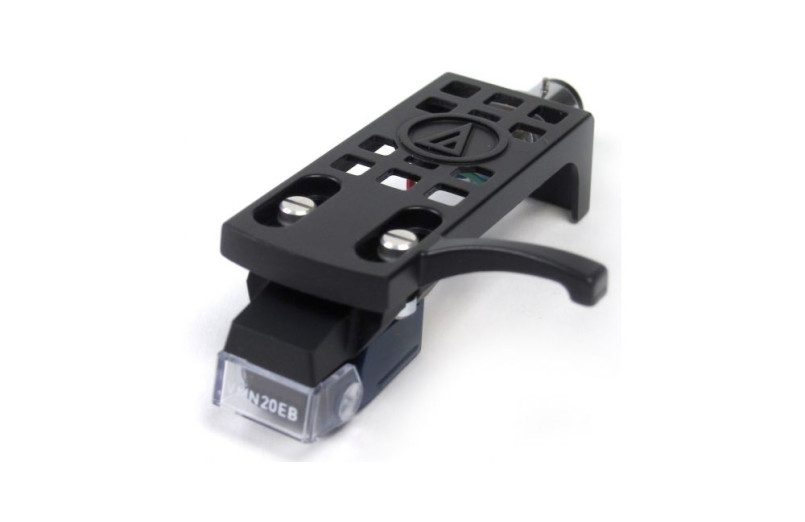

Double moving magnet stereo cartridge with elliptical stylus and HS10 headstock

Get register and you will earn 169 points Get register and you will earn 169 points

Your cart will total 169 points that can be converted into a voucher of 2 €.



Standard model with glued elliptical stylus reduces tracking distortion and allows for more accurate sound reproduction. Pre-assembled with the lightweight AT-HS10 aluminium head, the user can enjoy trouble-free assembly.

  • Aluminium conical cantilever
  • Para-toroidal coils for improved generating efficiency
  • Centre plate shielding between the left and right channels reduces crosstalk
  • Pre-assembled with a lightweight aluminium head (AT-HS10) for quick and easy mounting


Features:

  • Frequency Response: 20 - 23,000Hz
  • Channel Separation: 27dB (1kHz)
  • Vertical Tracking Angle: 23° Vertical Tracking Force: 1.8
  • Vertical Tracking Force: 1.8 to 2.2g (2.0g standard)
  • Needle Construction: Round Shank bonded
  • Recommended Load Impedance: 47,000?
  • Coil Impedance: 2,700? (1kHz)
  • Output Voltage: 4.0mV (1kHz, 5cm/sec.)
  • Output Channel Balance: 1.5dB (1kHz)
  • Needle Shape: Bonded Elliptical
  • Cantilever: Aluminium tube
  • Static Compliance: 35 x 10-6 cm/dyn
  • Dynamic Compliance: 8 x 10-6 cm/line (100Hz)
  • Mounting: 1/2" between centres
  • Dimensions: 17.3 x 17.0 x 28.2 mm
  • Included Accessories: 5mm ×2 and 10mm ×2 Capsule Installation Screws
    Washer ×2
    Hex Nut ×2
  • Recommended Load Capacitance: 100 - 200pF
  • Replacement Needle: VMN20EB
  • Needle Size: 0.3 x 0.7 mil
  • Type: VM Type
  • Weight: 16.8g
