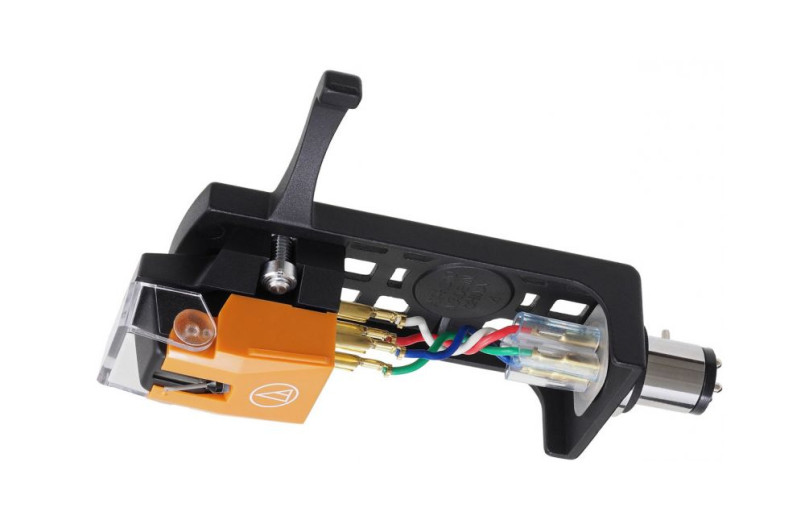

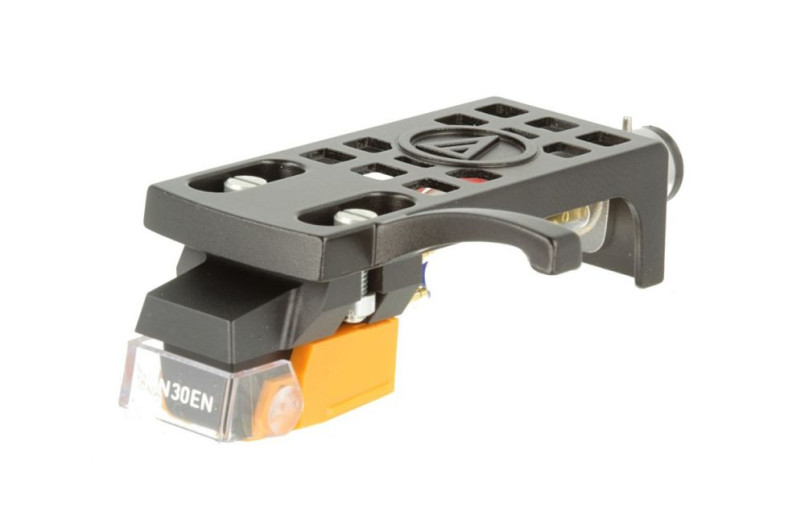

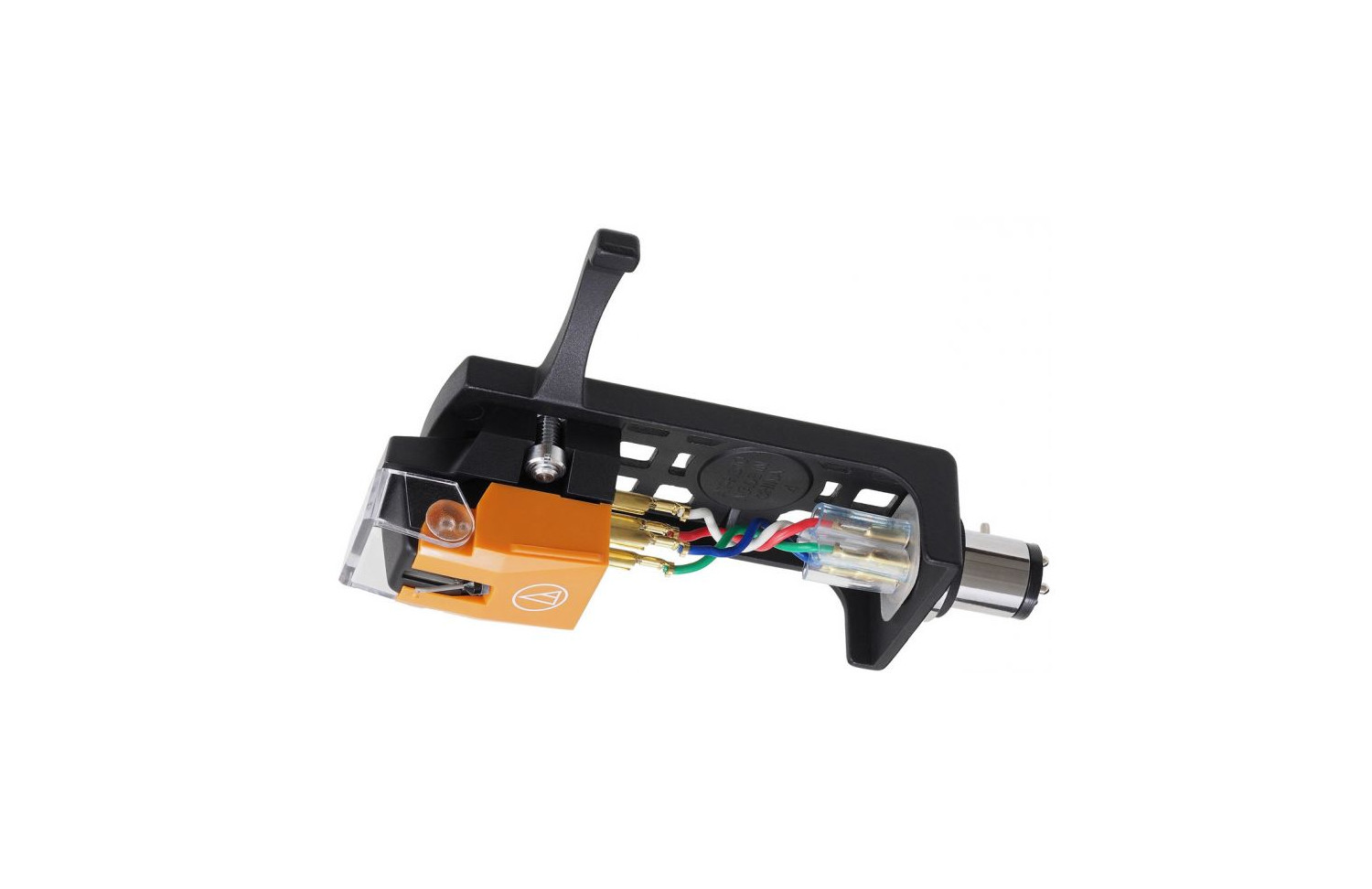

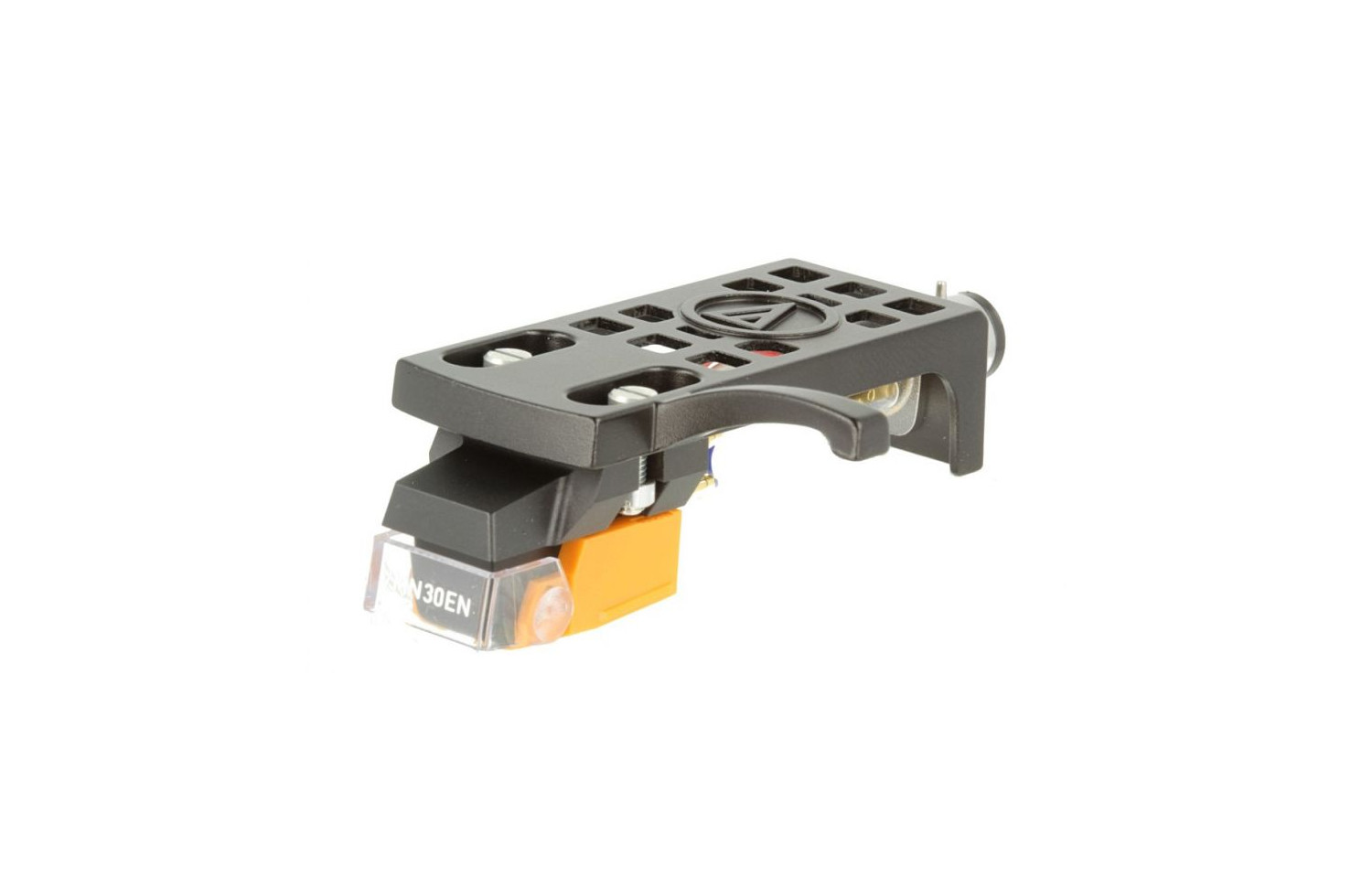

High-end model with elliptical stylus, pre-assembled with a lightweight aluminium head (AT-HS10). The bare elliptical stylus helps to reduce the playing mass of the Vibration System, while offering better reproduction of high frequencies.
- Aluminium conical cantilever
- Para-toroidal coils for improved generating efficiency
- Centre plate shielding between left and right channels reduces crosstalk
- Pre-assembled with a lightweight aluminium head (AT-HS10) for quicker and easier mounting
Features:
- Frequency Response: 20 - 25,000Hz
- Channel Separation: 27dB (1kHz)
- Vertical Tracking Angle: 23° Vertical Tracking Force: 1.8
- Vertical Tracking Force: 1.8 to 2.2g (2.0g standard)
- Needle Construction Glued Round Shank
- Recommended Load Impedance: 47,000O
- Coil Impedance: 2,700O (1kHz)
- Output Voltage: 4.0mV (1kHz, 5cm/sec.)
- Output Channel Balance: 1.5dB (1kHz)
- Needle Shape: Bonded Elliptical
- Cantilever: Aluminium tube
- Static Compliance: 35 x 10-6 cm/dyn
- Dynamic Compliance: 8 x 10-6 cm/line (100Hz)
- Mounting: 1/2" between centres
- Dimensions: 17.3 x 17.0 x 28.2 mm
- Included Accessories: Capsule Installation Screws, 5mm ×2 and 10mm ×2, Washers ×2, Hex Nut ×2
- Recommended Load Capacitance: 100 - 200pF
- Replacement Needle: VMN30EN
- Needle Size: 0.3 x 0.7 mil
- Type: VM Type
- Weight: 6.4gr
