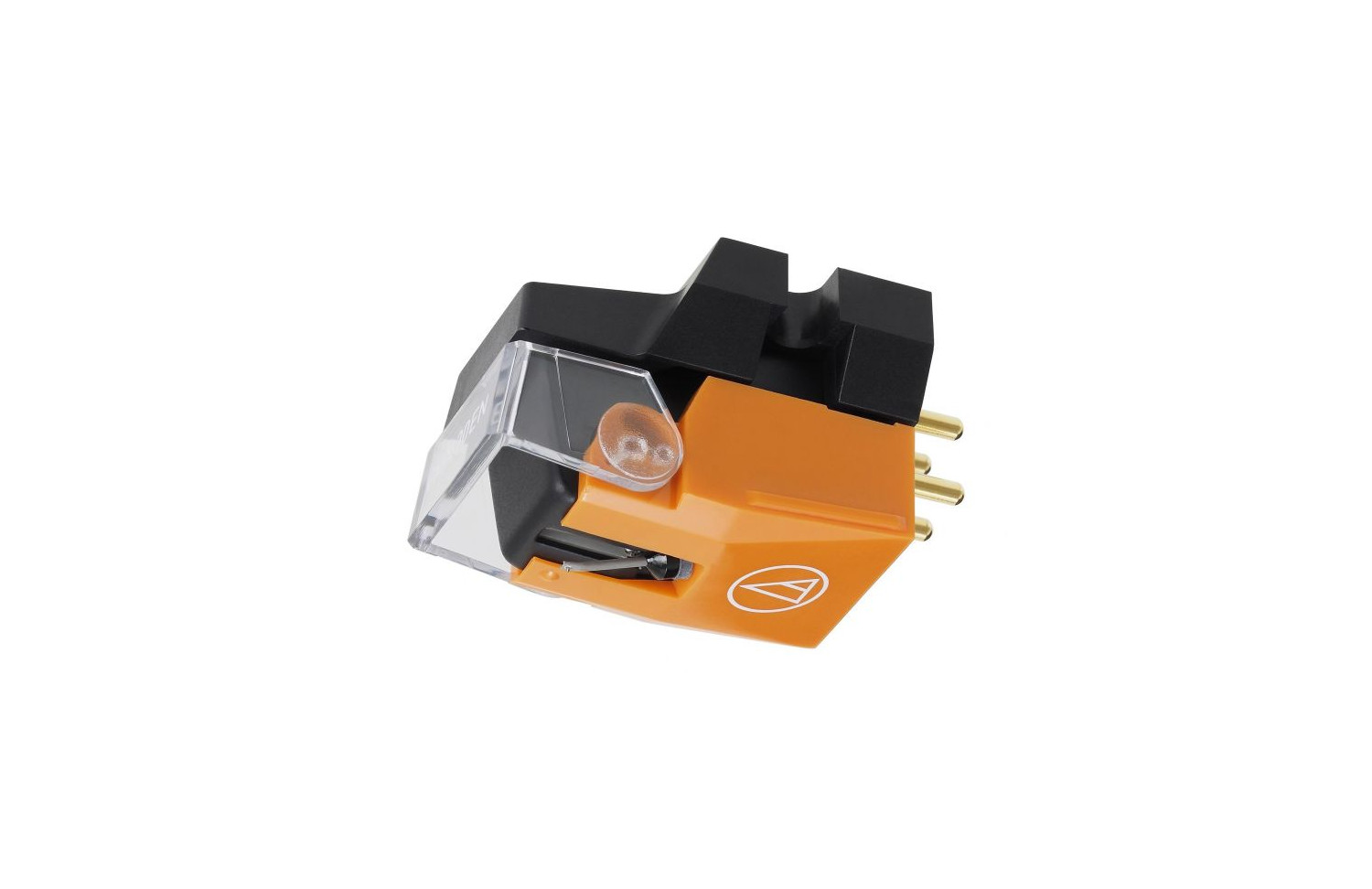

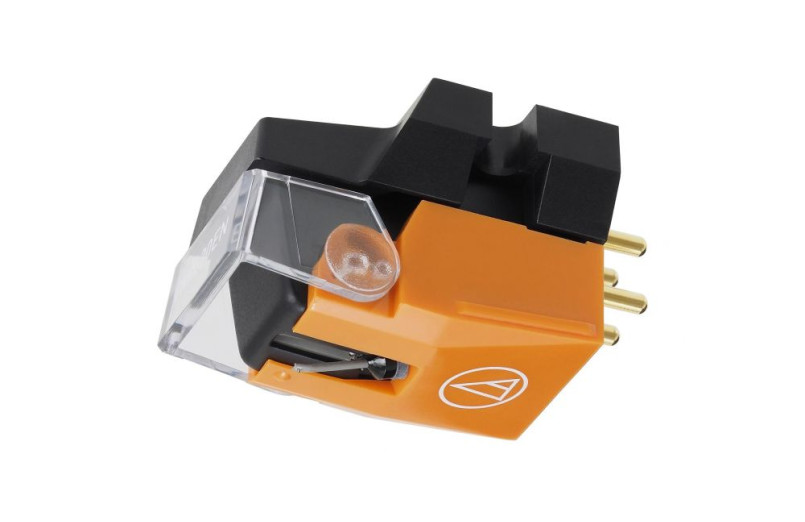

High-end model with elliptical stylus, equipped with a lightweight bare elliptical stylus to reduce the performance mass of the vibration system. This allows a fuller reproduction of frequencies.
Instead of using a single large magnet, the two magnets are placed in a "V" shape. The two magnets are precisely positioned to match the left and right channel positions on the stereo groove walls. Consequently, the VM design ensures amazing channel separation, wider frequency response and excellent tracking.
Features:
- Frequency Response: 20 - 25,000Hz
- Channel Separation: 27dB (1kHz)
- Vertical Tracking Angle: 23° Vertical Tracking Force: 1.8
- Vertical Tracking Force: 1.8 to 2.2g (2.0g standard)
- Needle Construction: Bare Round Shank
- Recommended Load Impedance: 47,000?
- Coil Impedance: 2,700? (1kHz)
- Output Voltage: 4.0mV (1kHz, 5cm/sec)
- Output Channel Balance: 1.5dB (1kHz)
- Needle Shape: Bare Elliptical
- Cantilever: Aluminium tube
- Static Compliance: 35 x 10-6 cm/dyn
- Dynamic Compliance: 8 x 10-6 cm/line (100Hz)
- Mounting: 1/2" between centres
- Dimensions: 17.3 x 17.0 x 28.2 mm
- Included Accessories: Capsule Installation Screws, 5mm ×2 and 10mm ×2, Washers ×2, Hex Nut ×2, Non-magnetic Screwdriver ×1, Brush ×1
- Recommended Load Capacitance: 100 - 200pF
- Replacement Needle: VMN30EN
- Needle Size: 0.3 x 0.7 mil
- Type: VM Type
- Weight: 6.4gr
