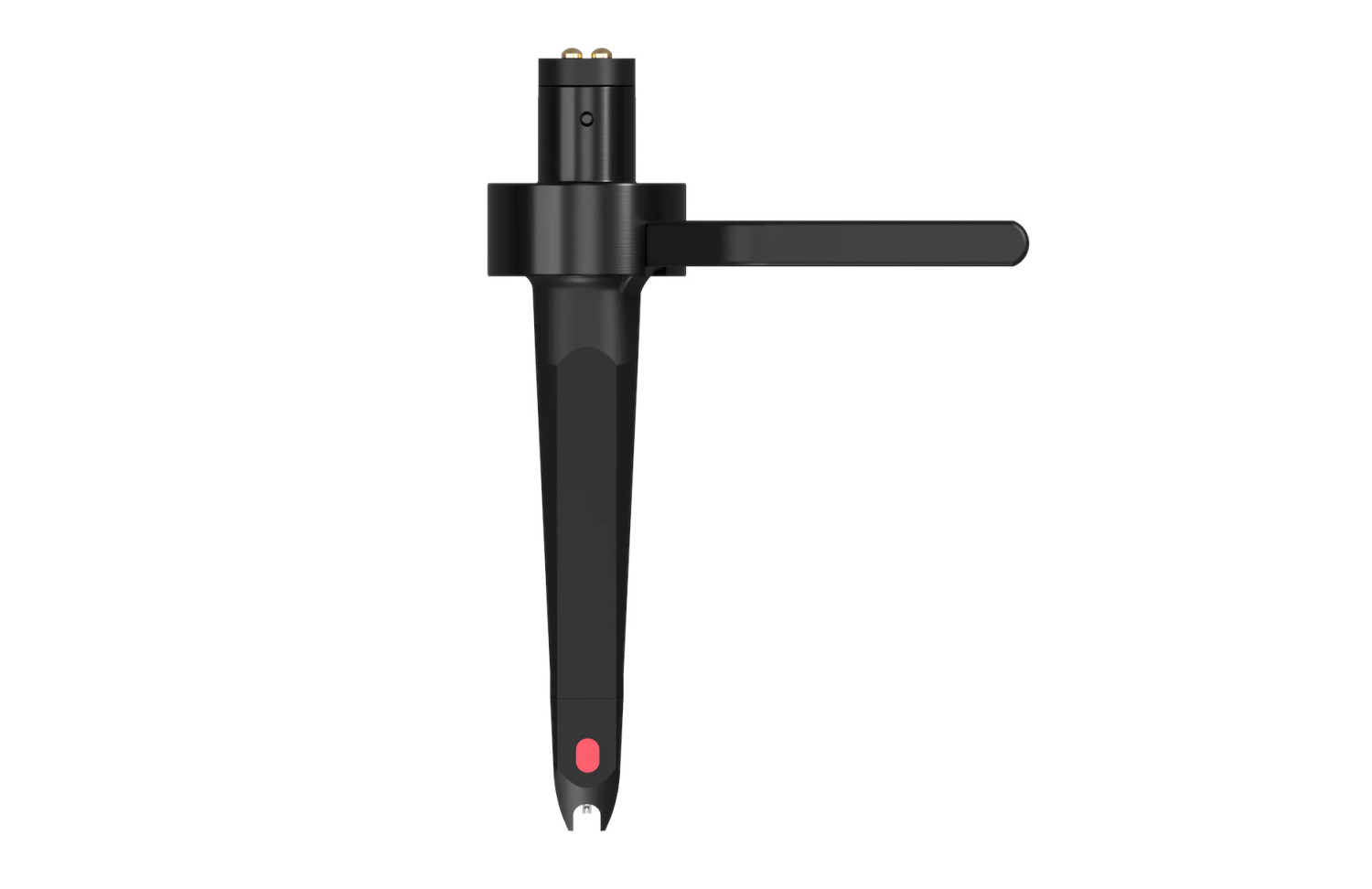

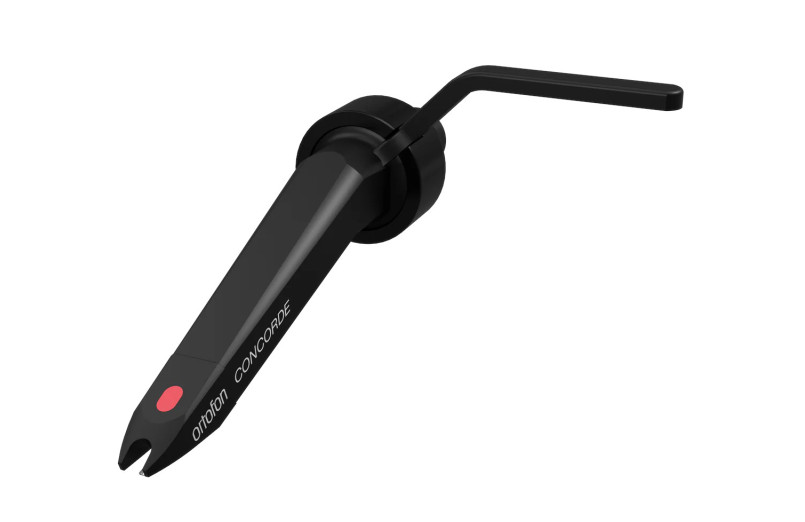

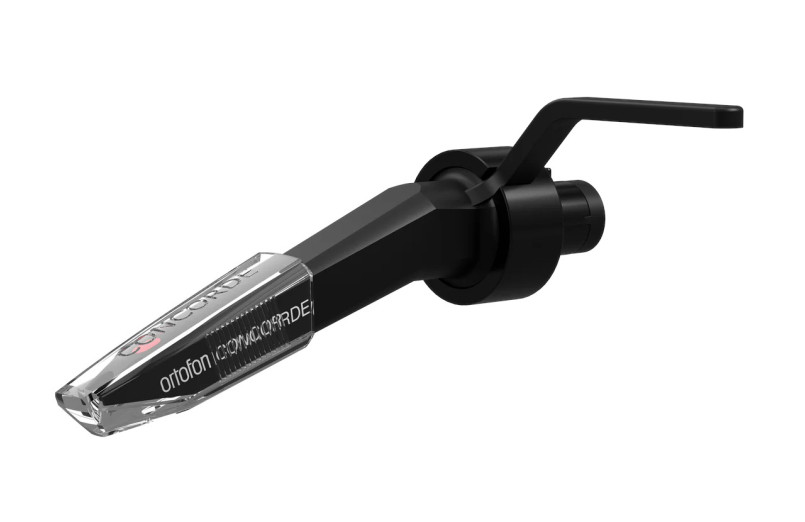

Ortofon Concorde 5S
Ortofon Concorde 5S
Ortofon Concorde 5S
Ortofon Concorde 5S
Ortofon Concorde 5S

Ortofon Concorde 5S

69 €
VAT included

MM moving magnet capsule

Get register and you will earn 69 points Get register and you will earn 69 points

Your cart will total 69 points that can be converted into a voucher of 1 €.



A very affordable moving-magnet pickup capsule that was conceived with reliability and ease of use in mind, qualities that make it a perfect choice for everyday vinyl record enjoyment.

Its spherically cut diamond reading tip provides stable groove tracking and requires less precision during the tuning process, making it ideal for those looking for hassle-free enjoyment of their favourite recordings.

Featuring the unmistakable Concorde aesthetics of Ortofon, the Concorde 5S benefits from an aluminium cantilever with dedicated stylus suspension, the solvent-free four-coil signal generator from Ortofon and oxygen-free copper (OFC) winding of the coils.

Extremely easy to assemble, this transducer delivers a 4 mV output that ensures compatibility with all types of commercially available phono stages and preamplifiers.

Features:

  • Moving Magnet (MM) capsule of exceptional price/performance ratio.
  • 4-coil signal generator.
  • High purity copper wound coils (OFC).
  • Spherical Diamond readout tip and aluminium cantilever.
  • Needle suspension developed by Ortofon.
  • Easy adaptation to all types of turntables and readout arms.
  • Output voltage of 4 mV.
  • Frequency response 20-20,000 Hz, +/-3 dB.
  • Recommended load impedance: 47 kOhm.
  • Load capacitance: 200-500 pF.
  • Lateral dynamic compliance: 20 um/mN.
  • Recommended support force: 1.8 g.
  • Weight: 18 grams.
