Audio-Technica VM95C/H
Audio-Technica VM95C/H

Audio-Technica VM95C/H

69 €
VAT included
AT-HS6 head-mounted tapered stylus moving magnet dual cartridge

Get register and you will earn 69 points Get register and you will earn 69 points

Your cart will total 69 points that can be converted into a voucher of 1 €.

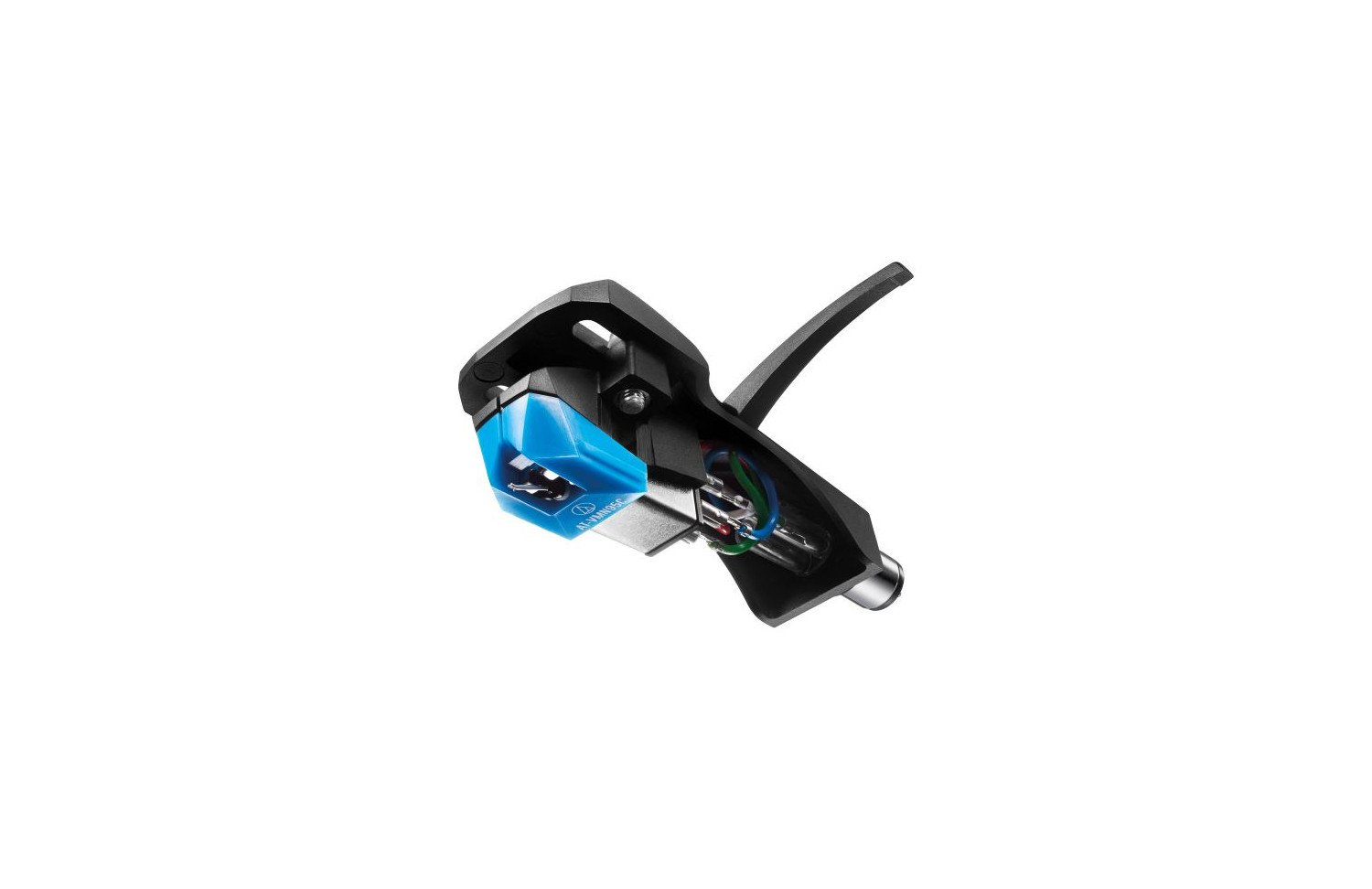

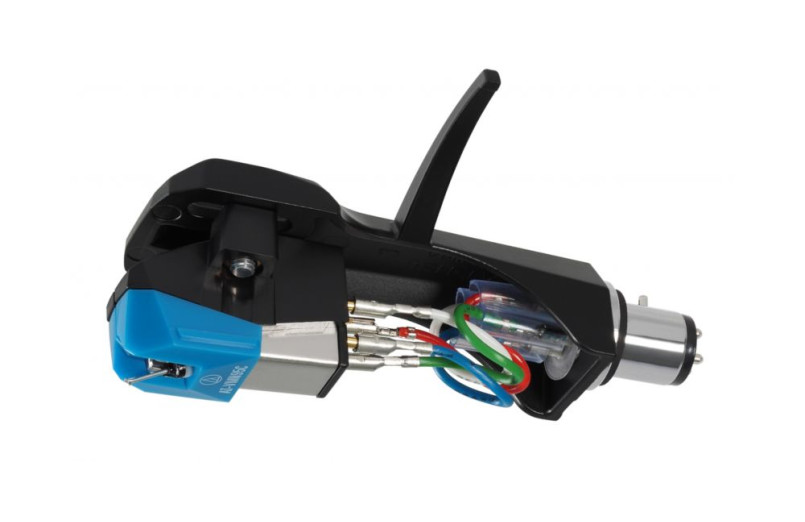

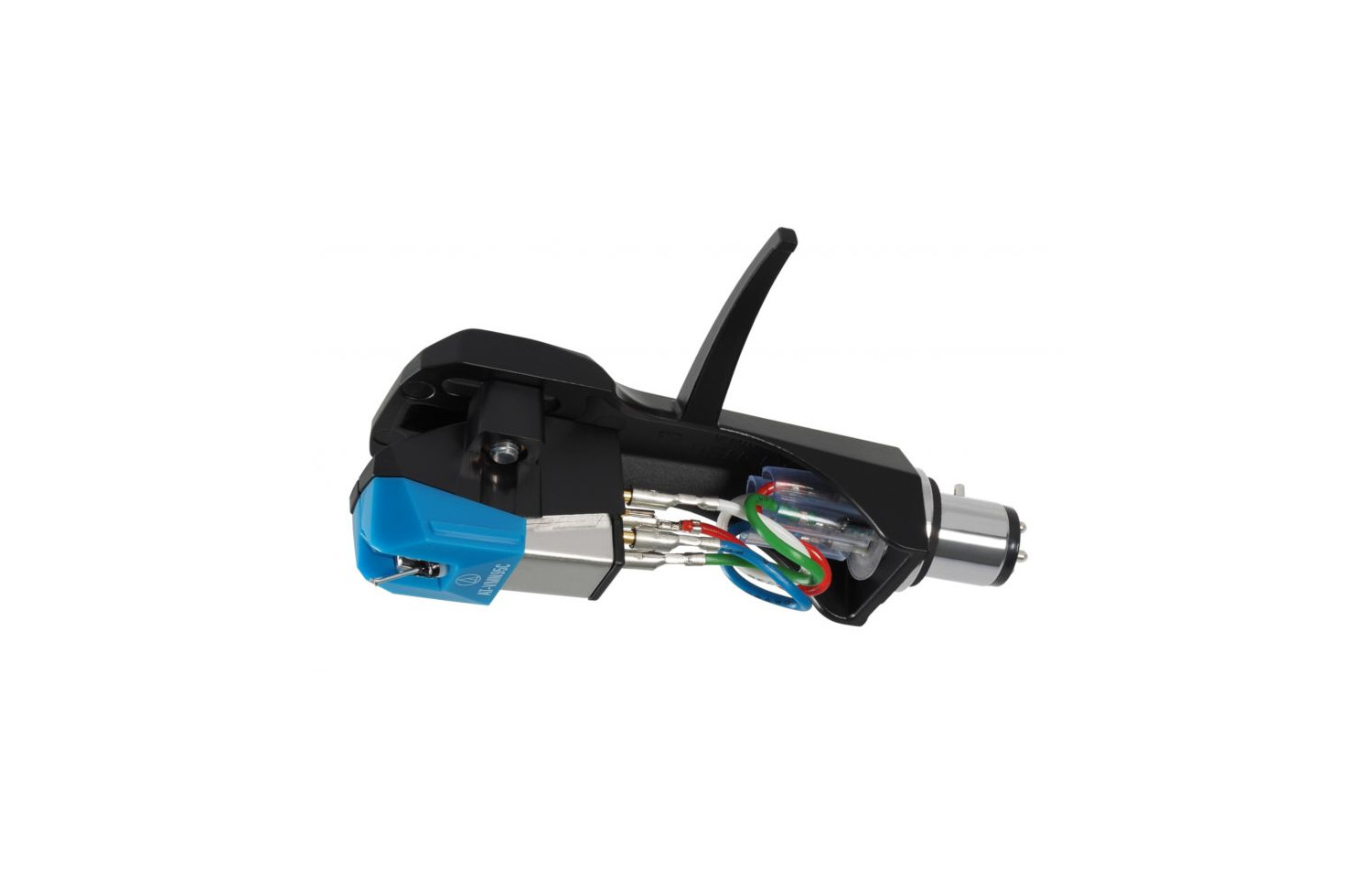

The AT-VM95C/H is a VM95 series cartridge/head assembly consisting of the AT-VM95C conical stylus stereo cartridge mounted on an AT-HS6BK head. The total weight of the assembly is 15.5 grams and is assembled and tested at Audio-Technica 's factory in Fukui, Japan.


Features:

  • Frequency Response: 20 - 20,000 Hz
  • Channel Separation: 18 dB (1 kHz)
  • Vertical Tracking Angle: 23° Vertical Tracking Force: 1.8
  • Vertical Tracking Force: 1.8 to 2.2g (2.0g standard)
  • Needle Construction: Glued round shank
  • Recommended Load Impedance: 47,000 O
  • Coil Impedance: 3.3 kO (1 kHz)
  • DC Resistance: 485 O
  • Coil Inductance: 550 mH (1 kHz)
  • Output Voltage 4.0 mV (@ 1 kHz, 5 cm/sec)
  • Output Channel Balance: 2.5 dB (1 kHz)
  • Needle Shape: Conical
  • Cantilever: Aluminium tube
  • Static Compliance: 17 x 10 - 6 cm / dyne
  • Dynamic Compliance: 6.5 x 10 - 6 cm / dyne (100 Hz)
  • Mounting: 1/2" between centres
  • Dimensions: 21.2 × 21.4 × 21.4 × 62.4 (H x W x D in mm)
  • Model: AT-VM95C/H
  • Recommended Load Capacitance: 100-200 pF
  • Replacement Needle: AT-VMN95C
  • Needle Size: 0.6 mil
  • Type: Stereo VM double magnet
  • Weight: 15.5 grams
  • Cable: Used for Coil: T.P. copper
