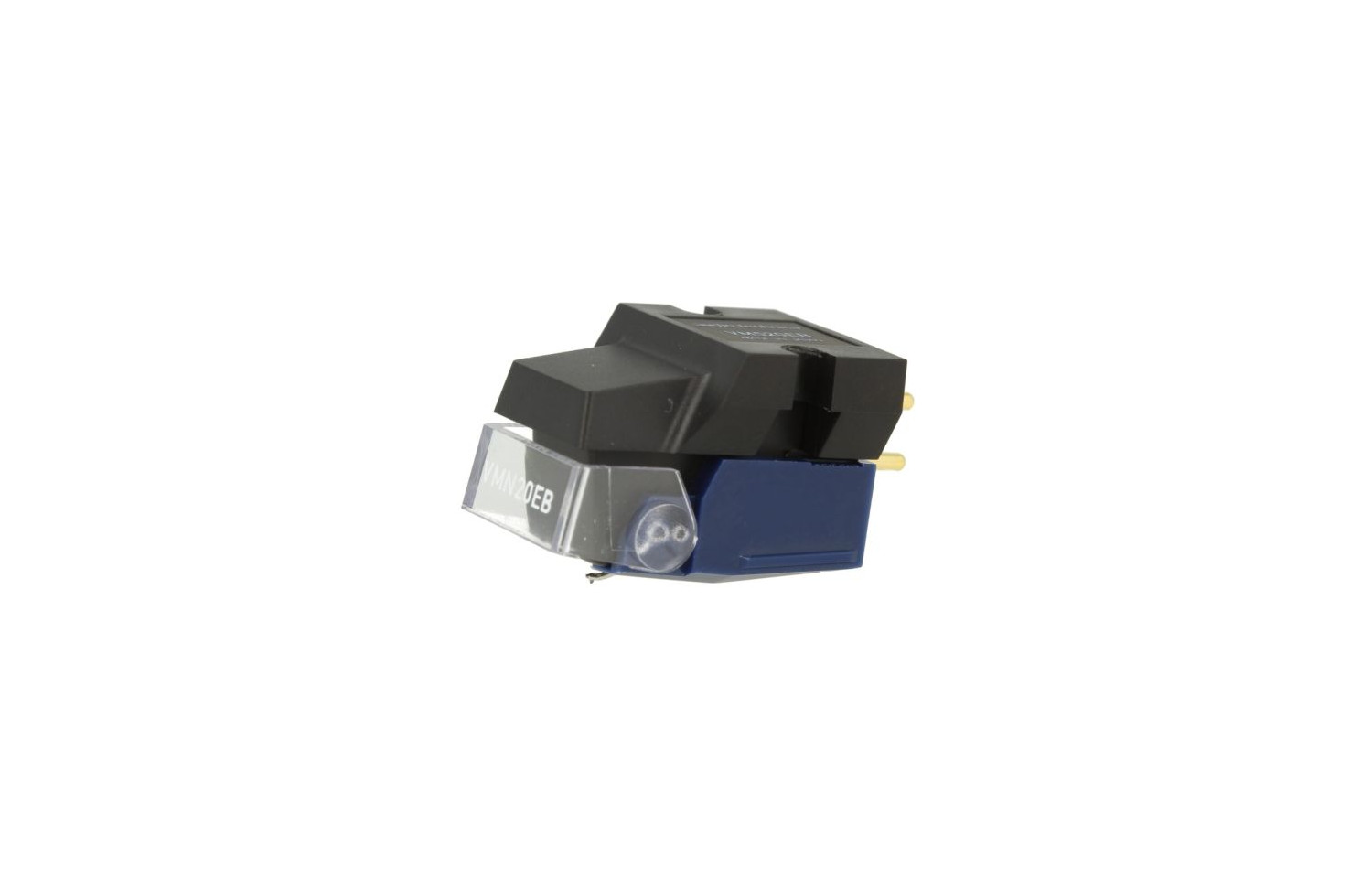

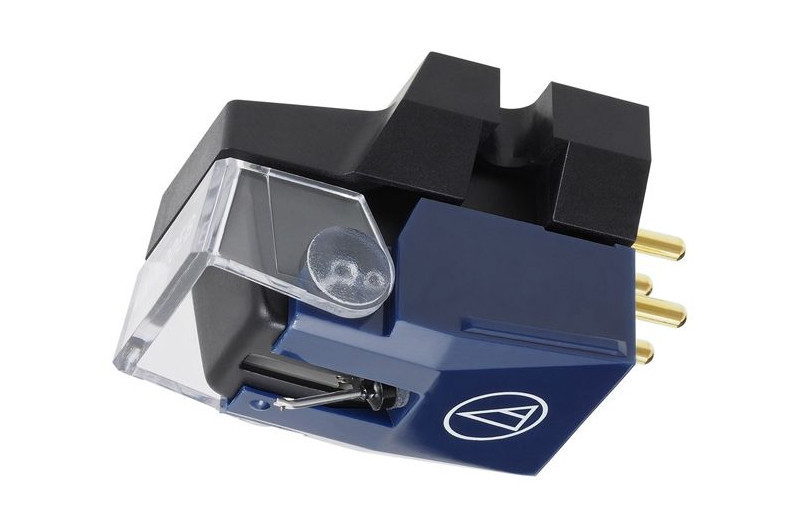

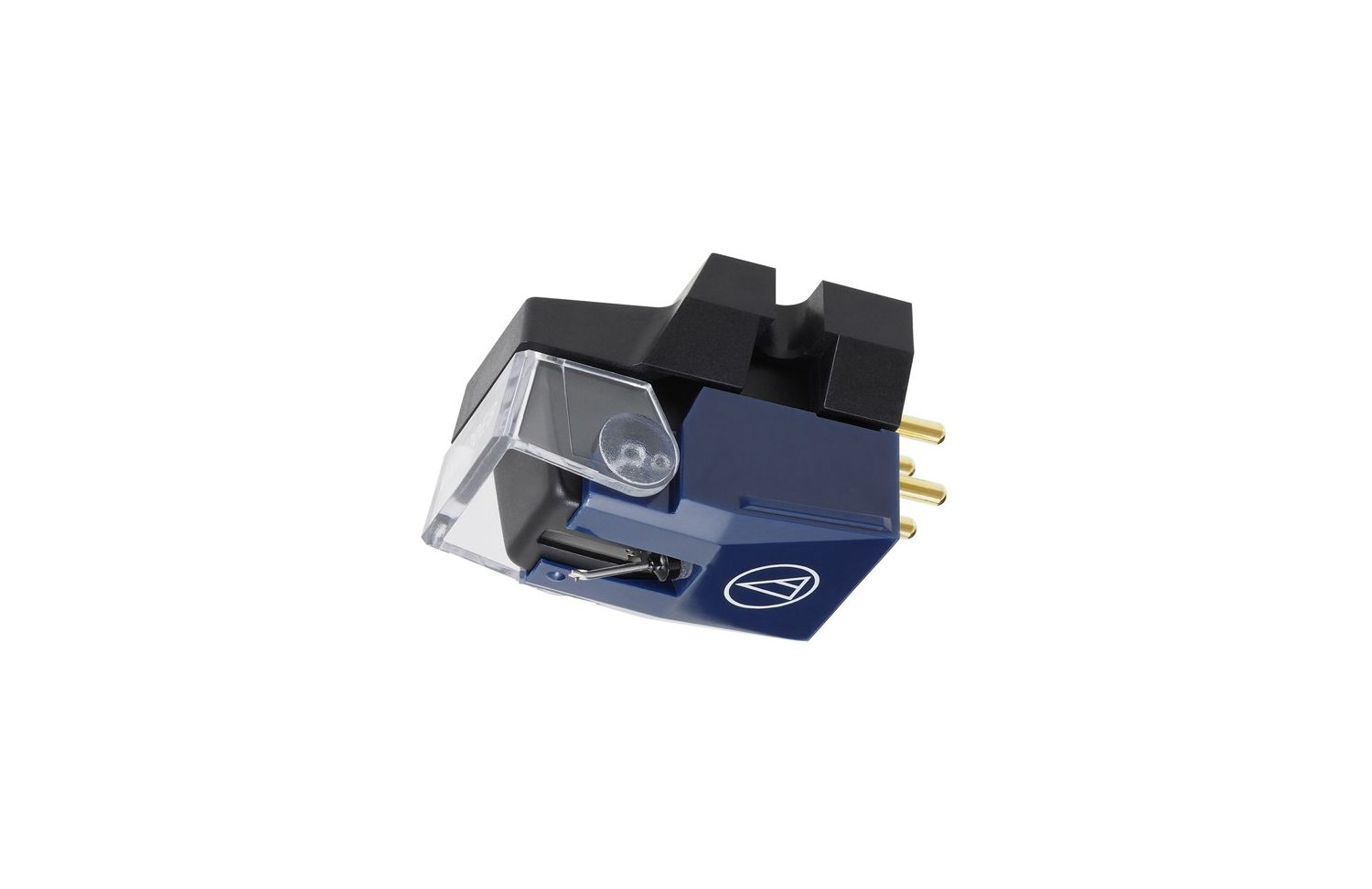

Audio-Technica VM520EB

129 €

VAT included

500 series dual moving magnet cartridge and elliptical diamond stylus with bonded round shank

Get register and you will earn 129 points

Your cart will total 129 points that can be converted into a voucher of 1 €.

Guaranteed minimum price

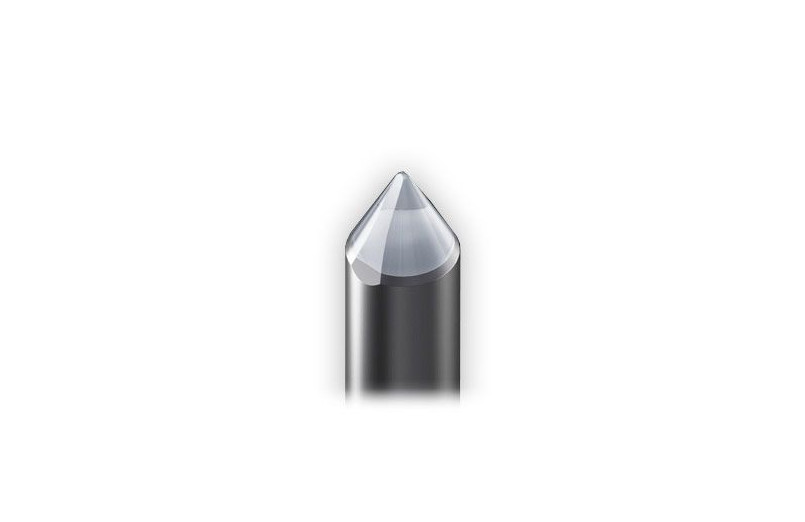

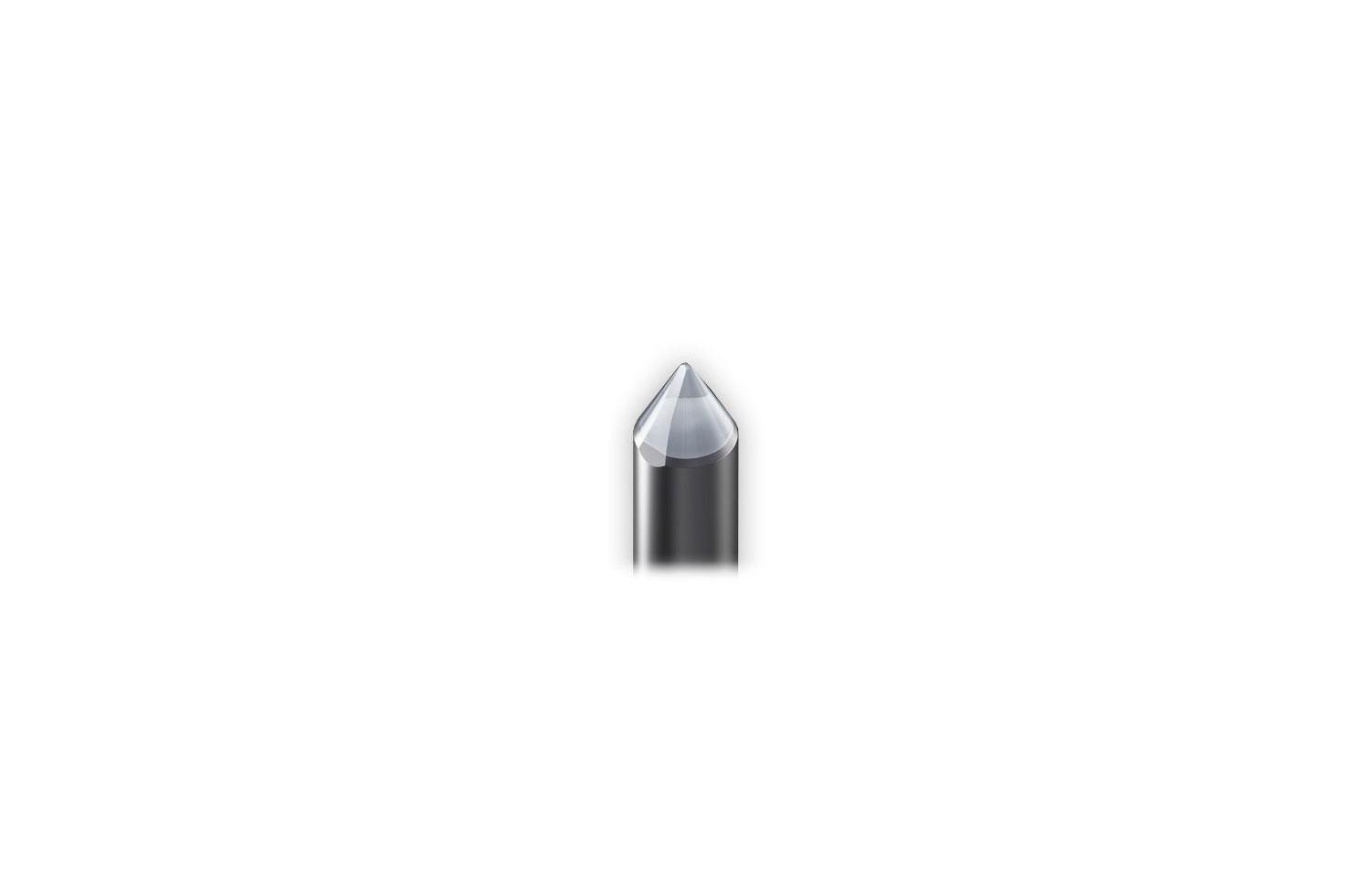

Standard elliptical stylus model, equipped with a glued elliptical stylus. This reduces the distortion of the pattern and allows for a more accurate sound reproduction.

Features:

Frequency Response:20 - 23.000Hz
Channel Separation: 27dB (1kHz)
Vertical Tracking Angle: 23° Vertical Tracking Force: 1.8
Vertical Tracking Force:1.8 to 2.2g (2.0g standard)
Needle Construction: Bare Round Shank
Recommended Load Impedance: 47,000?
Coil Impedance: 2,700? (1kHz)
Output Voltage: 4.0mV (1kHz, 5cm/sec.)
Output Channel Balance: 1.5dB (1kHz)
Needle Shape: Bare Elliptical
Cantilever: Aluminium tube
Static Compliance: 35 x 10-6 cm/dyn
Dynamic Compliance: 8 x 10-6 cm/line (100Hz)
Mounting: 1/2" between centres
Dimensions: 17.3 x 17.0 x 28.2 mm
Included Accessories: Capsule Installation Screws, 5mm ×2 and 10mm ×2, Washers ×2, Hex Nut ×2
Recommended Load Capacitance: 100 - 200pF
Replacement Needle: VMN20EB
Needle Size: 0.3 x 0.7 mil
Type: VM Type
Weight: 6.4gr
