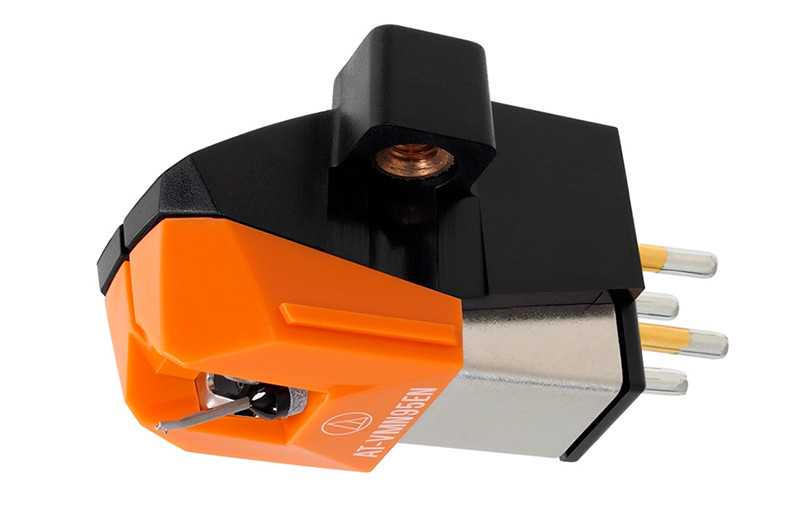

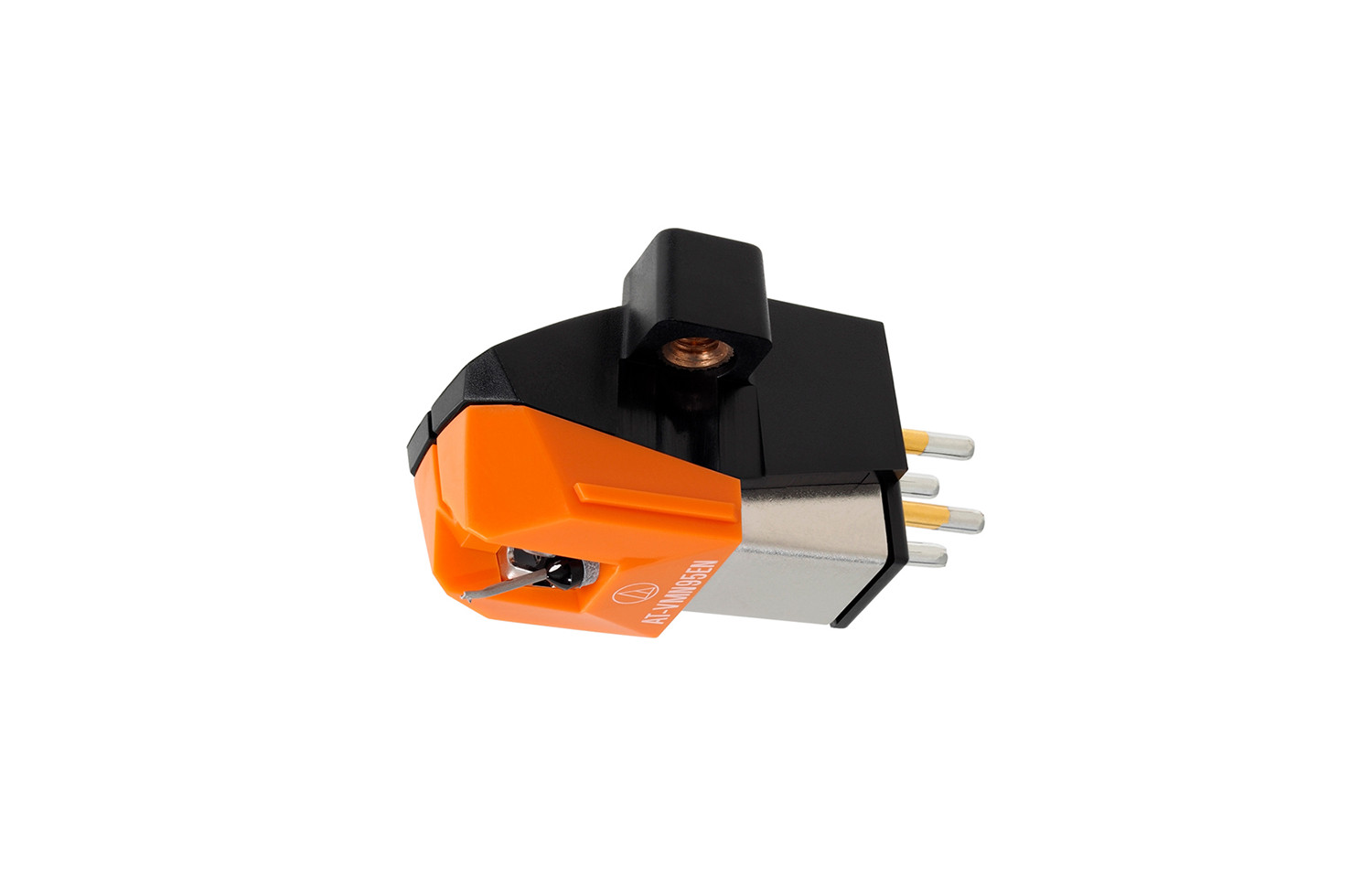

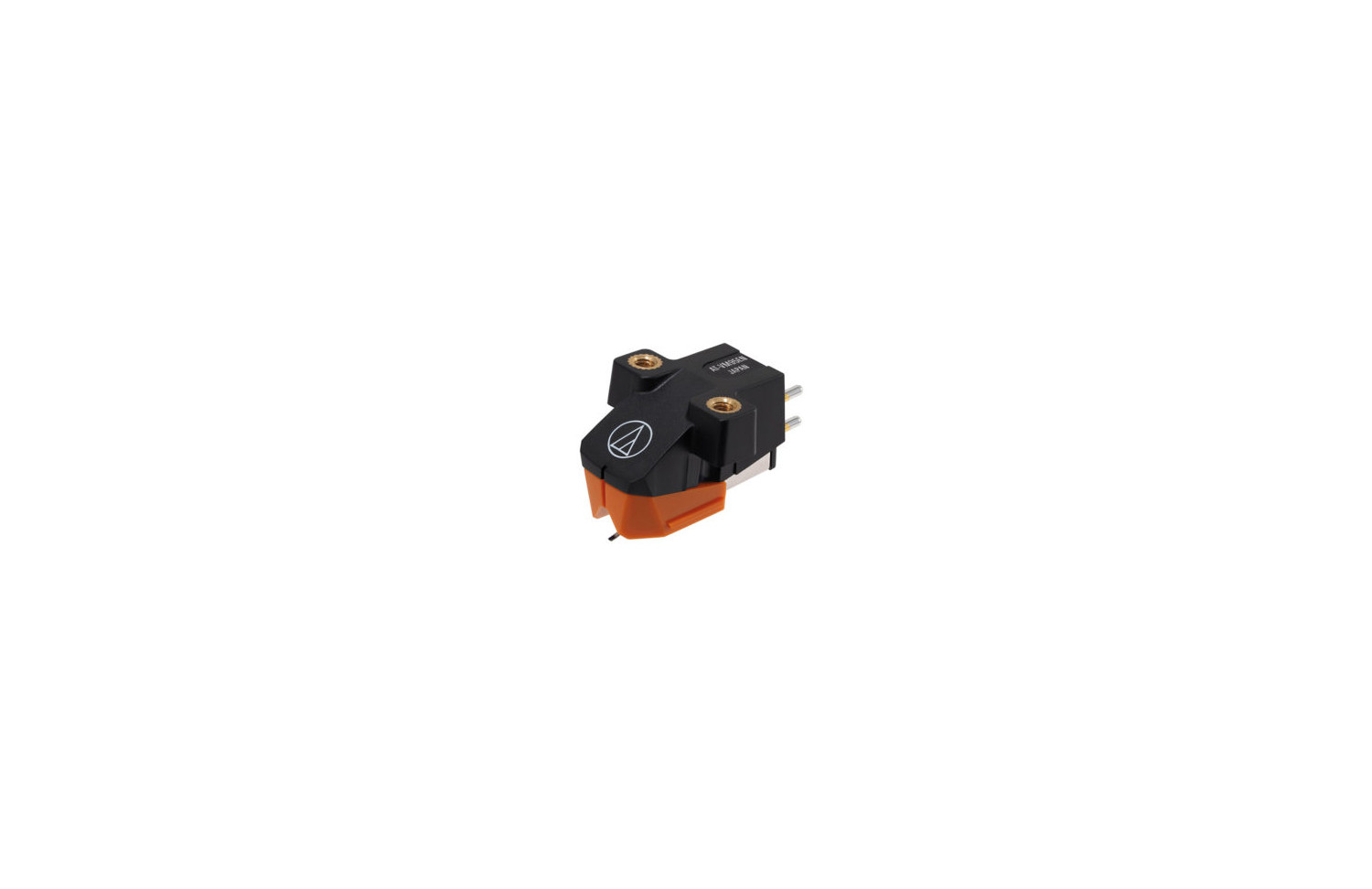

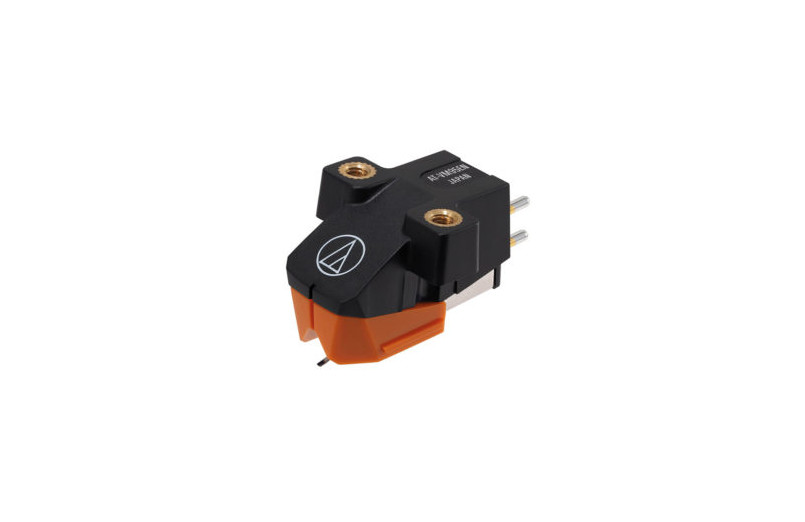

AT-VM95EN incorporates a bare elliptical diamond. The construction of the stylus, consisting of a piece of diamond with a round shank inserted into the cantilever, creates a lightweight and more rigid transmission system than a diamond tip glued onto a round titanium shank, as is the case with the AT-VM95E.
In addition, the use of a bare diamond means a substantial difference in price, although the quality in reproduction will be immediately apparent, specifically in high-frequency fidelity and quality in transient response.
Characteristics:
- Frequency Response: 20 - 23,000 Hz
- Channel Separation: 22 dB (1 kHz)
- Vertical Tracking Angle: 23° Vertical Tracking Force: 1.8
- Vertical Tracking Force: 1.8 to 2.2g (2.0g standard)
- Needle Construction: Bare Round Shank
- Recommended Load Impedance: 47,000 O
- Coil Impedance: 3.3 kO (1 kHz)
- DC Resistance: 485 O
- Coil Inductance: 550 mH (1 kHz)
- Output Voltage: 3.5 mV (@ 1 kHz, 5 cm/sec)
- Output Channel Balance: 2.0 dB (1 kHz)
- Needle Shape: Elliptical
- Cantilever: Aluminium tube
- Static Compliance: 20 x 10 - 6 cm / dyne
- Dynamic Compliance: 7 x 10 - 6 cm / dyne (100 Hz)
- Mounting: 1/2" between centres
- Capsule Weight: 6.1gr
- Dimensions: 17.2 x 18.9 x 28.3 (H x W x D in mm)

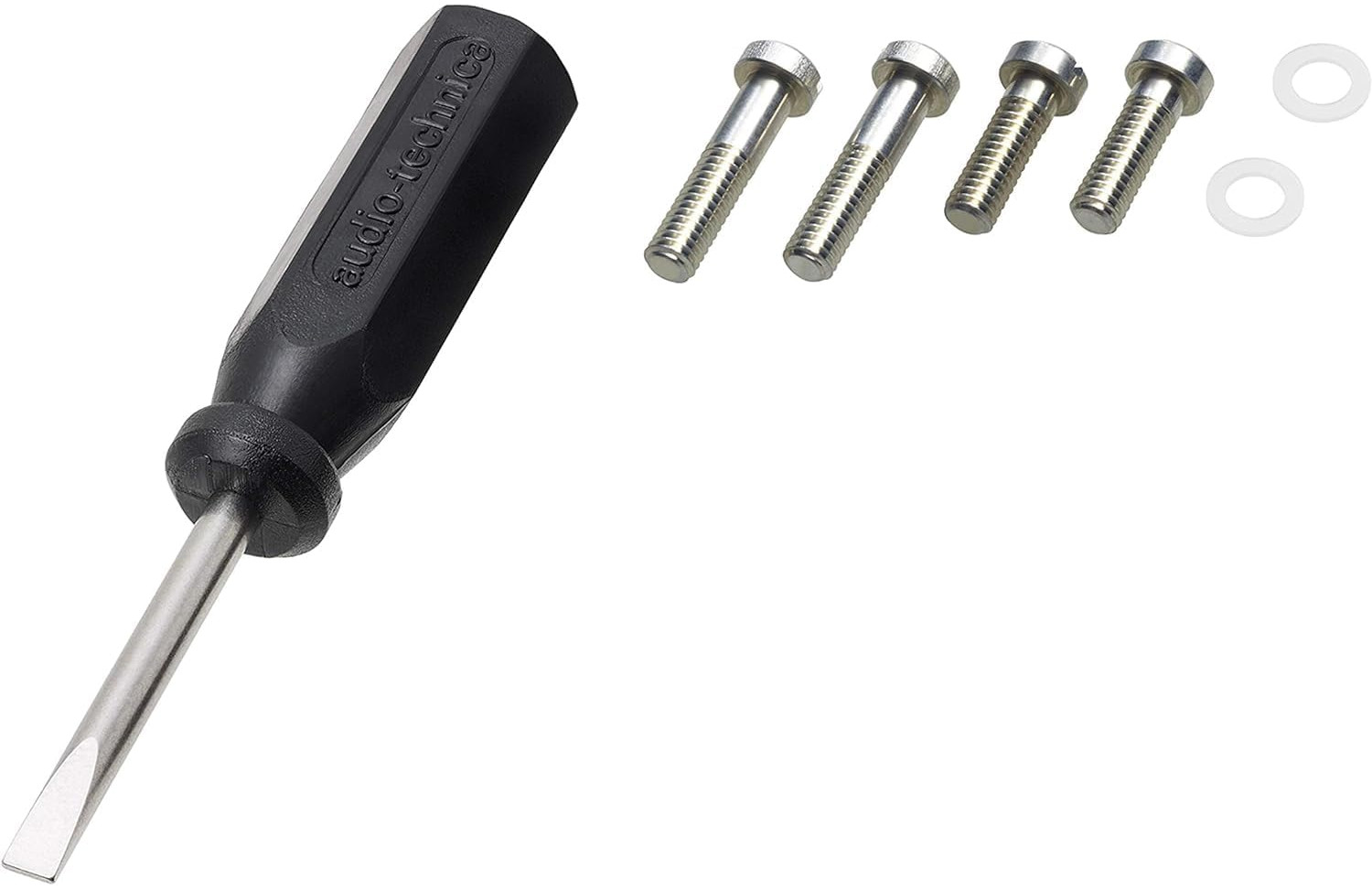

- Accessories Included: Two 11 mm screws installation; Two 8 mm screws installation; Two washers, Non-magnetic screwdriver.
- Recommended Load Capacitance: 100-200 pF
- Replacement Needle: AT-VMN95EN
- Needle Size: 0.3 x 0.7 mil
- Type: VM Stereo Dual Magnet
- Cable Used for Coil: T.P. Copper
