Dual Moving Magnet Cartridge with Bonded Elliptical Stylus Head Mounted AT-HS6

Get register and you will earn 89 points Get register and you will earn 89 points

Your cart will total 89 points that can be converted into a voucher of 1 €.

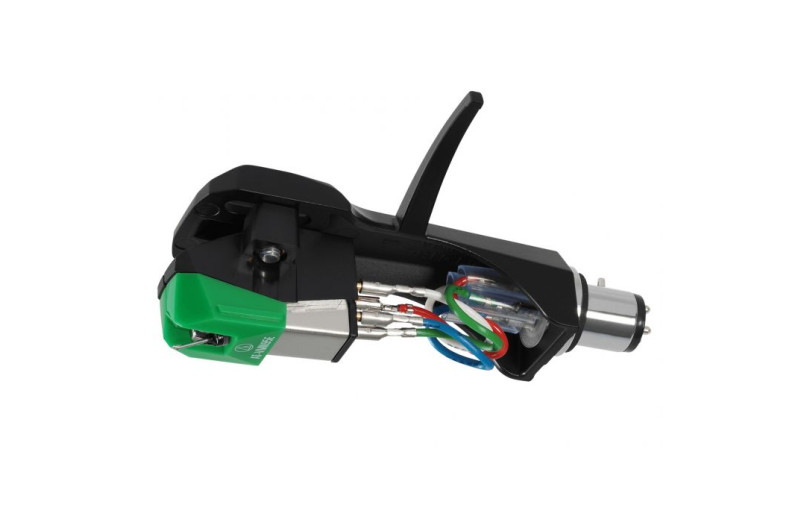

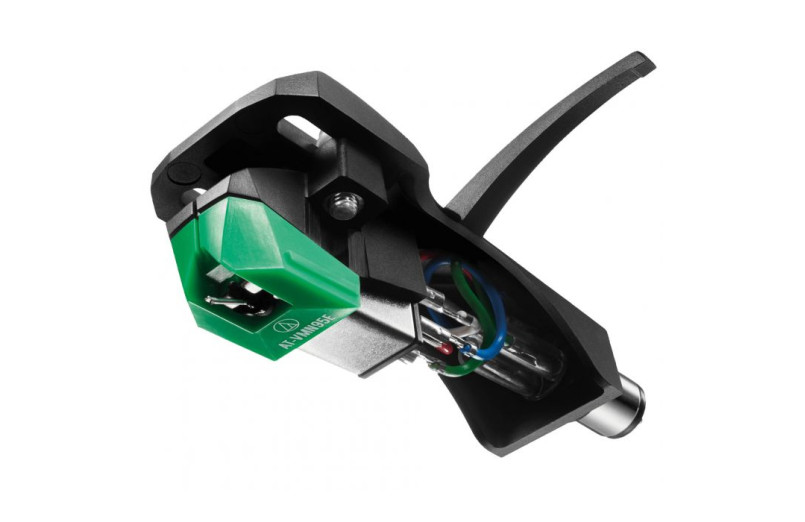

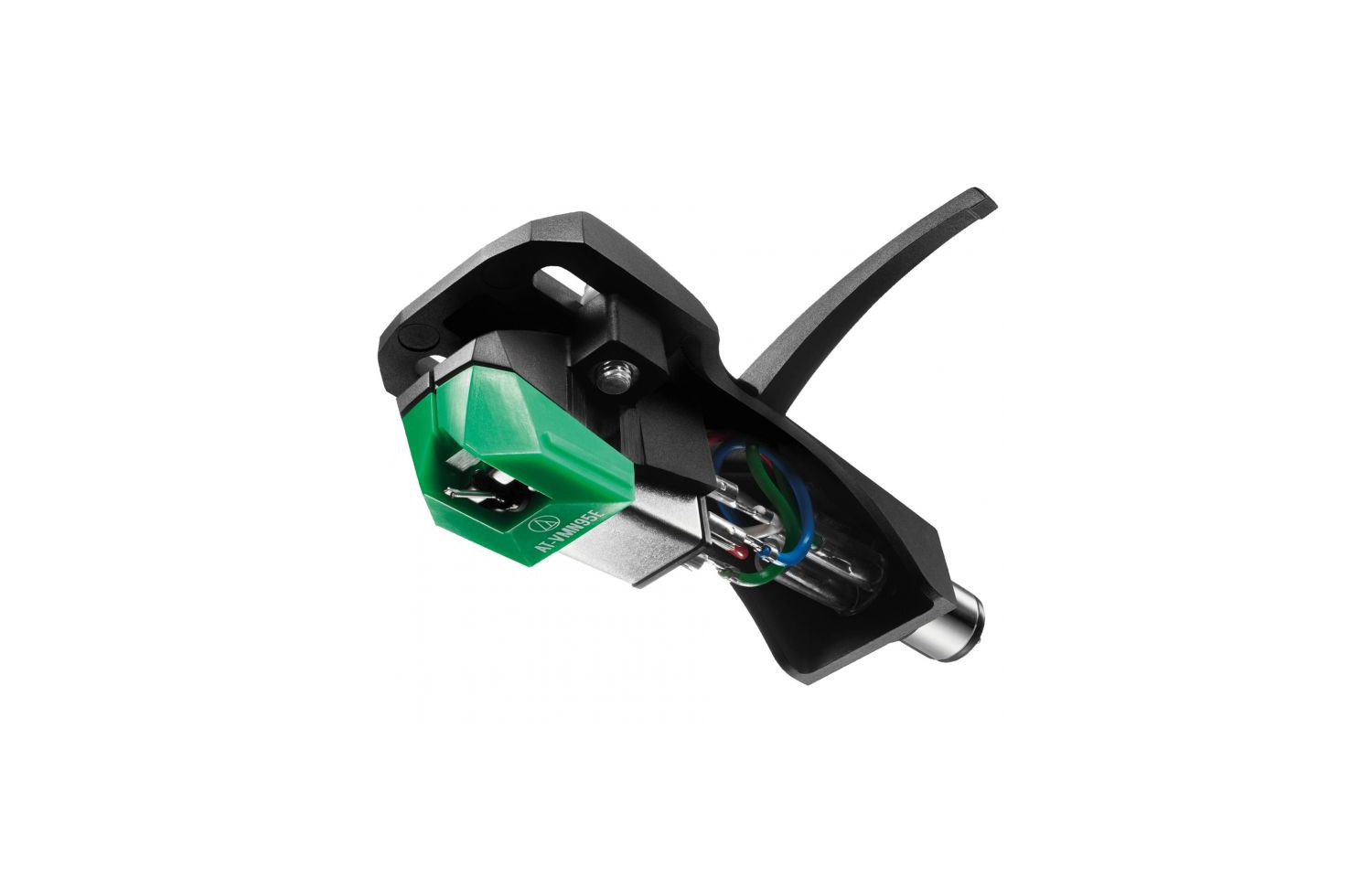

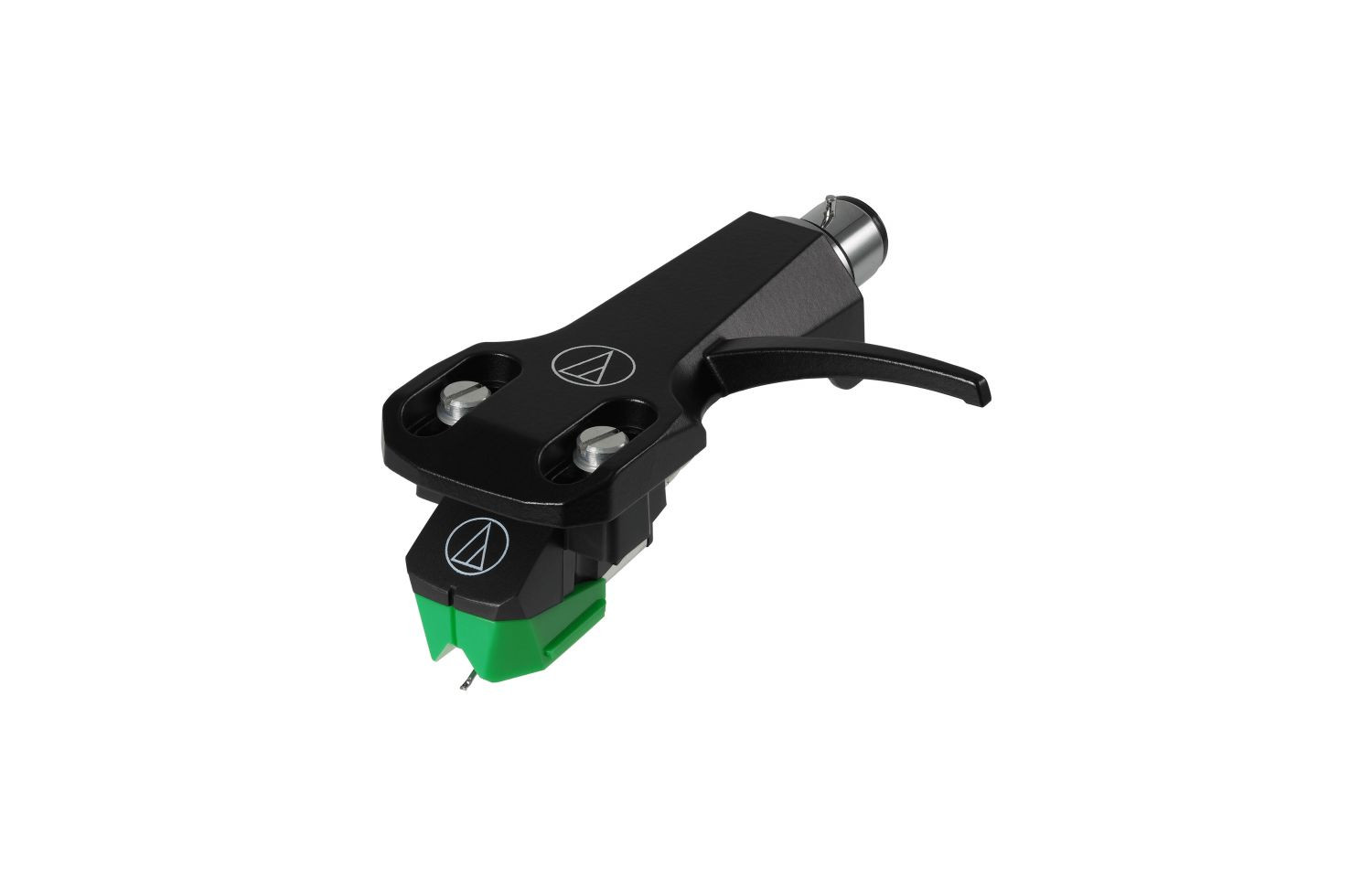

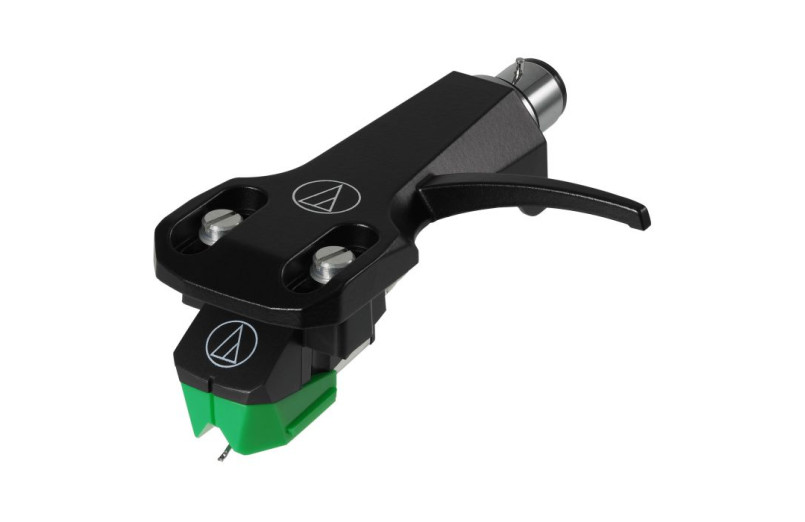

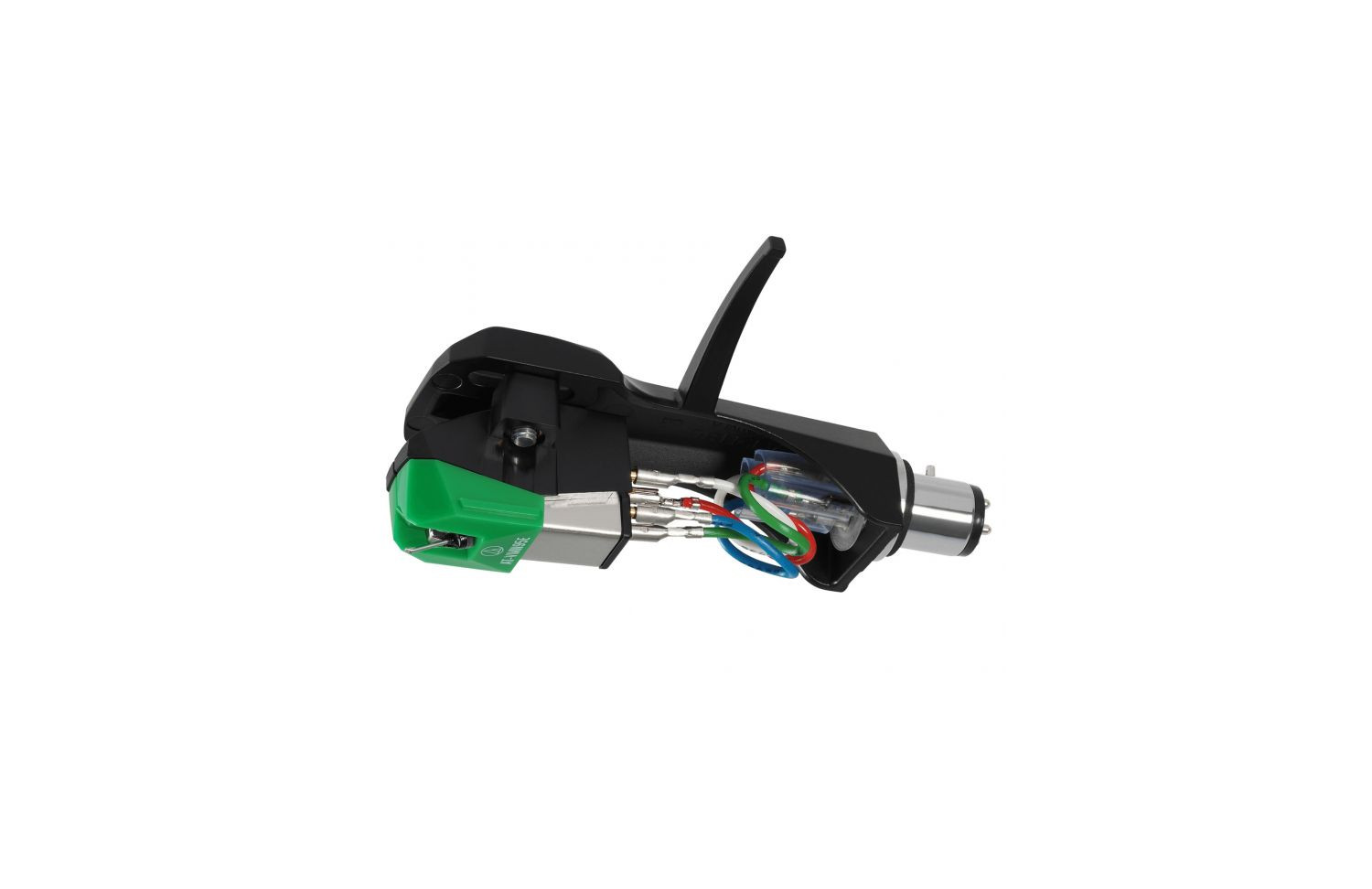

The AT-VM95E/H is a VM95 series cartridge/head assembly consisting of the AT-VM95E elliptical stylus stereo cartridge mounted on an AT-HS6BK head. The total weight of the assembly is 15.5 grams and is assembled and tested at Audio-Technica 's factory in Fukui, Japan.


Features:

  • Frequency Response: 20 - 22,000 Hz
  • Channel Separation: 20 dB (1 kHz)
  • Tracking Angle: Vertical 23° Vertical Tracking Force: 1.8
  • Vertical Tracking Force: 1.8 to 2.2g (2.0g standard)
  • Needle Construction: Glued round shank
  • Recommended Load Impedance: 47,000 O
  • Coil Impedance: 3.3 kO (1 kHz)
  • DC Resistance: 485 O
  • Coil Inductance: 550 mH (1 kHz)
  • Output Voltage: 4.0 mV (@ 1 kHz, 5 cm/sec)
  • Output Channel Balance: 2.0 dB (1 kHz)
  • Needle Shape: Elliptical
  • Cantilever: Aluminium tube
  • Static Compliance: 17 x 10 - 6 cm / dyne
  • Dynamic Compliance: 7 x 10 - 6 cm / dyne (100 Hz)
  • Mounting: 1/2" between centres
  • Dimensions: 21.2 × 21.4 × 21.4 × 62.4 (H x W x D in mm)
  • Model: AT-VM95E/H
  • Recommended Load Capacitance: 100-200 pF
  • Replacement Needle: AT-VMN95E
  • Needle Size: 0.3 x 0.7 mil
  • Type: VM Stereo Dual Magnet
  • Weight: 15.5 gr
  • Cable Used for Coil: T.P. Copper
