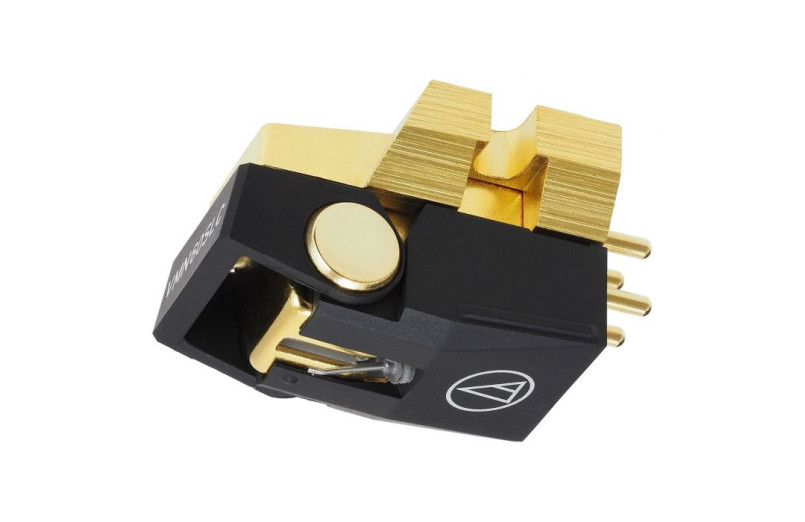

The VM760SLC special line contact needle cartridge is the flagship model of the VM cartridge line from Audio-Technica, a line that harks back to A-T's beginnings as a specialist manufacturer of high-end phono cartridges, but also incorporates today's advanced technology.

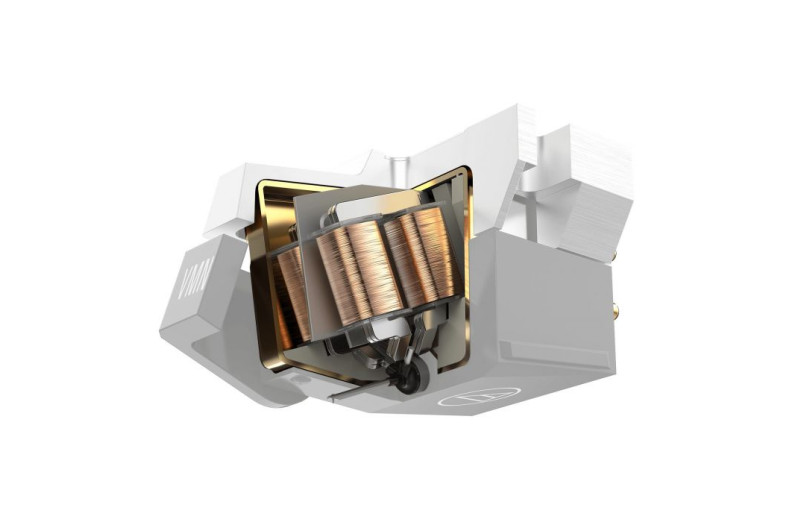

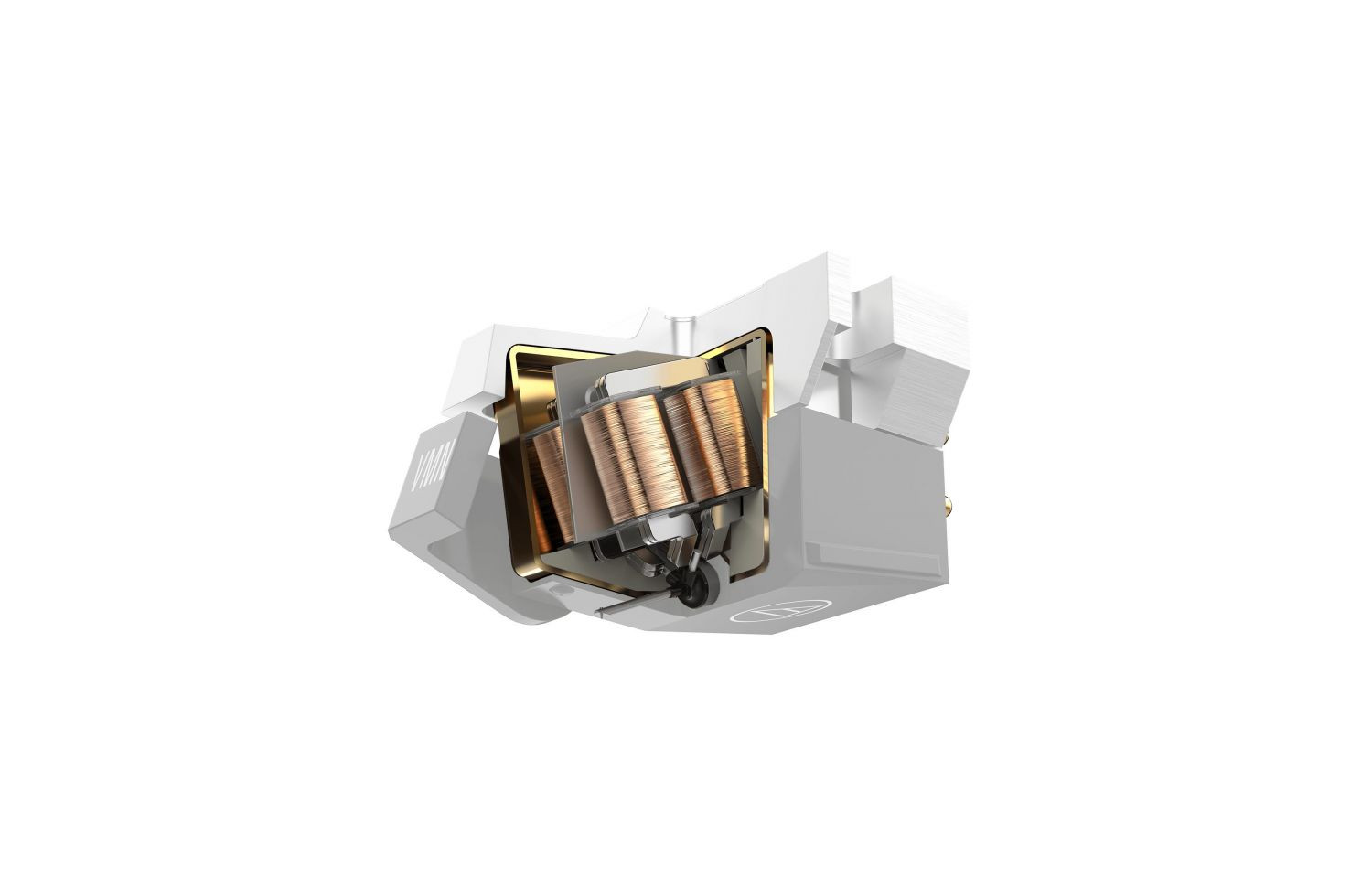

Like all VM cartridges, the VM760SLC is equipped with two magnets that match the left and right channel positions of the stereo disc groove, ensuring outstanding channel separation and increased frequency response.

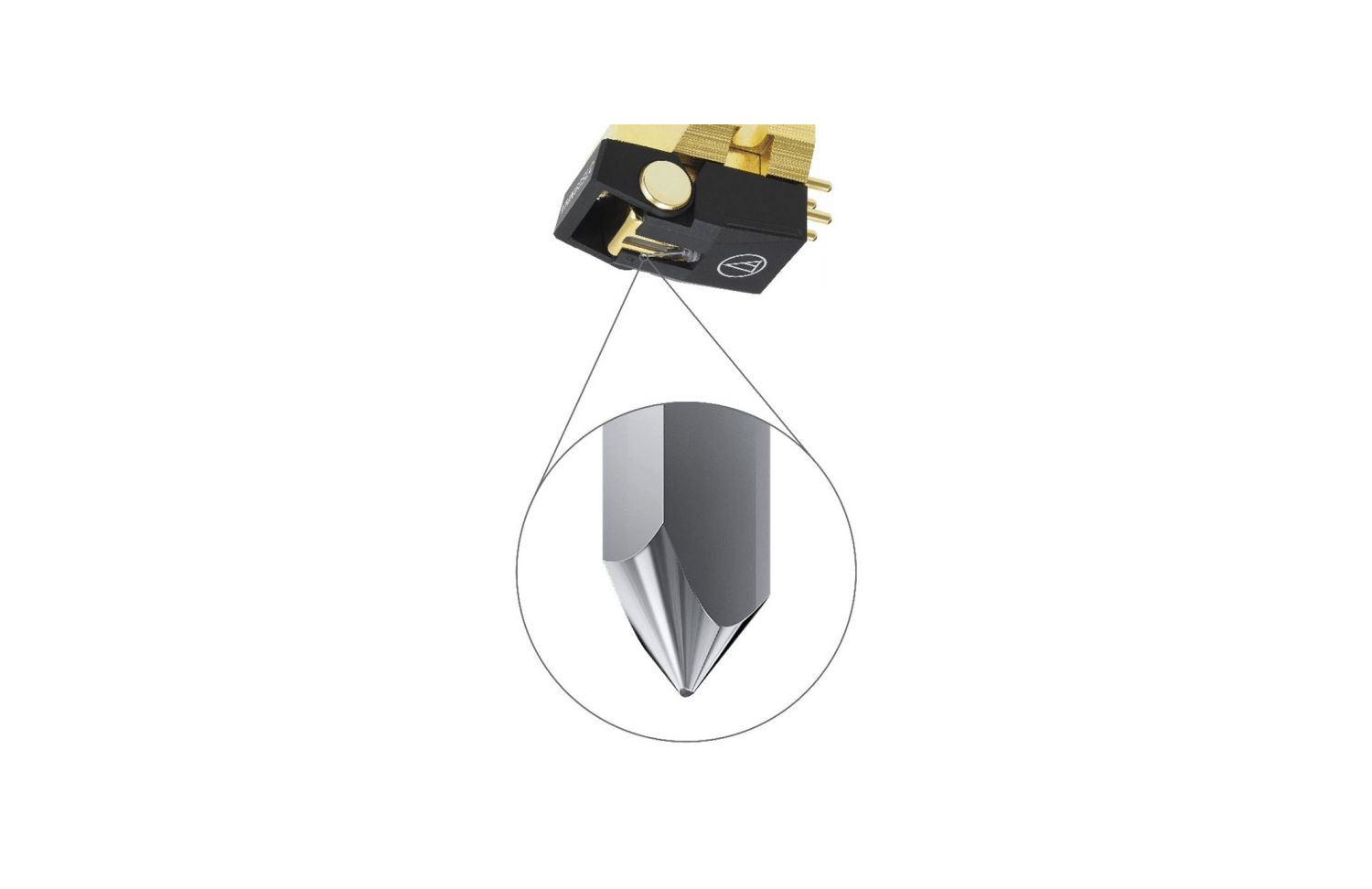

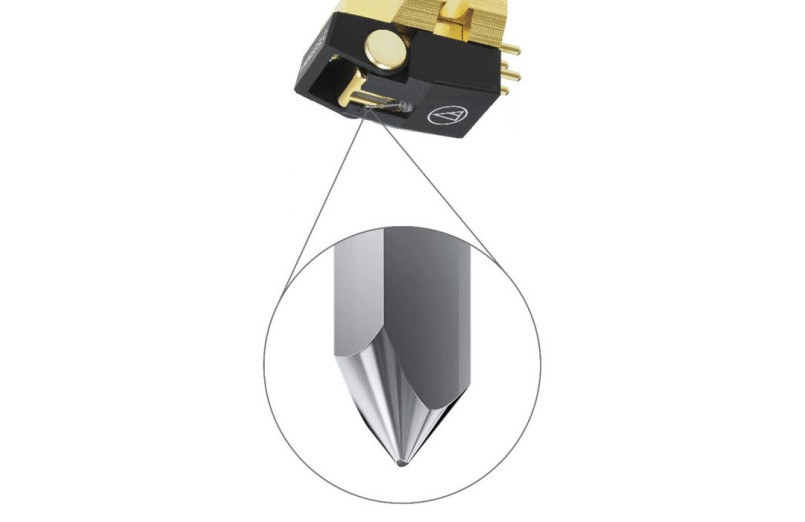

The capsule's ultra-light special line contact needle allows it to follow the record groove with incredible precision and minimal abrasion, resulting in nuanced sound reproduction, low distortion and low record wear. Mounting hardware included.
Features:
- Frequency Response:20 - 30.000Hz
- Channel Separation: 30dB (1kHz)
- Vertical Tracking Angle: 23° Vertical Tracking Force: 1.8
- Vertical Tracking Force: 1.8 to 2.2g (2.0g standard)
- Needle Construction: Bare Rectangular Shank
- Recommended Load Impedance: 47,000O
- Coil Impedance: 2,700O (1kHz)
- Output Voltage: 4.0mV (1kHz, 5cm/sec.)
- Output Channel Balance: 1.0dB (1kHz)
- Needle Shape: Special Line Contact
- Cantilever: Aluminium conical tube
- Static Compliance: 40 x 10-6 cm/dina
- Dynamic Compliance: 10 x 10-6 cm/line (100Hz)
- Mounting: 1/2" between centres
- Dimensions: 17.3 x 17.0 x 28.2 mm

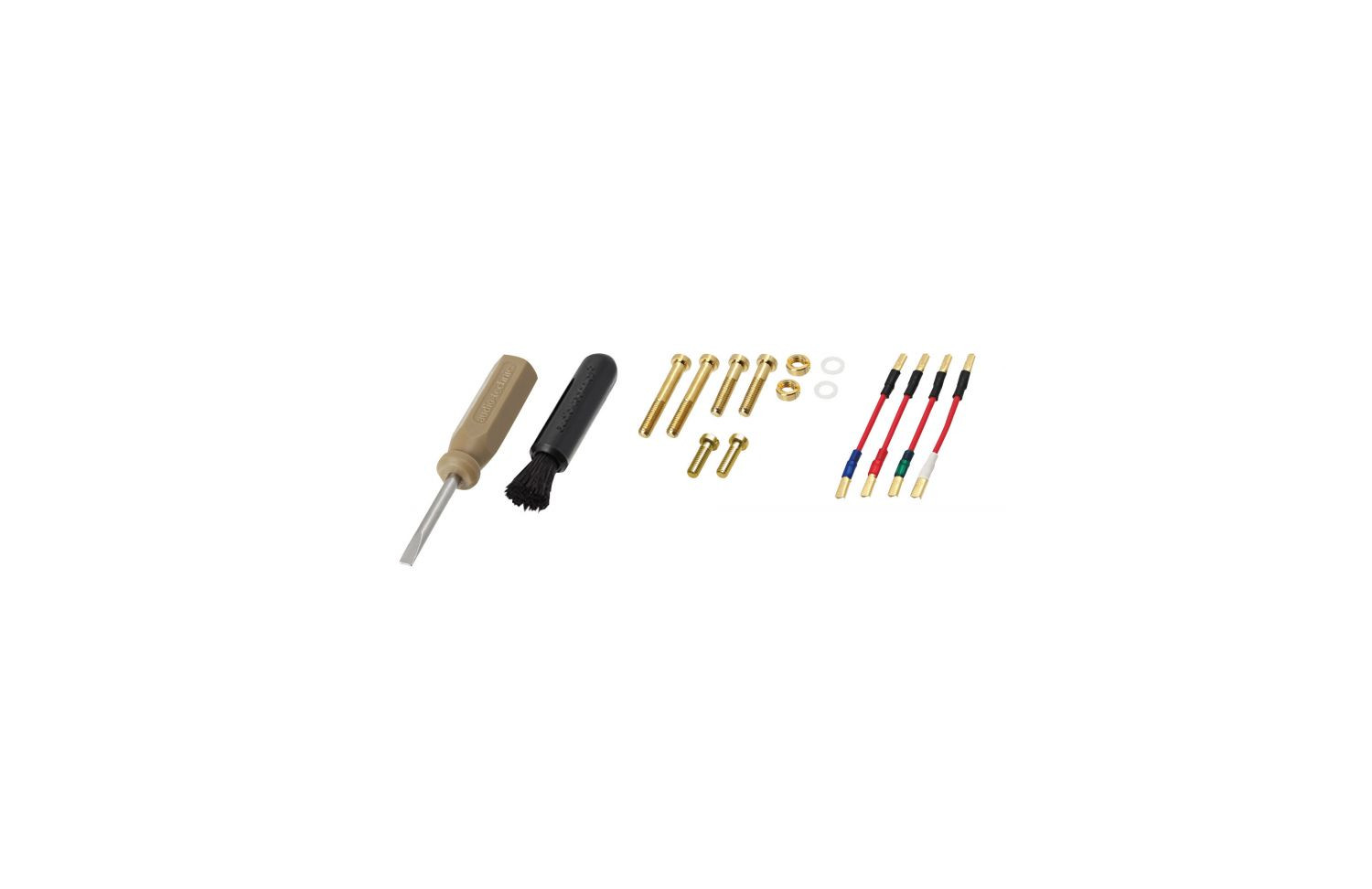

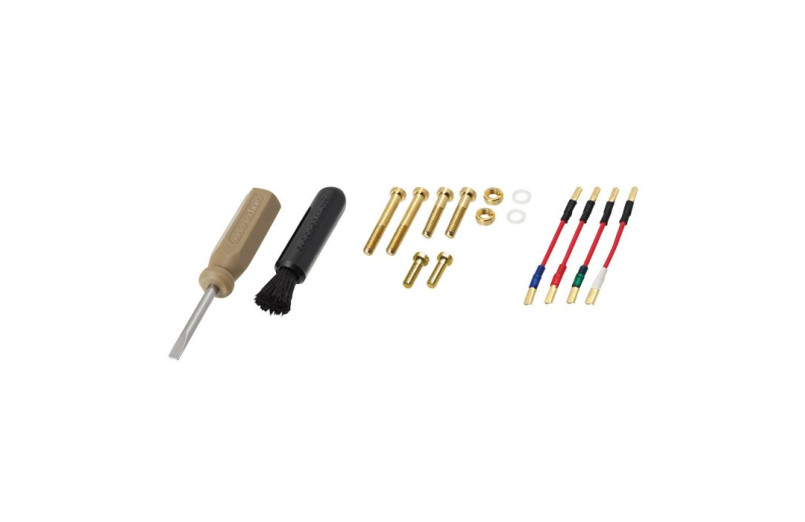

- Included Accessories: Capsule Installation Screws, 5mm ×2 and 10mm ×2, Washer ×2, Hex Nut ×2,
- Non-magnetic screwdriver ×1, Brush ×1, Terminal Wire Set ×1
- Recommended Load Capacitance: 100 - 200pF
- Replacement Needle: VMN60SLC
- Needle Size: 0.28 x 1.5 mil
- Type: VM Type
- Weight: 8.0gr
