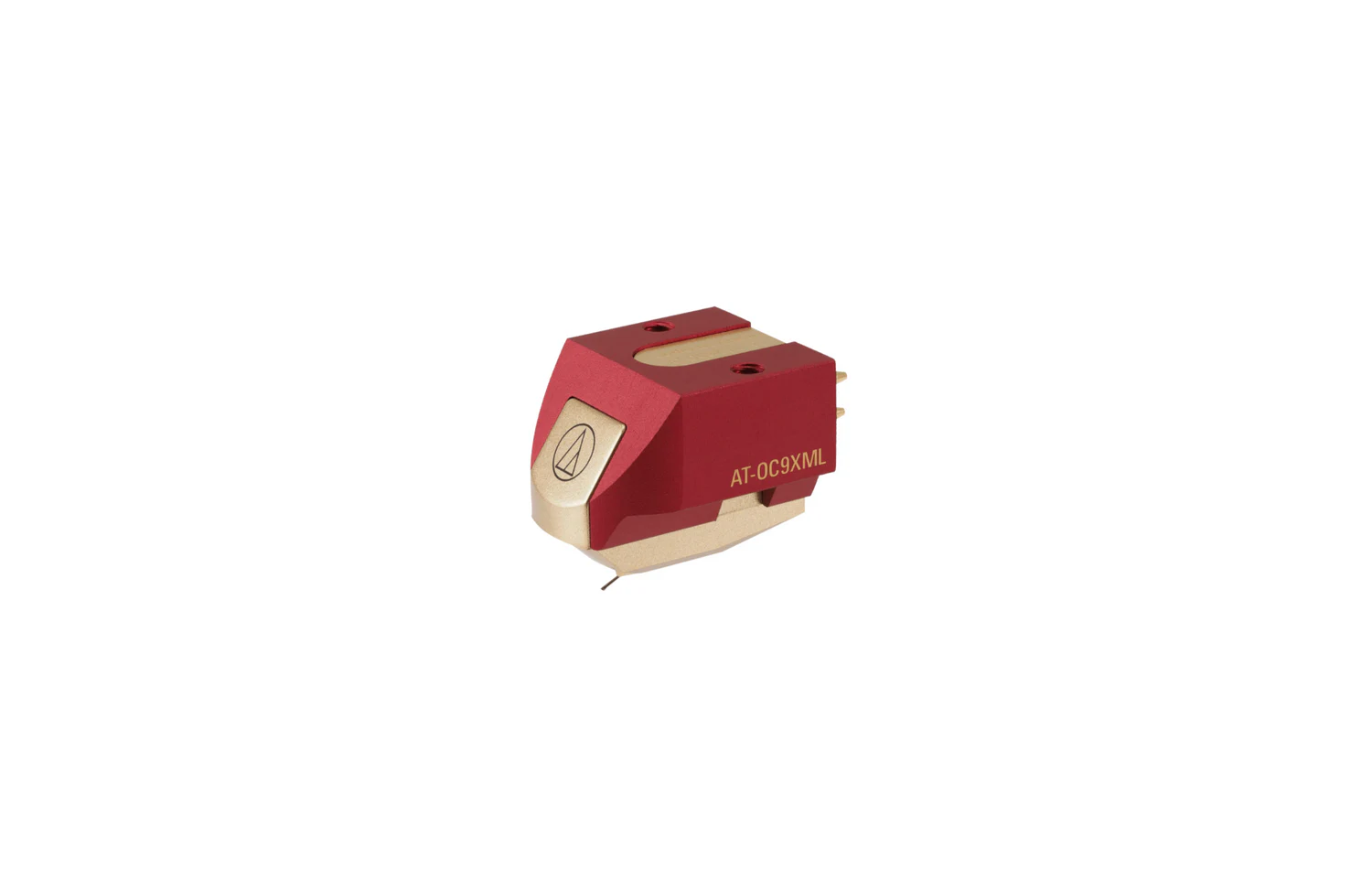

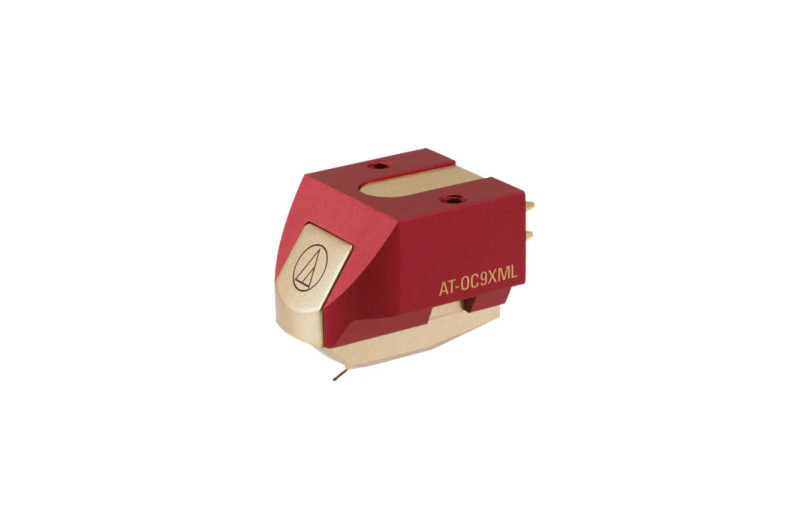

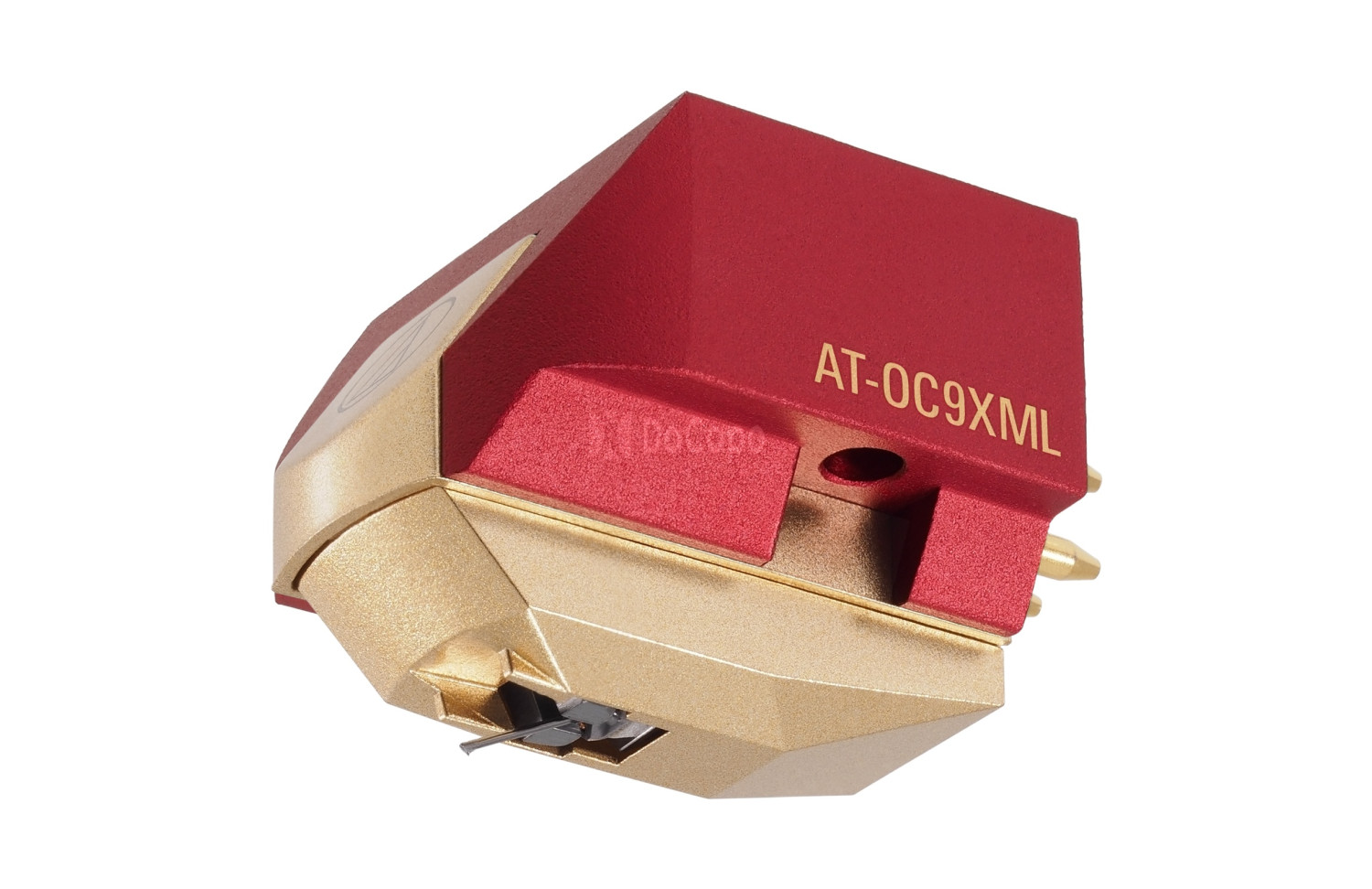

The AT-OC9XML dual voice coil stereo capsule features a bare Microlinear stylus and boron cantilever, neodymium magnet and permendur yoke for increased magnetic energy and features threaded inserts in the capsule body.

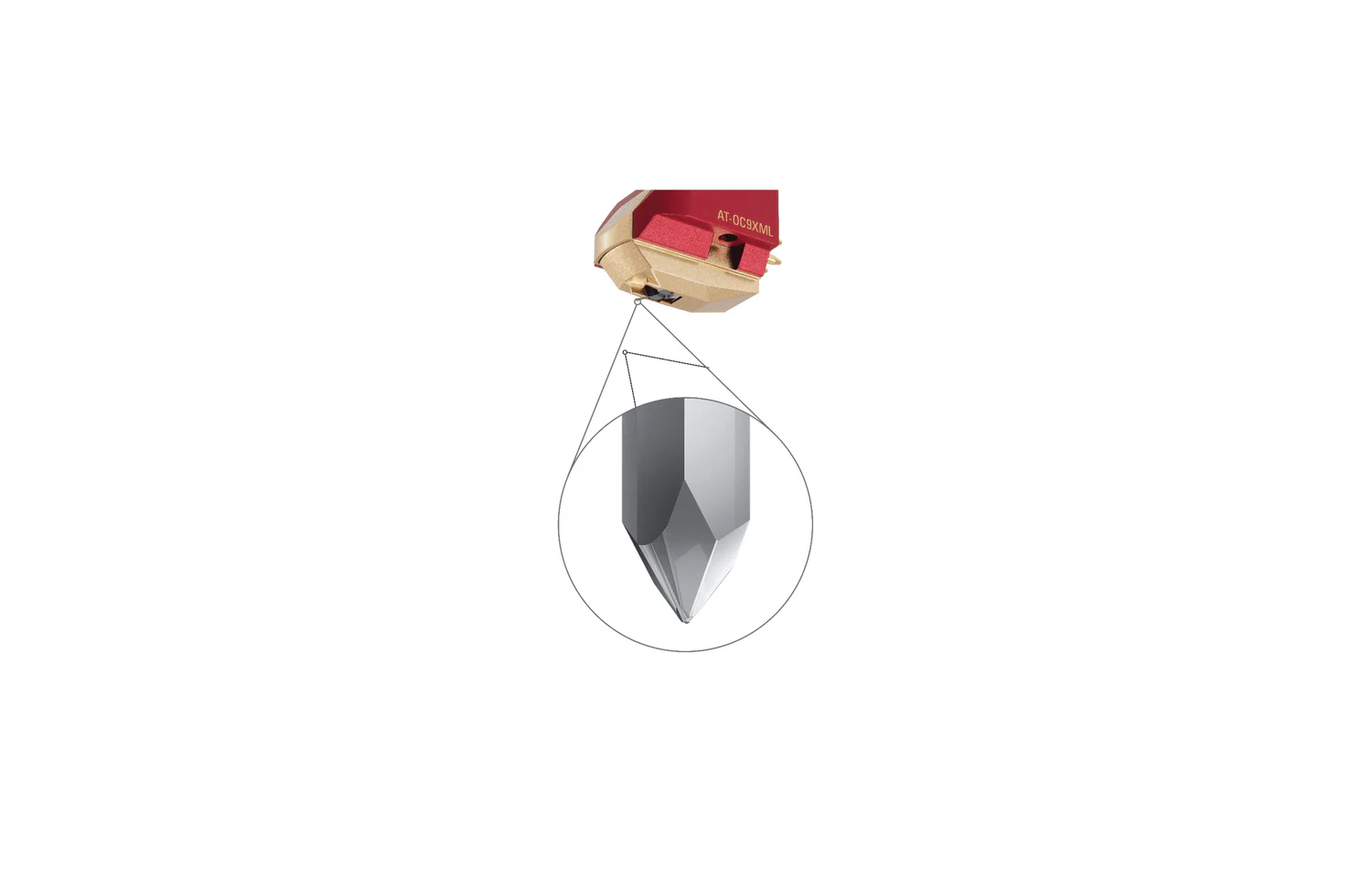

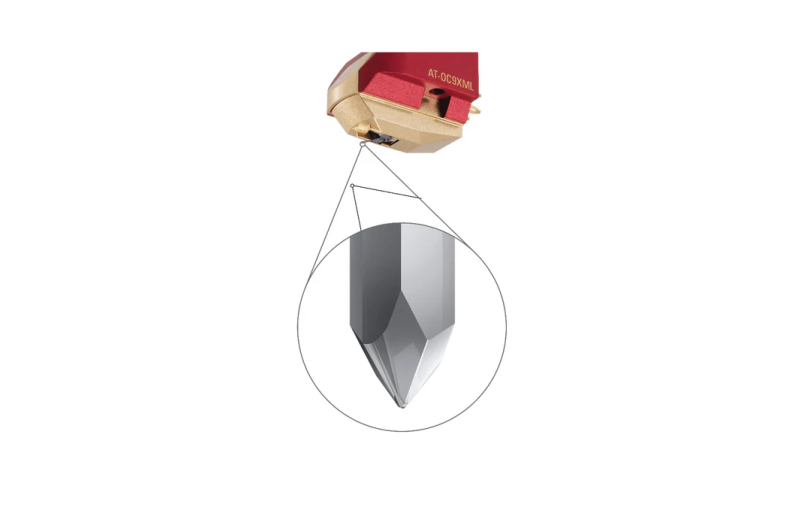

The Microlinear diamond profile provides low registration and stylus wear.
- It incorporates a bare Microlinear stylus and a boron cantilever, which provides lower distortion and high transient response.
- A neodymium magnet and permendur yoke provide a dramatic increase in magnetic energy.
- Threaded inserts in the capsule body allow the capsule to be mounted to the head or integrated arm with only two screws, no nuts are required
- Aluminium body minimises unwanted vibration for reduced resonance and superior audio reproduction
- Pure oxygen-free, continuously cast copper (PCOCC) is used for the coils to achieve the purest possible signal
Features:
- Frequency Response: 20 - 47,000 Hz
- Channel Separation: 27 dB (1 kHz)
- Vertical Tracking Angle: 20 degrees
- Vertical Tracking Force 1.8 to 2.2 g (standard 2.0 g)
- Needle Construction: Bare Square Shank
- Recommended Load Impedance Minimum 100 Ohms
- Coil Impedance: 12 Ohms (1 kHz)
- DC Resistance: 12 Ohms
- Coil Inductance: 25 µH (1 kHz)
- Output Voltage: 0.4 mV (at 1 kHz, 5 cm/sec)
- Output Channel Balance: 1.0 dB (1 kHz)
- Needle Shape: Microlinear
- Cantilever: 0.28 mm Ø bare boron
- Static Compliance: 20 x 10 - 6 cm / dyne
- Dynamic Compliance: 16 x 10 - 6 cm / dyne (100 Hz)
- Mounting: 1/2" centre / threaded holes
- Capsule Weight: 7.6 grams
- Dimensions: 17.3 (H) x 16.8 (W) x 25.7 (L) mm

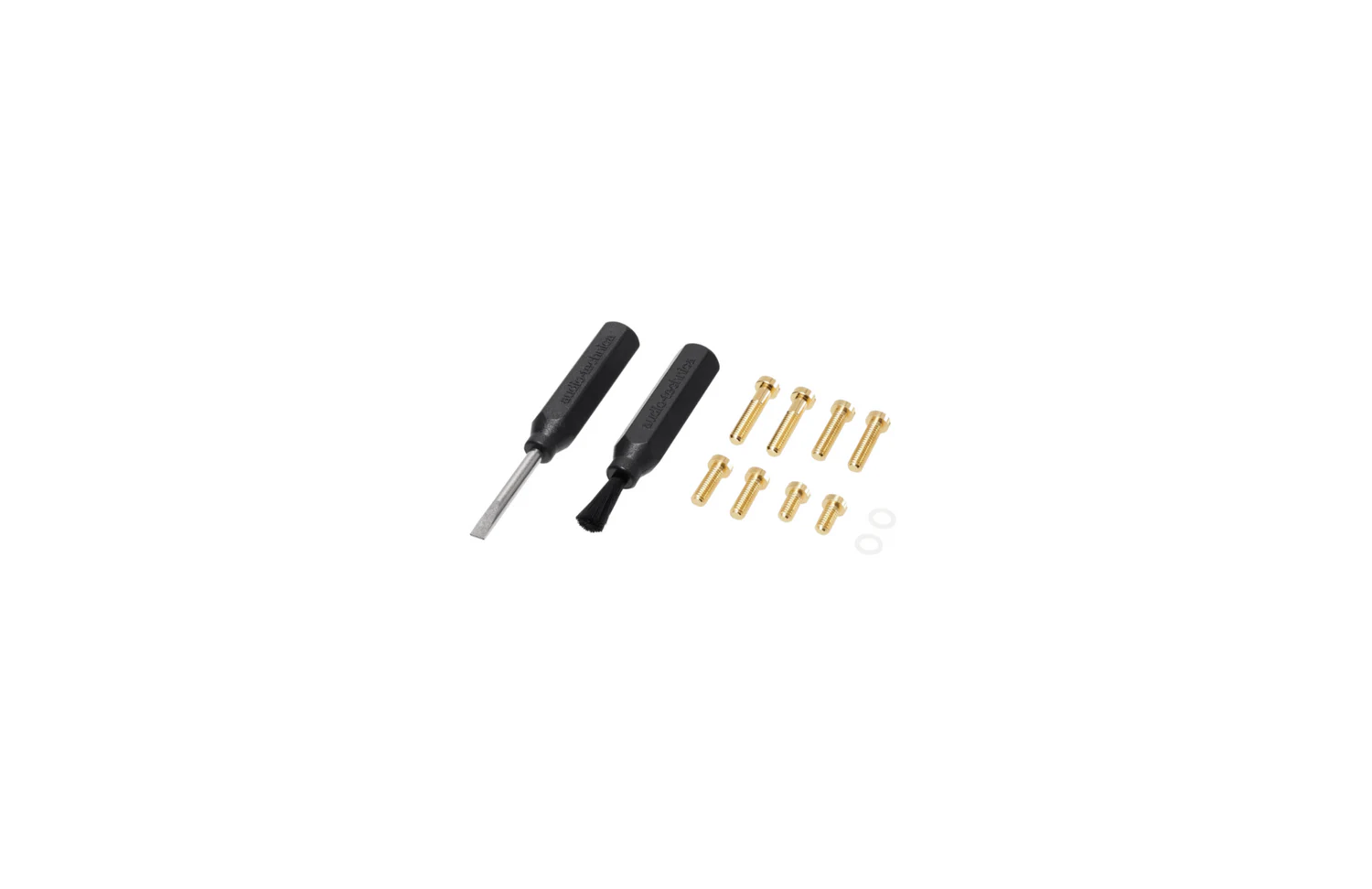

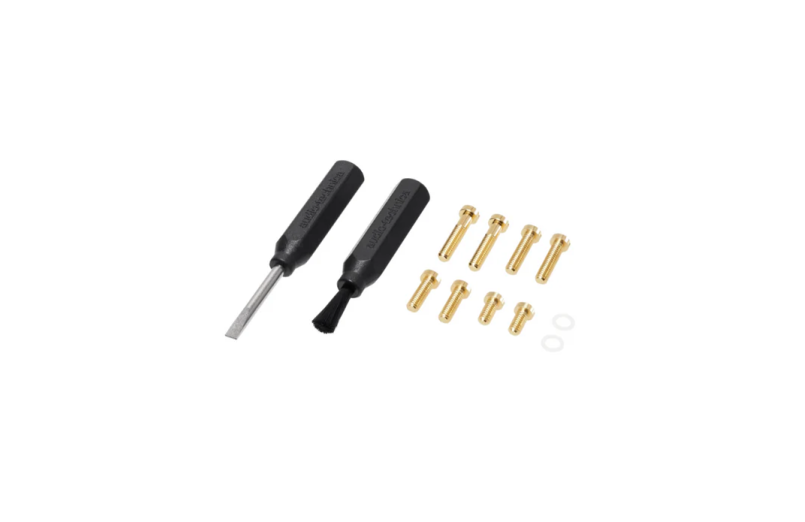

- Accessories Included: 1 non-magnetic screwdriver; 1 paintbrush; 2 washers; 4 pairs of mounting screws 5mm, 8mm, 10mm, 12mm; 1 plastic protector
- Body Material: Aluminium
- Needle Size: 2.2 x 0.12 mil
- Terminal Pins: Copper
- Wire Used for Coil: PCOCC (Ohno. Continuous Copper Casting Process Copper)
