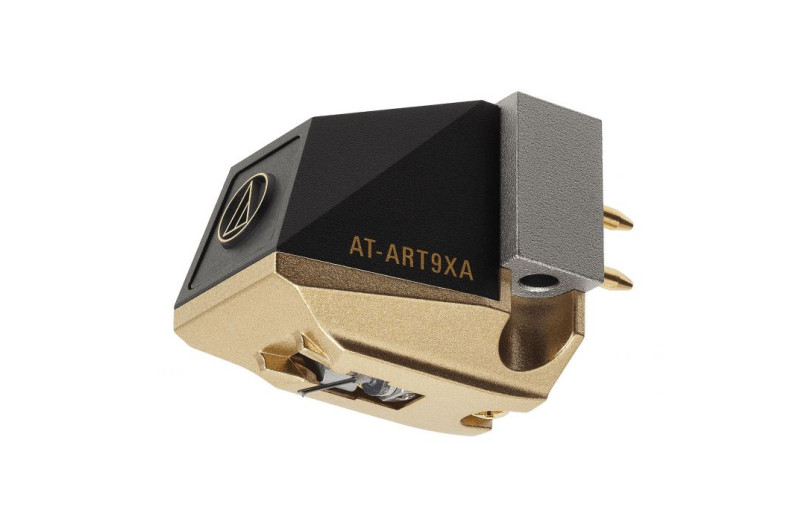

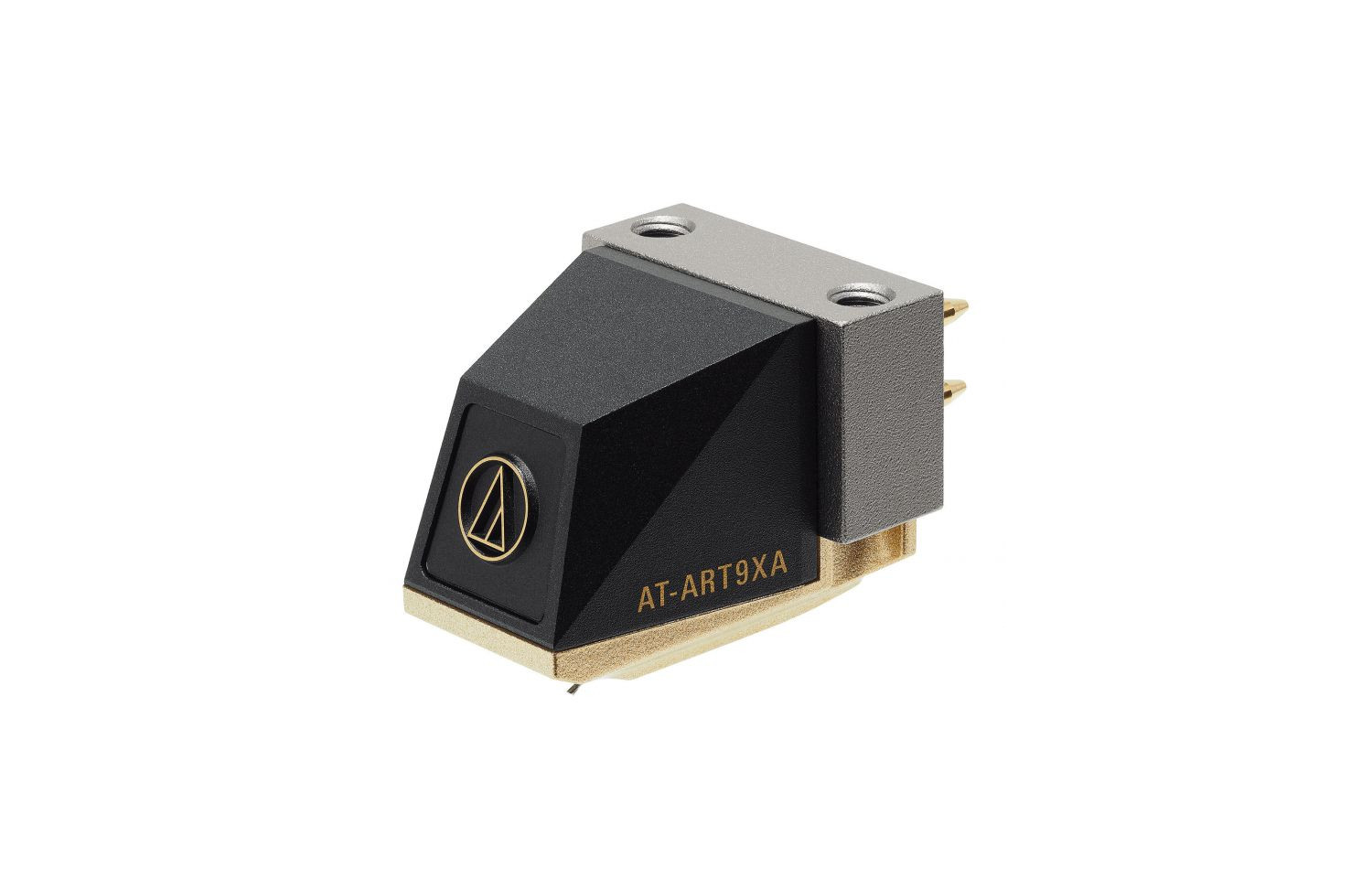

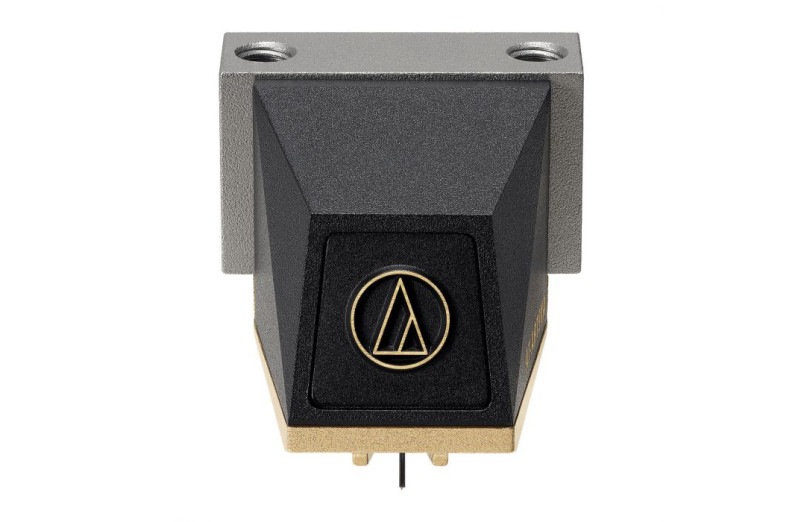

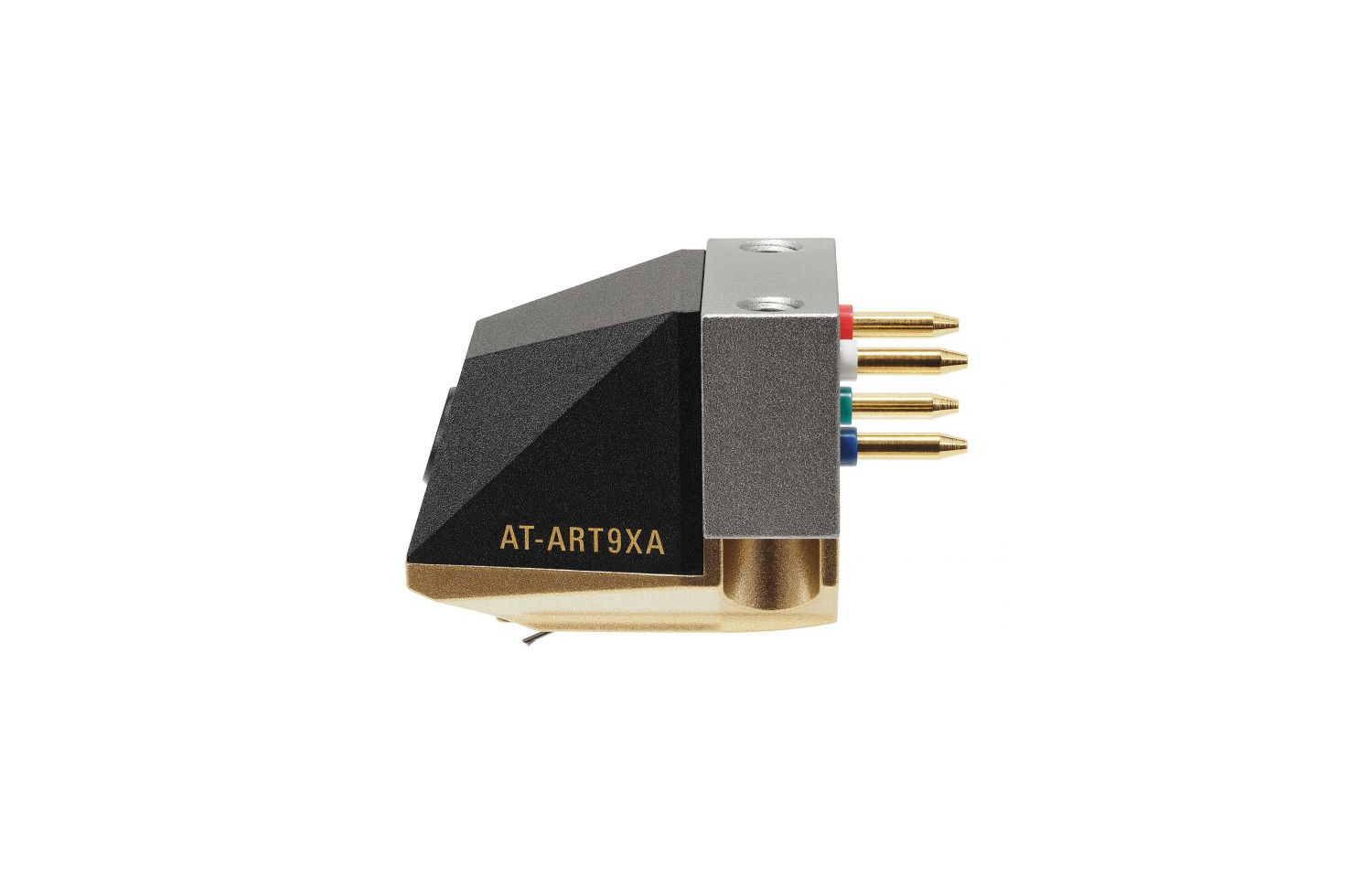

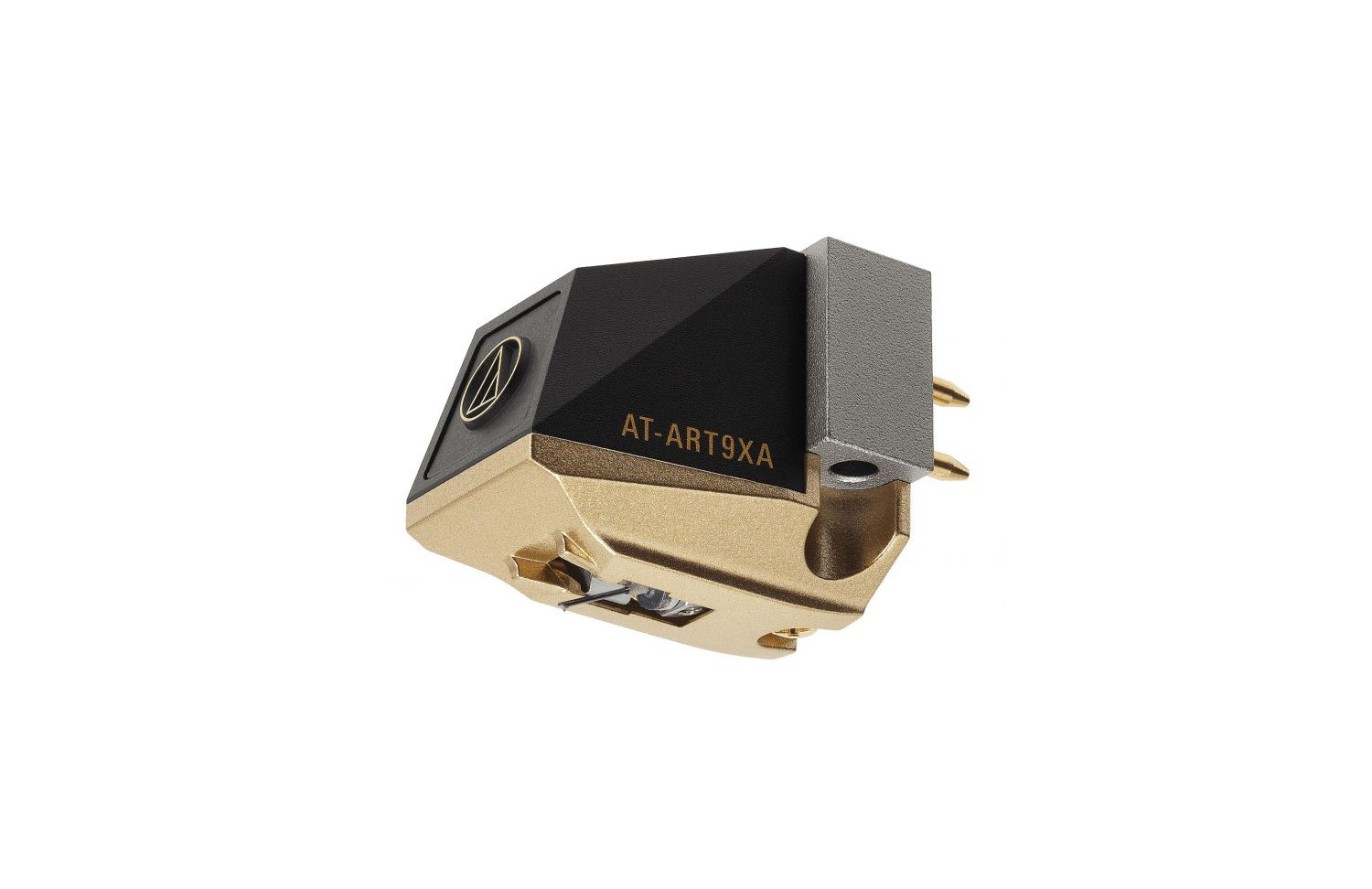

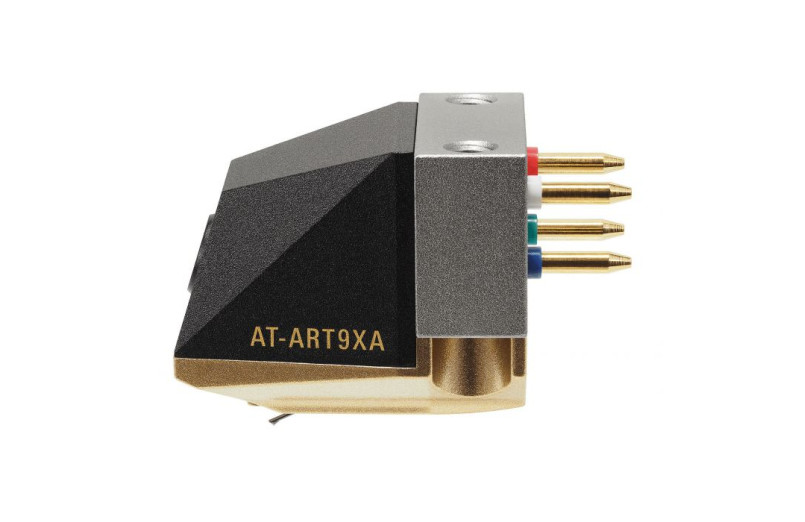

The name "ART" in the model number stands for Audio-Technica Reference Transducer, a designation we give only to our reference phono cartridges.
Compared to the magnetic core used in most moving coil cartridges, non-magnetic core cartridges have no magnetic distortion, resulting in a natural timbre and an accurate sound field.

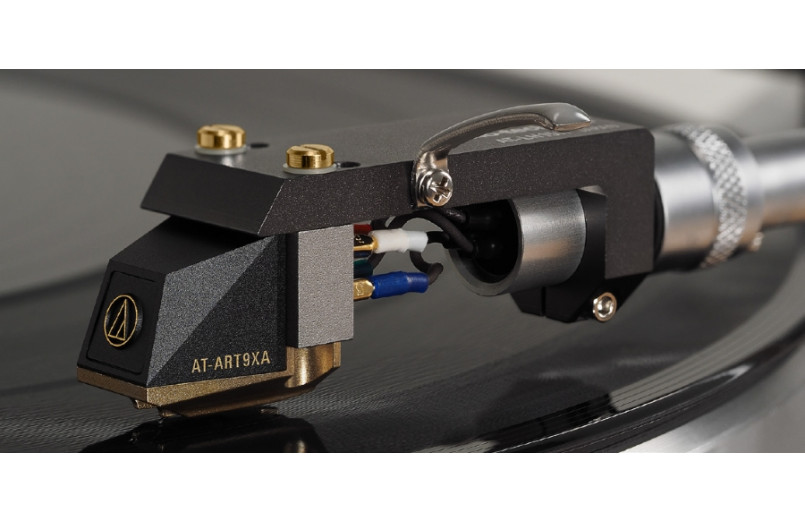

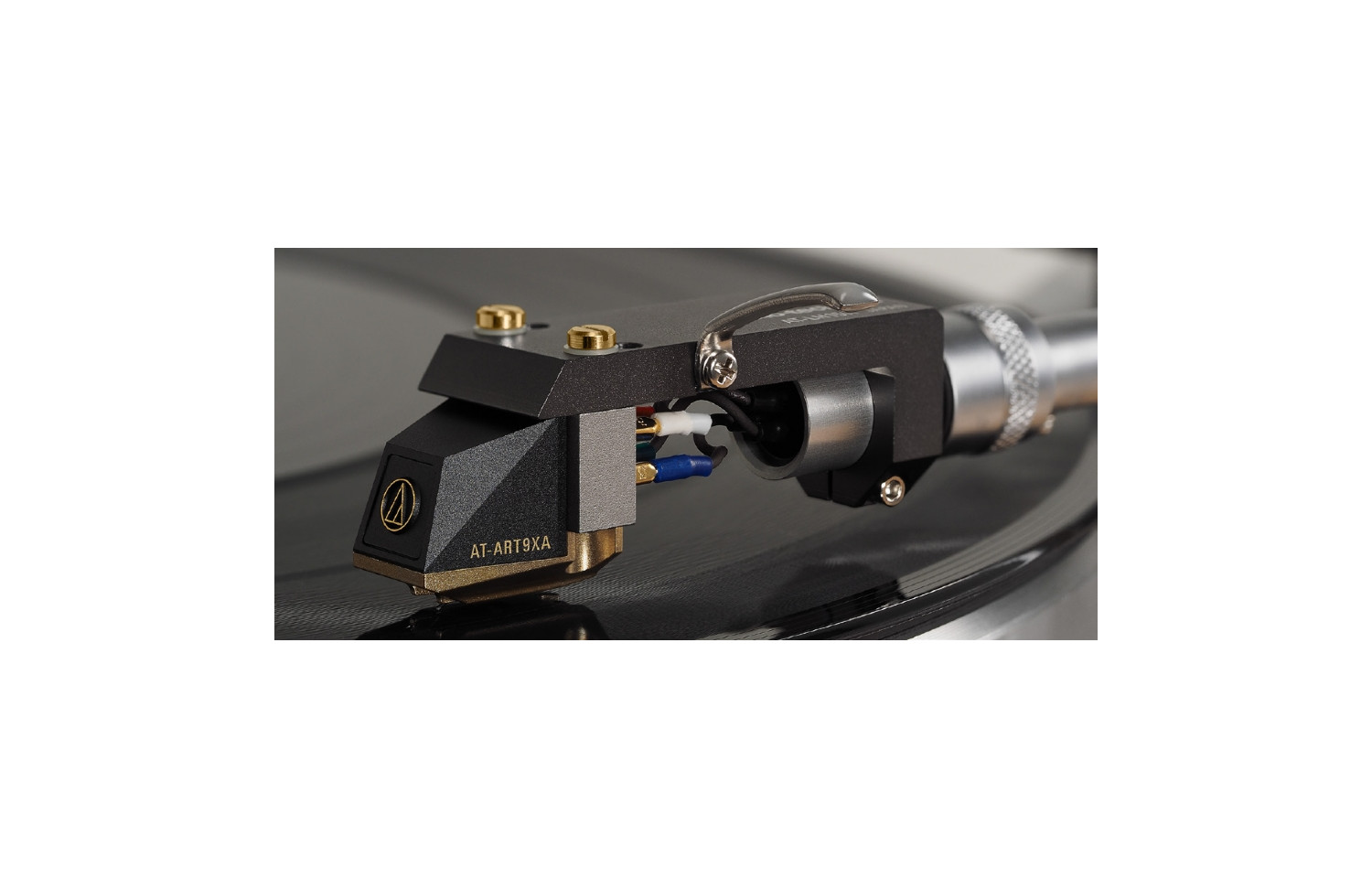

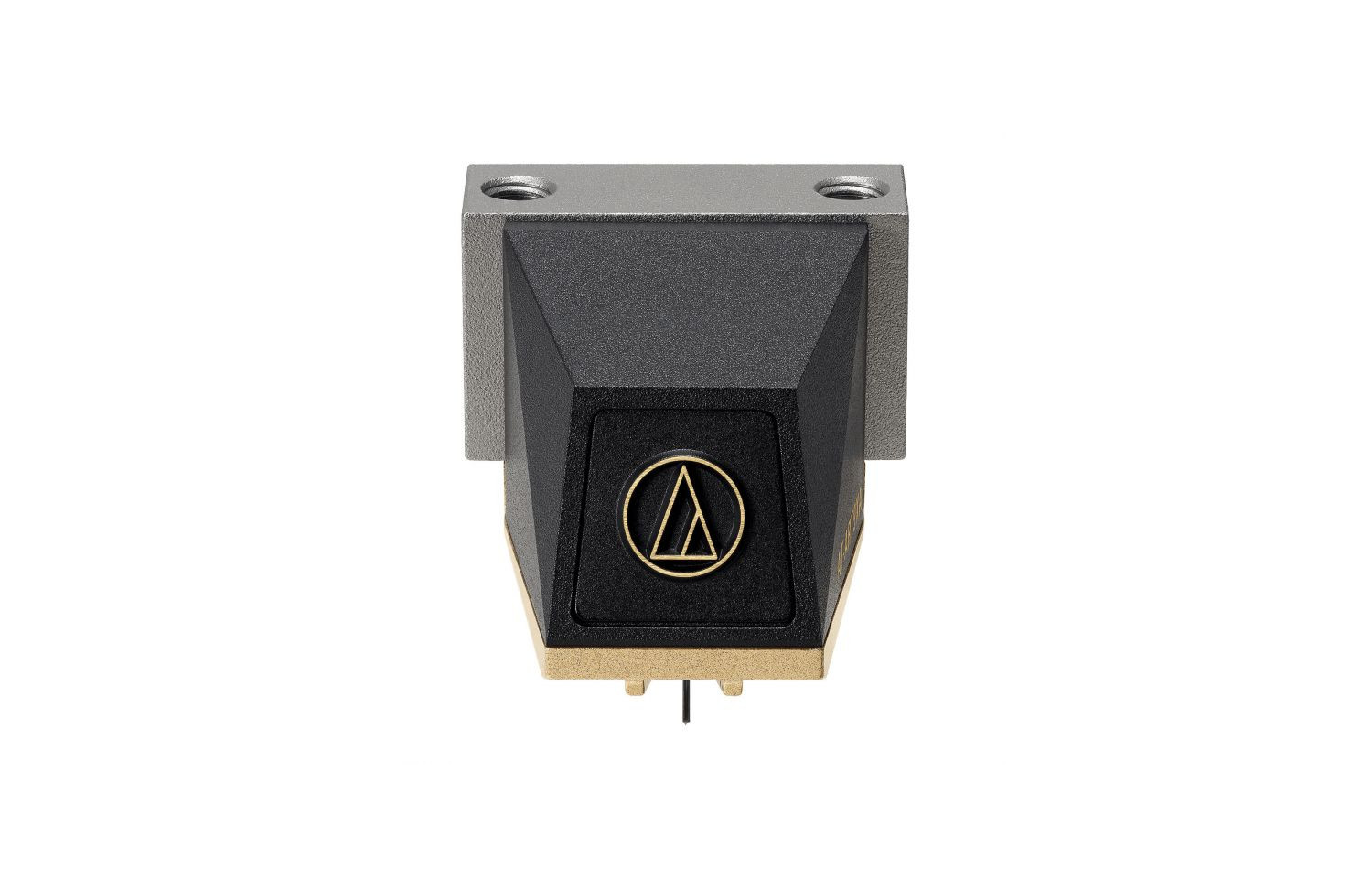

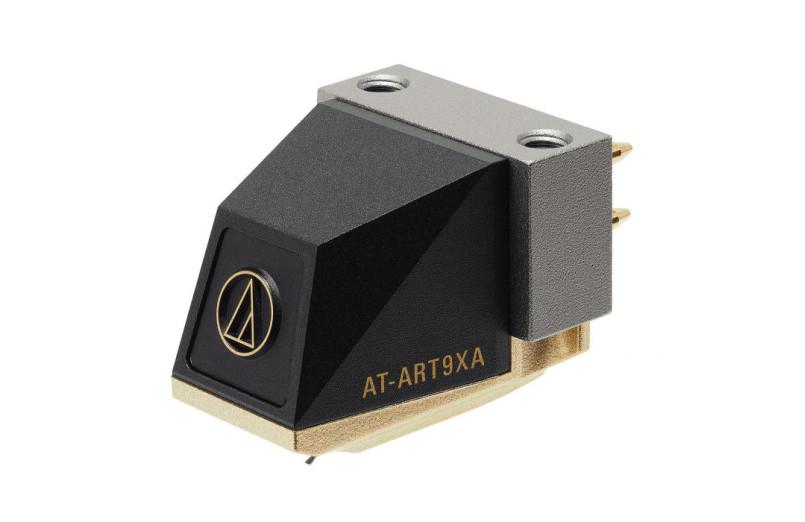

While conventional non-magnetic cores struggle with output voltage, the AT-ART9XA features a newly designed coil armature with an improved output voltage of 0.2 mV (1 kHz, 5 cm/s). Threaded capsule mounting holes make installation on a capsule holder or integrated arm an incredibly simple process.
Features:
- Frequency Response: 20-50,000 Hz
- Channel Separation: 30 (dB at 1 kHz)
- Vertical Tracking Angle: 20° Vertical Tracking Force
- Vertical Tracking Force 1.6-2.0 gr (1.8 gr standard)
- Needle Construction: Bare
- Recommended Load Impedance Min. 100 ohms (when amplifier is connected)
- Coil Impedance: 12 ohms (1 kHz)
- DC Resistance: 12 ohms
- Coil Inductance: 2.5 µH (1 kHz)
- Output Voltage: 0.2 mV (1 kHz, 5 cm/sec.)
- Output Channel Balance: 0.5 dB (1 kHz)
- Needle Shape: Shibata
- Cantilever: Solid boron, 0.28 mm diameter
- Static Compliance: 20 x 10-6 cm/line
- Dynamic Compliance: 10 x 10-6 cm/line (100 Hz)
- Mounting: Half-inch
- Capsule Weight: 8.5 gr.
- Dimensions: 17.3 mm × 16.8 mm × 25.0 mm
- Included Accessories: Non-magnetic screwdriver, paintbrush, washers × 2, capsule mounting screws (M2.6) (5.0 mm × 2; 8.0 mm × 2; 10.0 mm × 2; 12.0 mm × 2), protector
- Threaded Hole: M2.6 × 2
- Note: Moving coil capsules require receivers or preamplifiers with compatible inputs; their pin assemblies are not user-replaceable.
