699 €
VAT included
Shibata stylus dual moving coil stereo capsule

Get register and you will earn 699 points Get register and you will earn 699 points

Your cart will total 699 points that can be converted into a voucher of 7 €.

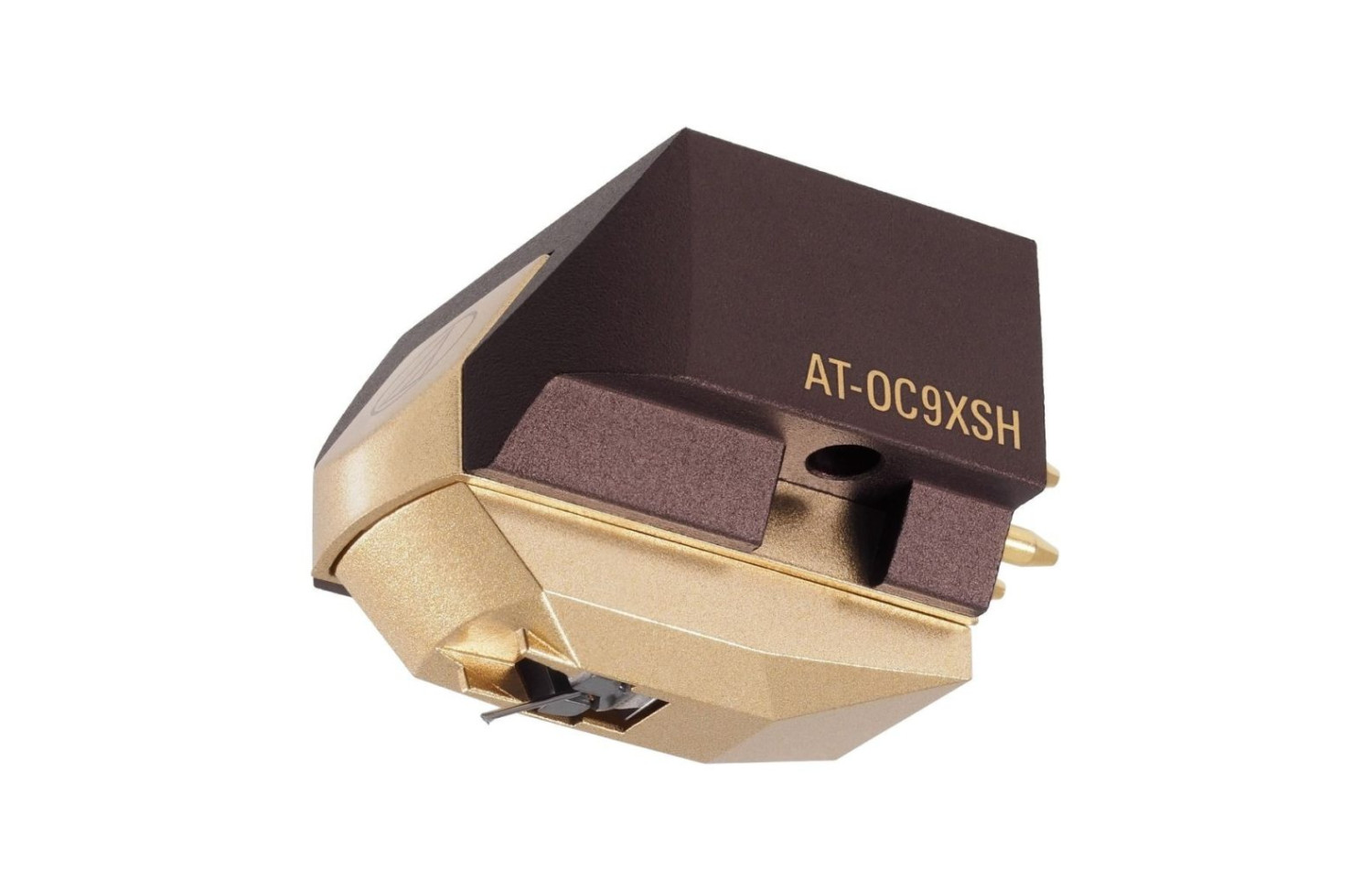

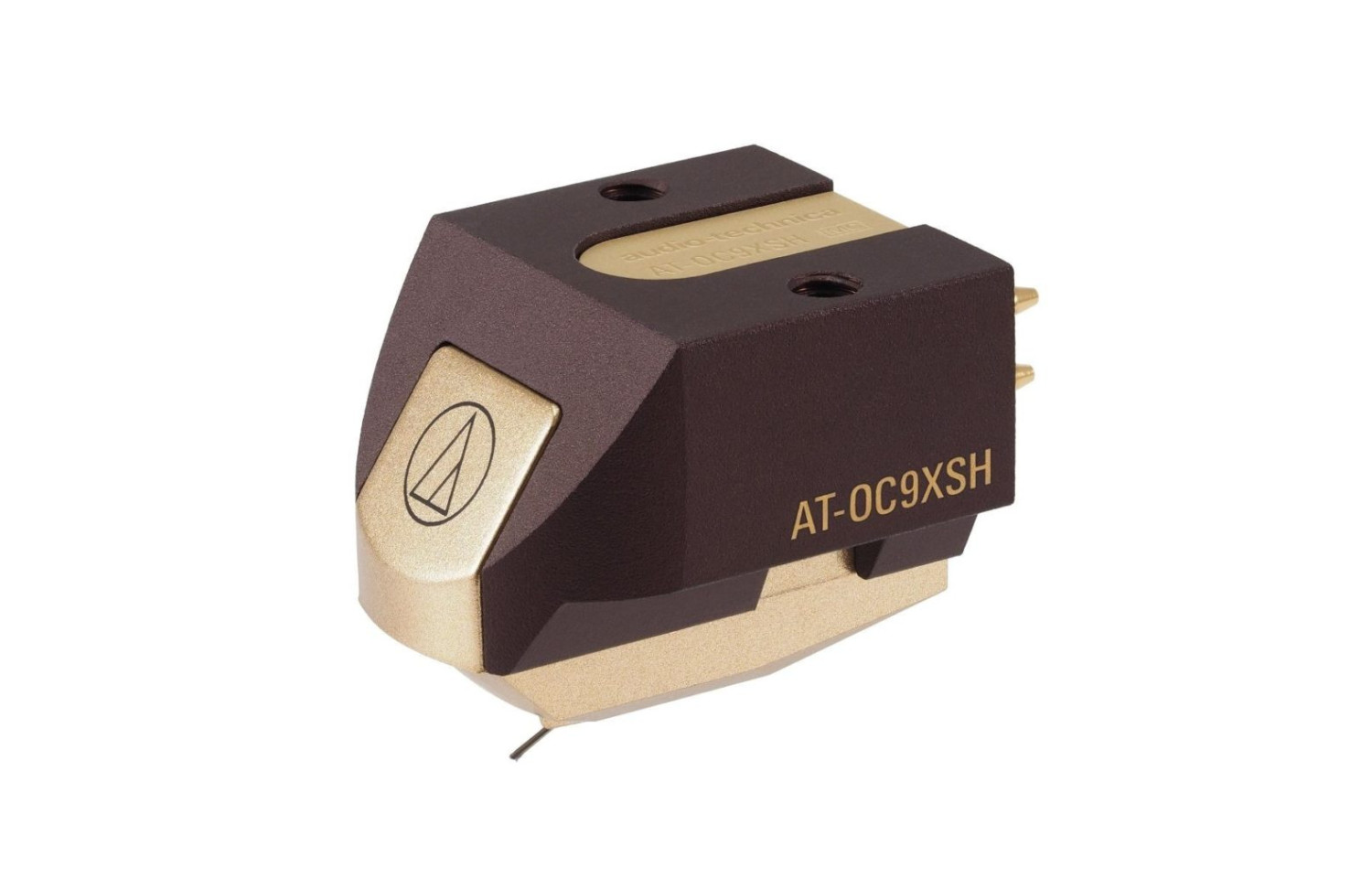

The AT-OC9XSH dual voice coil stereo capsule features a Shibata bare stylus and boron cantilever, neodymium magnet and permendur yoke for increased magnetic energy and features threaded inserts in the capsule body.


Features:

  • Frequency Response: 20 - 47,000 Hz
  • Channel Separation: 27 dB (1 kHz)
  • Vertical Tracking Angle: 20 degrees
  • Vertical Tracking Force 1.8 to 2.2 g (standard 2.0 g)
  • Needle Construction: Bare Square Shank
  • Recommended Load Impedance Minimum: 100 Ohms
  • Coil Impedance: 12 Ohms (1 kHz)
  • DC Resistance: 12 Ohms
  • Coil Inductance: 25 µH (1 kHz)
  • Output Voltage: 0.4 mV (at 1 kHz, 5 cm/sec)
  • Output Channel Balance: 1.0 dB (1 kHz)

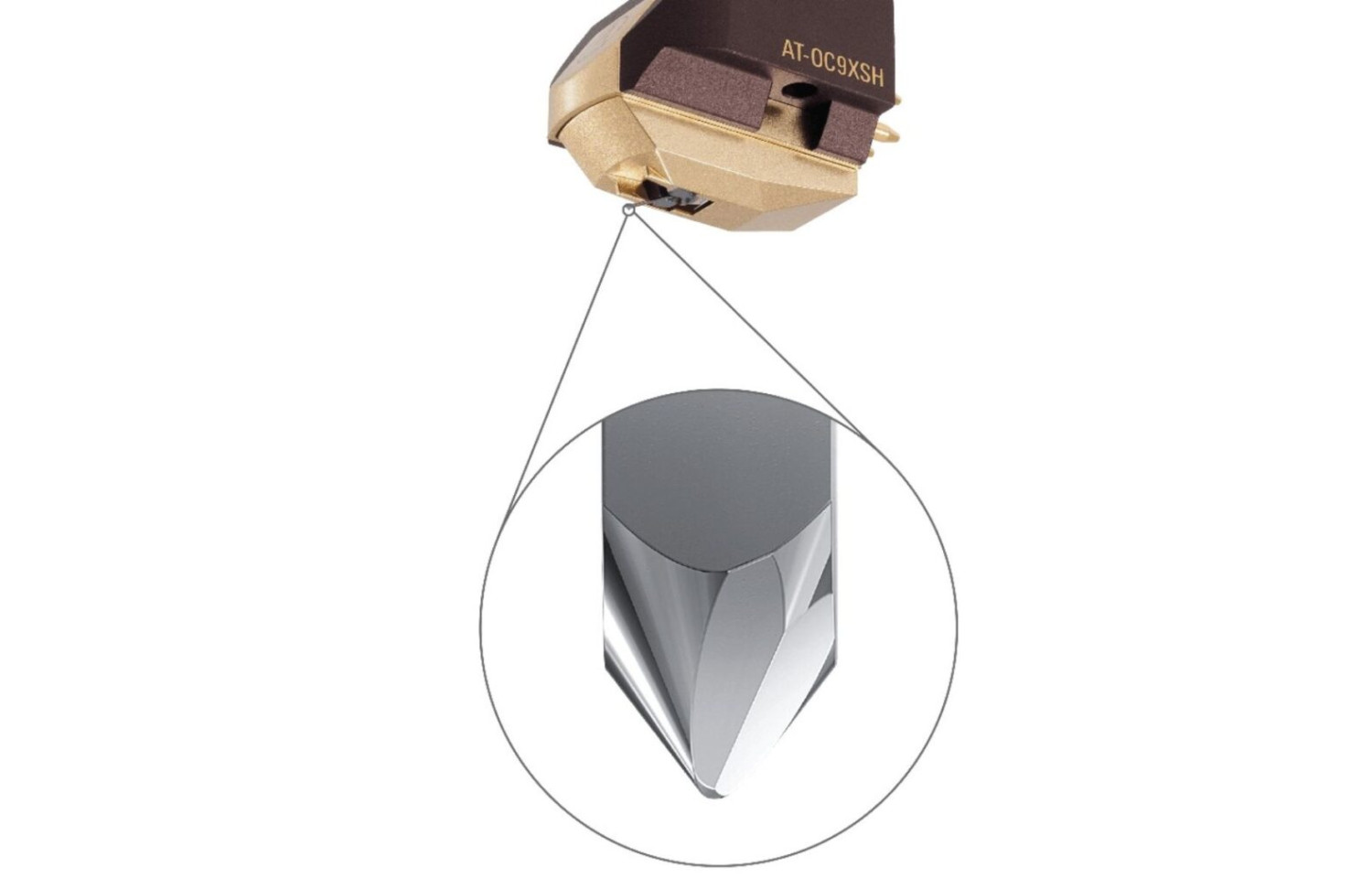

  • Needle Shape: Shibata
  • Cantilever: 0.28 mm Ø bare boron
  • Static Compliance: 20 x 10 - 6 cm / dyne
  • Dynamic Compliance: 16 x 10 - 6 cm / dyne (100 Hz)
  • Mounting 1/2" centre / threaded holes
  • Capsule Weight: 7.6 grams
  • Dimensions: 17.3 (H) x 16.8 (W) x 25.7 (L) mm

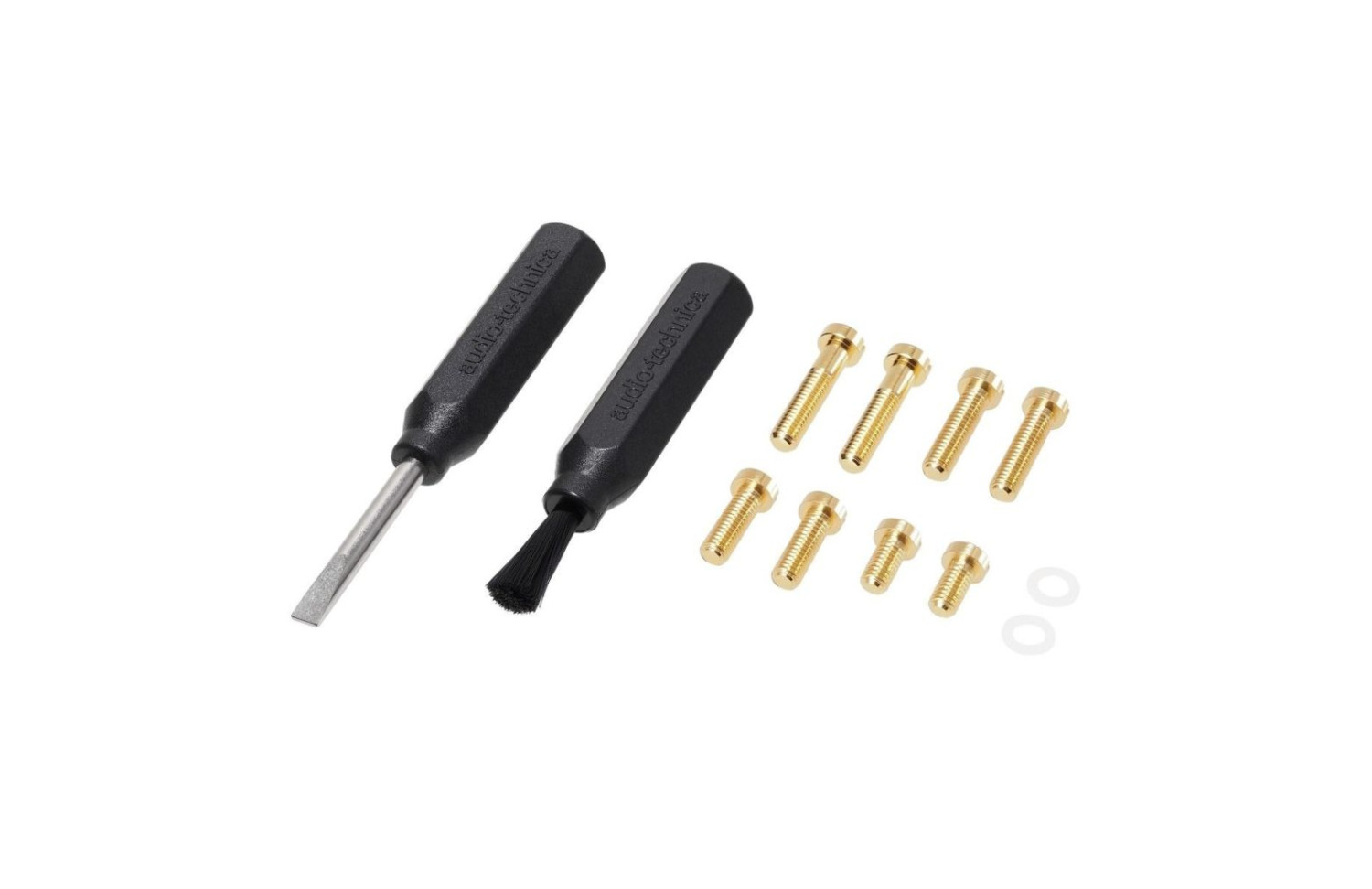

  • Accessories Included: 1 non-magnetic screwdriver; 1 paintbrush; 2 washers; 4 pairs of mounting screws 5mm, 8mm, 10mm, 12mm; 1 plastic protector
  • Body Material: Aluminium
  • Needle Size: 2.7 x 0.26 mil
  • Terminal Pins: Copper
  • Wire Used for Coil: PCOCC (Ohno. Continuous Copper Casting Process Copper)
