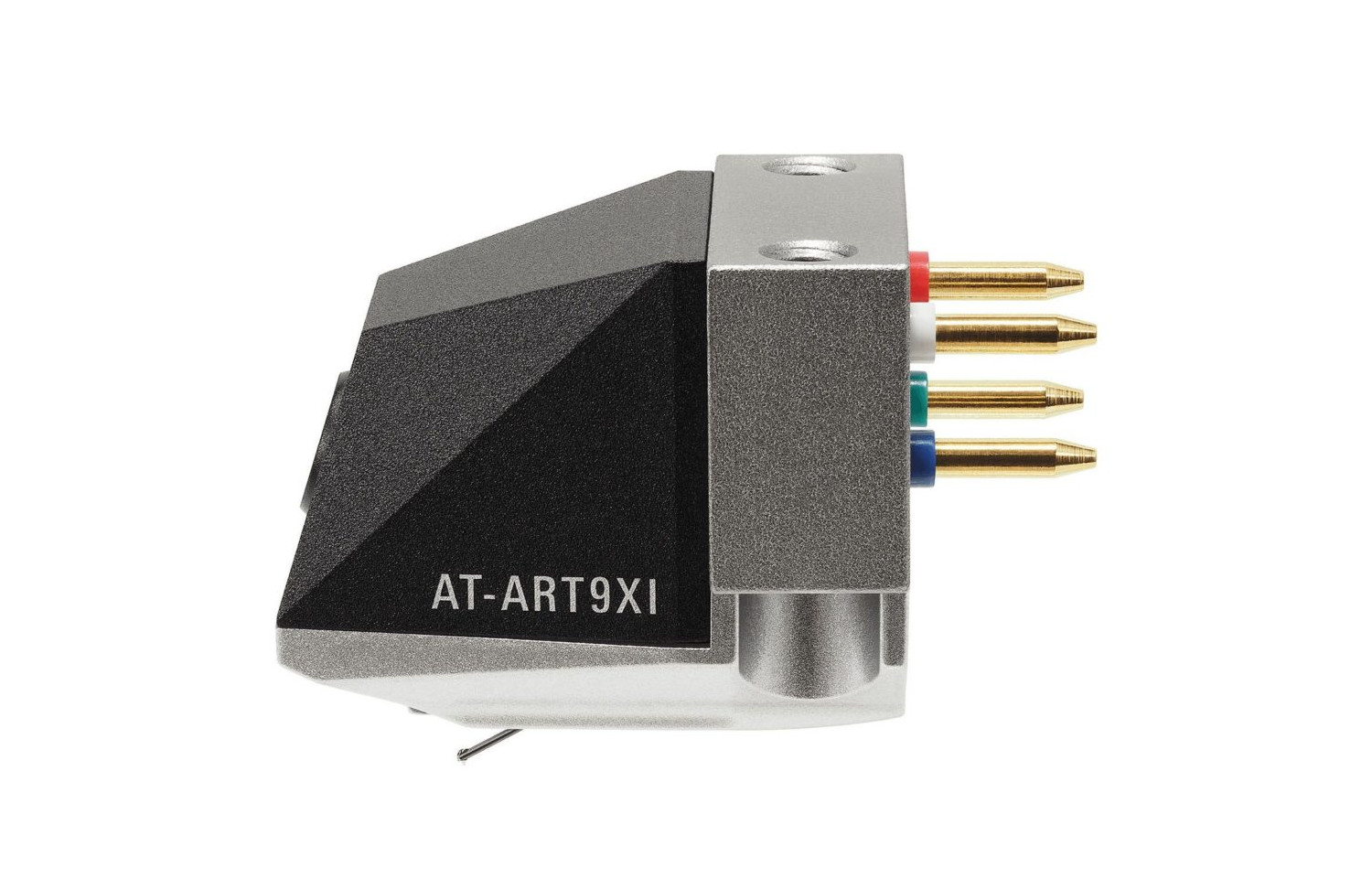

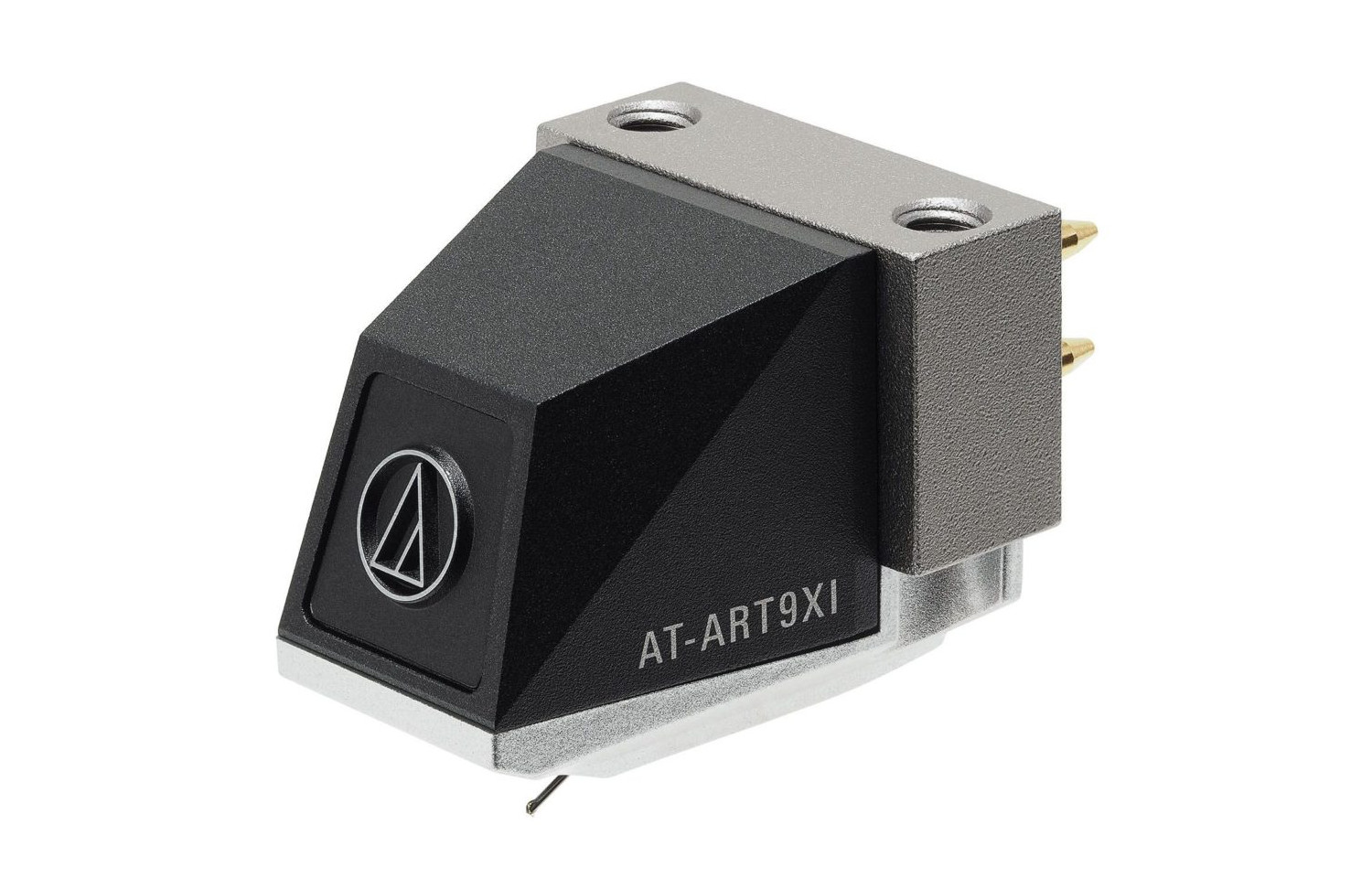

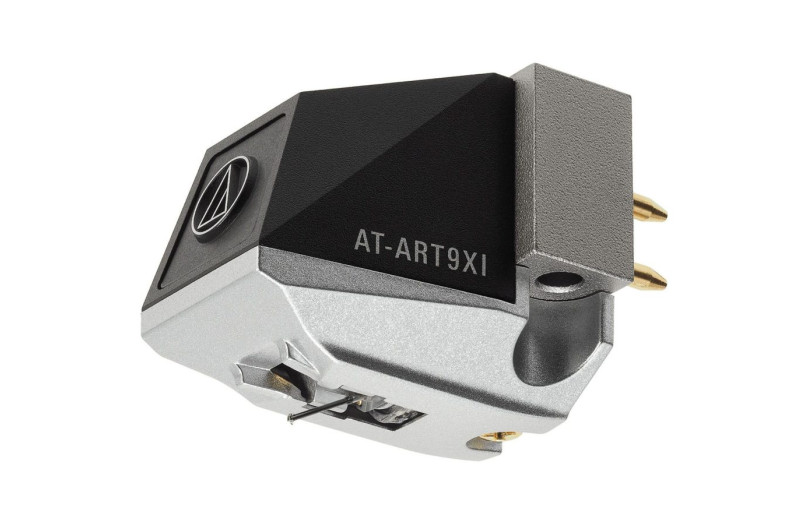

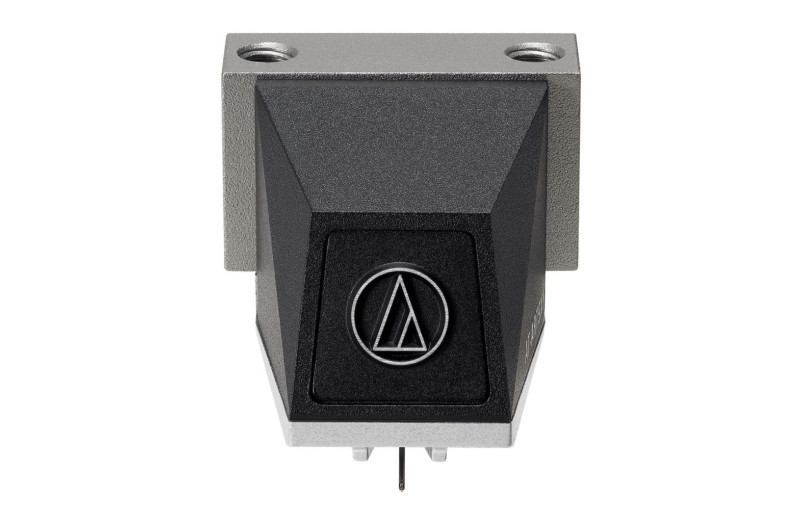

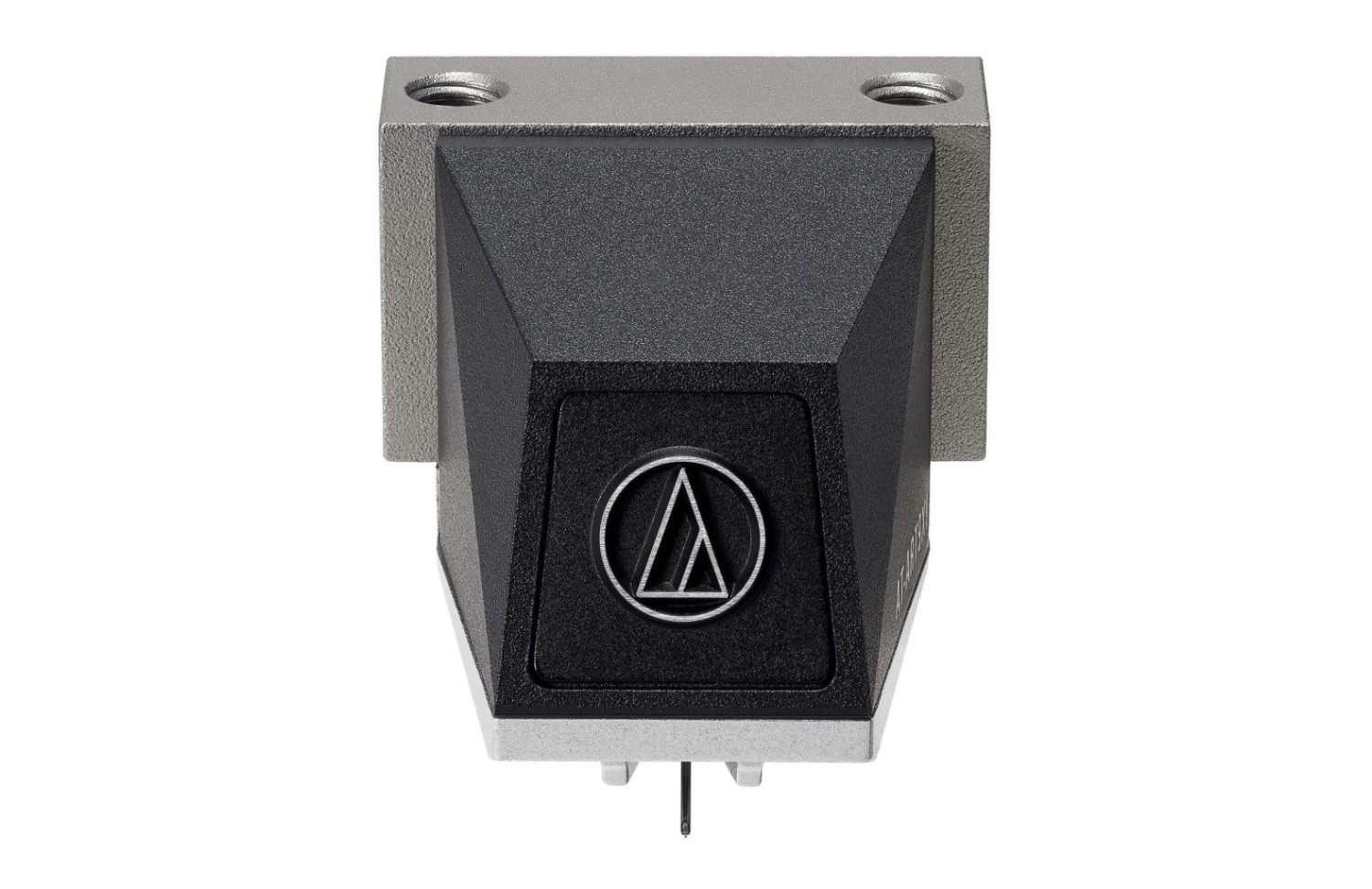

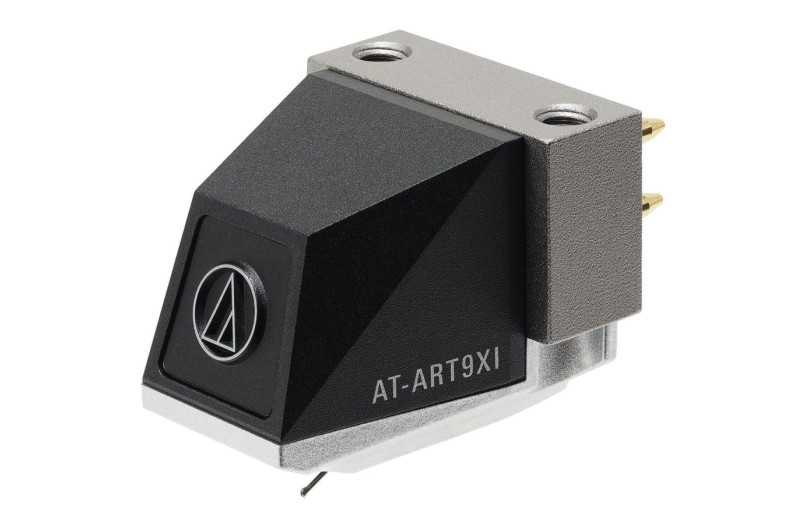

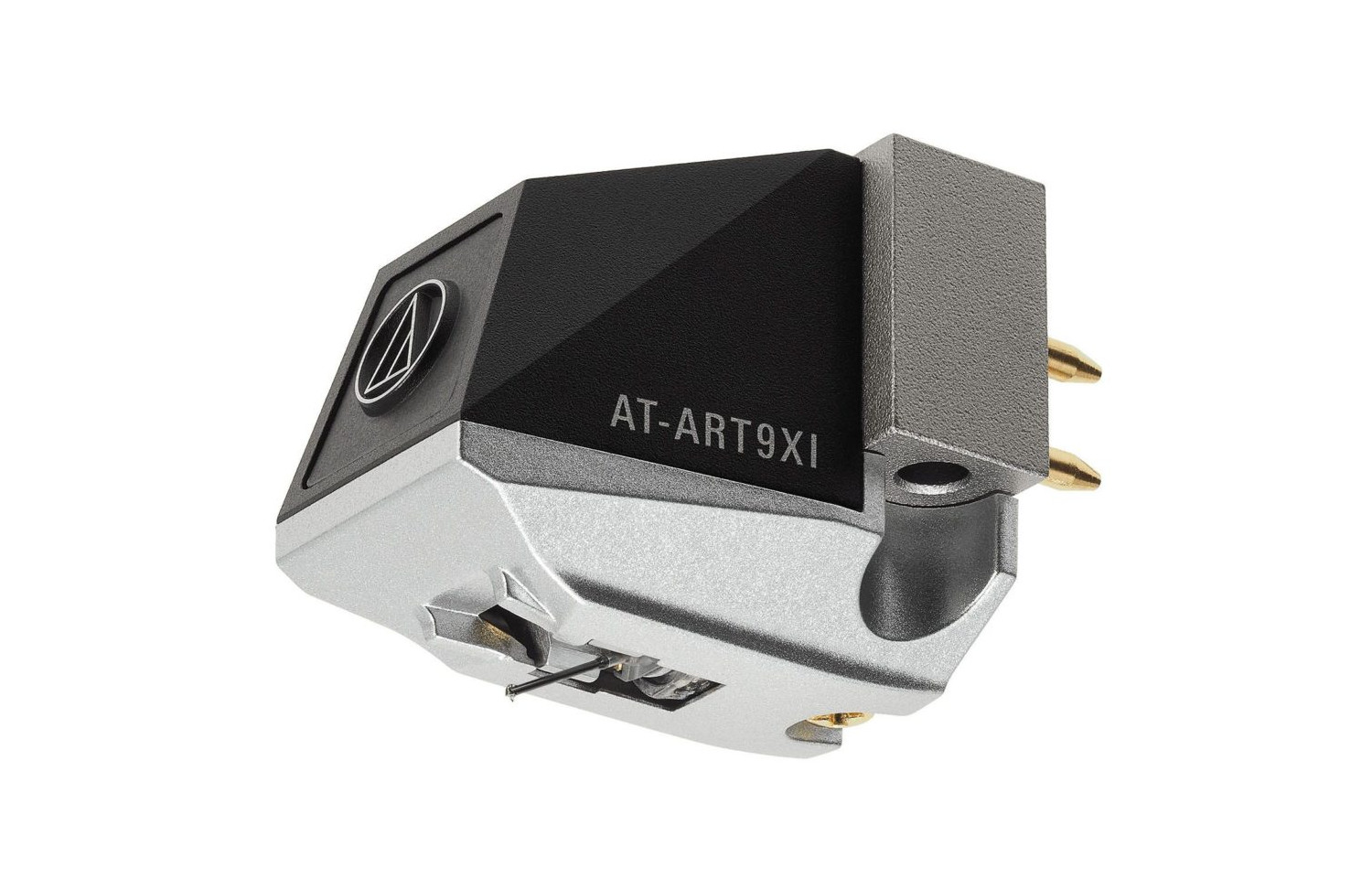

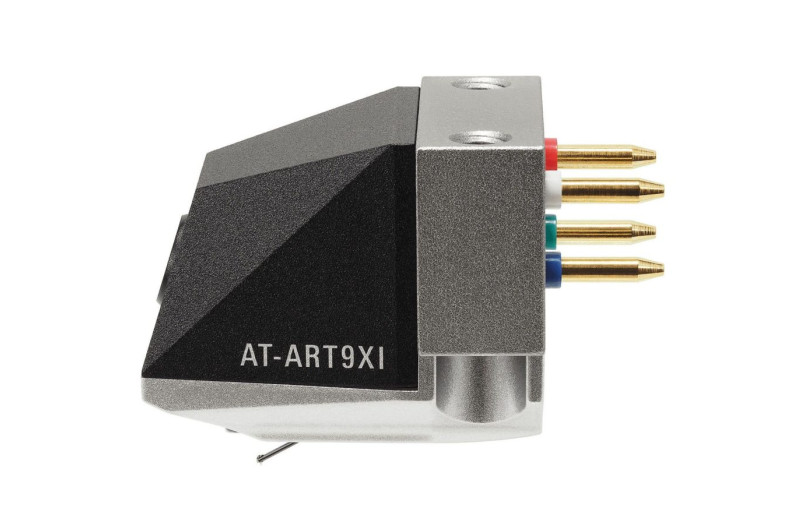

The name "ART" in the model number stands for Audio-Technica Reference Transducer, a designation we give only to our reference phono capsules.
The specially designed magnetic circuit provides an output voltage of 0.5 mV (1 kHz, 5 cm/s), making the capsule easy to use and capable of reproducing even the most subtle expressions, while ensuring a dynamic sound.
The dual voice coils (made of high-performance PCOCC cable) are aligned in an inverted V-shape to provide high separation and wide response for clear sound localisation and minimal distortion.
Threaded capsule mounting holes make installation on a capsule holder or integrated boom an incredibly simple process.
Features:
- Frequency Response: 20-50,000 Hz
- Channel Separation: 30 (dB at 1 kHz)
- Vertical Tracking Angle: 20° Vertical Tracking Force: 20
- Vertical Tracking Force:1.6-2.0 gr (1.8 gr standard)
- Needle Construction: Bare
- Recommended Load Impedance:Min. 100 ohms (when amplifier is connected)
- Coil Impedance:12 ohms (1 kHz)
- DC Resistance: 12 ohms
- Coil Inductance: 25 µH (1 kHz)
- Output Voltage: 0.5 mV (1 kHz, 5 cm/sec.)
- Output Channel Balance: 0.5 dB (1 kHz)
- Needle Shape: Special line contact
- Cantilever: Solid boron, 0.28 mm diameter
- Static Compliance: 25 x 10-6 cm/din
- Dynamic Compliance: 15 x 10-6 cm/line (100 Hz)
- Mounting: Half-inch
- Capsule Weight: 8.5 gr.
- Dimensions: 17.3 mm × 16.8 mm × 25.0 mm
- Included Accessories: Non-magnetic screwdriver, paint brush, washers × 2, capsule mounting screws (M2.6) (5.0 mm × 2; 8.0 mm × 2; 10.0 mm × 2;12.0 mm × 2), protector
- Threaded Hole: M2.6 × 2
- Notes: Note: Moving coil capsules require receivers or preamplifiers with compatible inputs; their pin assemblies are not user-replaceable.
