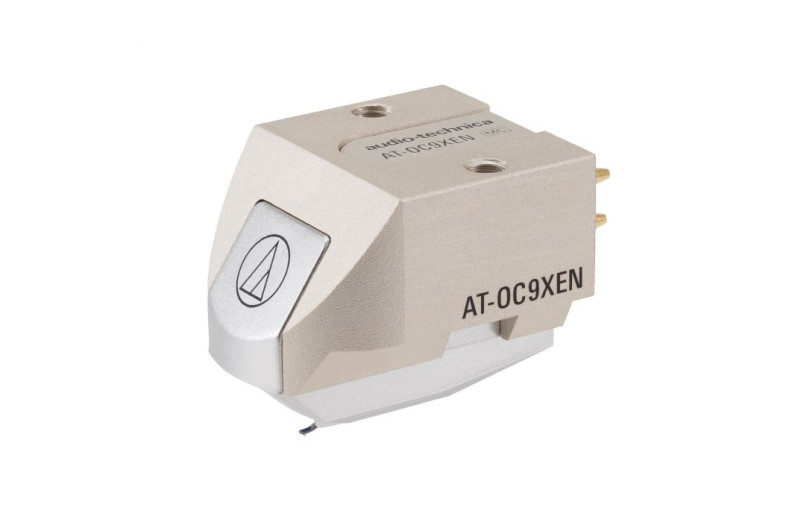

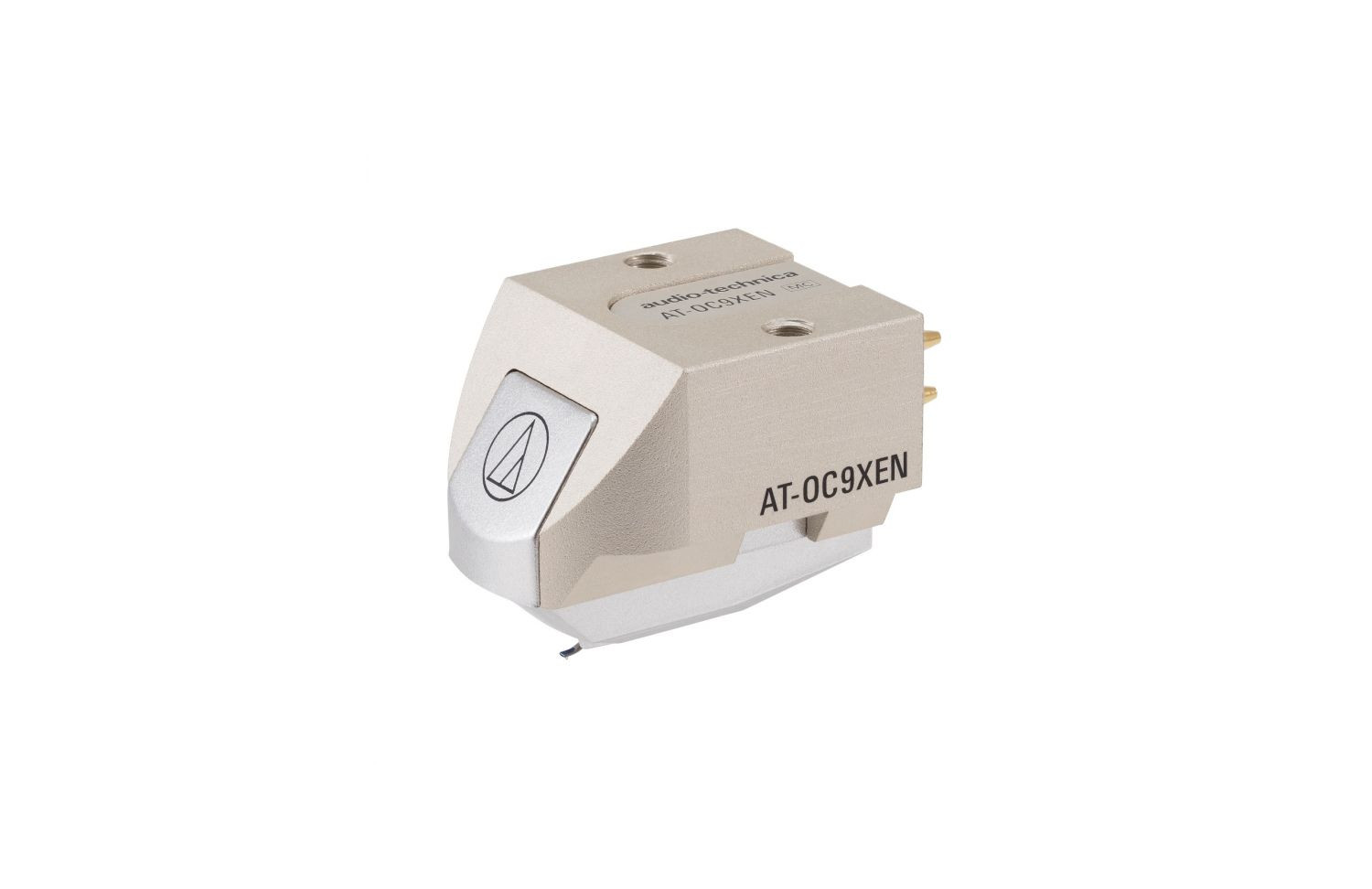

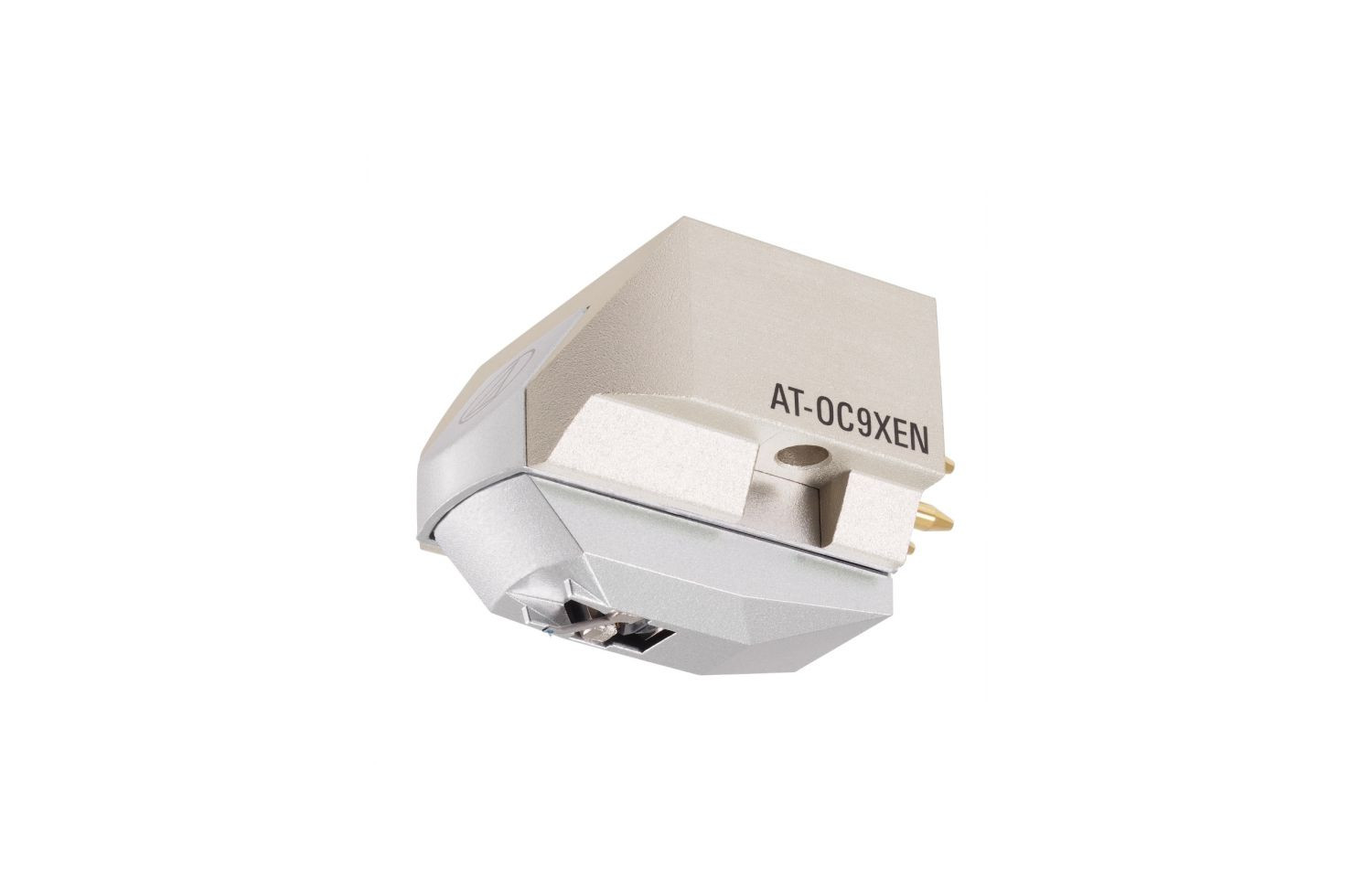

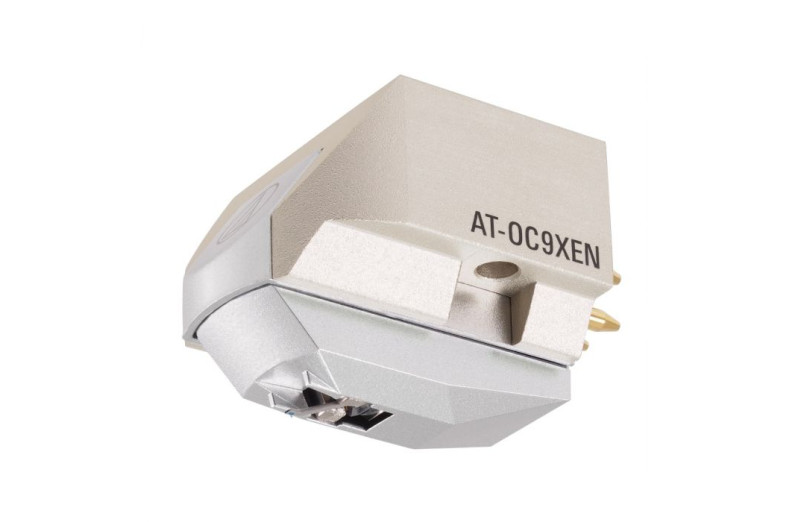

The AT-OC9XEN dual voice coil stereo capsule features a low-mass, bare elliptical stylus and aluminium cantilever, a neodymium magnet and a pure iron yoke for increased magnetic energy.
It has threaded inserts in the capsule to avoid the use of nuts for mounting.
- Incorporates a low-mass elliptical stylus and an aluminium cantilever
- A neodymium magnet and a pure iron yoke provide increased magnetic energy.
- Threaded inserts in the cantilever body allow the cantilever to be mounted on the head or integrated arm with only two screws, no nuts required
- Aluminium body minimises unwanted vibration for reduced resonance and superior audio reproduction
- Pure oxygen-free, continuously cast copper (PCOCC) is used for the coils to achieve the purest possible signal
Features:
- Frequency Response: 20 - 30,000 Hz
- Channel Separation: 25 dB (1 kHz)
- Vertical Tracking Angle: 20 degrees
- Vertical Tracking Force 1.8 to 2.2 g (standard 2.0 g)
- Needle Construction: Bare Square Shank
- Recommended Load Impedance: Minimum 100 Ohms
- Coil Impedance: 12 Ohms (1 kHz)
- DC Resistance: 12 Ohms
- Coil Inductance: 25 µH (1 kHz)
- Output Voltage: 0.35 mV (at 1 kHz, 5 cm/sec)
- Output Channel Balance: 1.5 dB (1 kHz)

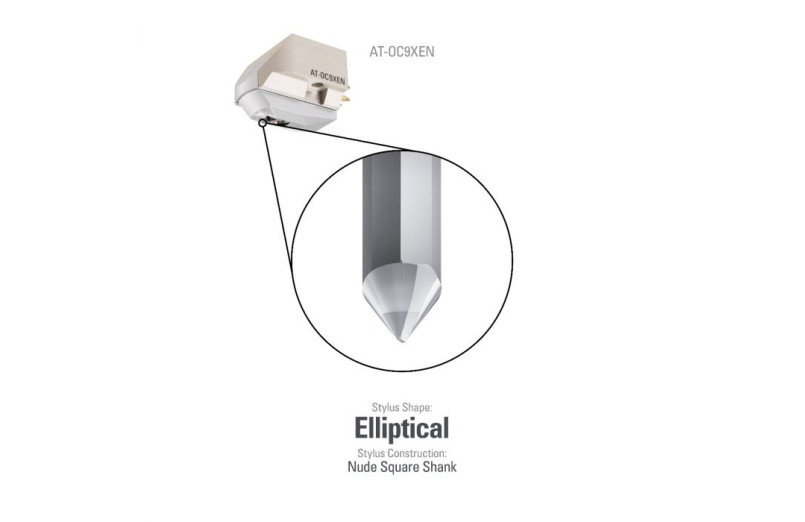

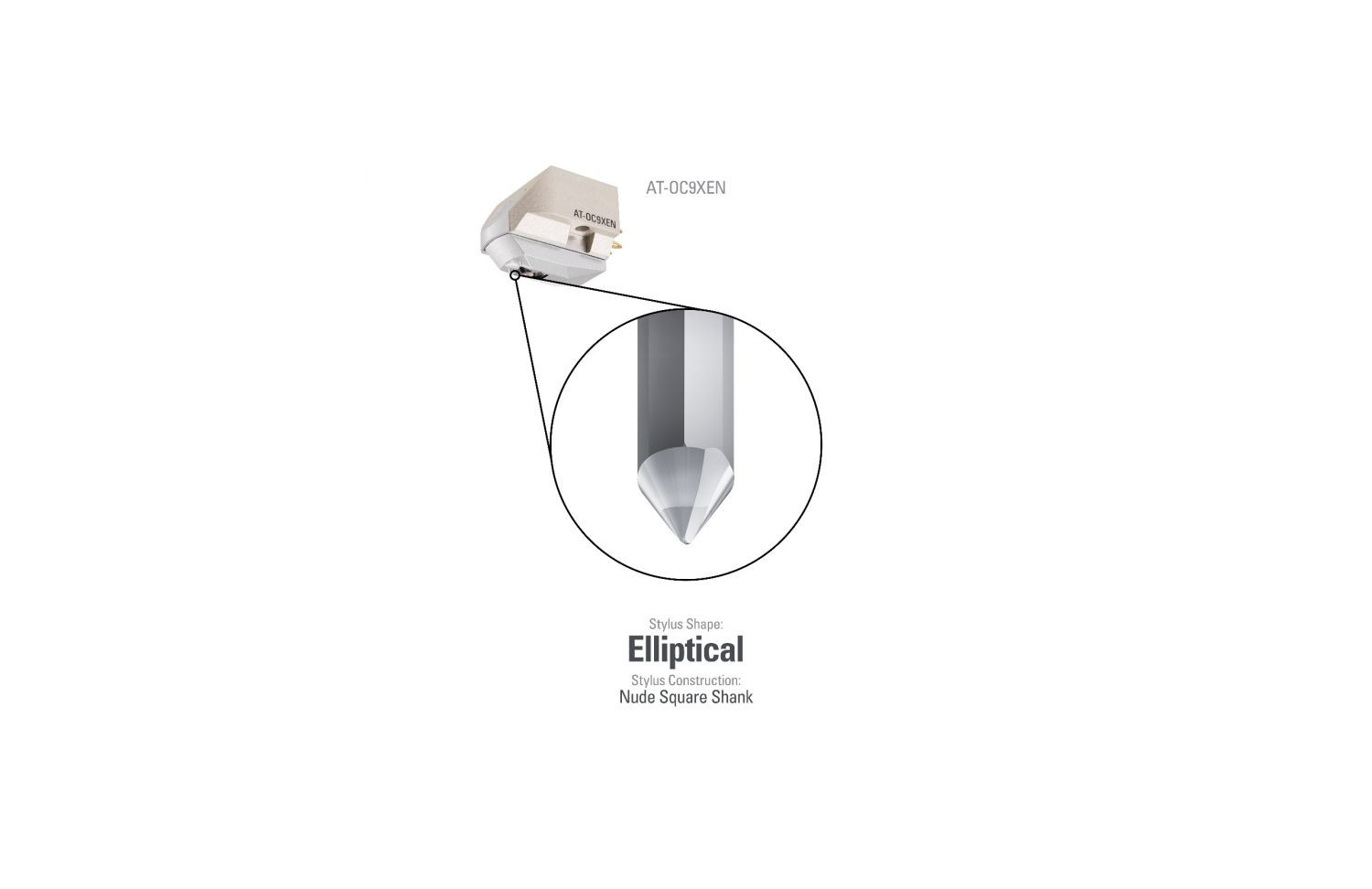

- Needle Shape: Bare Elliptical
- Cantilever: Aluminium tube
- Static Compliance: 20 x 10 - 6 cm / dyne
- Dynamic Compliance: 9 x 10 - 6 cm / dyne (100 Hz)
- Mounting 1/2" centre / threaded holes
- Capsule Weight: 7.6 grams
- Dimensions: 17.3 (H) x 16.8 (W) x 25.7 (L) mm

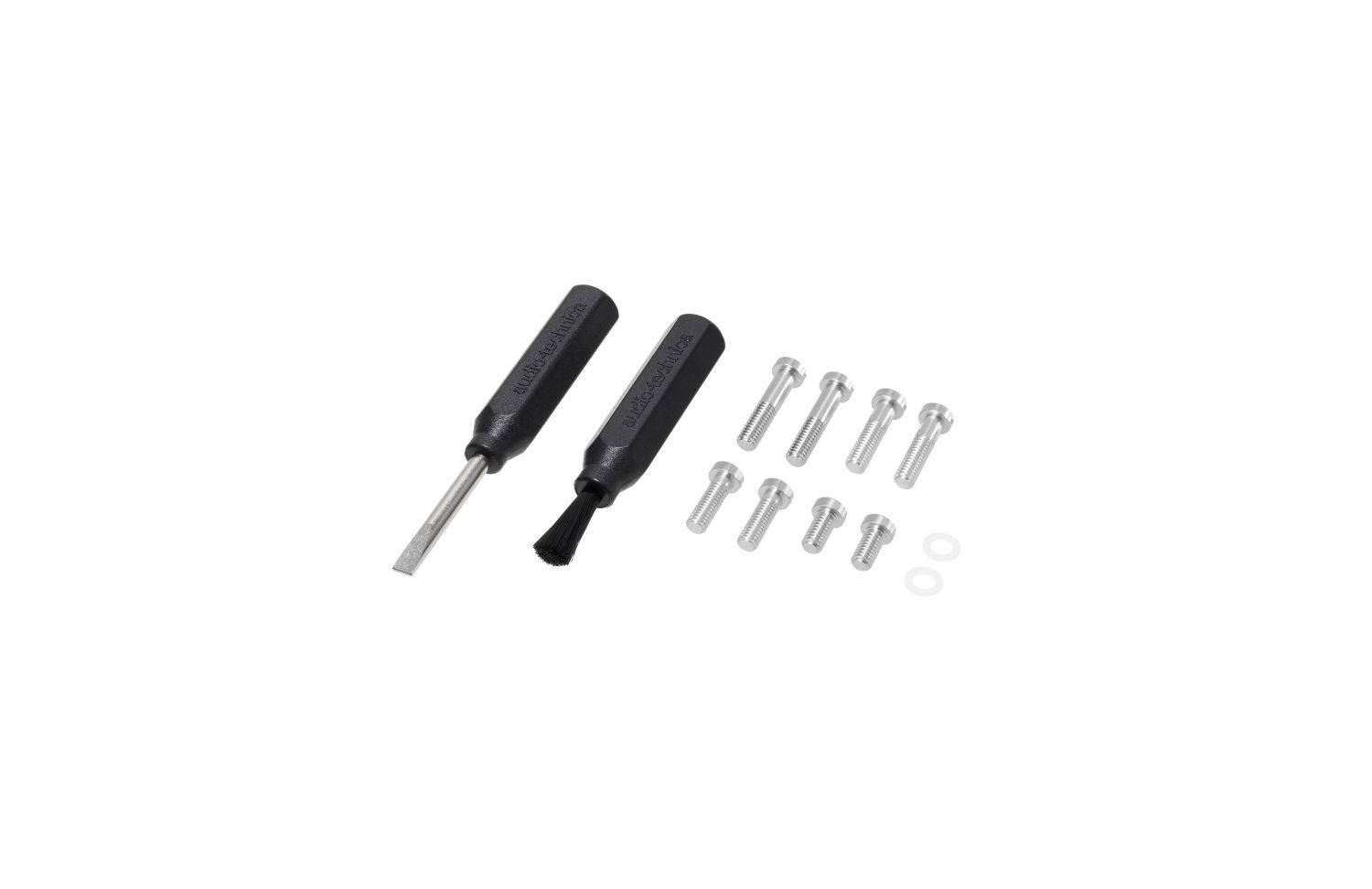

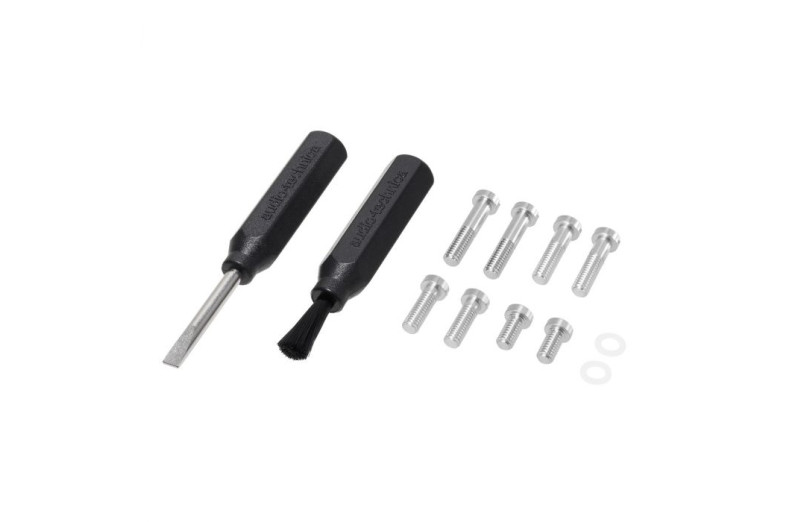

- Accessories Included: 1 non-magnetic screwdriver; 1 paintbrush; 2 washers; 4 pairs of mounting screws 5mm, 8mm, 10mm, 12mm; 1 plastic protector
- Body Material: Aluminium
- Needle Size: 0.3 x 0.7 mil
- Terminal Pins: Copper
- Wire Used for Coil: PCOCC (Ohno. Continuous Copper Casting Process Copper)
