279 €
VAT included
Dual MC stereo cartridge

Get register and you will earn 279 points Get register and you will earn 279 points

Your cart will total 279 points that can be converted into a voucher of 3 €.

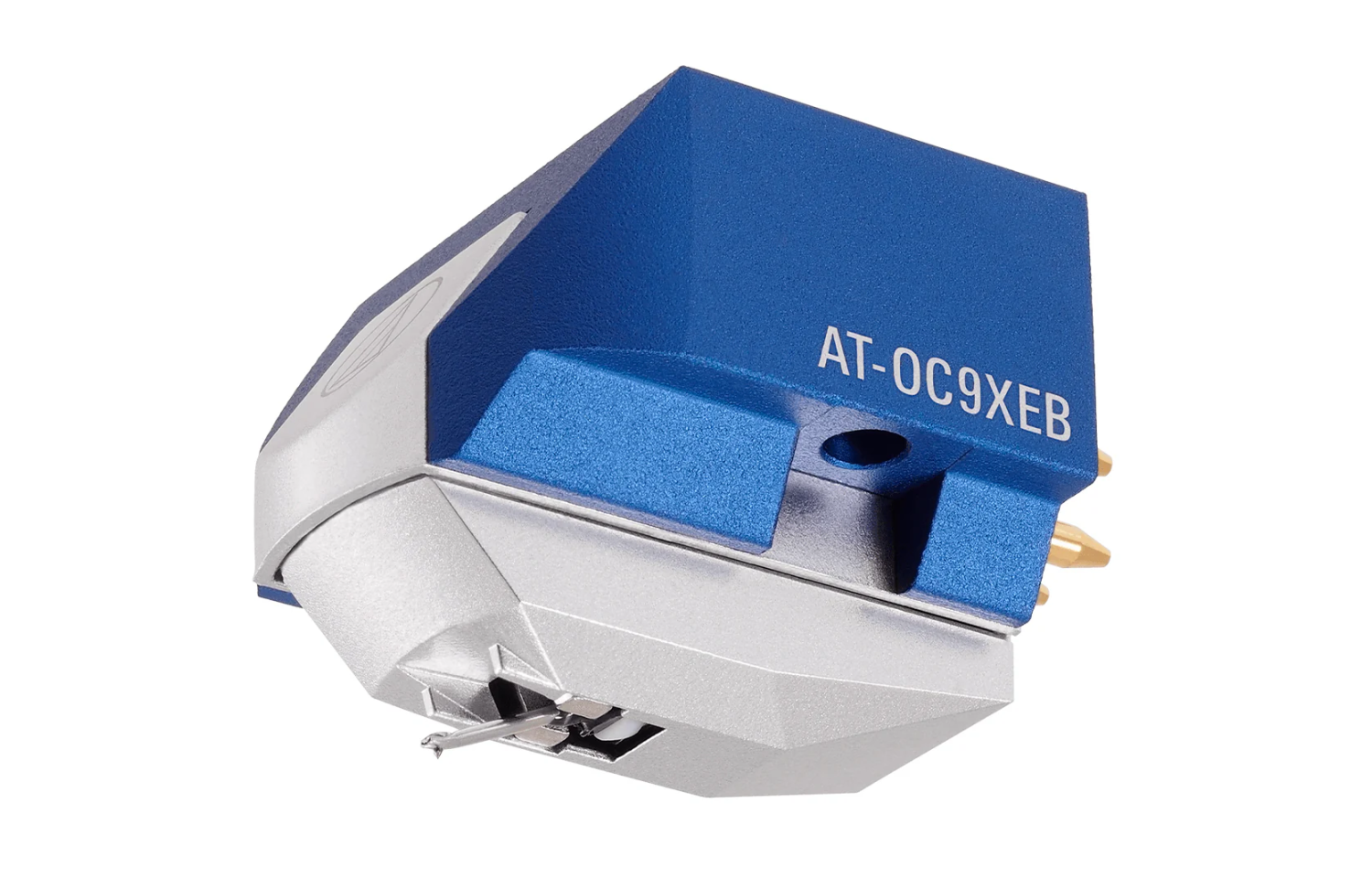

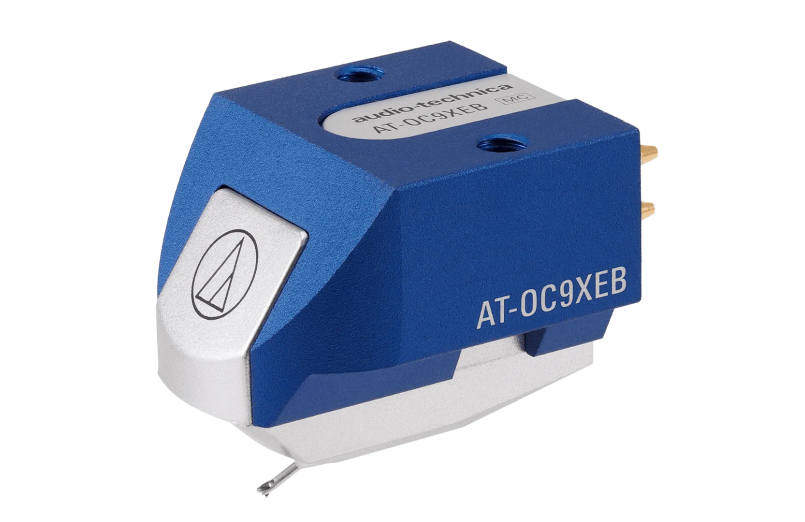

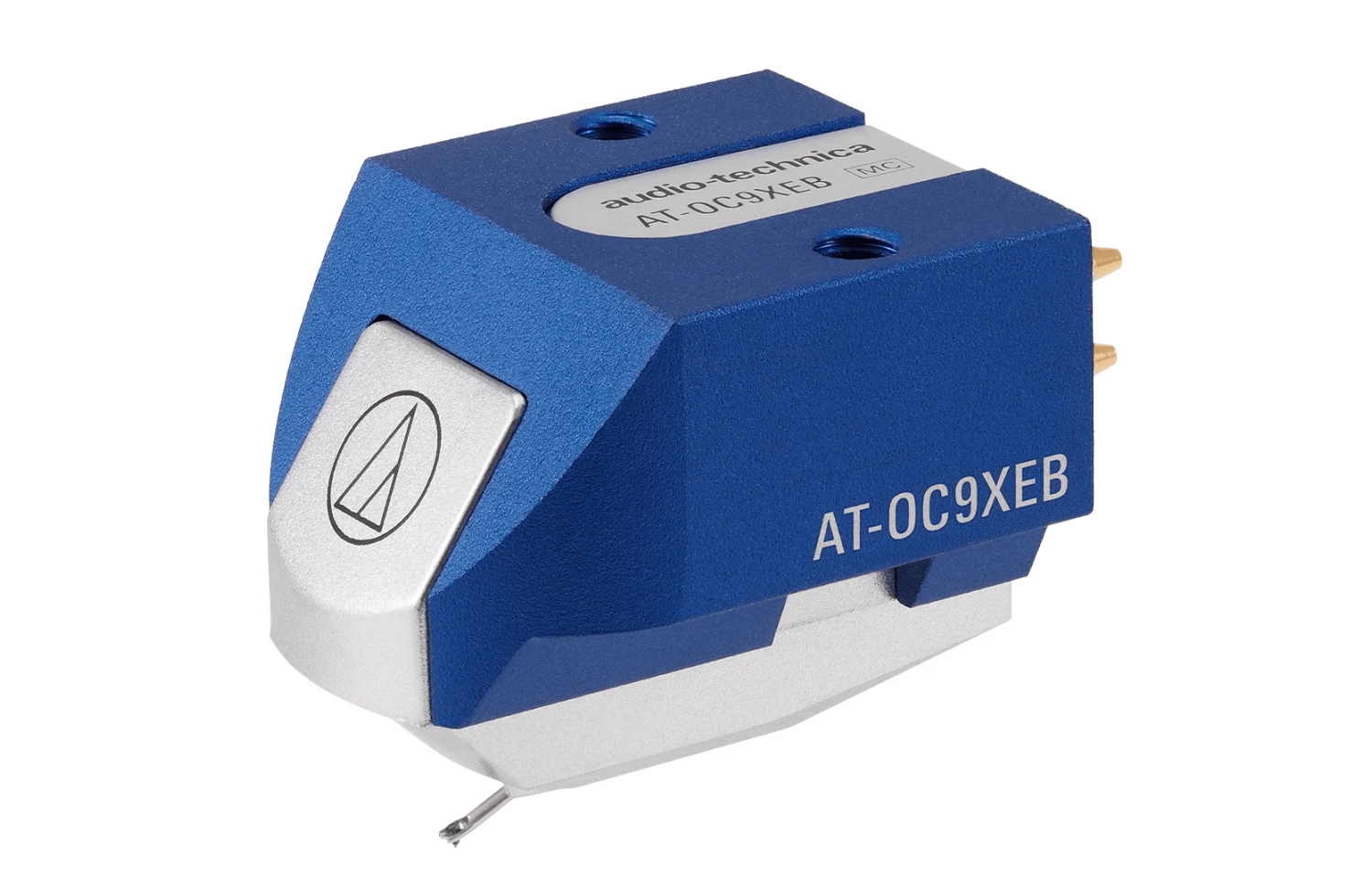

The AT-OC9XEB dual voice coil stereo capsule features a bonded elliptical stylus, aluminium cantilever, neodymium magnet and pure iron yoke providing higher magnetic energy.


It features a bonded elliptical needle and aluminium cantileverA

  • neodymium magnet and a pure iron yoke provide increased magnetic energy.
  • Threaded inserts in the capsule body allow the capsule to be mounted on the head or integrated arm with just two screws - no nuts are
  • requiredAluminium body minimises unwanted vibration for reduced resonance and superior audio
  • reproductionPure, continuous-cast oxygen-free copper (PCOCC) is used for the coils to achieve the purest possible signal

    • Features:

    • Frequency Response: 20 - 30.000 Hz

    • Channel Separation: 25 dB (1 kHz)

    • Vertical Tracking Angle: 20 degrees

    • Vertical Tracking Force: 1.8 to 2.2 g (standard 2.0 g)

    • Needle Construction: Glued round stem

    • Recommended Load Impedance: Minimum 100 Ohms

    • Coil Impedance: 12 Ohms (1 kHz)

    • DC Resistance: 12 Ohms

    • Coil Inductance: 25 µH (1 kHz)

    • Output Voltage: 0.32 mV (at 1 kHz, 5 cm/sec)

    • Output Channel Balance:
    • 1.5 dB (1 kHz)

    • Needle Shape: Bonded Elliptical

    • Cantilever: Aluminium Tube

    • Static Compliance: 20 x 10 - 6 cm / dyne

    • Dynamic Compliance: 9 x 10 - 6 cm / dyne (100 Hz)

    • Mounting: 1/2" centre / Threaded Holes

    • Dimensions: 17.3 (H) x 16.8 (W) x 25.7 (L) mm

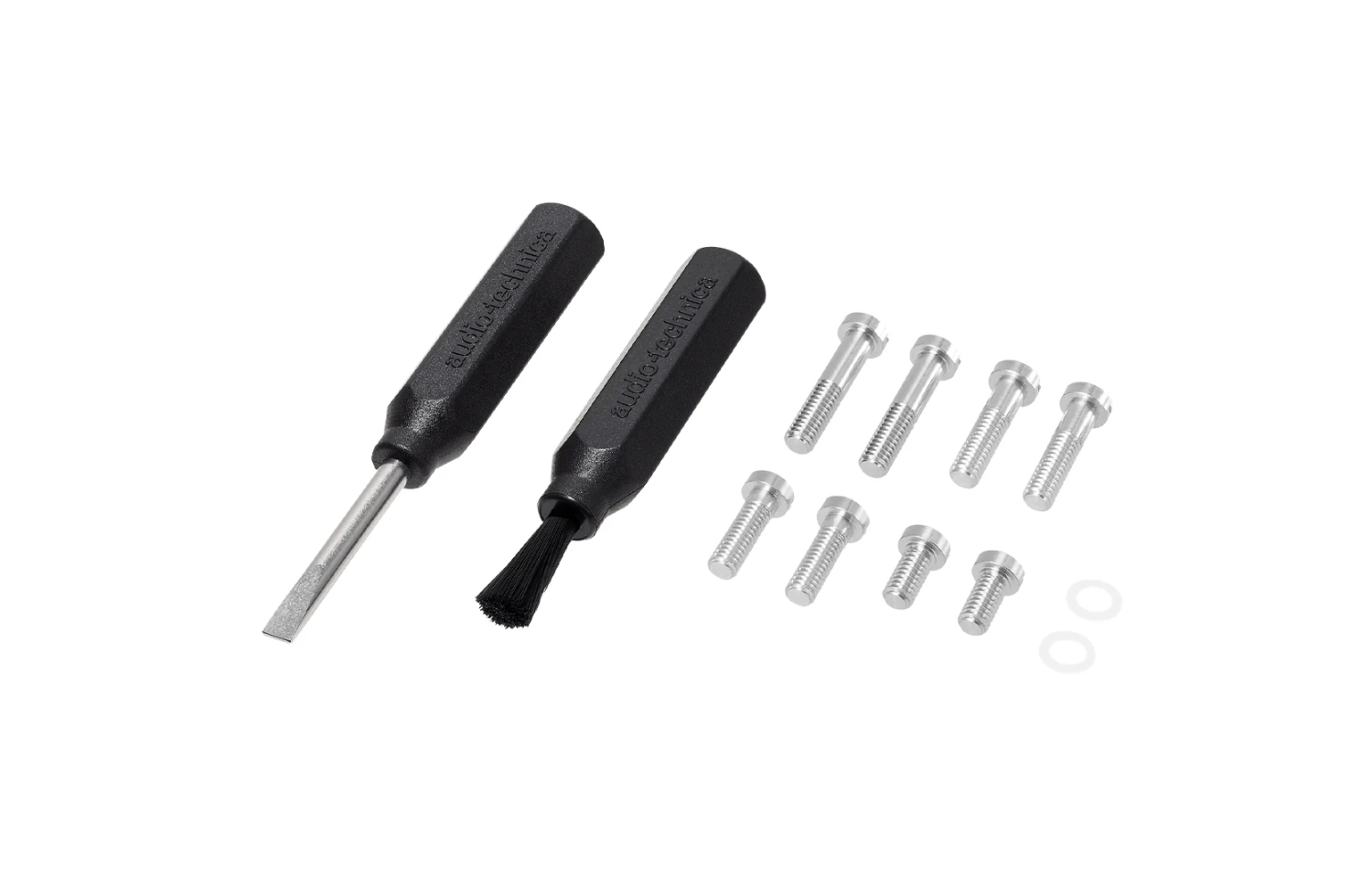

    • Accessories Included: 1 non-magnetic screwdriver; 1 brush; 2 washers; 4 pairs of mounting screws 5mm, 8mm, 10mm, 12mm; 1 plastic protector

    • Body Material: Aluminum

    • Needle Size: 0.3 x 0.7 mil

    • Terminal
      • Pins
    • : Copper

    • Weight: 7.6 gr

    • Wire Used for Coil: PCOCC (Ohno Continuous Casting Process Copper.)
