An attractive stereo integrated amplifier with an audiophile-oriented DAC in which substantial refinements have been added to both the analogue and digital sections.
Thus, the power amplifier section is based on the latest generation circuitry configured in Class D, which allows it to deliver 67% more power than the WiiM AmP Pro, namely 2x100 W over 8 ohms and 2x200 W over 4 ohms, thus guaranteeing the ability to comfortably attack a very wide range of loudspeakers.
This compatibility is largely due to the advanced "Post Filter Feedback" (PFFB) technology of WiiM, which ensures a very high level of performance regardless of the load by means of an imaginative dynamic compensation scheme.
On the component side, the WiiM Vibelink Amp is equipped with an audiophile-grade ES9039Q2M D/A converter from the renowned ESS Technology, a TI TPA3255 amplifier chip and six TI OPA1612 operational amplifiers.
The WiiM Vibelink Amp also brings a quality that is very useful for placement in "sensitive" spaces: its elaborate thermal management system through the combined performance of a copper duct, a large aluminium heatsink and high-precision PID (Proportional, Integral and Derivative) control.
Features:
- Stereo integrated amplifier with built-in DAC.
- Perfect complement for streamers from WiiM.
- ESS Technology ES9039Q2M audiophile grade D/A converter.
- Output stage configured in Class D exclusive to WiiM.
- Amplifier section with Post Filter Feedback (PFFB) technology.
- Exceptional price/performance ratio.
- Hi-Res audio compatible up to 24-bit/192 kHz.
- Advanced thermal management.

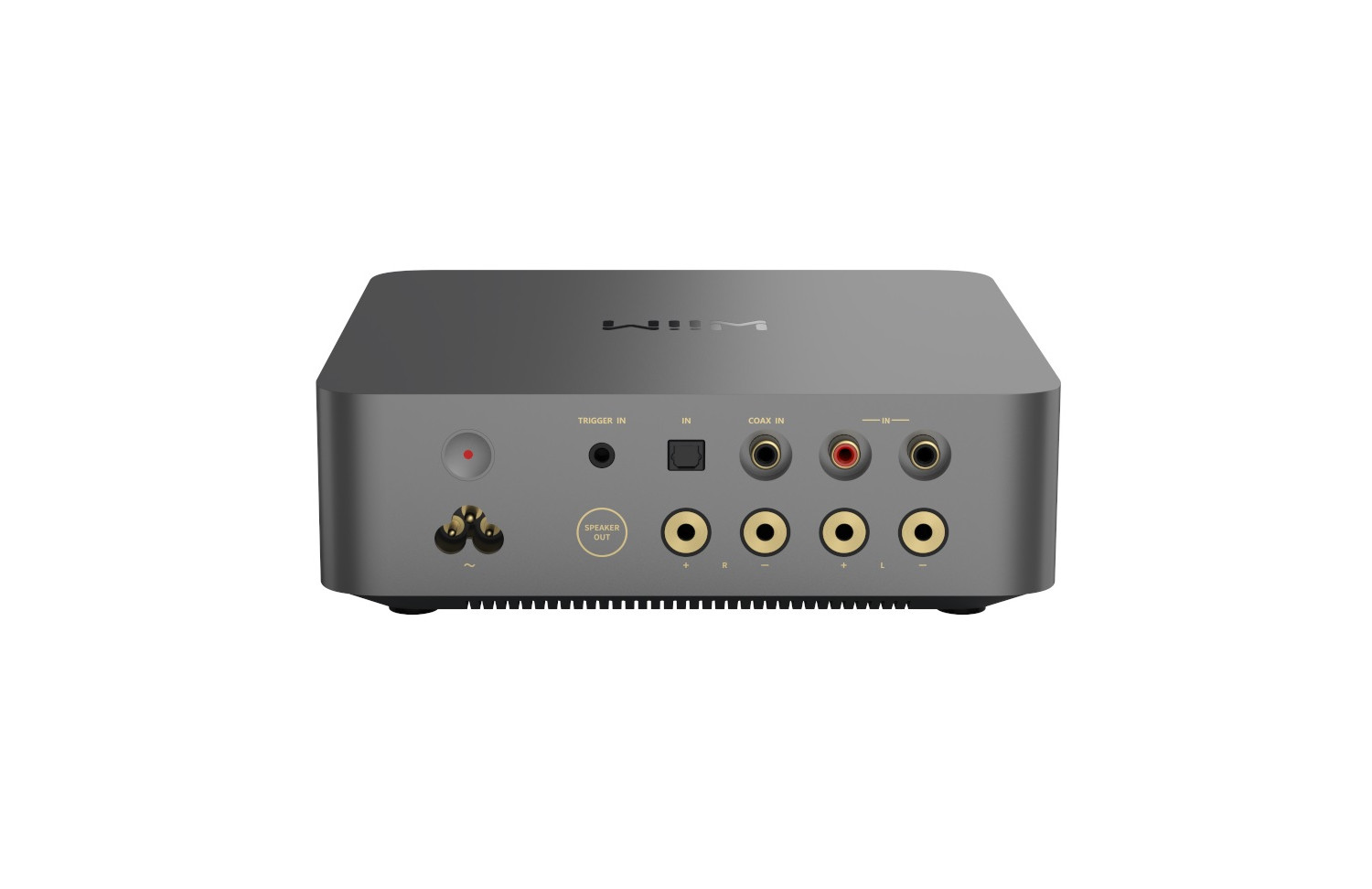

- Analogue and digital audio inputs (coaxial and optical).
- 2x100 W output power over 8 ohms or 2x200 W over 4 ohms.
- Frequency response 20-20,000 Hz, +/-0.5 dB.
- Maximum signal-to-noise ratio greater than 120 dB.
- Dimensions: 200 x 63 x 200 mm (W x H x D).
- Weight: 2.05 kg.
