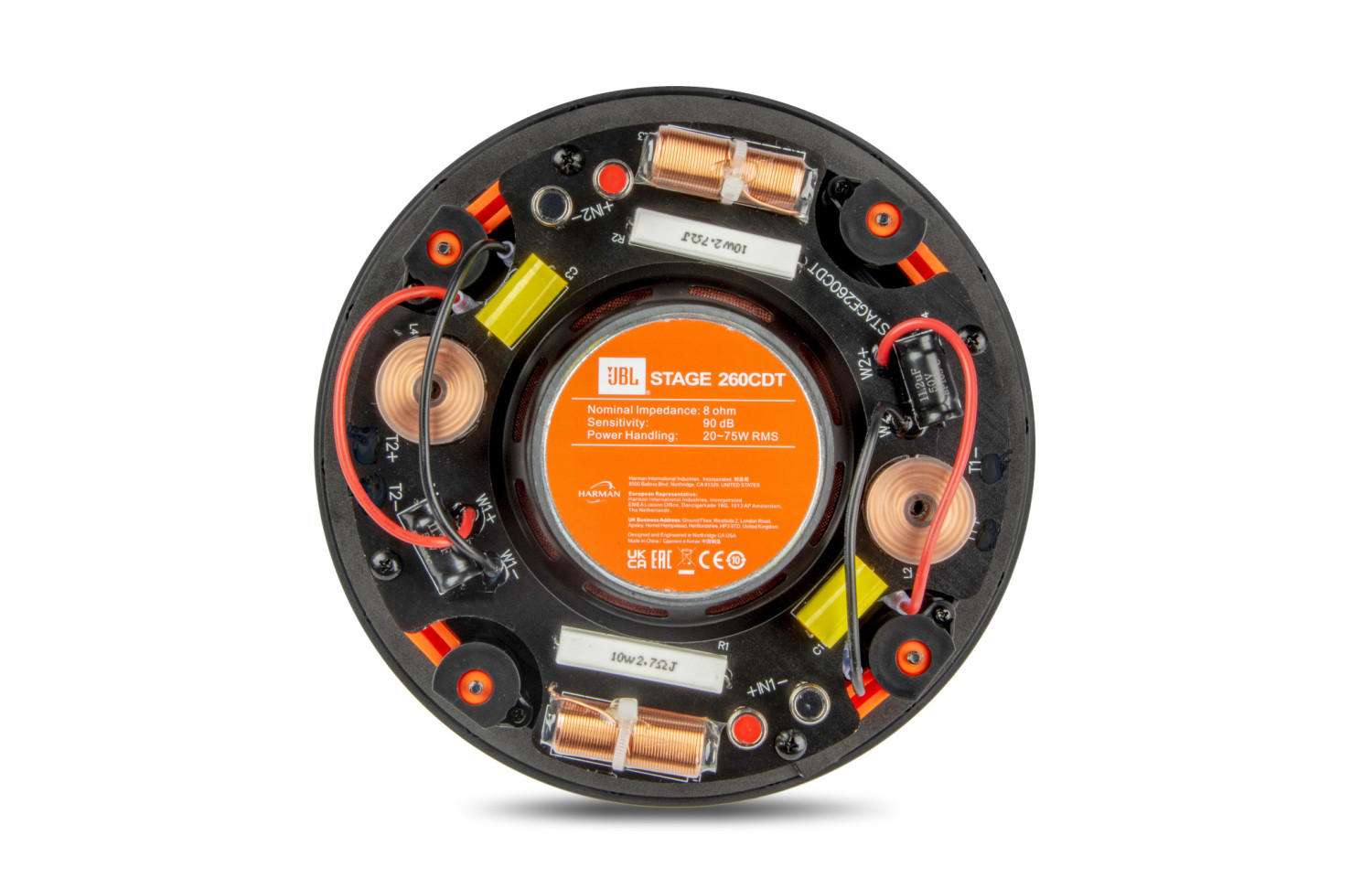

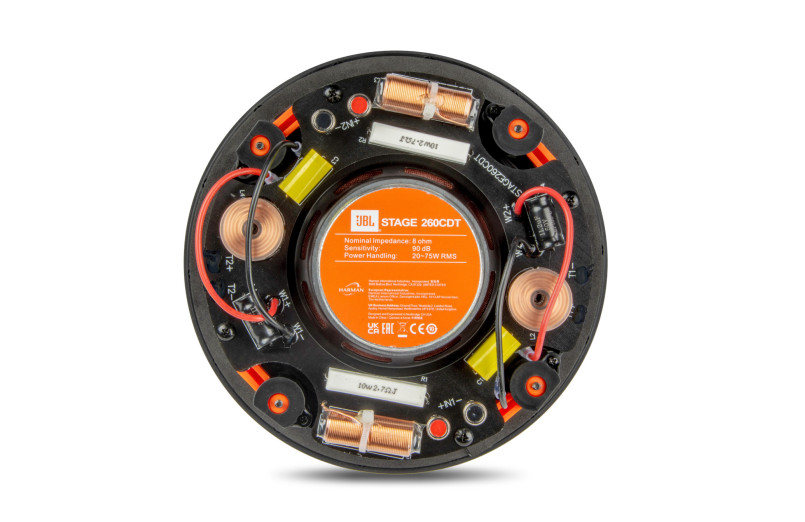

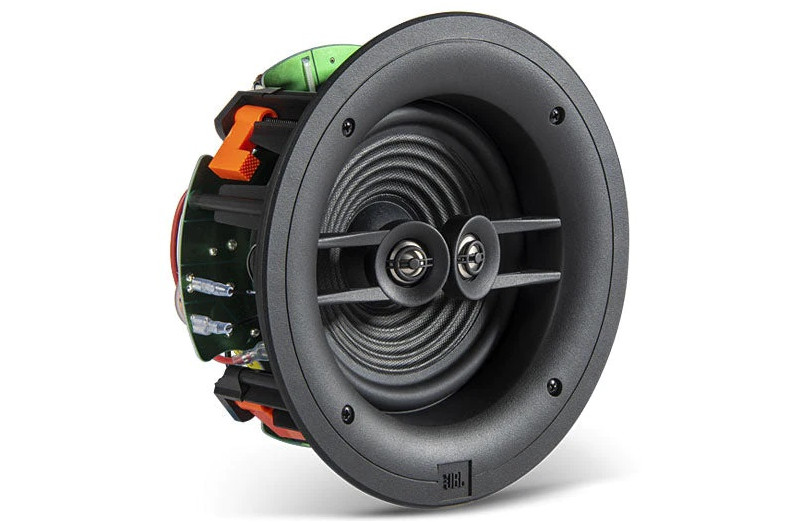

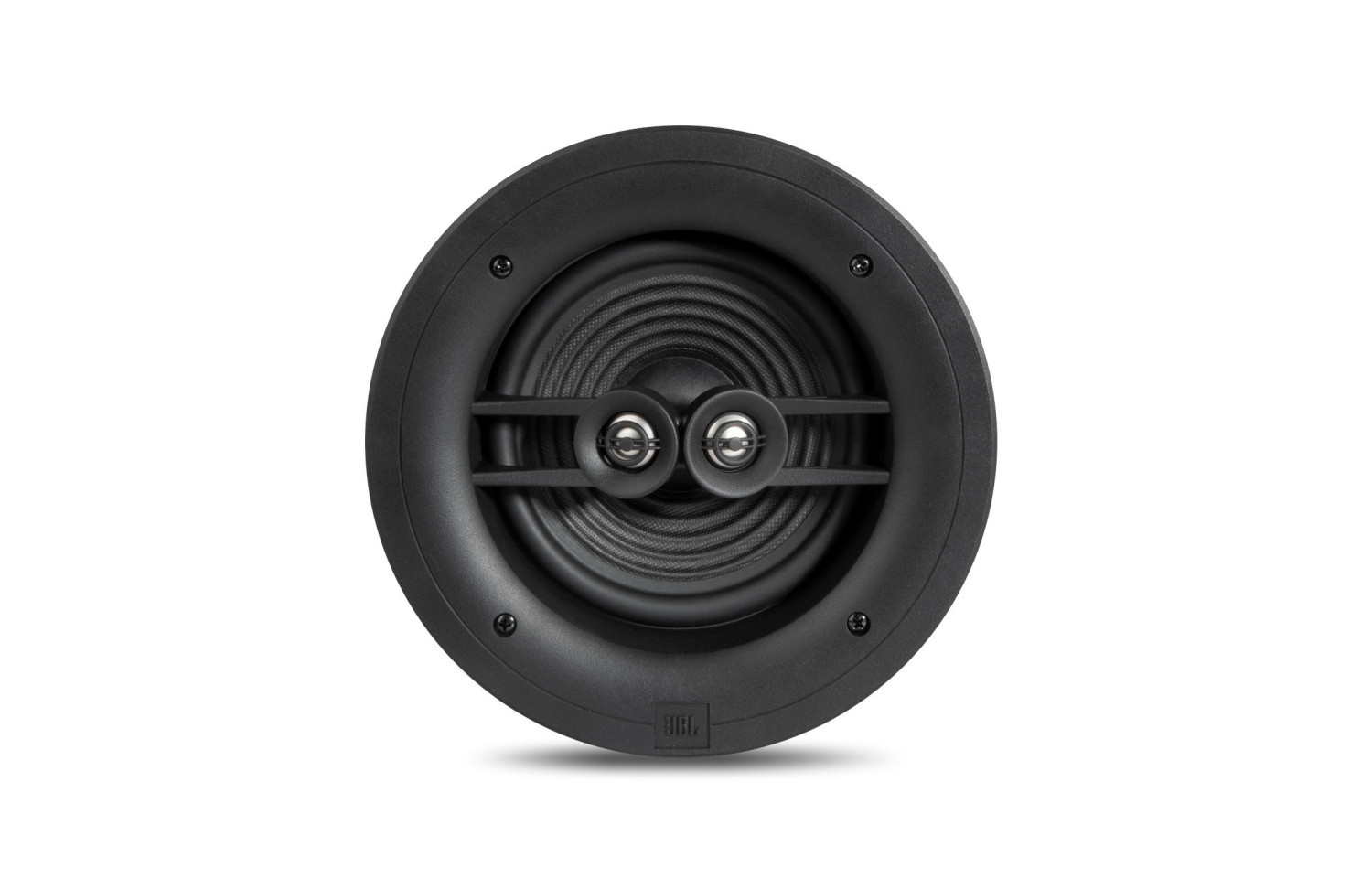

The Stage 260CDT is a versatile in-ceiling speaker with an exceptional price/performance ratio, part of JBL's Stage Architectural Series, which has been designed to offer high sound performance and to be extremely discreet in visual terms, combining magnetically attached frameless protective grilles with ease of installation.
From the acoustic point of view, it uses a 2-way configuration and 3 speakers mounted on a circular front panel of high rigidity specially designed to maximize the integration of the same.
Specifically, the Stage 260CDT includes 2 25 mm diameter aluminium dome tweeters and 1 midwoofer with a 165 mm polycellulose cone, with the former featuring a waveguide to maximise sound dispersion and minimise distortion. Finally, let us point out that the Stage 260CDT satisfies the Harman listening curve with the aim of providing a uniform and accurate sound in large listening areas.
Features:
- In-ceiling speaker with exceptional price/performance ratio.
- Front panel designed to maximise driver integration.
- 25 aluminium dome tweeters (2) with JBL's unique waveguide.
- "JBL-exclusive 165 mm poly-cellulose cone midwoofer.
- Integrated XL-2 mounting system.

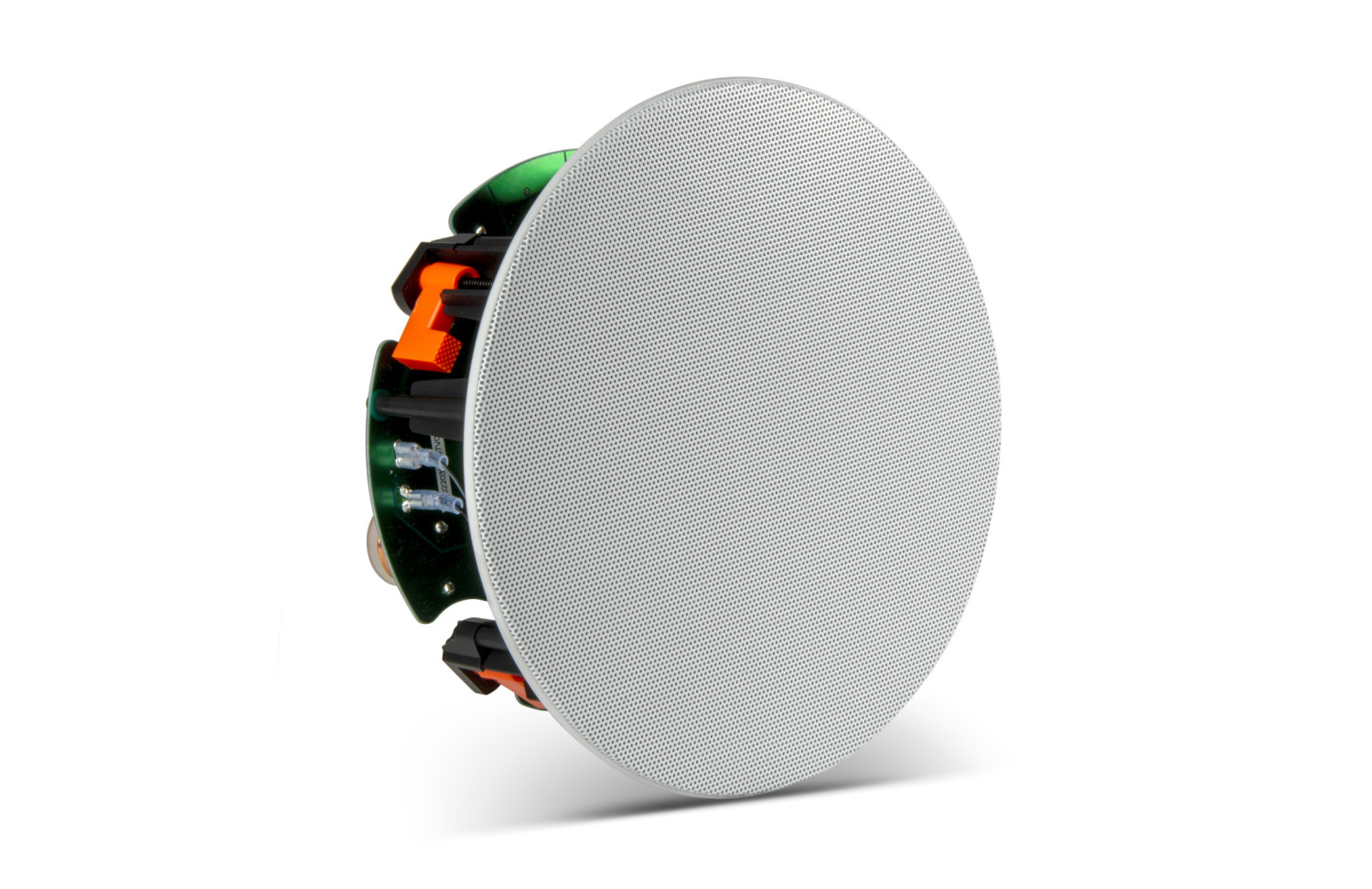

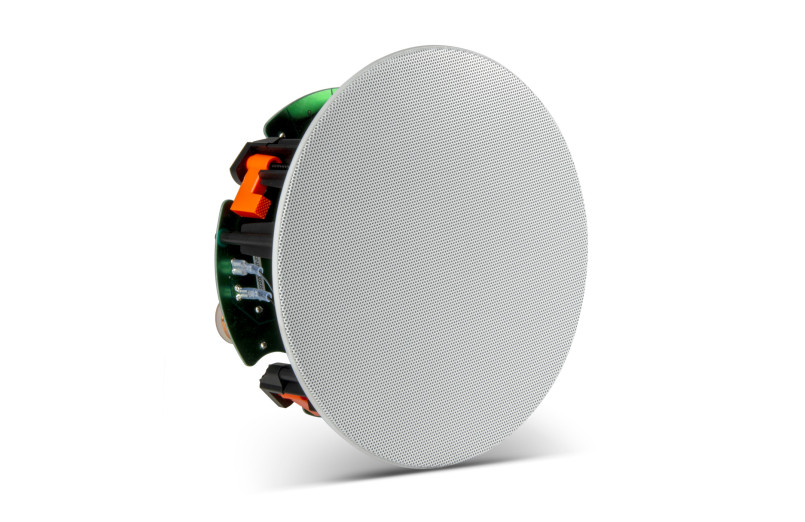

- Magnetically attached frameless protective grille.
- Compatible with existing CB6 construction bracket.
- 50-25,000 Hz frequency response (-6 dB cut-off points).
- Sensitivity of 90 dB/W/m.
- Nominal impedance of 8 ohms.
- Associated amplifier power between 20 and 75 W RMS.
- Grille dimensions: 233 mm diameter.
- Cut-out dimensions: 203 mm diameter.
- Mounting depth: 106 mm.
- Weight: 2.82 kg.
Price per unit.
