The WiiM Amp Ultra is our most advanced streaming amplifier to date. Designed for music lovers and smart home fans, it delivers an impressive 100W per channel at 8 ohms with ultra-low distortion, bringing high-fidelity audio to every corner of your space.

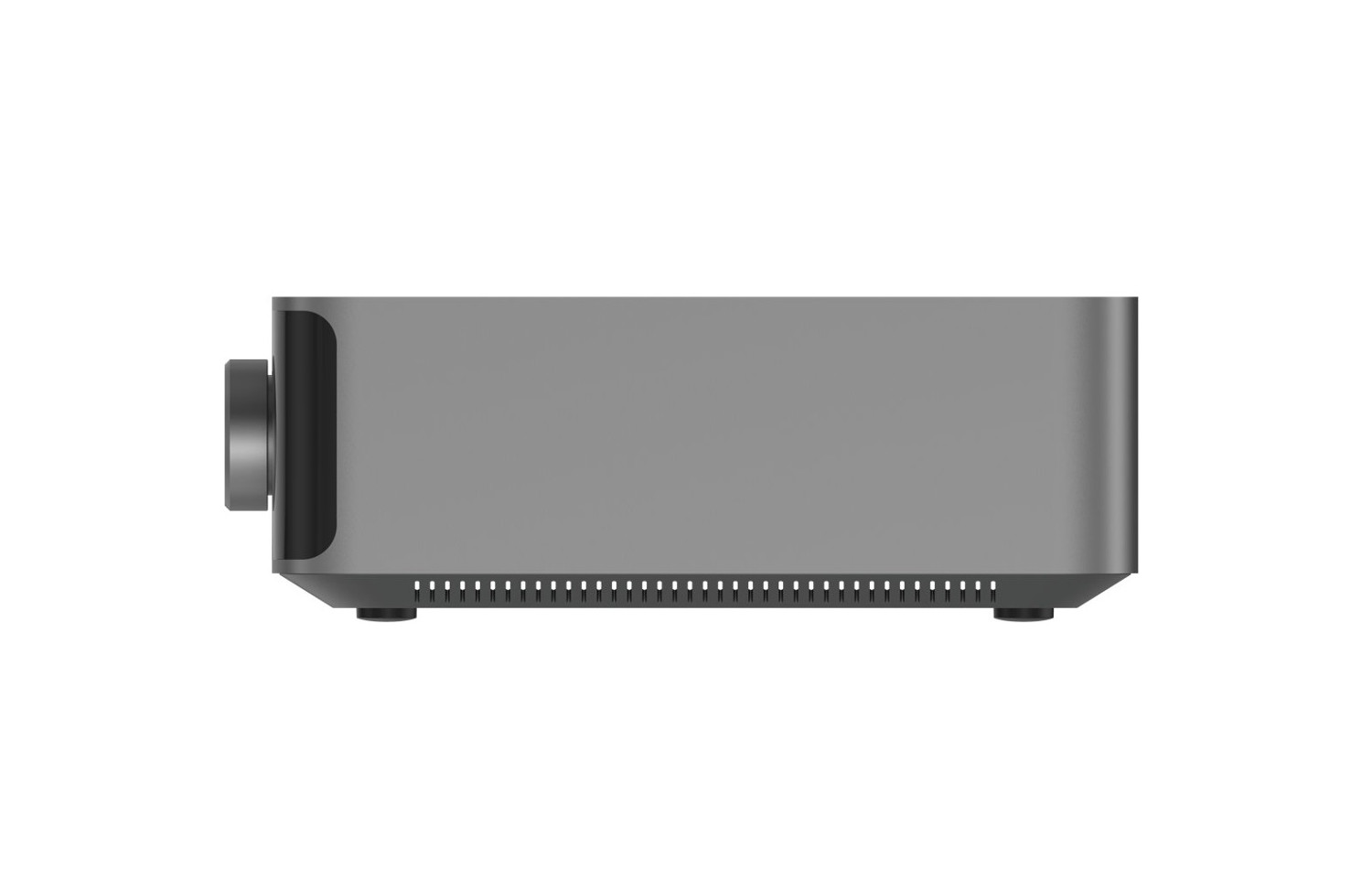

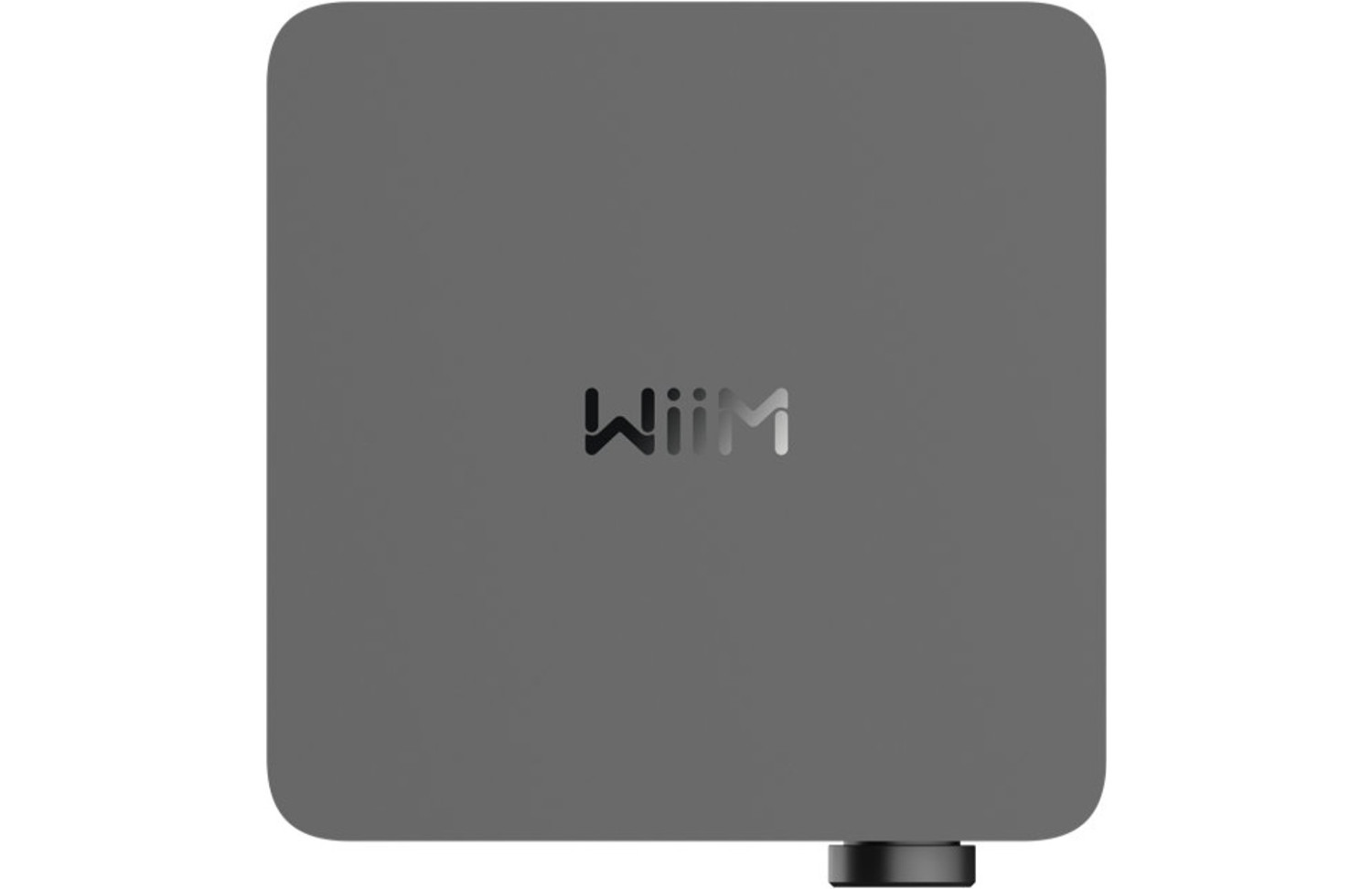

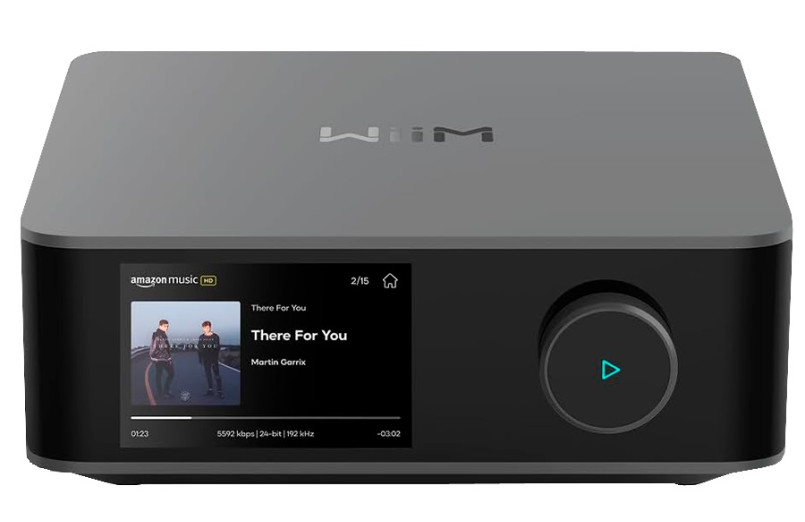

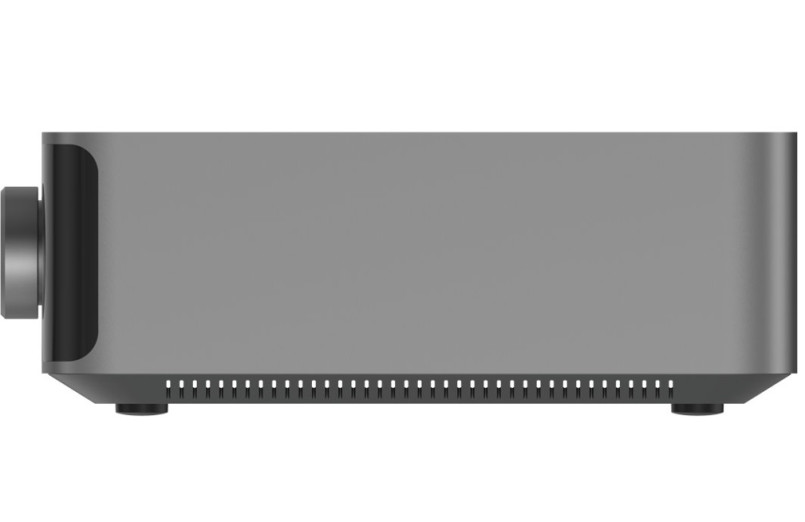

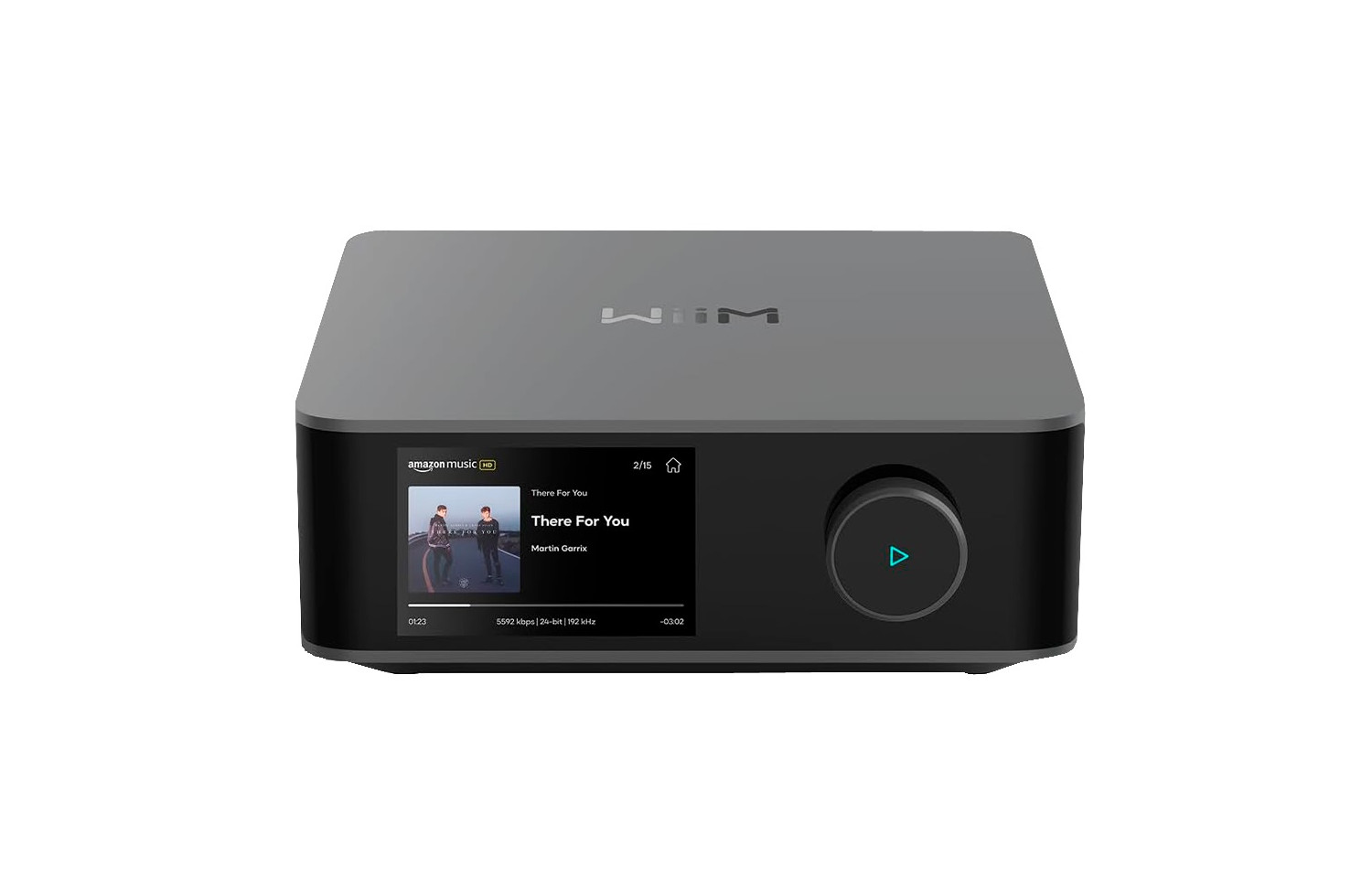

Designed to stand out and fit in, the Amp Ultra features a sleek, one-piece aluminium chassis and a vibrant 3.5" glass-covered touchscreen. Control playback, switch sources, view album art and more, all at your fingertips.
Inside, the Amp Ultra is powered by world-class components such as the ESS ES9039Q2M SABRE DAC processor chip or its dual Class D amplifier plus six operational amplifiers.
Combined with Post Filter Feedback (PFFB) technology, it delivers a clean, detailed sound that minimises distortion with consistent performance from any type of speaker, ideal for bookshelf, floor-standing or in-wall speakers. Unlike traditional amplifiers, which suffer from variations in performance depending on load, PFFB dynamically compensates for these inconsistencies, delivering a more accurate, balanced and natural sound.
High power amplification generates heat, but the WiiM Amp Ultra stays cool under pressure thanks to advanced thermal management:
- Copper heat pipe quickly transfers heat away from key components for stable performance at any volume.
- Large aluminium heatsink with excellent conductivity ensures fast and efficient cooling, preventing performance reduction due to temperature.
- Precision PID control with real-time temperature regulation for optimal cooling and long-term reliability.
The Wiim Amp Ultra offers next generation wireless streaming, stay connected with the latest in wireless technology such as Wi-Fi 6E Tri-Band or Bluetooth 5.3 with SBC and AAC support. Stream ultra high-resolution audio with near-zero latency: no interruptions, no delays, just music.

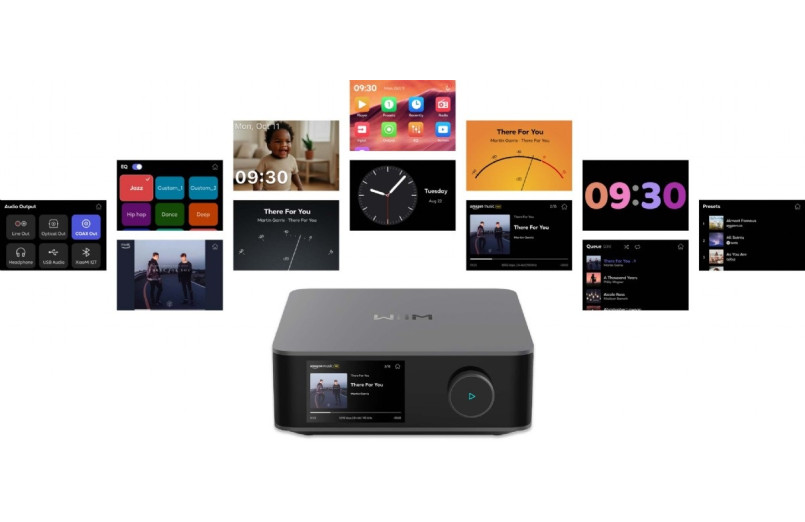

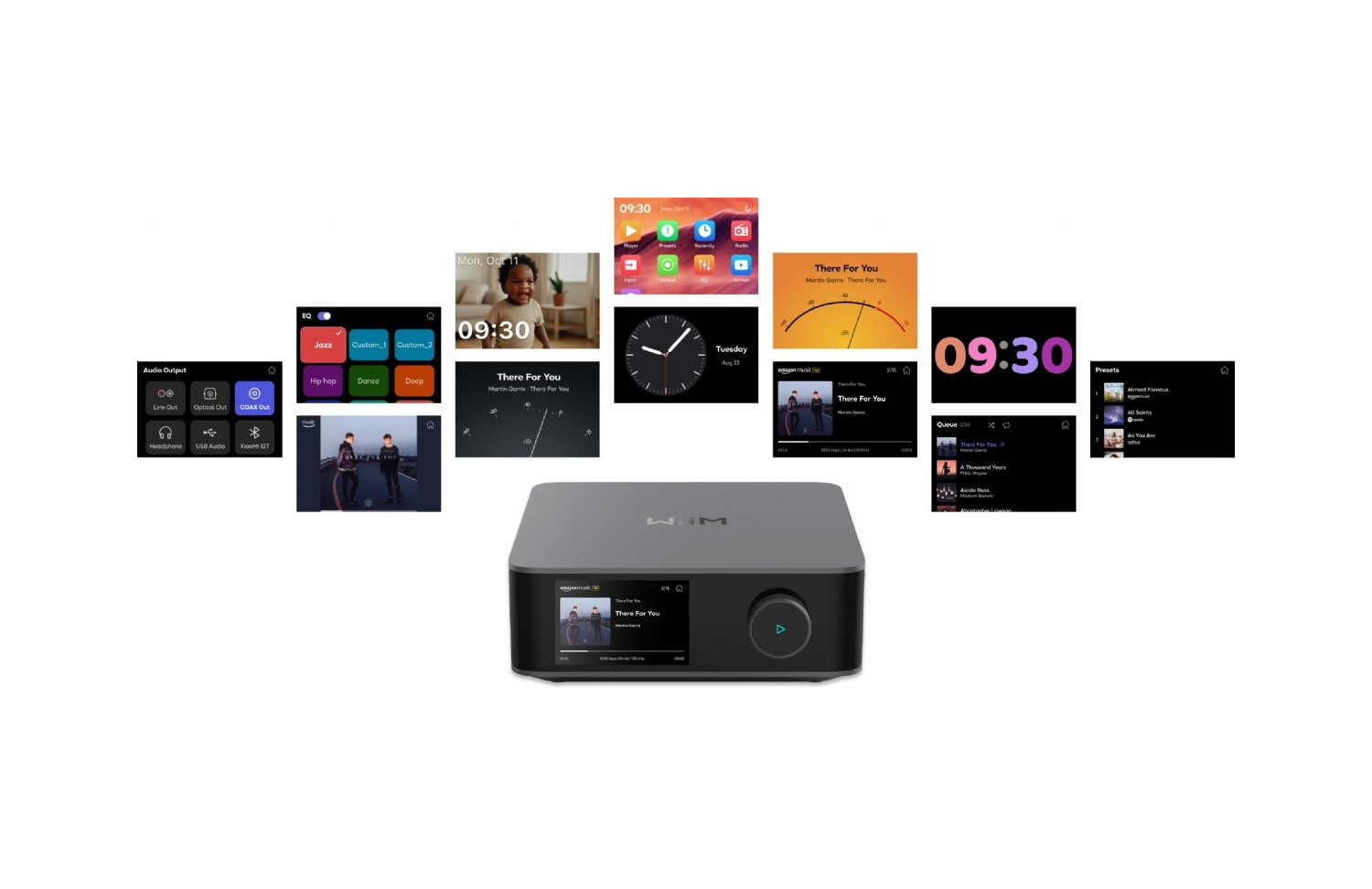

A convenient 3.5? glass touchscreen displays album art, VU meters and one-touch controls in the centre: switching inputs, adjusting settings and navigating playback is simple, with instant visual feedback.
Every room is different: WiiM Amp Ultra adapts. It uses built-in RoomFit acoustic metering and correction to adjust your setup according to the environment, optimising speaker type, distance and room acoustics.
Stream directly from your favourite platforms: Spotify, Amazon Music, TIDAL, Qobuz, Deezer, Pandora, iHeartRadio, TuneIn, SoundCloud and more.
Amp Ultra is compatible with: Chromecast, Alexa Cast, Spotify Connect, TIDAL Connect, Qobuz Connect, DLNA, SqueezeLite and Roon Ready.
Customise your sound and set the perfect tone with 24 preset EQ profiles, 10-band graphic and parametric EQ, per-input EQ settings and subwoofer crossover control.

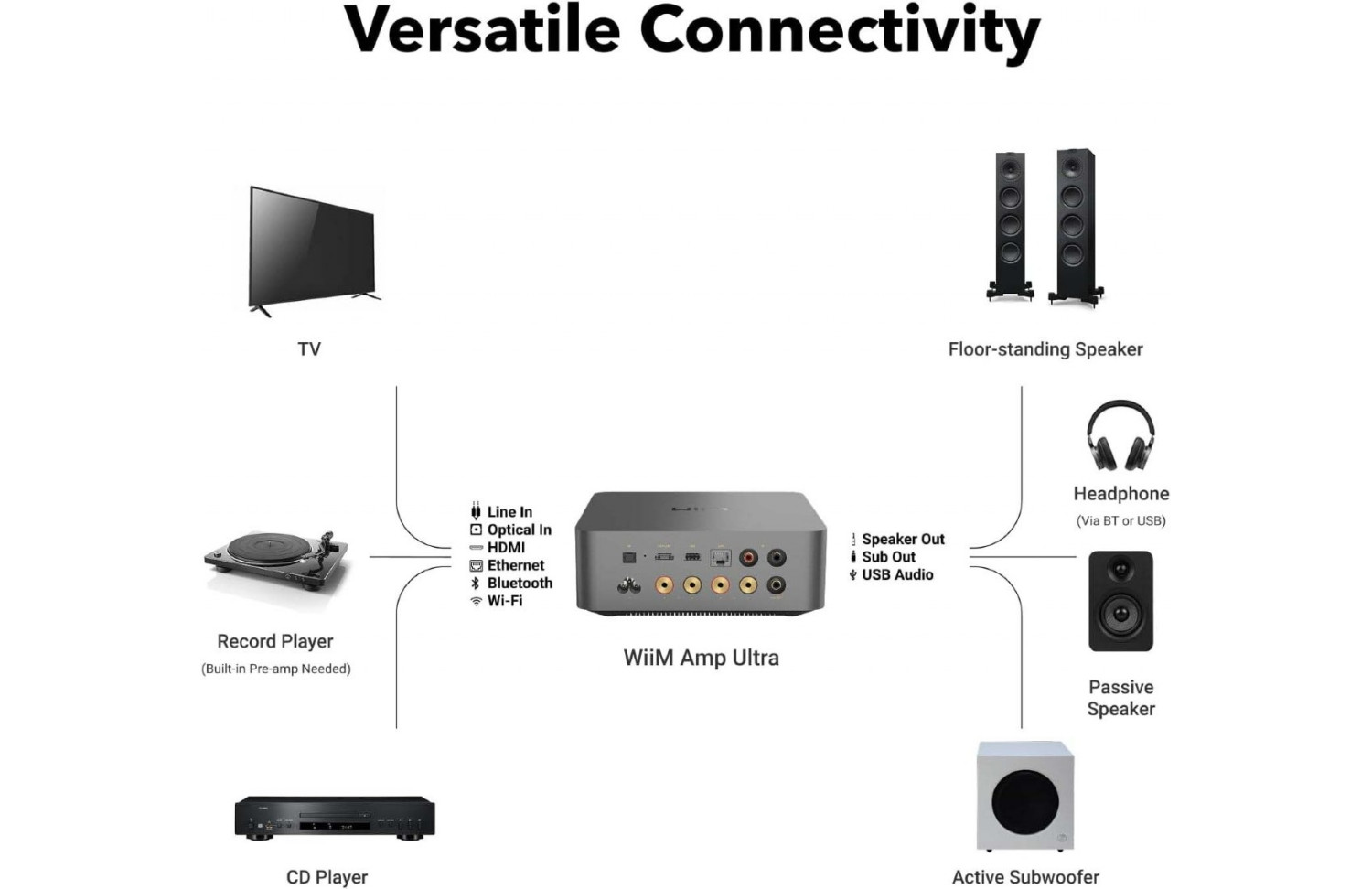

Versatile connectivity. Integra easily connect turntables, TVs, CD players or stream to any WiiM or Bluetooth-enabled device.

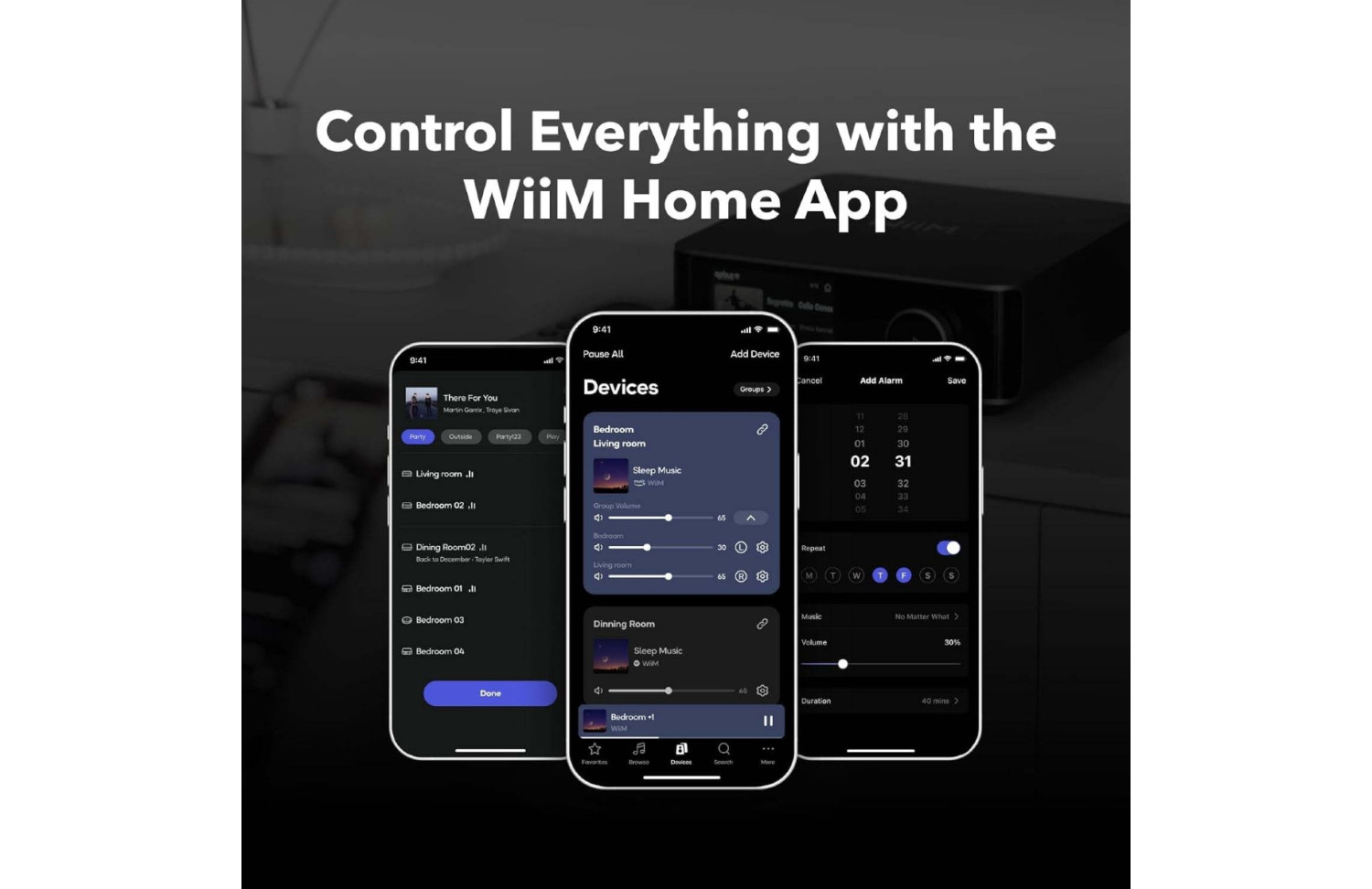

Control it all with the WiiM Home app. Stream music, adjust EQ, group rooms, set alarms or update firmware with ease, all from your phone or tablet.

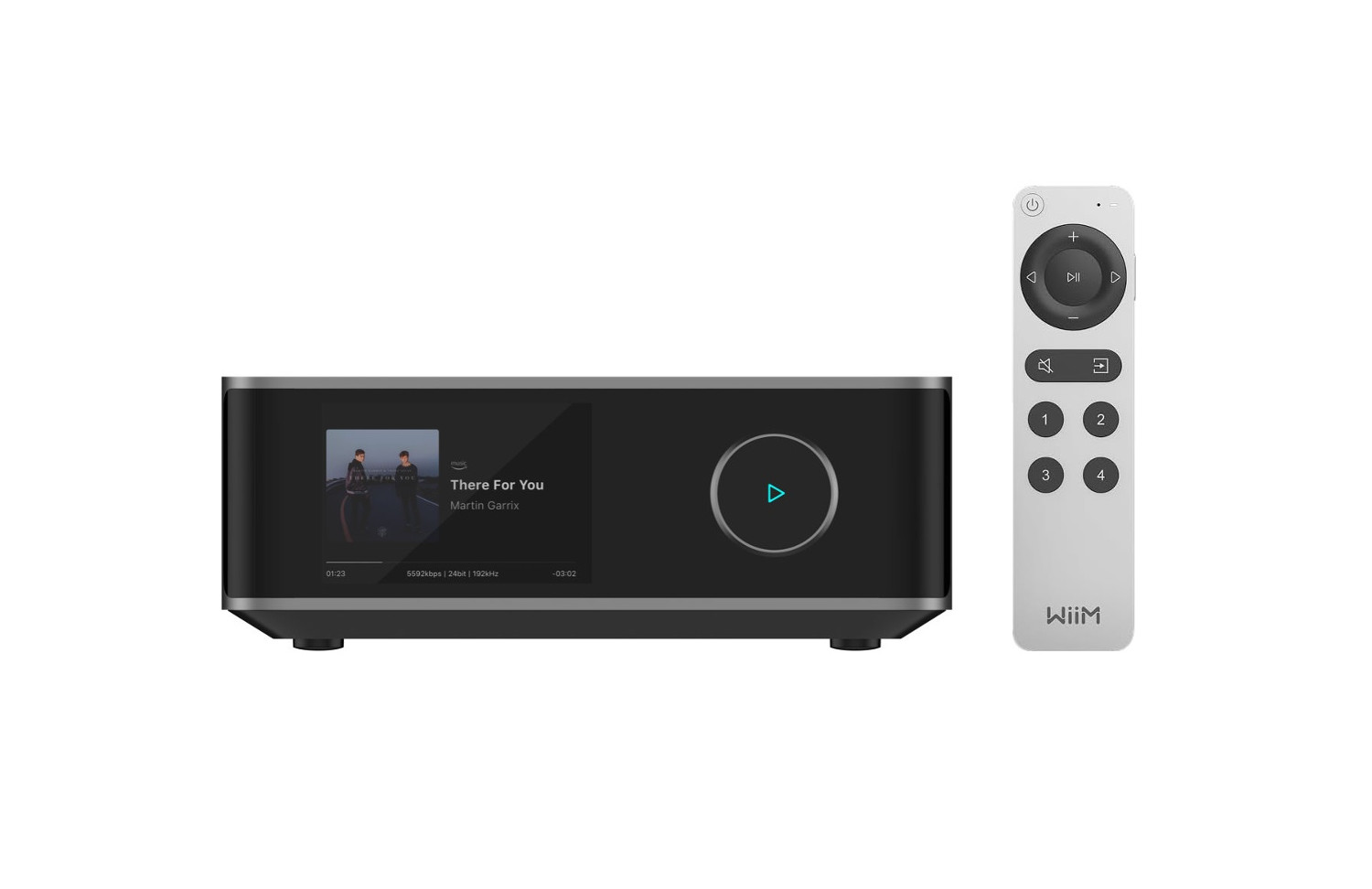

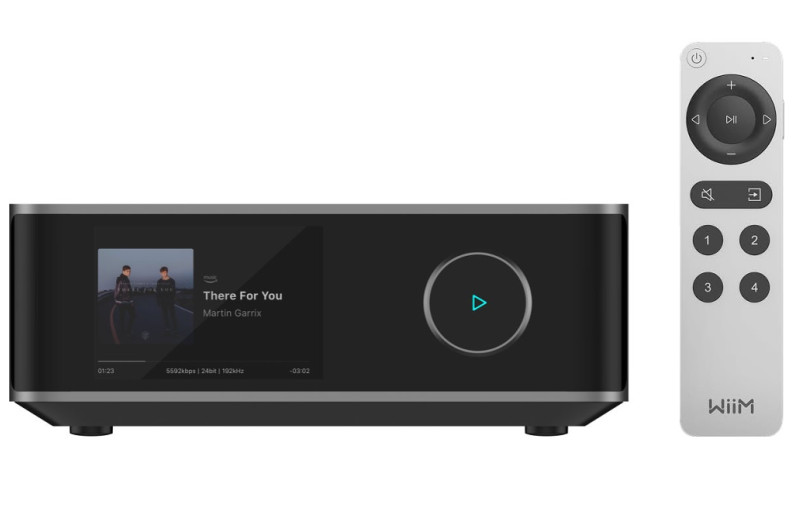

Take full control with the WiiM Voice Remote 2, designed with a sleek aluminium body, rechargeable battery and intuitive Push-to-Talk voice commands, plus smart presets and dedicated playback buttons for a smooth and intuitive experience. Voice control via Alexa, Google Assistant, or the included voice remote control WiiM
Features:
- Amplifier with built-in DAC and streamer.
- One-piece aluminium chassis with thermal management to control temperature.
- 3.5" front colour touch screen.
- Amplifier power: 100 W per channel @ 8 O and 200 W per channel @ 4 O.
- Class D amplifier performance with PFFB (post-filter feedback) technology.
- Built-in RoomFit calibration optimises soundstage and tonal balance.
- High-performance ESS 9039Q2M DAC.
- Bit-Perfect Playback: Supports up to 192 kHz/24-bit audio.
- Bluetooth 5.3: Supports receive and transmit and works with the voice remote control WiiM.
- Internet connection via Wi-Fi 6 (upgradeable to Wi-Fi 6E): ensures stable, high-speed wireless transmission or via Ethernet (100 Mbps): RJ45 port.
- Streaming compatible with Chromecast, Alexa Cast, Spotify Connect, TIDAL Connect, Qobuz Connect, DLNA, SqueezeLite and Roon Ready.
- Access to online services such as Spotify, Amazon Music, TIDAL, Qobuz, Deezer, Pandora, iHeartRadio, TuneIn, SoundCloud and more.
- Home Cinema Mode: Works as front, centre or surround channel in a Dolby 5.1 configuration via HDMI ARC, (receives audio from TVs, PCM up to 192 kHz/24-bit and Dolby Digital 5.1 formats).
- Roon Ready compatible (certification pending).
- 24 preset equalisation profiles with 10-band graphic and parametric equaliser.
- Multiroom audio: Compatible with multi-room systems WiiM, Google Home and Alexa.
- Alarm clock function with configurable time, snooze schedule and music source.
- Separate settings for Wi-Fi, HDMI ARC, optical, Bluetooth and line-in.
- Voice control (Google Home and Alexa), via its free app for phones and tablets or with its included aluminium remote control.
- Total Harmonic Distortion (THD+N): =0.005 %, -106 dB (A-weighted).
- Signal to Noise Ratio (SNR): =120 dB.
- Damping factor: 94.
- Frequency response: 20 Hz to 20 kHz ± 0,5 dB.
- Impedance range: 2 to 8 O.
- Dynamic range: =120 dB.

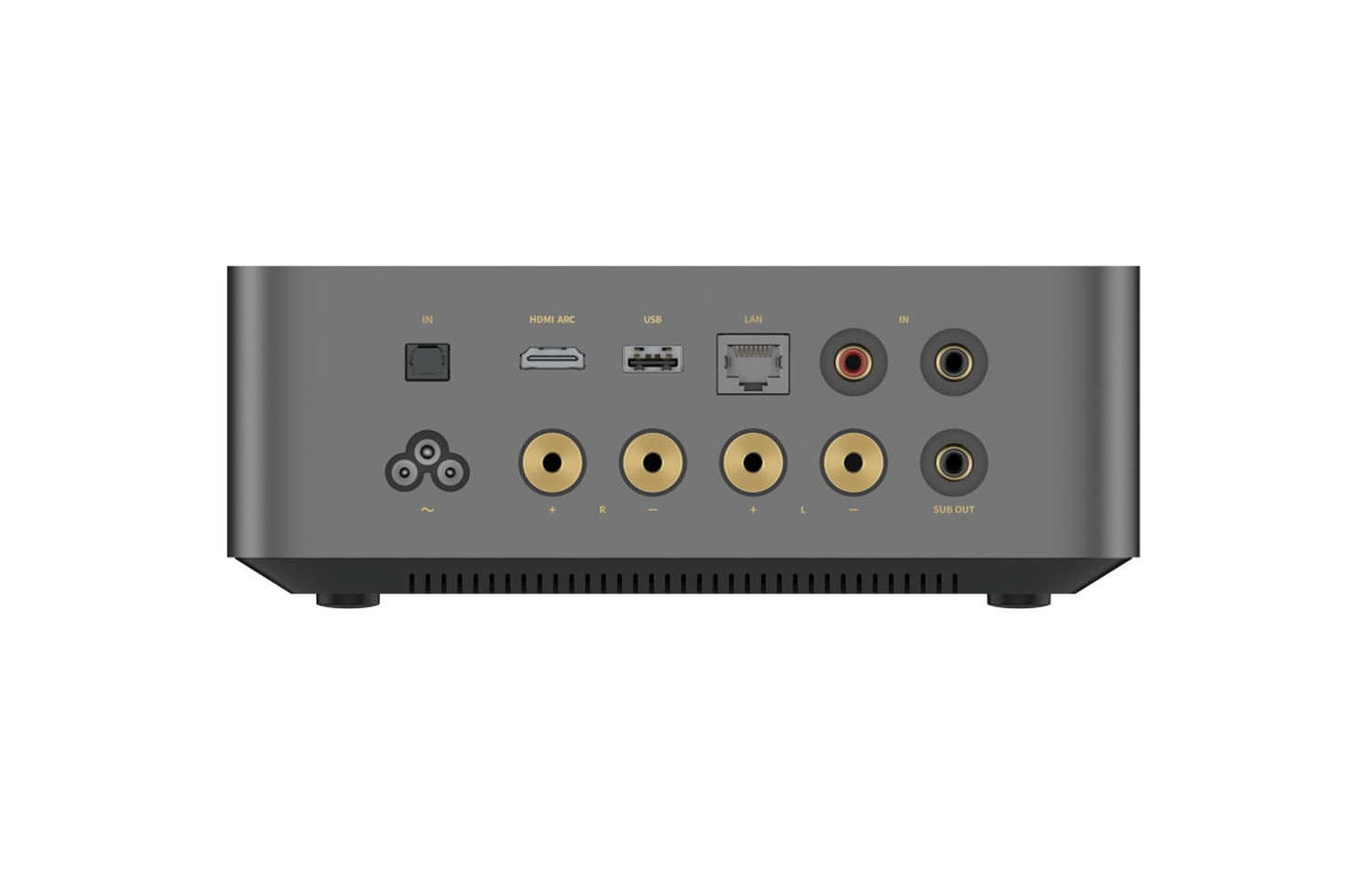

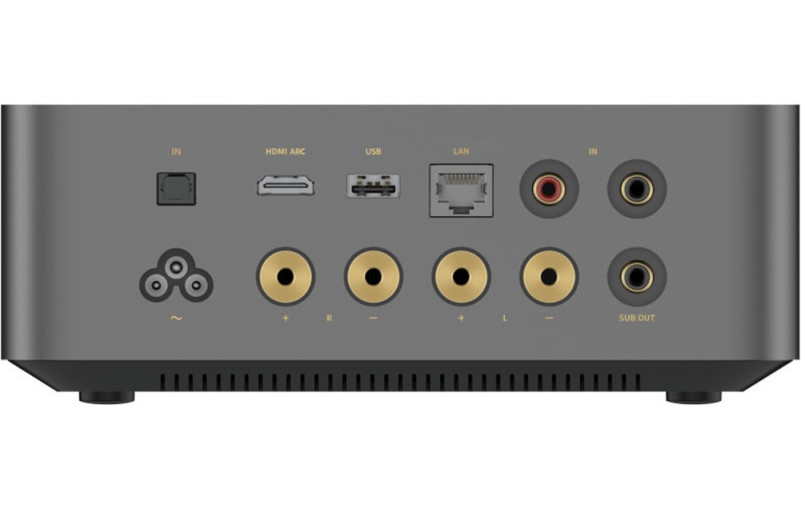

- Analogue inputs: 1 x stereo RCA.
- Digital inputs: 1 x optical (TOSLINK): up to 192 kHz/24 bit and 1 x HDMI with ARC.
- USB audio output: Supports up to 8 channels of 24-bit/192 kHz.
- Dedicated active subwoofer output (RCA mono).
- Speaker outputs with gold-plated terminals (supports banana plug or bare wire connections).
- Dimensions: 200 x 75 x 200 mm.
- Weight: 2.45 kg.
- Includes: Power cable, RCA cable, digital optical cable, HDMI cable and 4 banana plugs.
