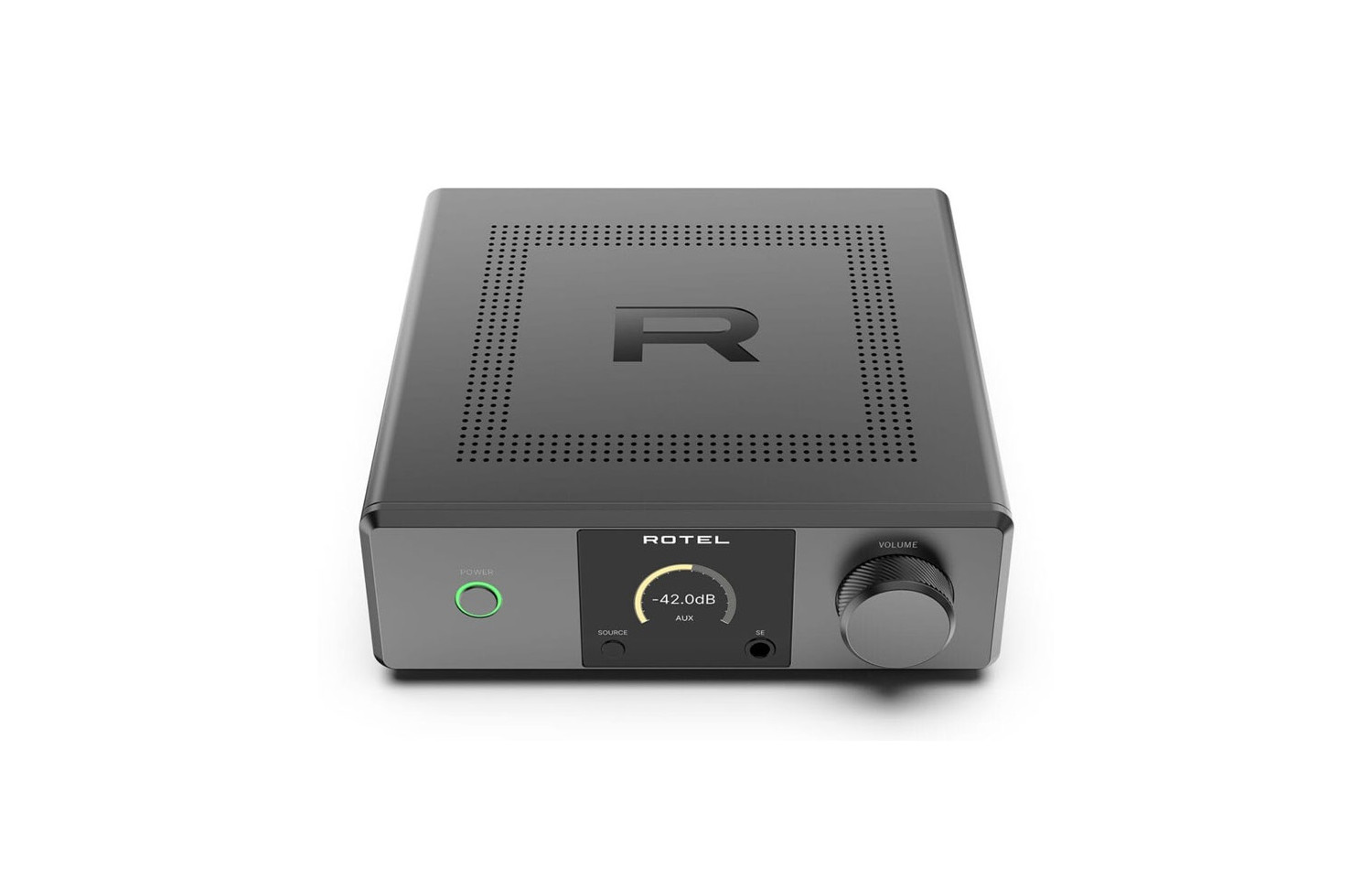

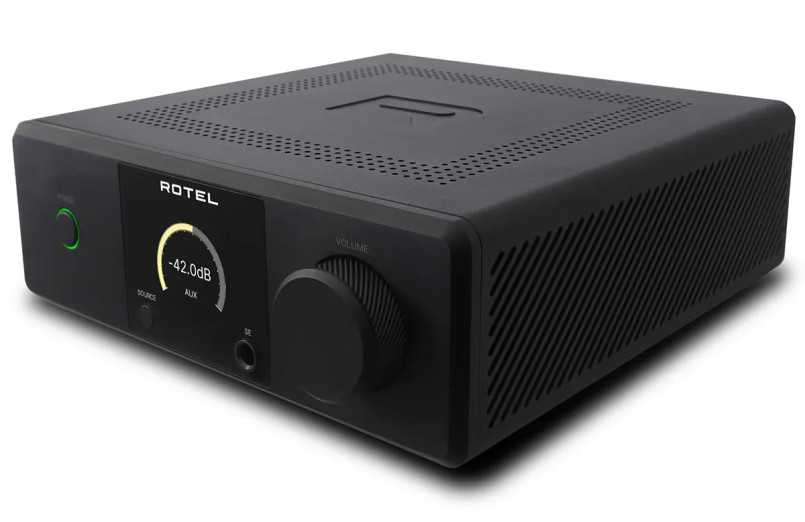

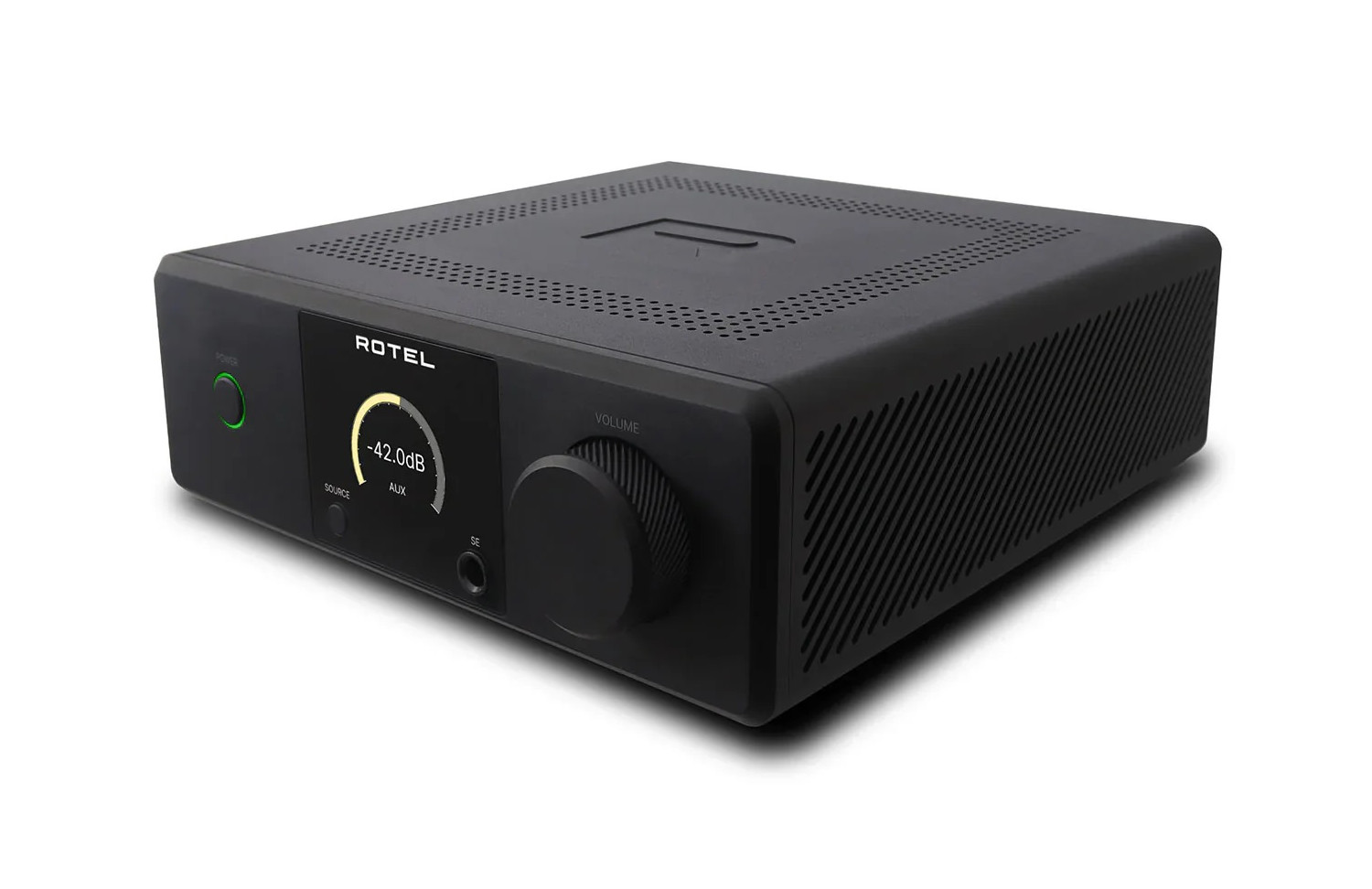

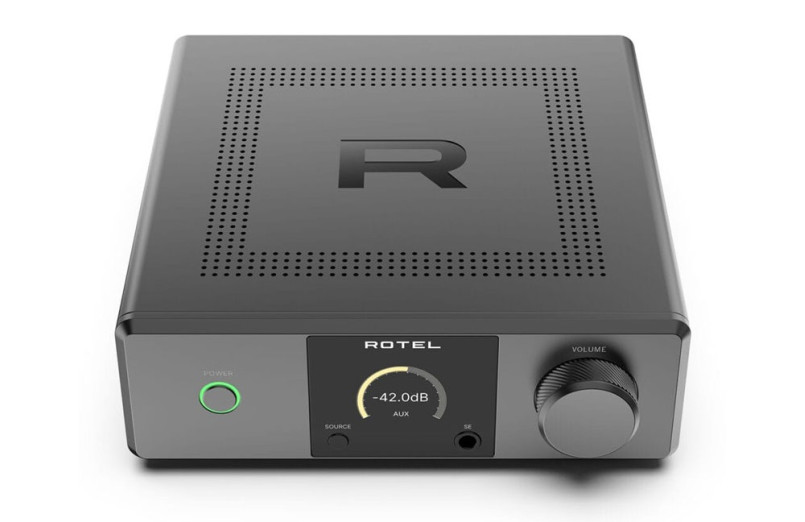

The Rotel DX-5 is the ultimate integrated amplifier for personal audio, combining cutting-edge technologies, versatile connectivity and a sleek and stylish industrial design.
Developed for audiophiles, music lovers and home entertainment enthusiasts, the DX-5 delivers 33 watts per channel into 4 ohms (25 watts per channel into 8 ohms) in Rotel 's classic Class AB amplification from an ultra-efficient chassis size.

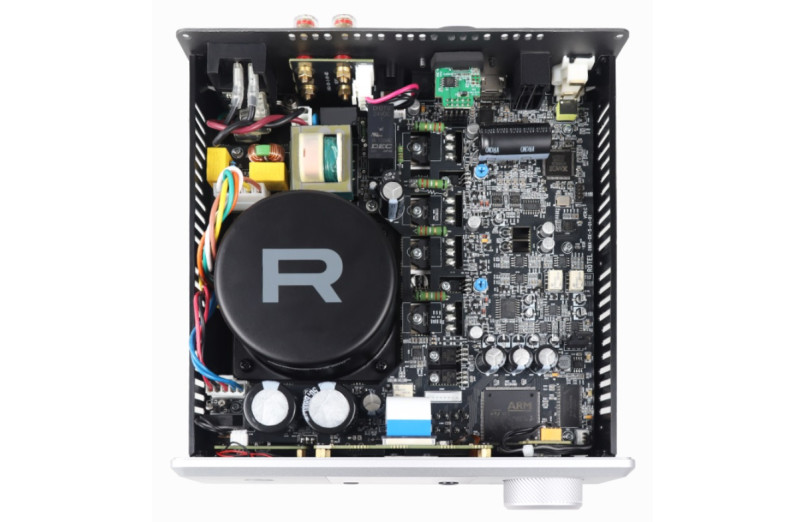

The ESS ES9039Q2M premium DAC inside reproduces sound with exceptional definition and musicality in an expansive soundstage. It includes PC-USB support (PCM up to 32-bit/384 kHz, DSD up to DSD256), coaxial/optical jacks (24-bit/192 kHz), Bluetooth aptX HD and AAC, analogue jacks with RCA connectors for traditional components and HDMI ARC connectivity with subwoofer output.

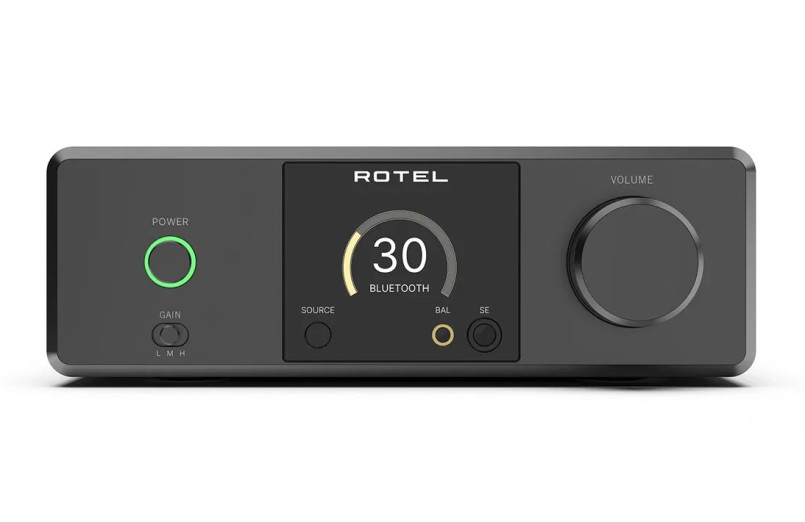

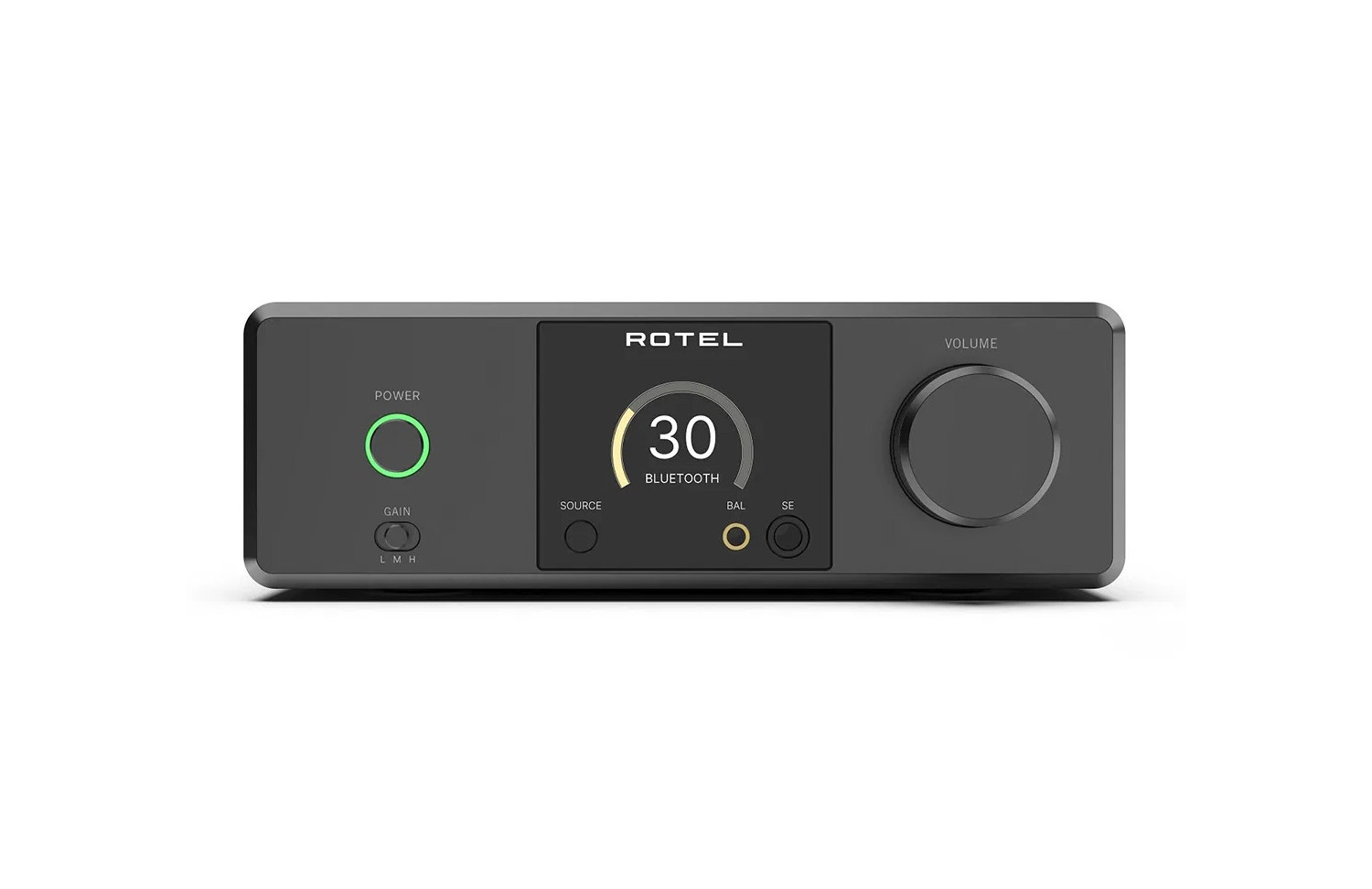

The DX-5 features a full-colour TFT display, a 6.35mm headphone jack and includes an intuitive remote control perfect for music lovers and home entertainment enthusiasts.
Features:
- Compact design stereo amplifier with DAC.
- Power 2 x 33W at 4 ohms and 25W at 8 ohms in class AB.
- Enables aptX HD Bluetooth wireless link
- Internal ESS ES9039Q2M DAC with PCM resolution up to 32-bit/384KHz.
- Compatible with audiophile DSD audio files up to DSD256.
- Roon Tested approved.
- Front TFT colour display.
- Frequency response: 10 Hz - 100k Hz (0 ± 0.19 dB).
- Total Harmonic Distortion: Less than 0.03%.
- Damping factor: 140 (20 Hz - 20k Hz, 8 O).
- Signal to Noise Ratio: Greater than 100 dB.

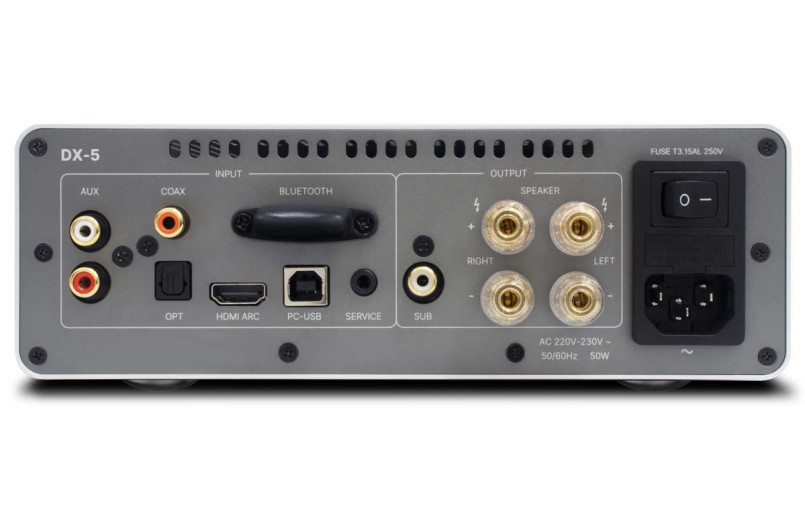

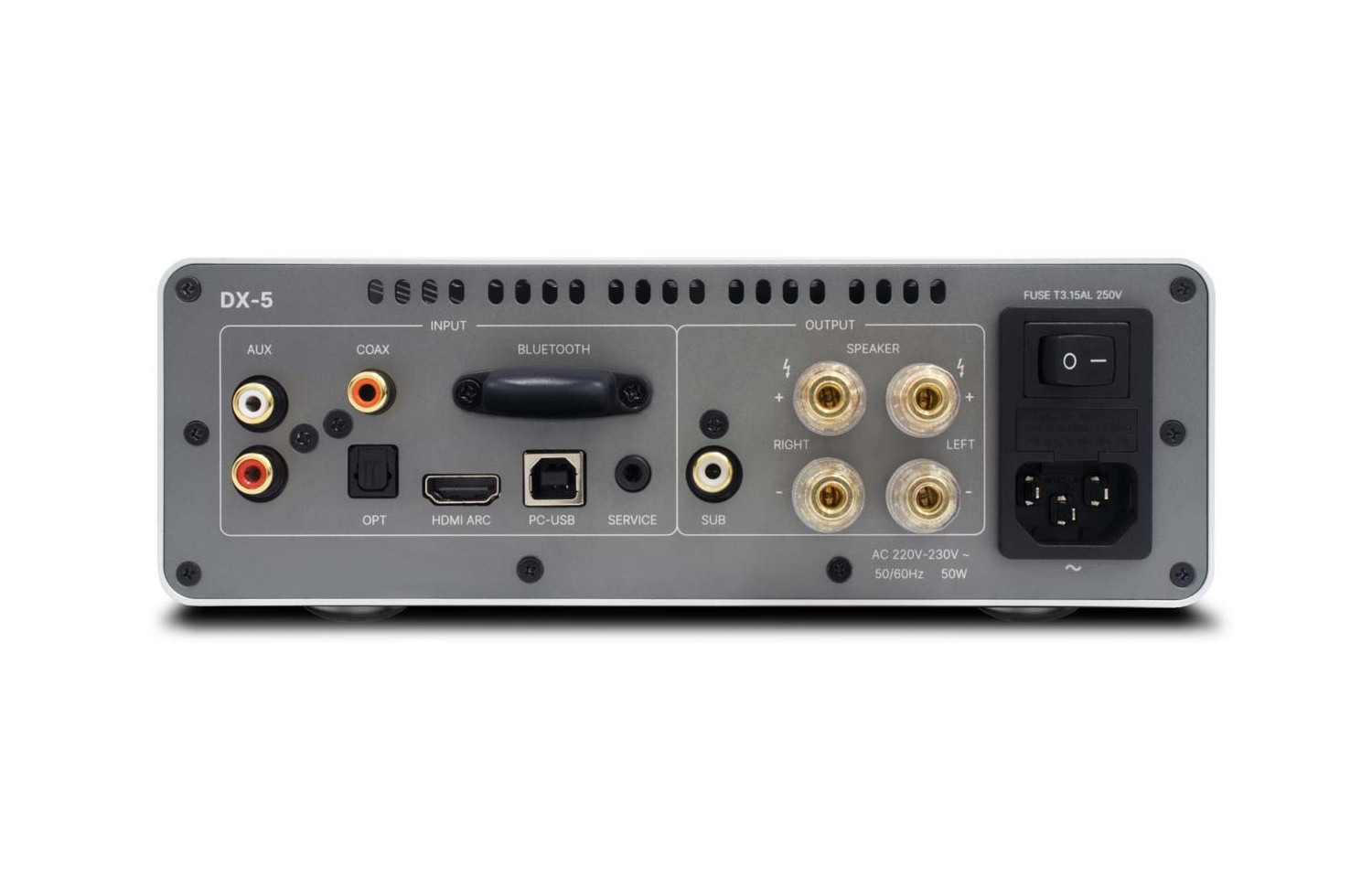

- Inputs: 1 x HDMI with ARC, 1 x USB 2.0 type B, 1 x optical digital (Toslink), 1 x coaxial digital and 1 x analogue stereo RCA.

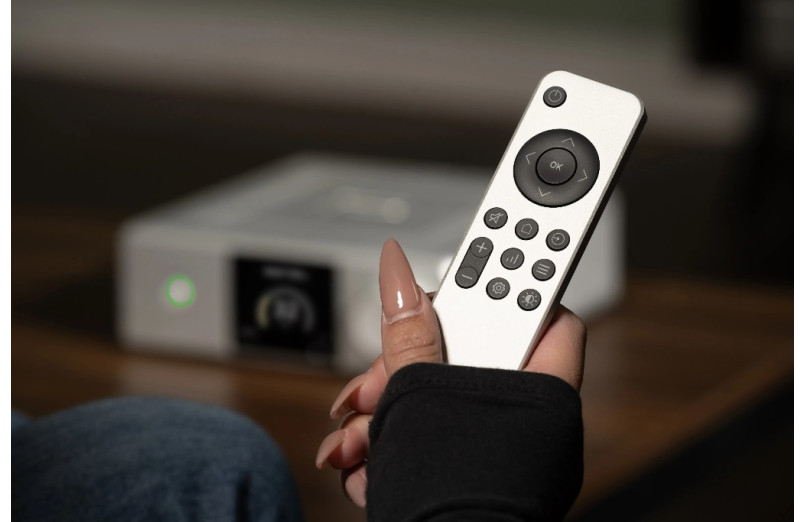

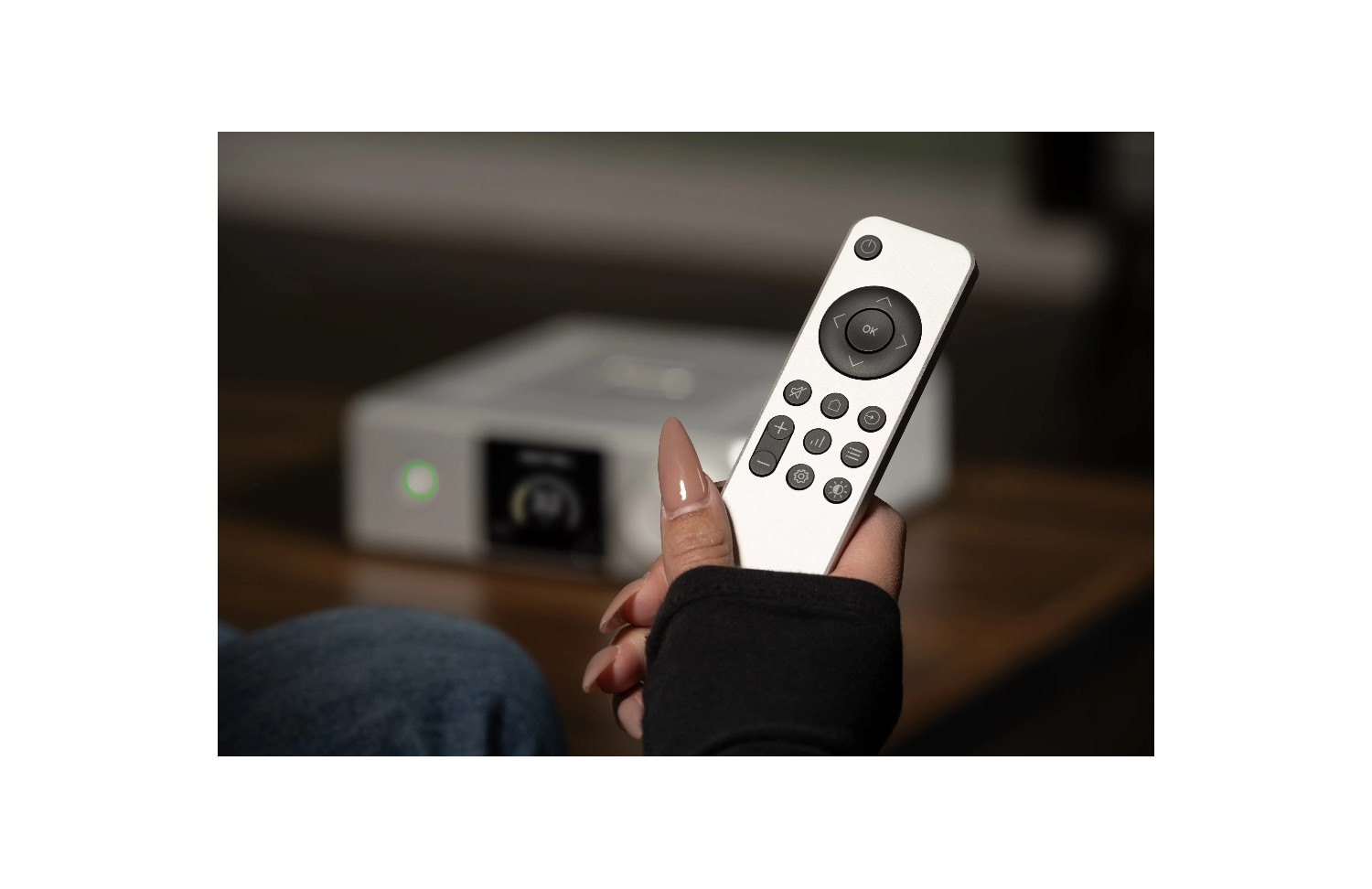

- Includes remote control.
- Dimensions: 21.5 cm wide x 7.6 cm high x 25.1 cm deep.
- Weight: 4,1 kilos.
Available soon. Pre-booking orders are accepted and will be dealt with in strict order as the first units arrive.
