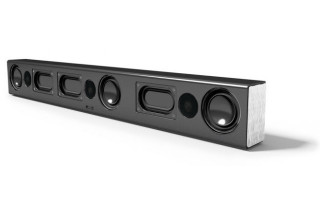

Bluesound Pulse Cinema

Keys to Bluesound Pulse Cinema
Configuration 3.2.2 with 16 speakers and 500 W power, with dedicated channels (centre, front, height) and intelligent DSP amplification for powerful surround sound.

Full Dolby Atmos® support and multiple connections: HDMI eARC, Toslink optical, stereo RCA and wired or wireless subwoofer output.

High-resolution streaming with integrated BluOS™, including support for MQA, DSD256, AirPlay 2, Spotify Connect, Tidal Connect and multiroom.

Versatile design and advanced connectivity, with dual-band Wi-Fi, Gigabit Ethernet, two-way Bluetooth aptX Adaptive, touch interface with proximity sensor and included wall mount bracket.

Dolby Atmos® immersive sound
The PULSE CINEMA delivers powerful and realistic sound from a single stylish soundbar. With 16 custom-tuned speakers, including upward-facing speakers and a centre channel, it creates an expansive soundstage 3.2.2 Dolby Atmos®. From crisp dialogue to deep bass, every detail comes through clearly. You can customise your listening experience with three adjustable modes - Cinema, Music and Night - each with a distinct Dolby Atmos-enhanced profile. Setup is simple thanks to HDMI eARC connectivity, eliminating the need for an additional receiver or equipment.

Simplified wireless home cinema
Build a complete surround sound system without clutter. The PULSE CINEMA works seamlessly with other loudspeakers Bluesound to create a complete wireless surround system. It's all managed through the BluOS Controller app, making it easy to stream music, group zones and control your system - or your entire BluOS multiroom setup - from anywhere in your home.

Automatically adapts to your space
Designed to fit in any room, the PULSE CINEMA comes with a wall bracket or can be placed on a media cabinet. Its speakers and DSP automatically adjust according to orientation, so there's no need to set up anything manually. With its low-profile design, it blends into any environment while delivering powerful performance.

All-in-one performance for TV and music
Whether you're watching a movie, listening to your playlists or playing games, the PULSE CINEMA handles it all. Built-in amplification and Dolby Atmos® decoding provide full-range sound without the need for an AV receiver. Just a soundbar - no racks or receivers - for spacious, rich audio, ready to use whenever you are.

Versatile connections and easy control
The PULSE CINEMA keeps the setup simple with HDMI eARC, optical and analogue inputs, and a dedicated subwoofer output for extended bass, either wired or wireless. Everything is controlled from the BluOS Controller app, allowing you to stream music, adjust settings or create multi-room setups without the need for additional remotes or complicated interfaces.

Full control
The PULSE CINEMA SOUNDBAR can be controlled in a variety of ways, including voice control with Amazon Alexa or Google Assistant, your TV remote control or the BluOS Controller app. No matter which option you prefer, PULSE CINEMA will give you a hassle-free, hassle-free listening experience.

PULSE CINEMA Specifications 3.2.2
Audio

• Supported audio formats: MP3, AAC, WMA, WMA-L, OGG, OPUS
• Supported high quality audio formats: FLAC, MQA, ALAC, WAV, AIFF, MPEG-4 SLS
• DSD support: DSD256
• Supported multi-channel audio formats: Dolby® Digital, Dolby Atmos®, Dolby Digital Plus™,
• Dolby® TrueHD, LPCM
• Native sampling frequency: up to 192 kHz
• Bit depth: 16-24
• Audio and EQ controls: BluOS Control App
• Distortion: THD+N 0.030%
• Amplification: Smart DSP Amplifier
• Power rating: 500 W (38W x 5 Tweeter, 38W x 5 Mid-Range, 65W x 2 Woofer)
• Speakers: Tweeter 0.75" (21 mm) x5, Mid-Range 1.5 "x3" (44 x 75 mm) x5, Woofer 4" (102 mm) x2, Passive radiator 4" (102 mm) x4
• Speaker configuration: 3.2.2

Software and integrations

• Operating system: BluOS
• Control App: iOS, Android, Windows, macOS
• Processor: ARM® Cortex™-A53, Quad-Core, 1.8 GHz per core
• Network file sharing: SMB up to 200,000 files
• Supported cover art formats: JPG, PNG
• Online music and radio services: 23+
• Third-party integrations: AirPlay 2, Spotify Connect, Tidal Connect, Roon Ready
• Integrations with control systems: Crestron, Control4, RTI, Nice, URC, Lutron
• Voice control integrations: Amazon Alexa Skills

Connections

• Power supply: Universal AC input 100-240V
• Ethernet/LAN: RJ45, Gigabit 1000 Mbps
• Integrated Wi-Fi: 2x Wi-Fi 5 (802.11ac), dual band
• Bluetooth quality: 5.2 aptX Adaptive
• Bluetooth connectivity: bidirectional (send and receive)
• Optical IR: integrated front IR sensor with learning
• Optical/analogue inputs: Optical Toslink, analogue RCA
• HDMI input: HDMI eARC
• USB input: Type A (FAT32/NTFS external storage only)
• Local server mode: Yes
• Headphone output: via Bluetooth
• Subwoofer output: RCA x1; wireless to PULSE SUB+

User interface and control

• Status indicator: LED
• Play/Pause button: touch LED
• Volume buttons: LED touch buttons
• Previous/Next track buttons: from app
• Preset buttons: LED touch buttons x2
• Proximity sensor: Yes

General

• Finish: Black
• Maximum power consumption: (not specified)
• Storage environment: -10°C to 50°C, 20%-80% relative humidity
• Operating environment: 0°C to 40°C
• SKU/Version: P530
• Tabletop dimensions: 1200 x 74 x 140 mm (W x H x D)
• Dimensions wall mounted: 1200 x 140 x 84.5 mm (W x H x D)
• Weight: 6.69 kg
• Accessories included:
• Power cord 120V AC
• Power cable 230V AC
• Ethernet cable
• HDMI cable
• Wall bracket
• Template for wall mounting
• Screws M6 x2
• Hexagonal mounting tool
• Safety and Security Guide
• Quick Configuration Guide
