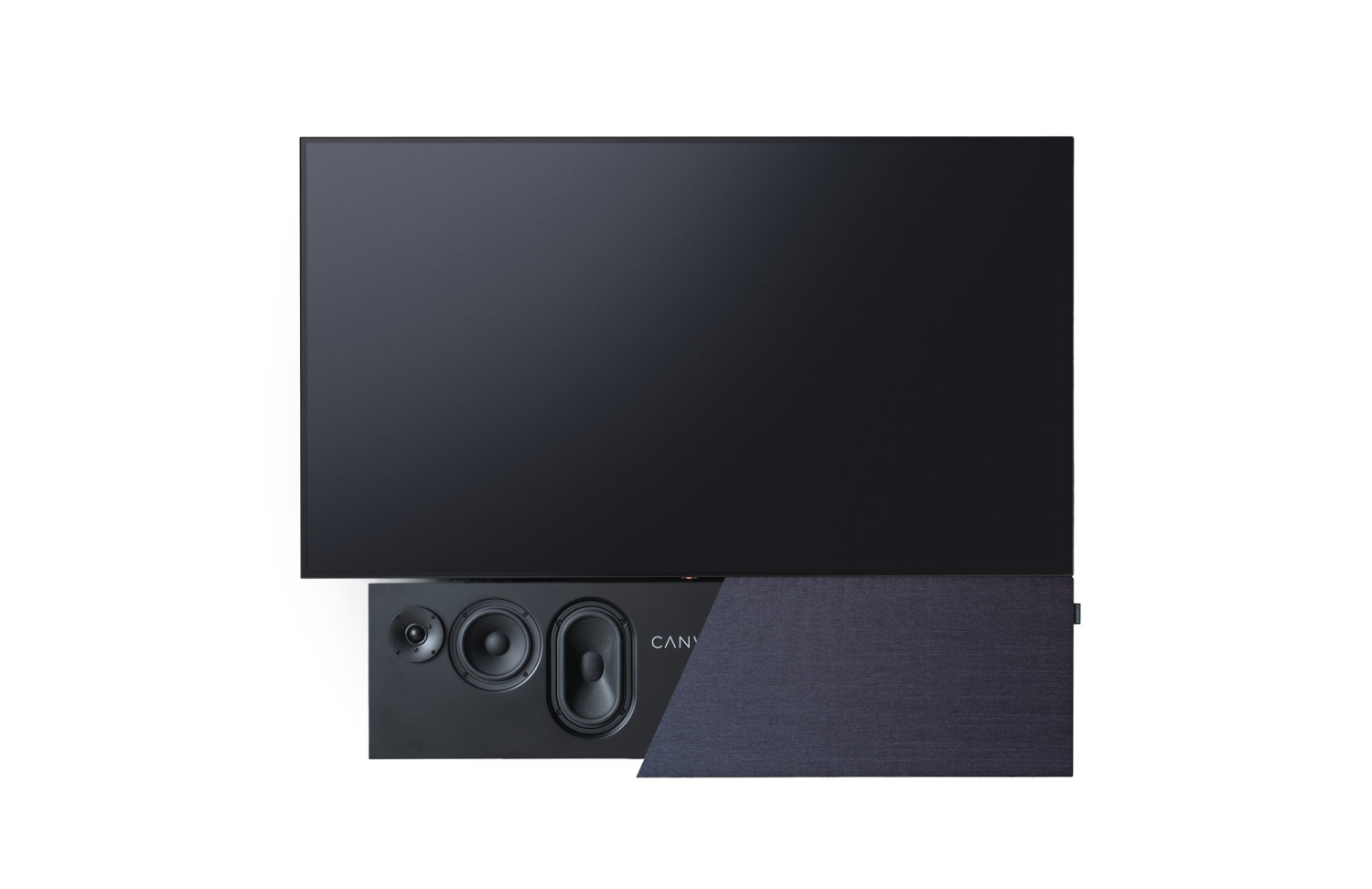

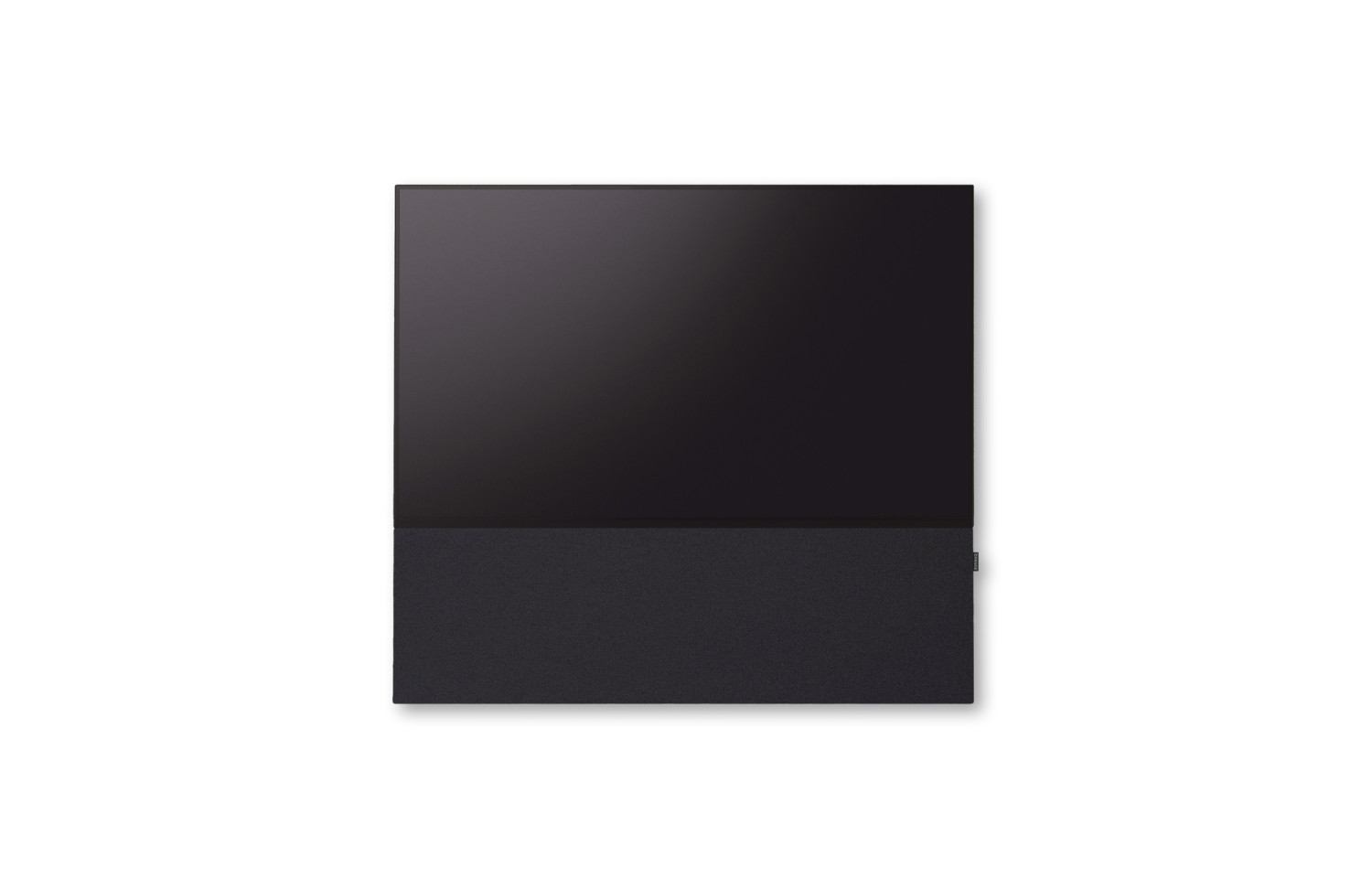

CANVAS speaker featuring a 55” front grille that matches the width of your 55” television.
The stand, wall bracket, TV mount and all accessories, screws, cables, etc. are included – just add your TV.
You can choose from 13 different grille finishes.
TV
compatibility: Universal mount for all TV brands (Samsung, Sony, Panasonic, LG, etc.) in 55", 65", 75" and 77" sizes.
Hybrid stand/wall
mount: can be used either on the floor or mounted on the wall.
Midrange/bass
drivers: 2 x 6.5" die-cast aluminium chassis with paper cones and high-end SB Acoustics long-excursion drivers
Tweeters
: 2 x 29 mm SB Acoustics high-end silk dome tweeters with a waveguide designed by CANVAS and a die-cast aluminium front plate
Passive
radiators: 2 x SB Acoustics High End low-loss, high-precision, long-excursion
Crossover
: High-order FIR DSP chamfer rule

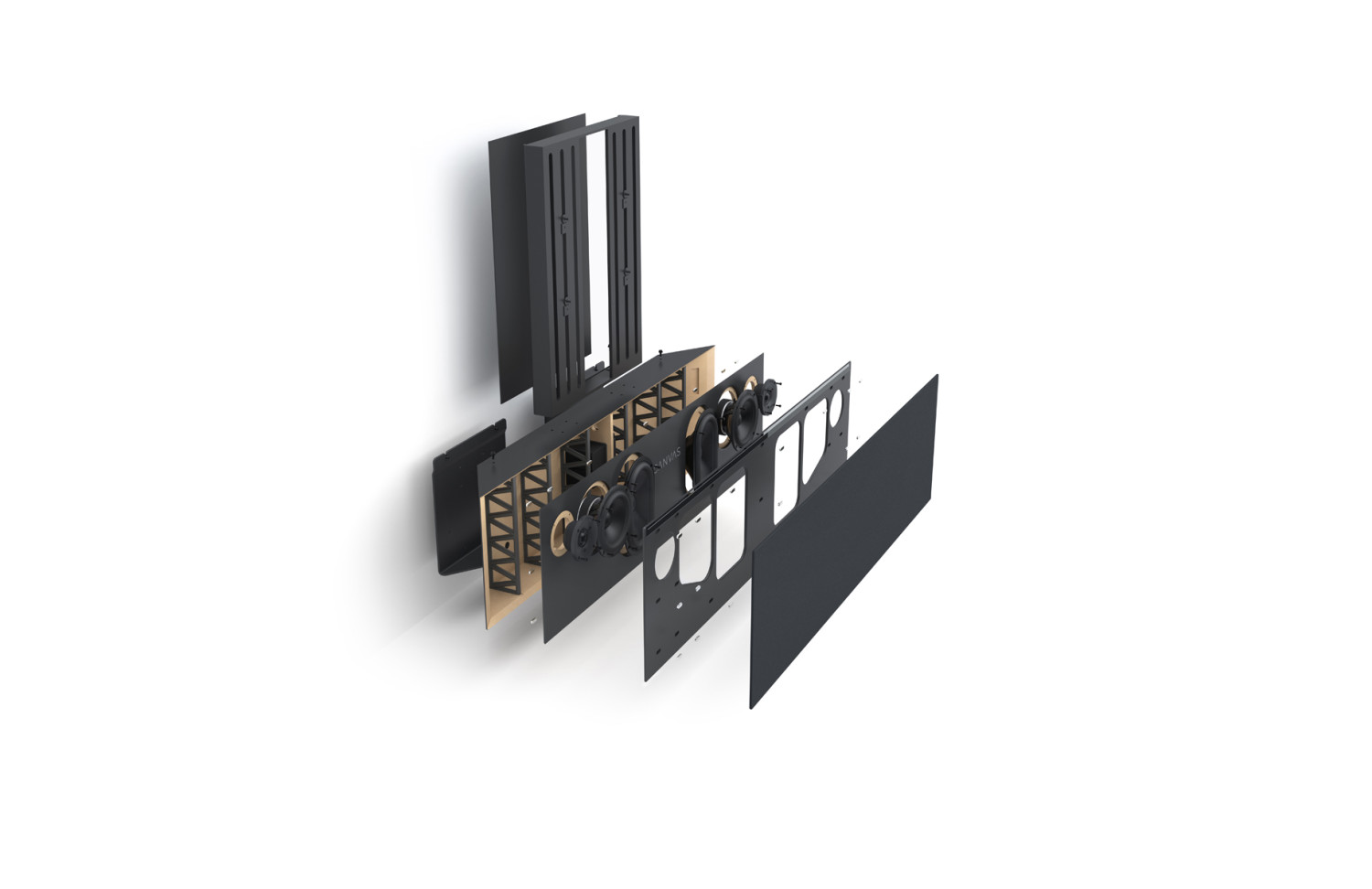

Rock-solid cabinet
with a 24-litre capacity, constructed from MDF using CANVAS BridgeBrace™ technology
Updates
: Automatic OTA software updates. Upgradeable electronic hardware. TV
compatibility: Universal support for all TV brands (Samsung, Sony, Panasonic, LG, etc.) in 55", 65", 75" and 77" sizes.
Amplification
: The Class D 4-channel Hi-Fi amplifiers deliver a total power output of 250 watts, yet manage to produce a higher sound pressure level than traditional 1,000-watt soundbars.
Many users have wondered why CANVAS HiFi produces a deeper and more powerful sound than conventional soundbars, suggesting that its amplifier has a higher wattage.
There are various factors that influence this, but one of the most significant is that CANVAS has an effective acoustic volume of 23 litres, as well as two 5-inch mid-bass drivers and two 5x8-inch passive woofers, which together offer a total surface area of 592 cm², equivalent to a 12-inch speaker. Consequently, the CANVAS HiFi is extremely efficient and can deliver a louder sound with more bass than traditional soundbars.
Connectivity
includes HDMI eARC, Toslink, analogue, Apple AirPlay 2 (multi-room), Google Cast (multi-room), Roon, Tidal, Spotify Connect and DLNA.
It also features an input that is automatically activated via a control unit that can be concealed within the CANVAS, enabling connection to existing control systems such as the ‘Sonos’ app, Bluetooth, the B&O App, ‘Bluesound’, HEOS, the Bose App, the Samsung App or other control units.
Features
- Frequency response: 30Hz – 20,000Hz
- Digital Signal Processor (DSP): 300 MIPS Quad-core from Analog Devices with 3D BACCH
filter DAC: Burr-Brown 24-bit/192 kHz
- Room correction: Via the iOS app, using the iPhone’s built-in microphone or the optional Zen Mic.
- Power supply: 100–240 V AC, 50–60 Hz
Dimensions
- Wall-mounted (including wall bracket and front panel): 122.6 x 36.9 x 12.6 cm (W x H x D)
- Free-standing (including wall bracket and front panel): 122.6 x 37.3 x 19.8 cm (W x H x D)
- Typical dimensions with TV: ~122.6 x ~107.8 cm (W x H)
Weight
- Weight without packaging: 35–38 kg
- Packaged weight: 42–45 kg
- Stand weight: 9.5 kg
- Grille weight: 2.1–3.5 kg
- Included: Speaker and grille, floor stand, wall-mount bracket, universal TV
mount, HDMI eARC cable, power cable and cable sleeve.
