Near Nearscapes IG44.1 DSP

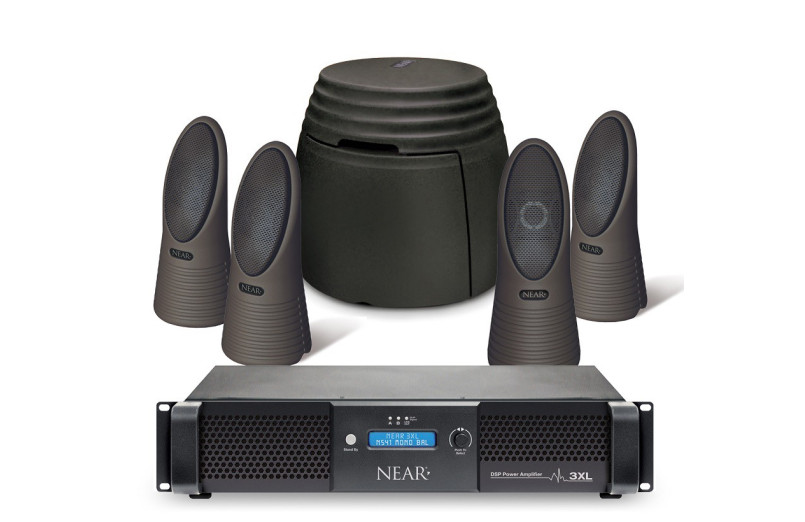

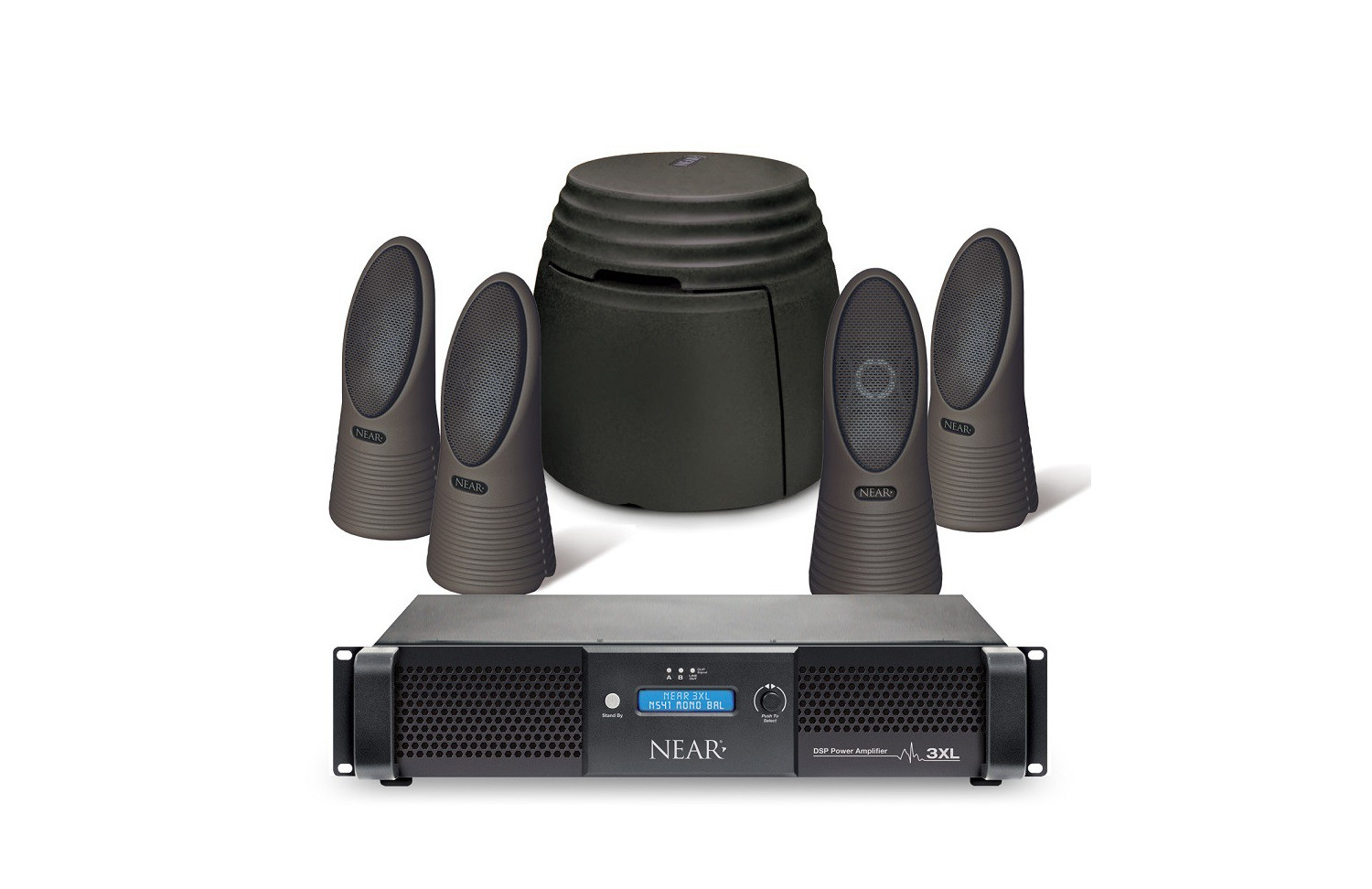

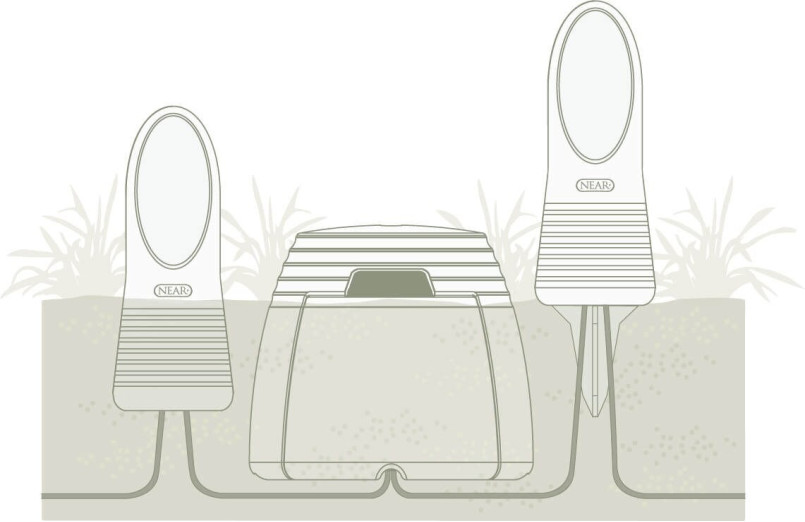

The Nearscapes IG44.1 DSP is an outdoor speaker system made up of two satellite speakers with a bollard-shaped enclosure - which allows them to disperse the sound at an angle of 120 degrees - and a passive subwoofer, completed by a power stage dedicated with DSP control.

In the case of IG4M satellites, which can be mounted above ground or buried, we must first highlight an extremely robust construction that allows them to withstand the harshest environmental conditions. They can also be connected to 70 V lines or in passive mode, while the metal alloy cones of the speakers they incorporate allow them to maintain their performance intact between -29ºC and 71ºC, thus making them ideal for all seasons of the year. . For its part, the enclosure used, made of polyethylene, has characteristics adapted to unrestricted operation in all types of outdoors, complete with terminals to facilitate chained connection.

We find the same technology as the IG4M satellites in the imposing and robust passive subwoofer with omnidirectional emission IGS100M, which thanks to its powerful speaker with a 254 mm diameter metal alloy cone and its two 8 ohm moving coils, mounted on supports with windings internal and external, allows the NEARSCAPES IG44.1 DSP to reproduce frequencies up to 35 ohms without distortion even at very high sound pressure levels.

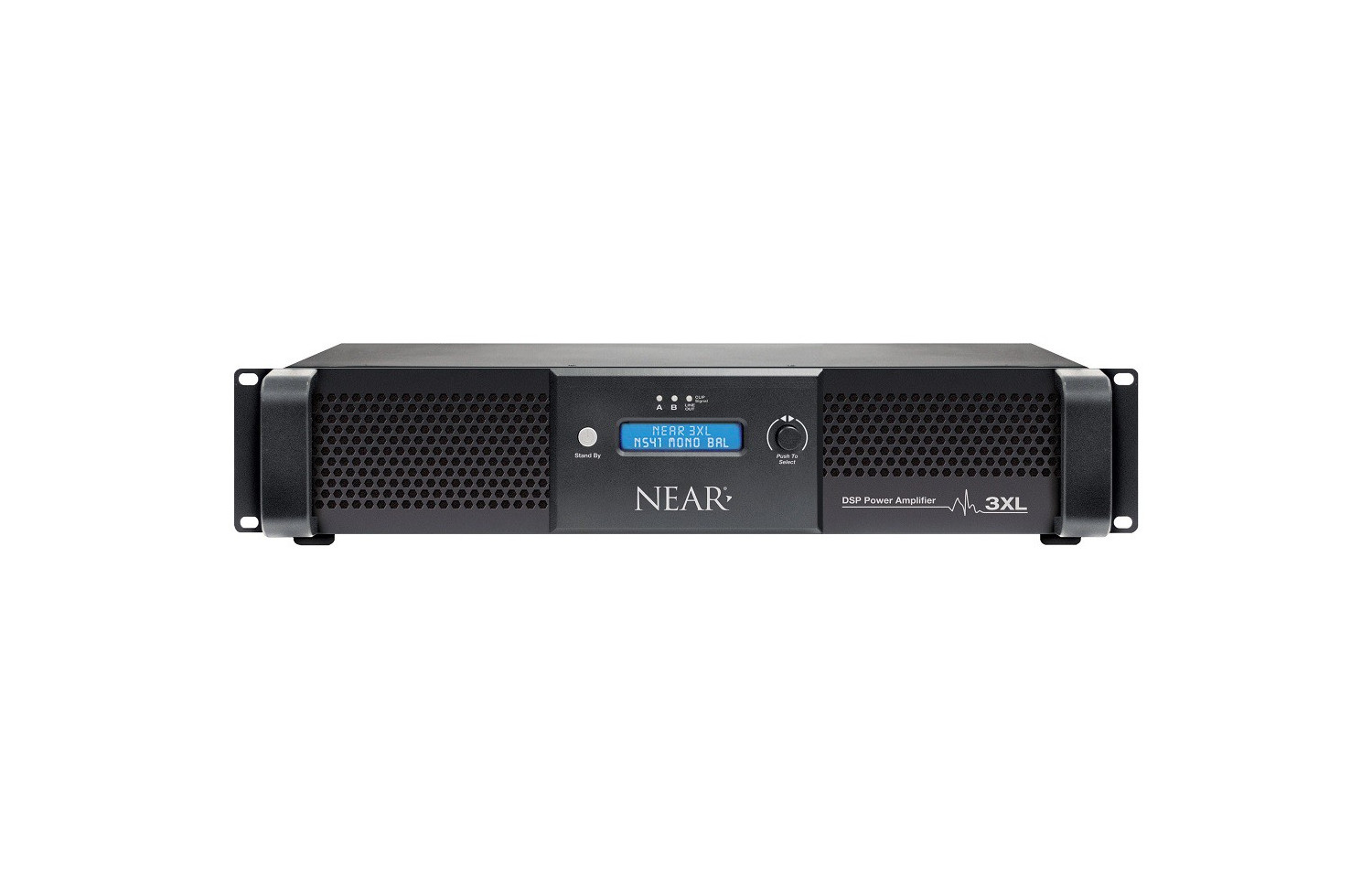

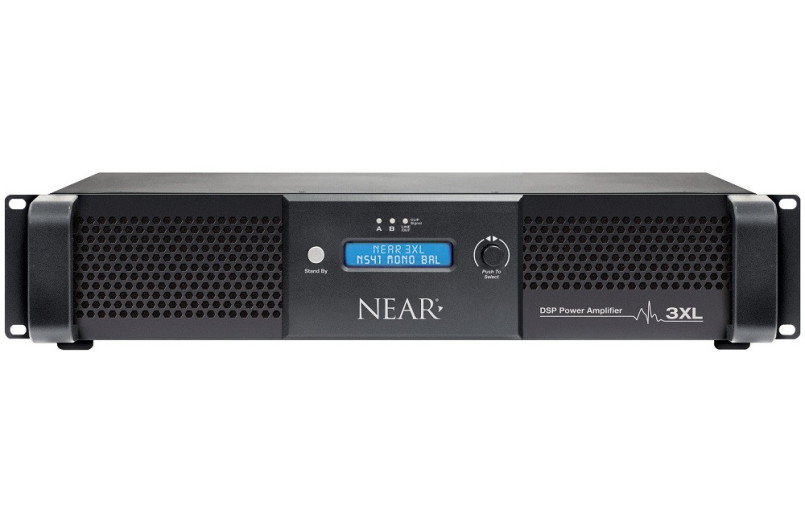

The system is completed with the 3XL, a 2 x 350 watts continuous power amplifier configured in Class D with Digital Signal Processing (DSP) control. Among the most relevant functionalities included, we must highlight the use of 24-bit A/D converters, 5-band parametric equalization per input channel and 7 bands per output channel, internal Butterworth/Bessel/Linkwitz-Riley filters with selectable cutoff slope between 6 dB/octave and 48 dB/octave, an RMS compressor and an adjustable peak limiter or the possibility of applying a maximum delay time of 960 ms to each channel (both input and output), which provides you with exceptional flexibility.

Characteristics:

• Very high performance speaker system for all types of outdoors.
• Consisting of 4 IG4M satellites and 1 IGS100M passive subwoofer.
• NEAR exclusive metal alloy cone speakers.
• Satellites with the possibility of connection to 70 V lines.
• Moving coil woofers with internal and external windings.
• Maintenance of performance between -29ºC and 71ºC.

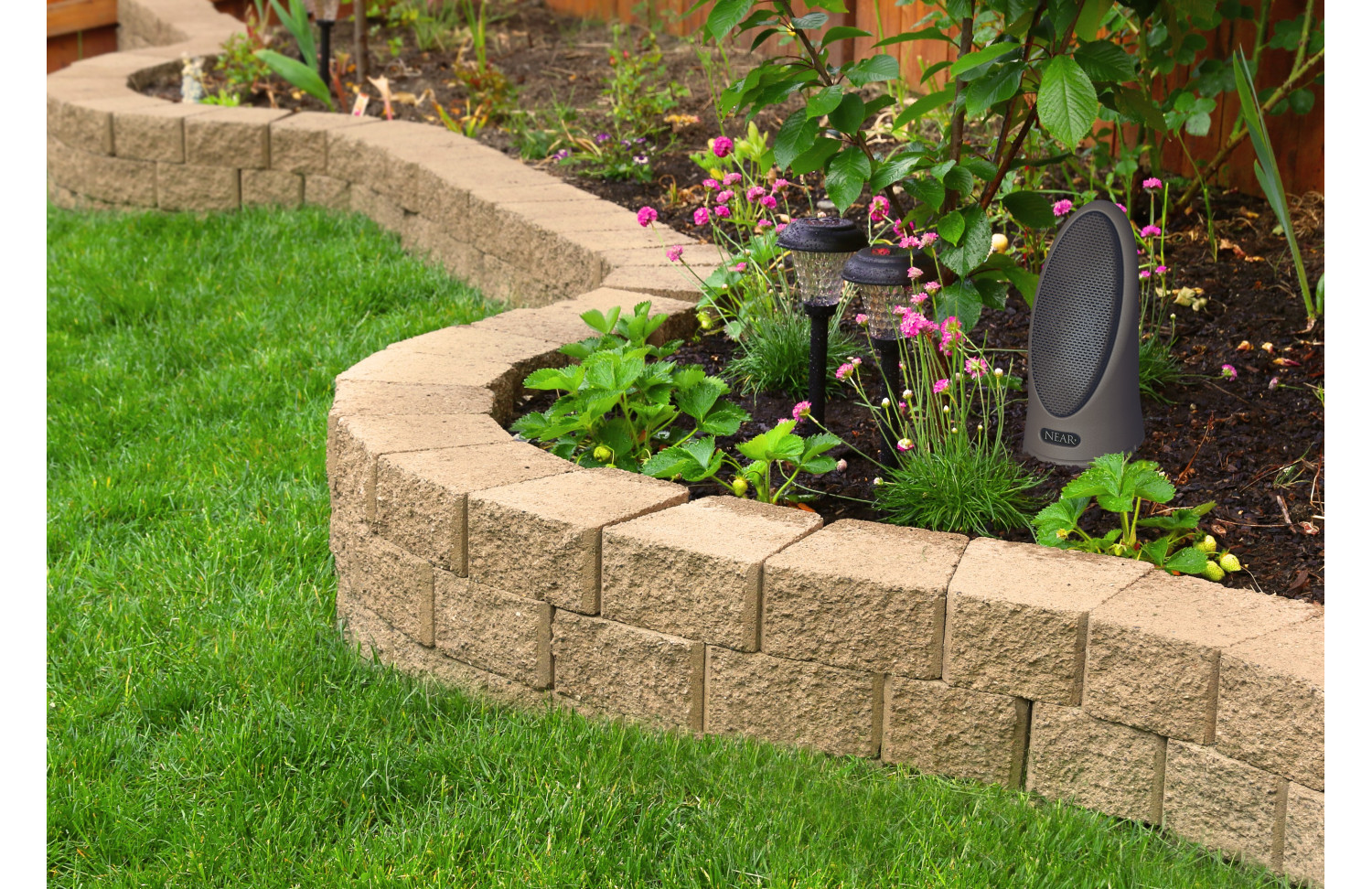

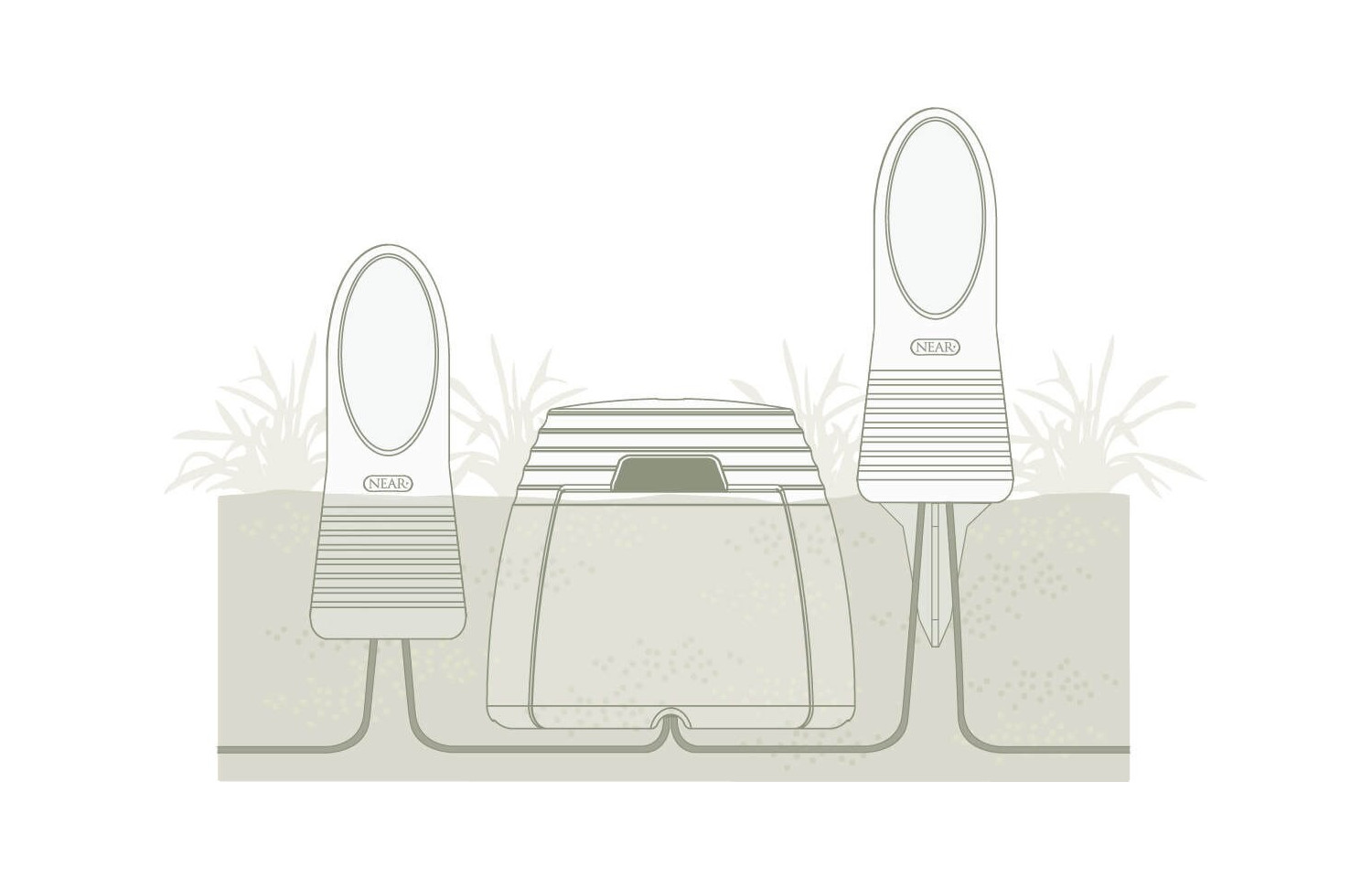

• Above ground or buried installation.
• Possibility of chained connection.
• Frequency response of the set: 35 - 19,000Hz, +/-3 dB.
• Maximum amplification power of 75W for the satellites and 300W for the subwoofer.
• Dedicated power stage of 2 x 350W RMS.
• Power stage with adjustable slope filters between 6 and 48 dB/octave.

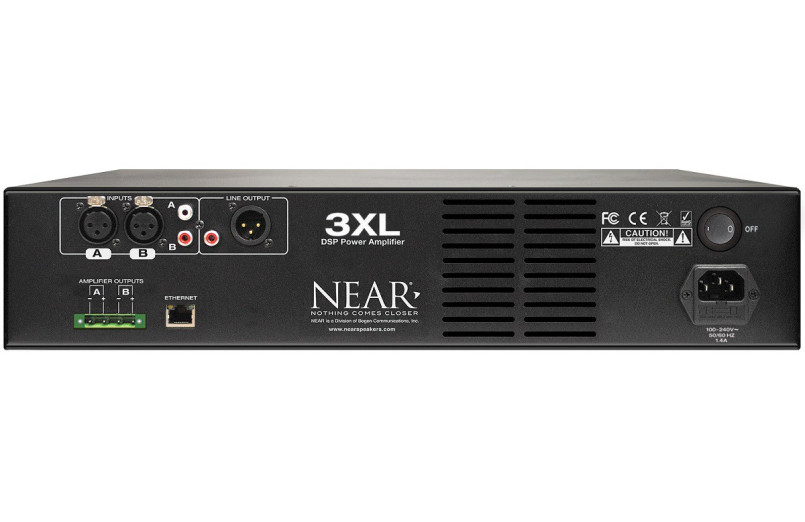

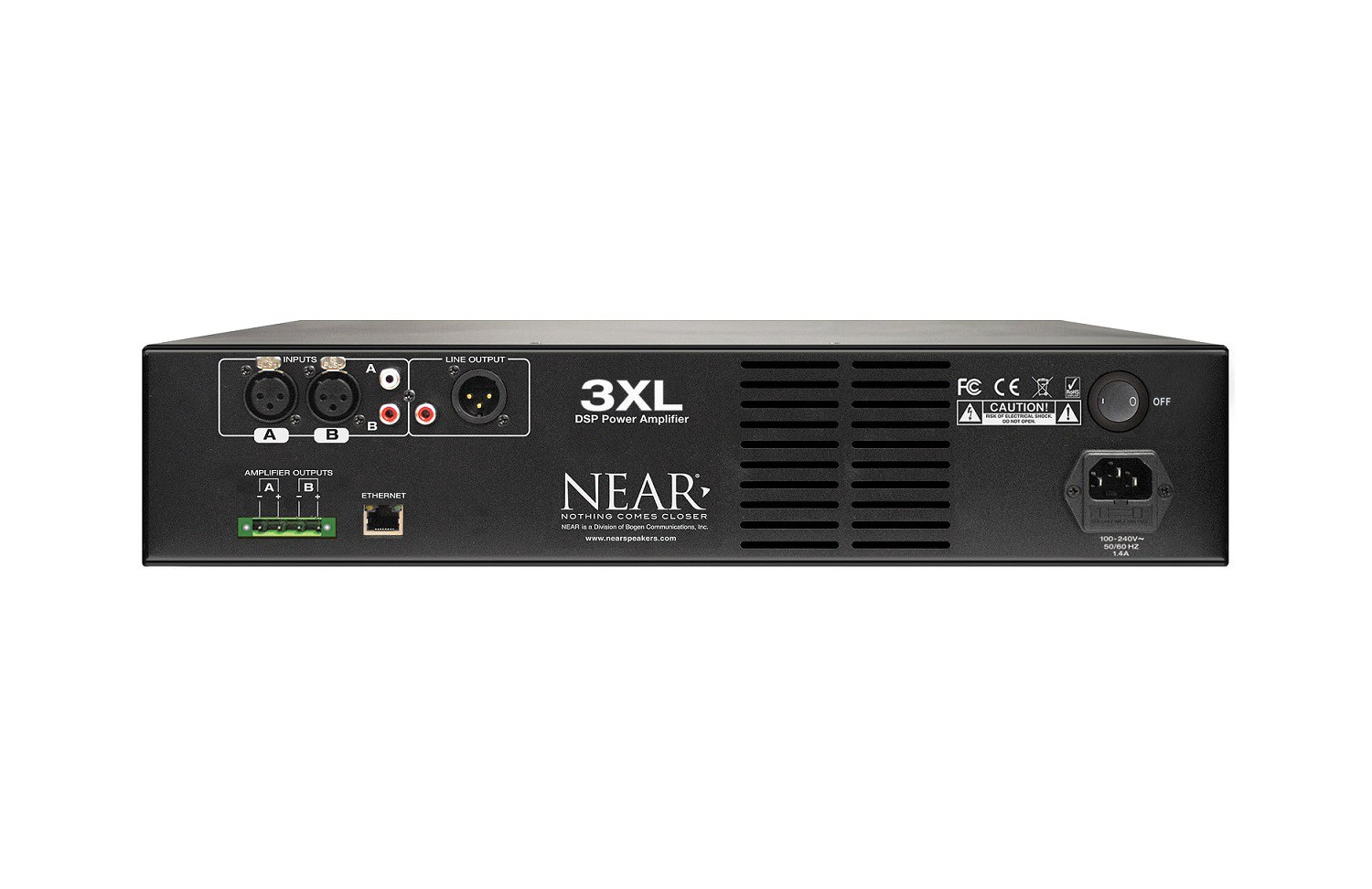

• Power stage equipped with balanced and unbalanced inputs and outputs.
• Satellite dimensions: 197 mm diameter x 495 mm height.
• Weight of satellites: 3.63 kg (installation pole included).
• Subwoofer dimensions: 493 mm diameter x 442 mm height.
• Satellite weight: 16 kg.
• Amplifier dimensions: 520 x 140 x 520 mm (W x H x D).
• Amplifier weight: 8 kilos.
• The pack includes 4 speakers, the passive subwoofer and a specific amplifier for it.
• Consult if a larger number of speakers is required.

  Price of the pack.
