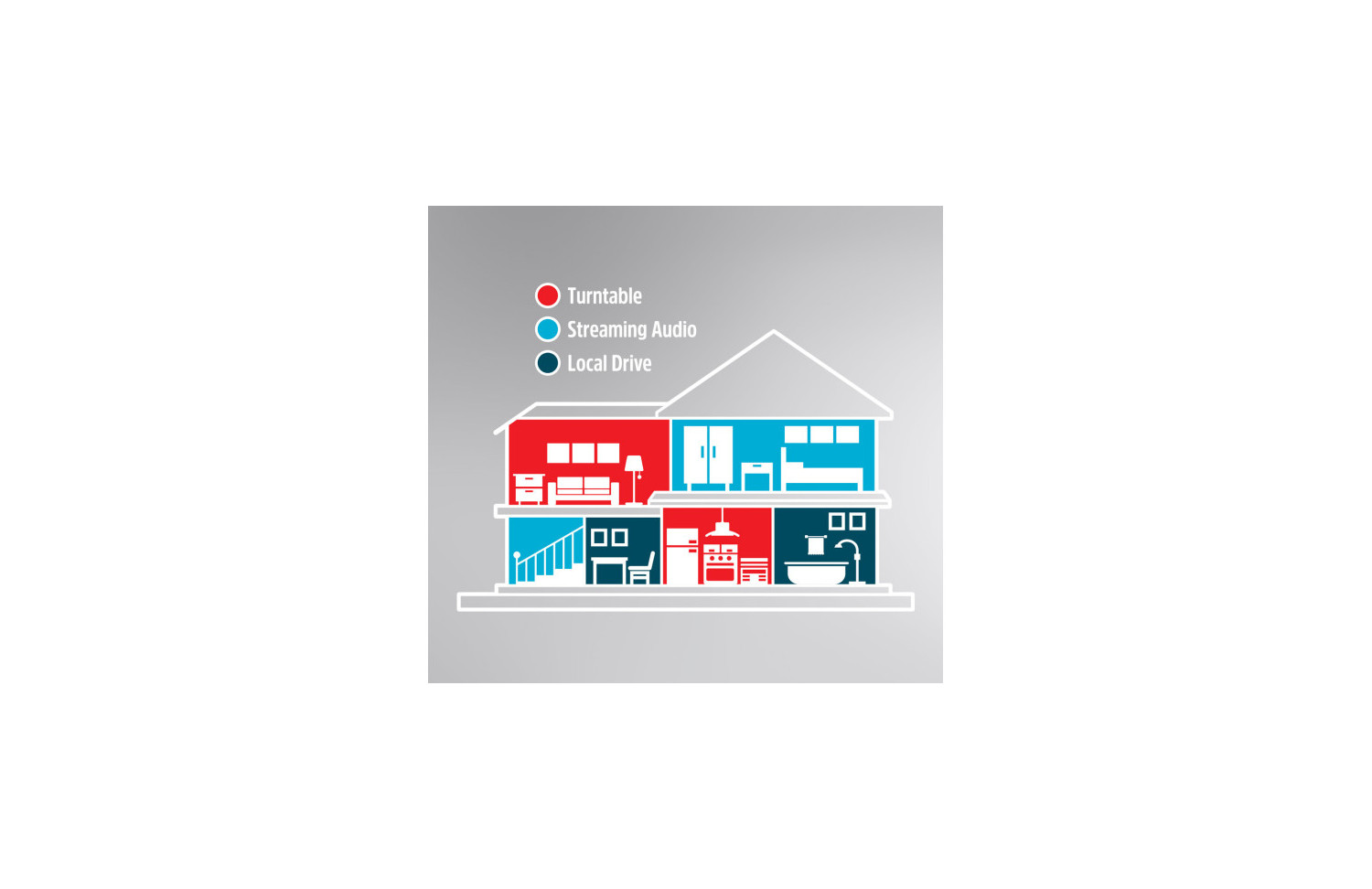

MDA multichannel stages from Martin Logan are the most flexible and adaptable distribution solutions available today, delivering optimum levels of performance every time. With full matrix switching capabilities of analogue and digital inputs, and independent room correction with ARC Genesis in each zone, MDAs allow you to install robust audio solutions in your home or business. These technologies truly understand the unique acoustic signature of each listening space and correct deviations for ideal response.
Aiming to preserve even the subtlest nuances of music, MDAs accept high-resolution PCM up to 24-bit / 192 kHz. The MDA8 powers up to four zones in stereo with eight channels in total at 60 watts per channel into 8 ohms (or 120 into 4 ohms). The zones can also be bridged to add up their watts of power.

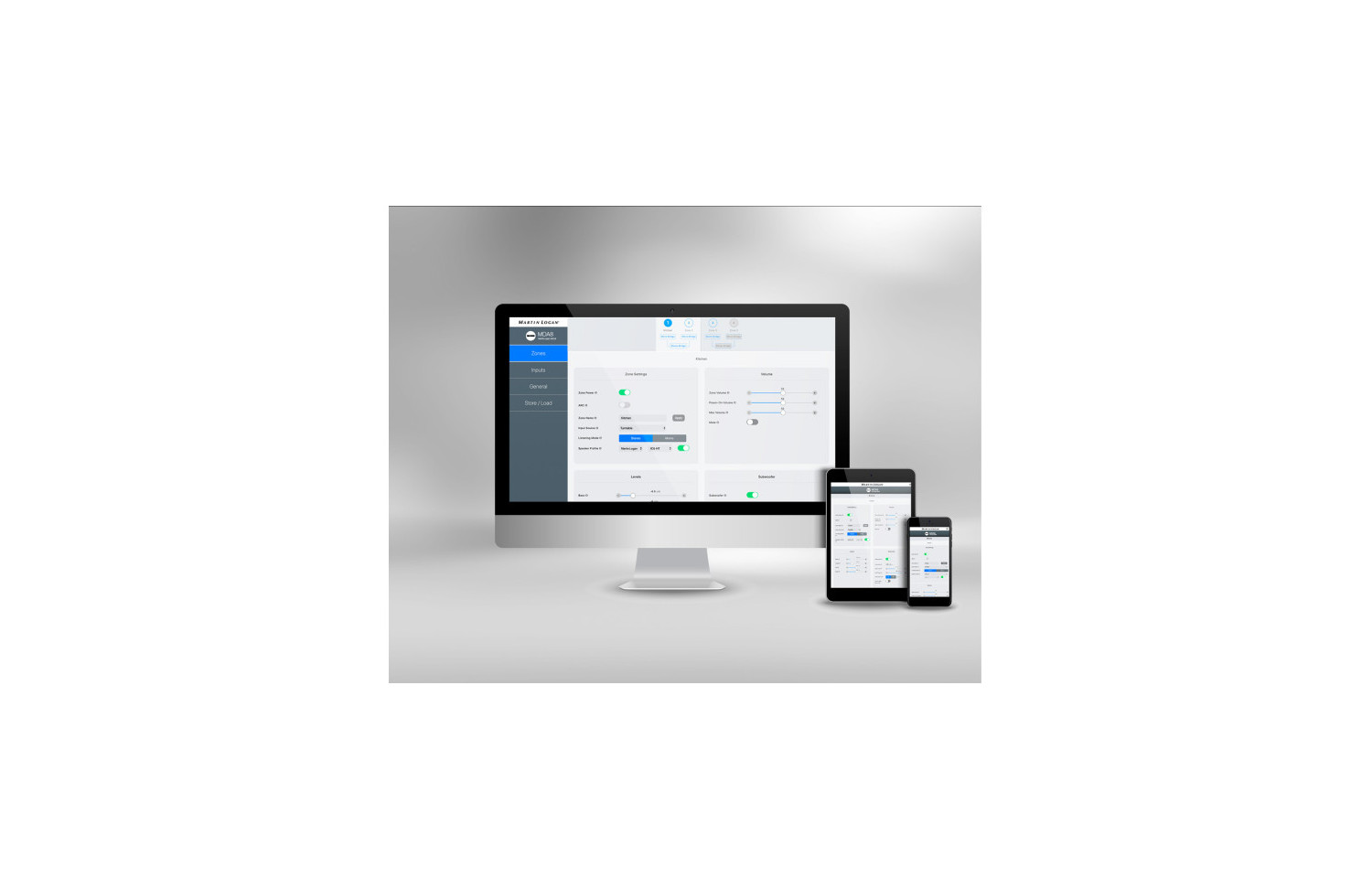

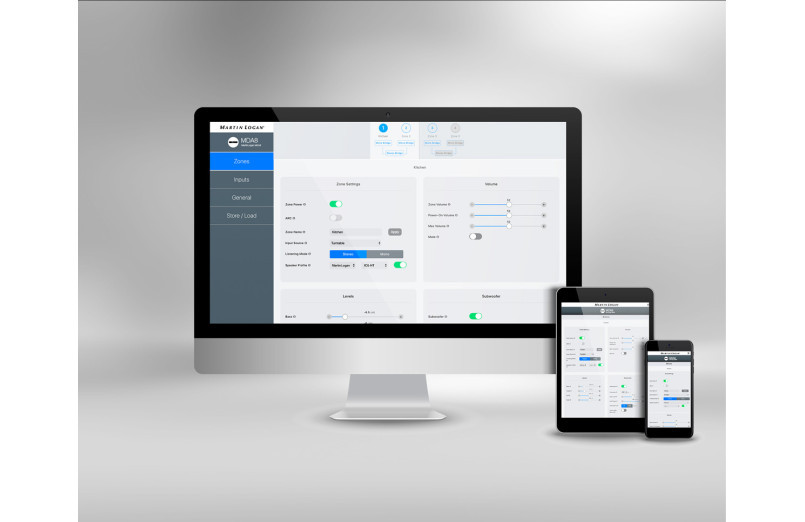

Nothing could be simpler than on-site setup and calibration using our intuitive web-based controls.
The customisable and specially designed user interface works on any device. Custom configure zones, from input assignments to zone names. Adjust levels (and all aspects of performance) independently. Run Anthem Room Correction (ARC Genesis) for each zone and customise settings separately, update network firmware at the touch of a button.
Fast, efficient Ultra-Class-D amplification is backed by patented advanced load monitoring technology, delivering reliable performance even under the most demanding loads. Our high-efficiency design meets and exceeds global energy-saving standards.

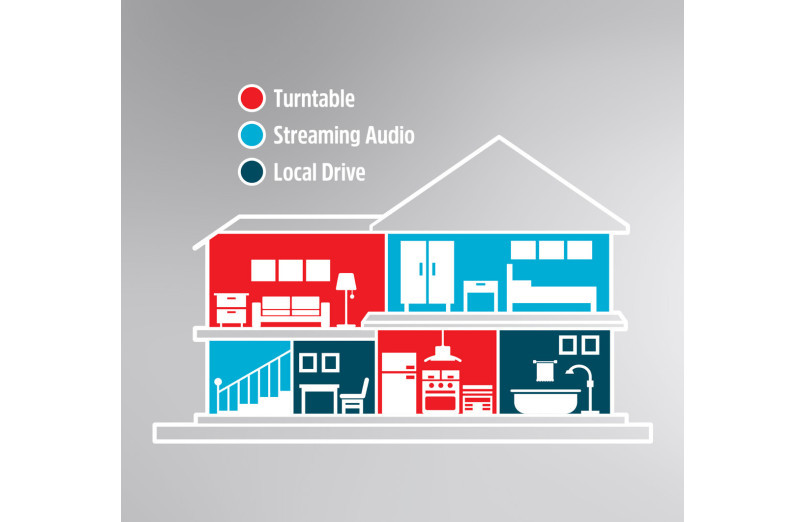

Instantaneous and seamless digital switching output allows linking of digital inputs between multiple amplifiers and analogue pass-through connections allow daisy-chaining of multiple MDA units. Full digital / analogue matrix switching allows you to assign any analogue RCA, digital coaxial or digital optical input to any output, either pre-configured via the web interface or switched in real time via IP commands.
Features:
- Power: 60W into 8 Ohms and 120W into 4 Ohms with all channels driven. 200W at 8 Ohms bridged with only 2 channels active.
- 8 channels (4 stereo zones) with Ultra-Class-D performance and overload protection.
- Internal DAC with 24-bit/192kHz resolution.
- Customisable DSP with tuning memories.
- Ability to control subwoofers in different zones.
- Allows digital switching between sources and between multiple MDA stages.

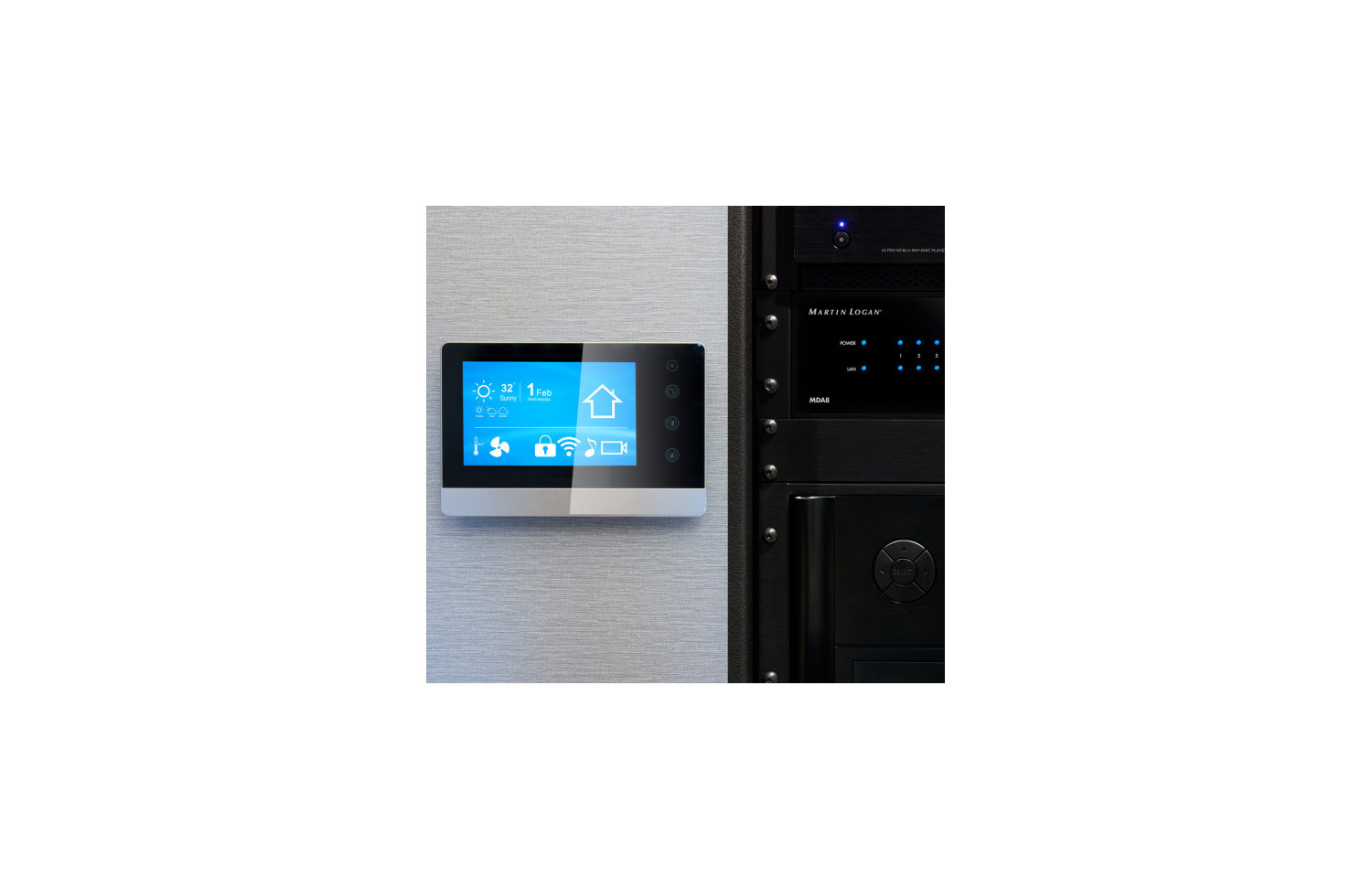

- IP/RS232 sockets for full integration with home automation systems.
- High energy efficient design.
- Includes rack mounting accessories.

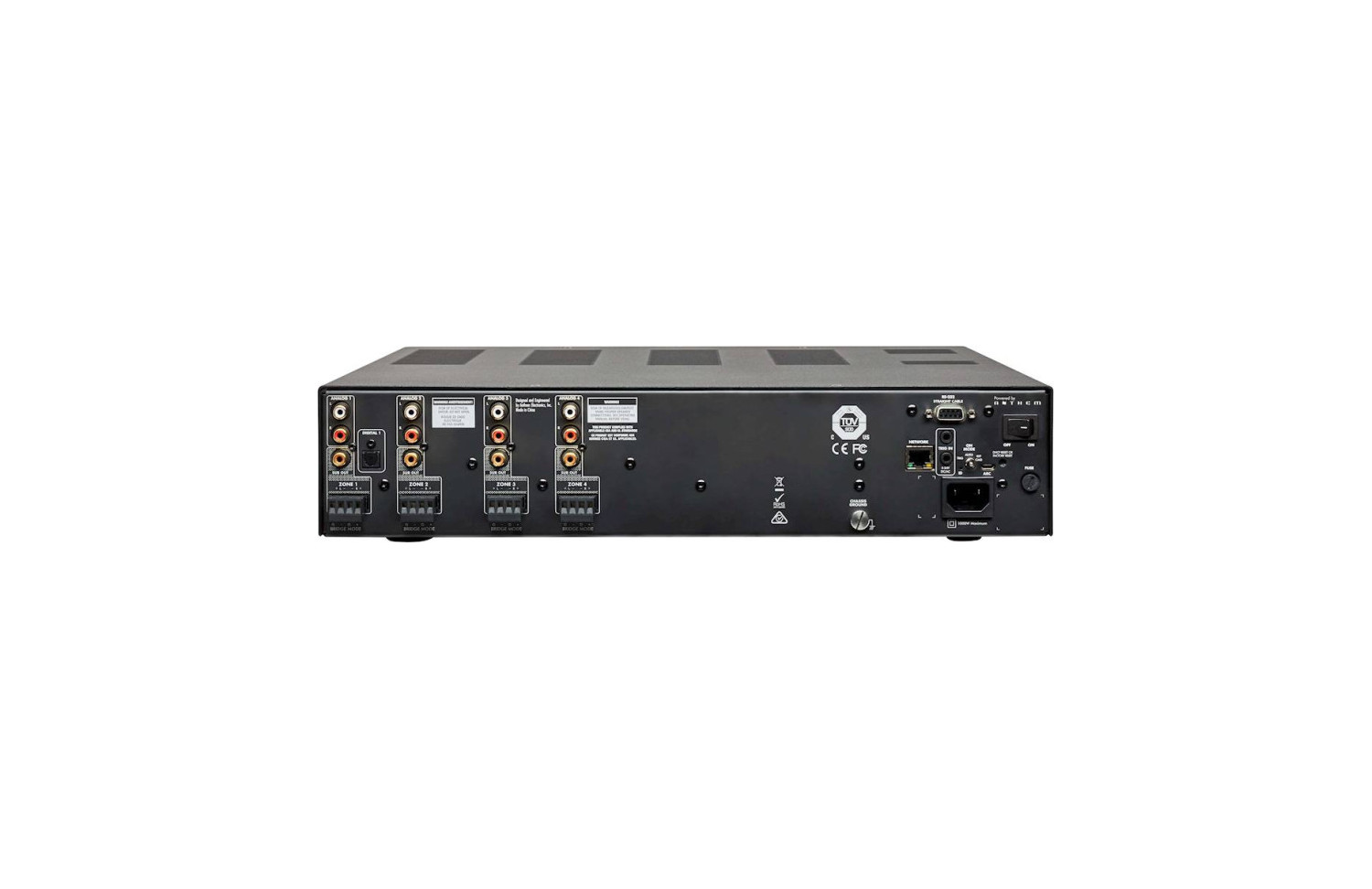

- Audio inputs: 1 x optical digital and 4 x stereo RCA.
- 4 x mono outputs for active subwoofers.
- 12V trigger sockets for On/Off.
- Dimensions: 8.9 x 48.3 x 43.2 cm.
- Weight: 9,5 kilos.
Offer for reconditioned for a single stage in perfect condition and with full three year warranty. Check availability.
