The Eversolo DAC Z-10 is a state-of-the-art high-fidelity DAC, meticulously designed for audiophiles who demand nothing less than perfection. At its heart lies a dual-mono configuration featuring top-tier DAC chips from AKM, which work in tandem with an oven-controlled crystal oscillator (OCXO) and a femtosecond-grade PLL system to deliver an ultra-stable, low-jitter clock architecture.

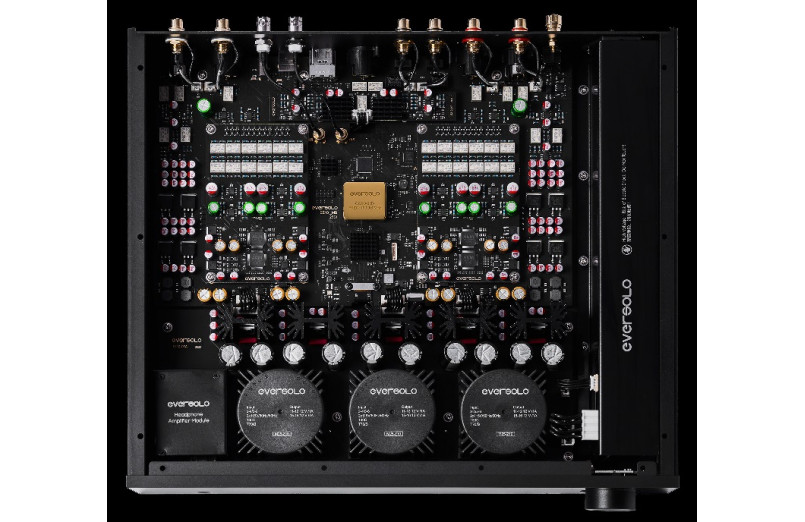

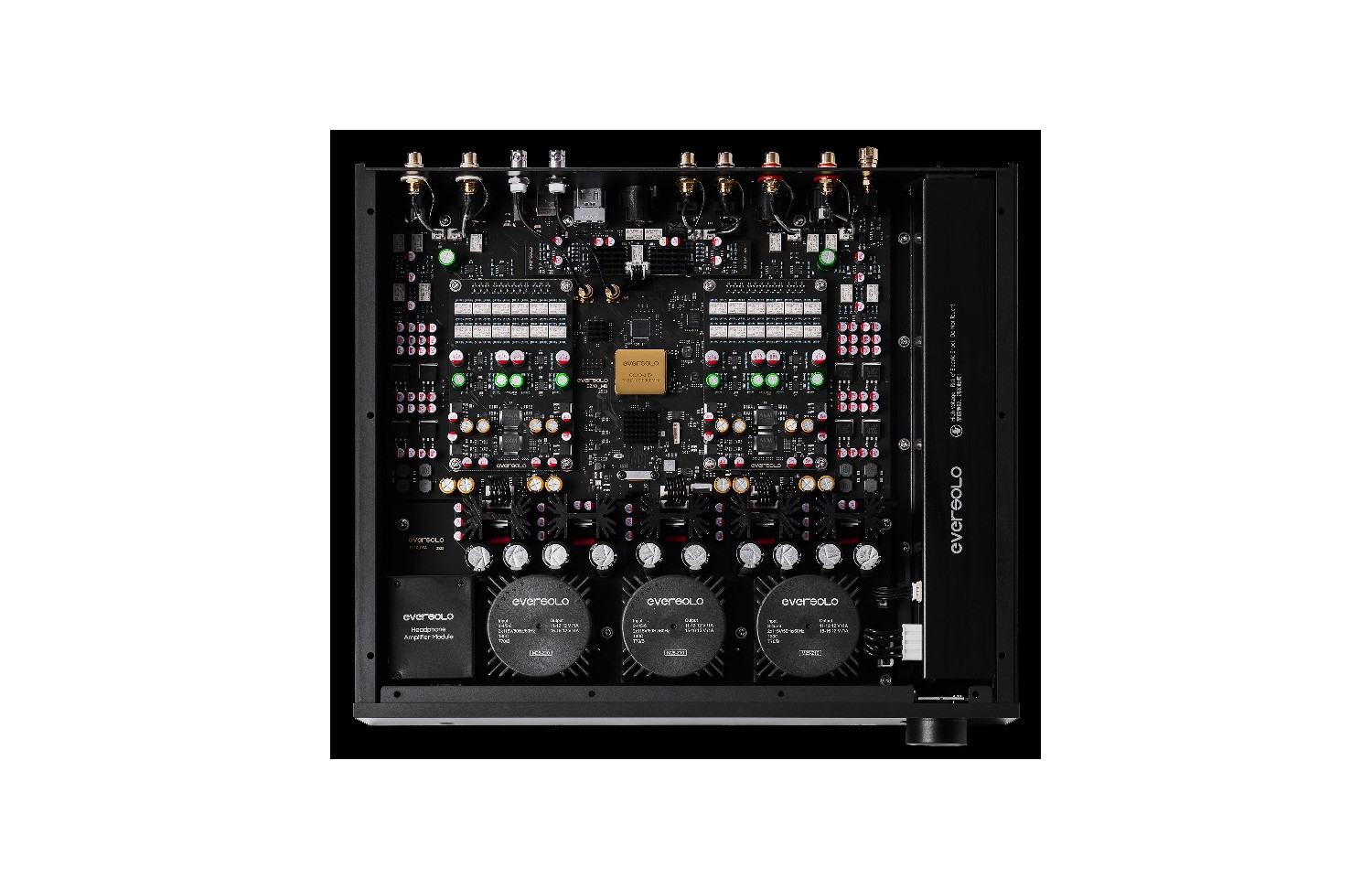

The input supports high-resolution formats up to 32-bit/768 kHz PCM and native DSD512 decoding. For wireless convenience without compromising fidelity, the DAC-Z10 incorporates a Qualcomm QCC5125 chip, ensuring audio performance that is virtually on a par with wired connections. The power supply is equally refined, with three custom-designed toroidal transformers providing isolated power to critical components, minimising cross-talk and electromagnetic noise – a testament to Eversolo’s commitment to sonic purity.
The Eversolo DAC-Z10 is hailed as a state-of-the-art flagship hi-fi DAC designed for uncompromising audiophiles-enthusiasts and features a dual-mono AKM DAC configuration, which works alongside an oven-controlled crystal oscillator (OCXO) combined with a femtosecond PLL system to deliver an ultra-stable, low-jitter clock architecture.
Meanwhile, the device’s IIS input supports 32-bit/768 kHz PCM decoding and native DSD512. It also incorporates a Qualcomm QCC5125 chip that delivers sound quality close to that of wireless transmission, whilst ‘three custom-designed toroidal transformers’ provide dedicated power paths that minimise crosstalk and electromagnetic noise.
Features:
- High-quality digital-to-analogue converter.

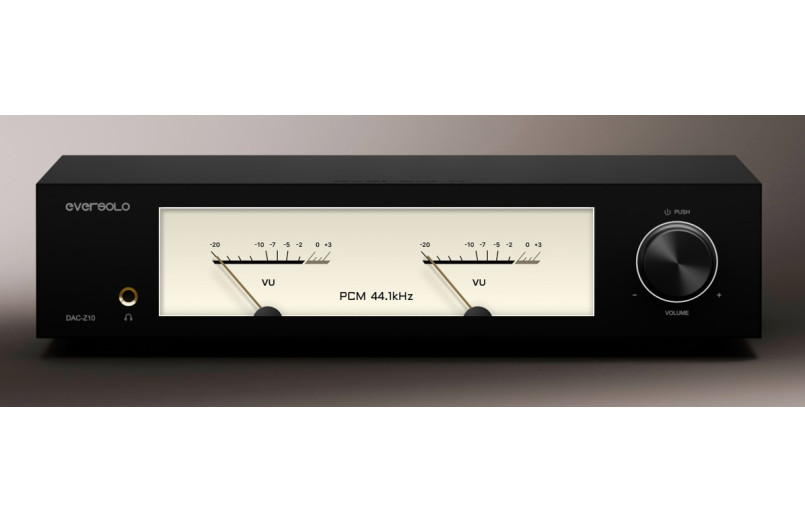

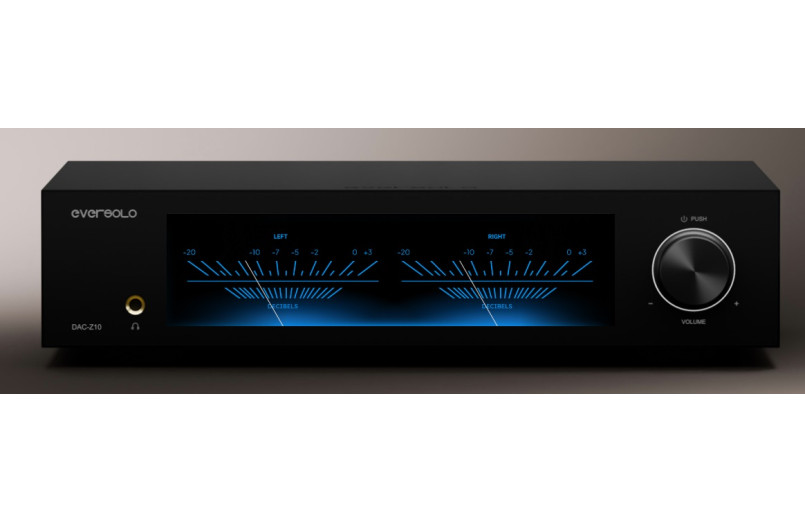

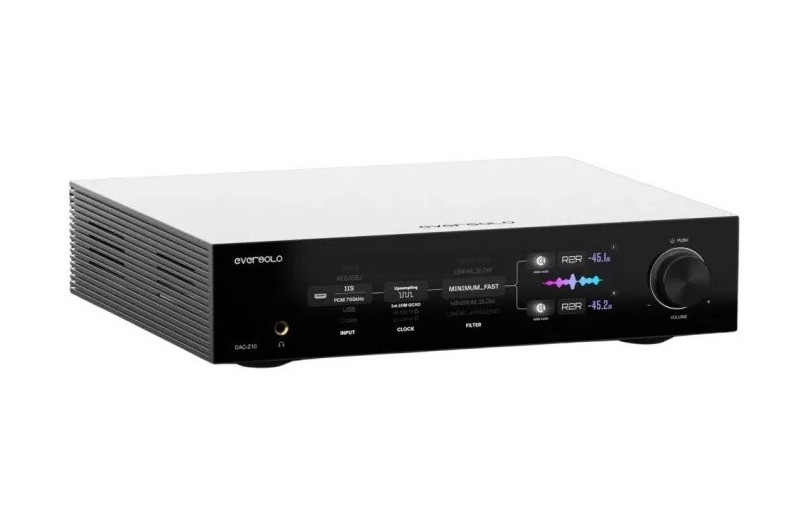

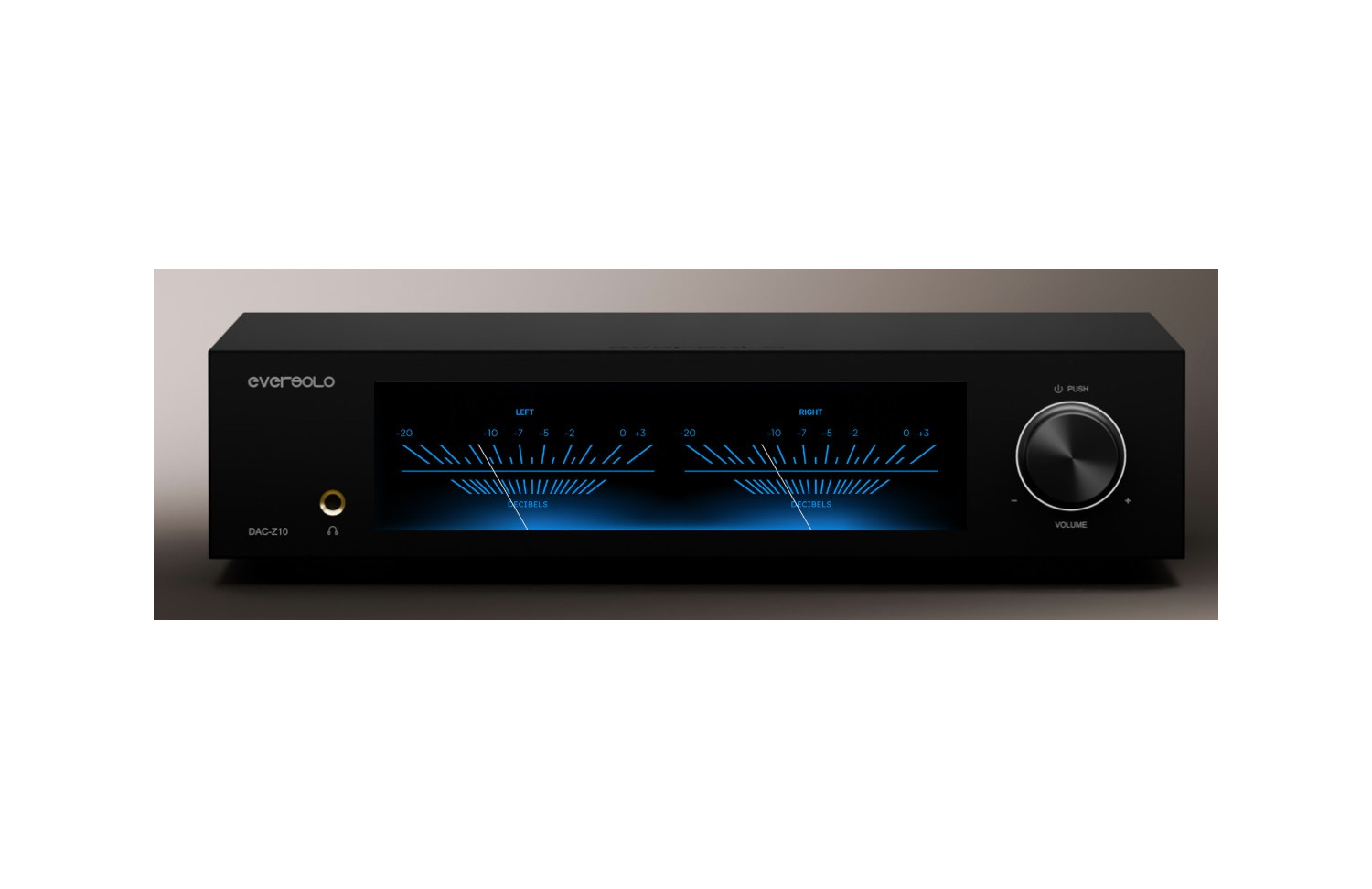

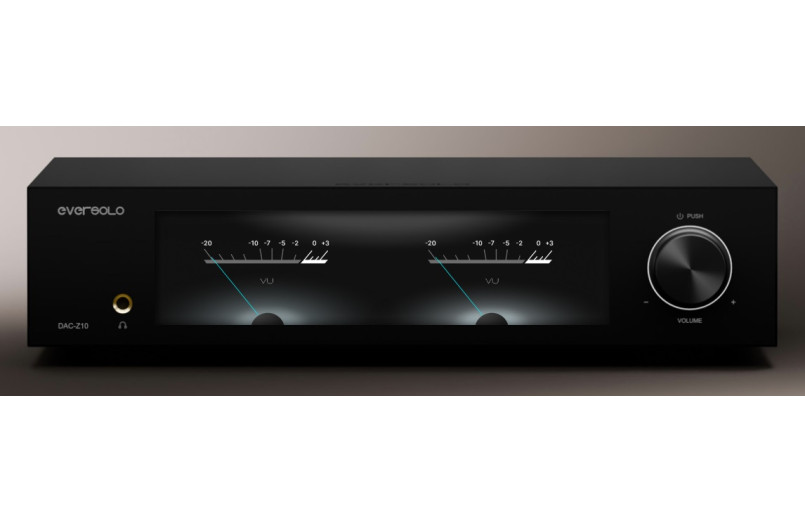

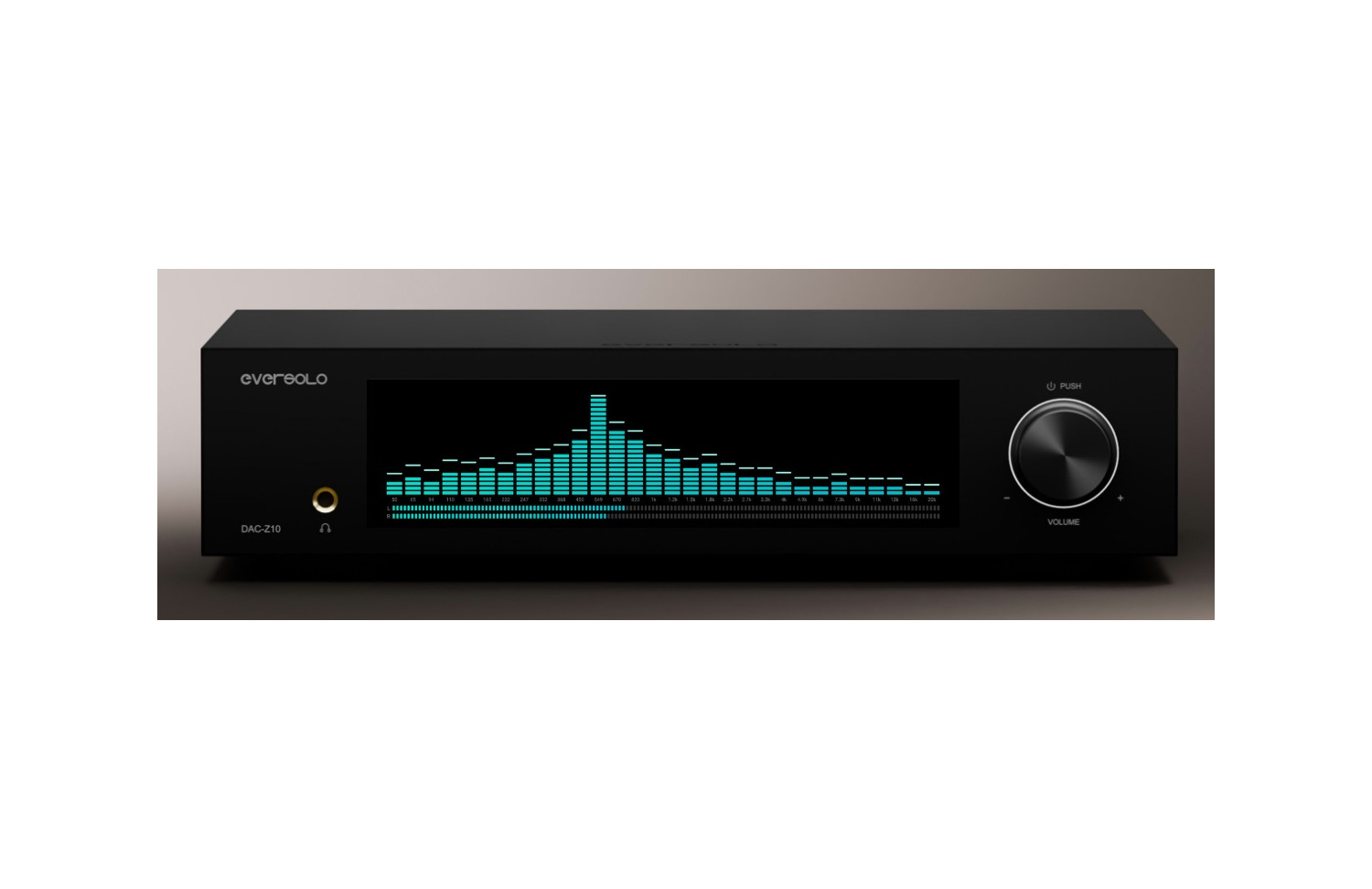

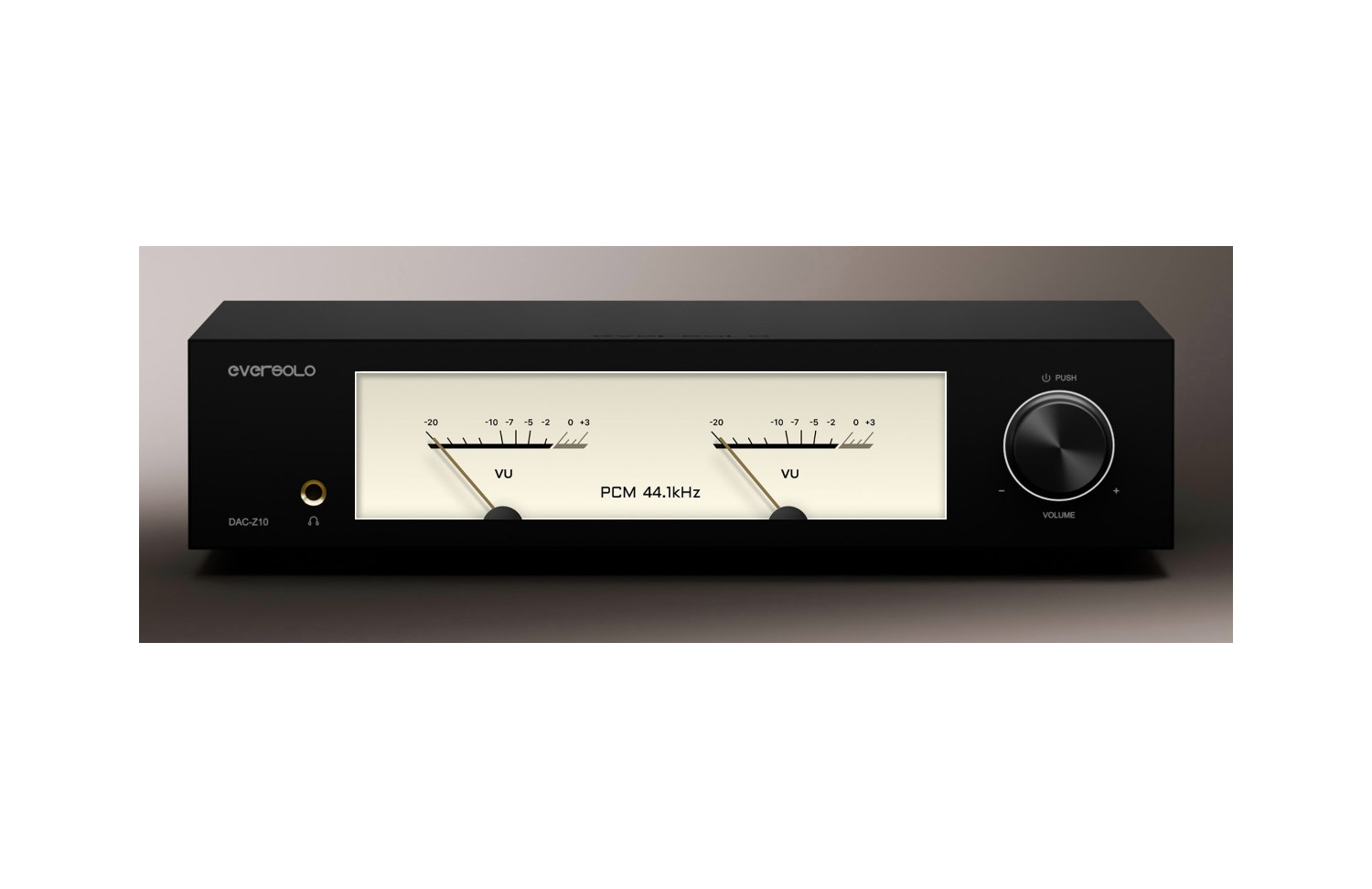

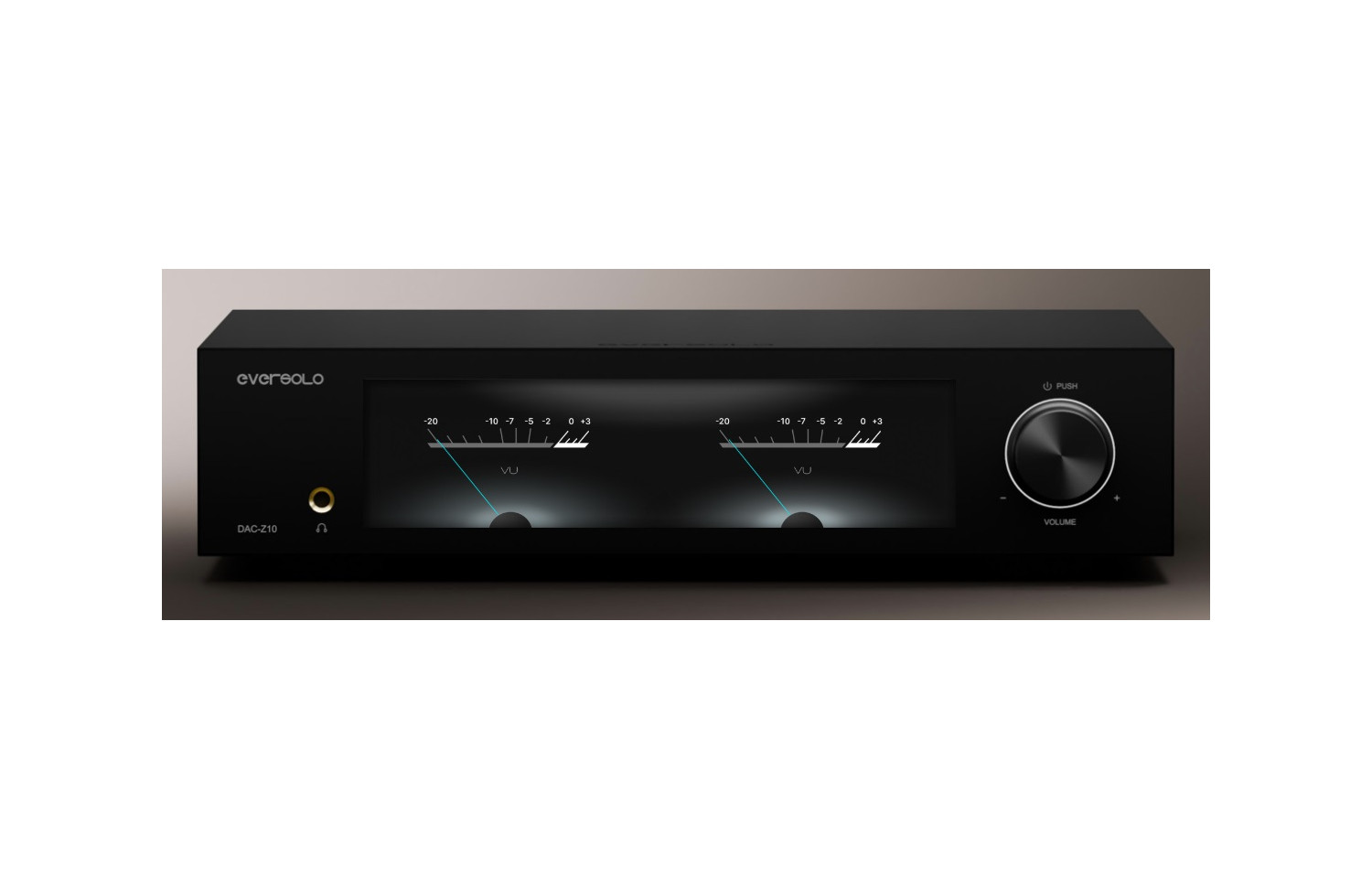

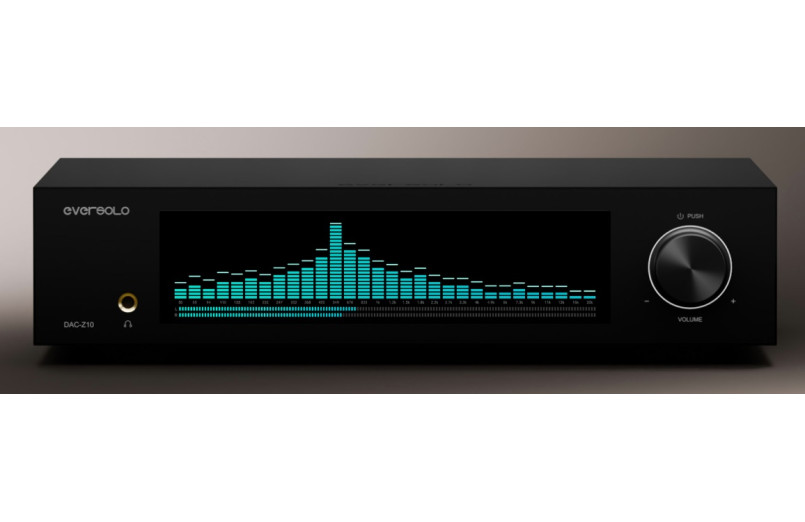

- 8.8-inch touchscreen.

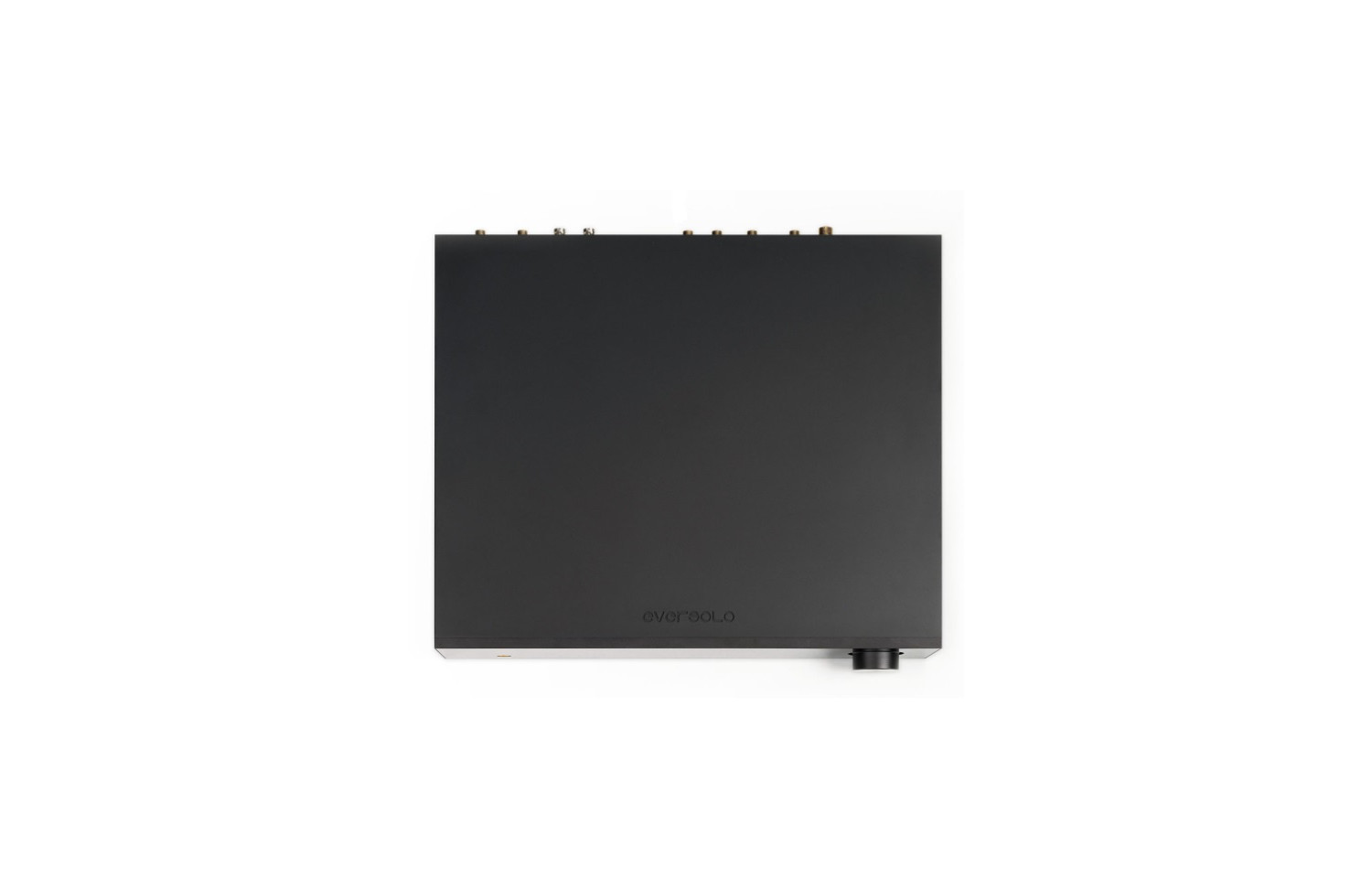

- Aluminium chassis.
- Dual DACs: AK4191 + AK4499.
- XMOS XU316 audio processor.
- OPA 1612*10 chip.
- Triple low-noise power supply.
- Native support for up to DSD512 / PCM 768/32-bit
- Qualcomm QCC5121 Bluetooth 5.0 wireless connection.
- Two sockets for external clocks (Master clock) for 50 and 75 ohms.
- Ground connection socket for noise reduction.
- 12V trigger input and output sockets.
- Can be used as a preamplifier alongside a power amplifier.

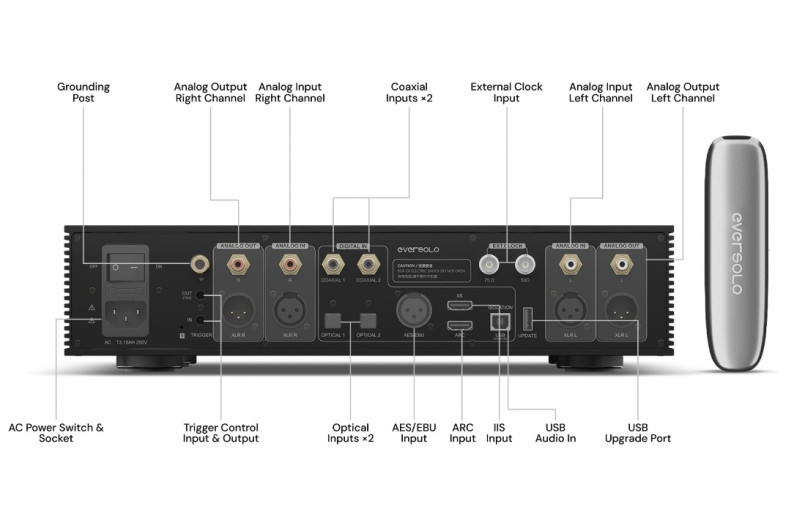

- Digital inputs: 1 x IIS (8 modes), 1 x HDMI with ARC, 1 x USB Type B, 1 x balanced AES/EBU XLR, 2 x optical (Toslink), 2 x coaxial (RCA) and 1 x USB Type A for firmware updates.
- Analogue inputs: 1 x stereo RCA and 1 x balanced XLR.
- Analogue outputs: 1 x stereo RCA and 1 x balanced XLR.
- Built-in headphone amplifier with 6.3mm jack output and automatic headphone impedance adjustment.

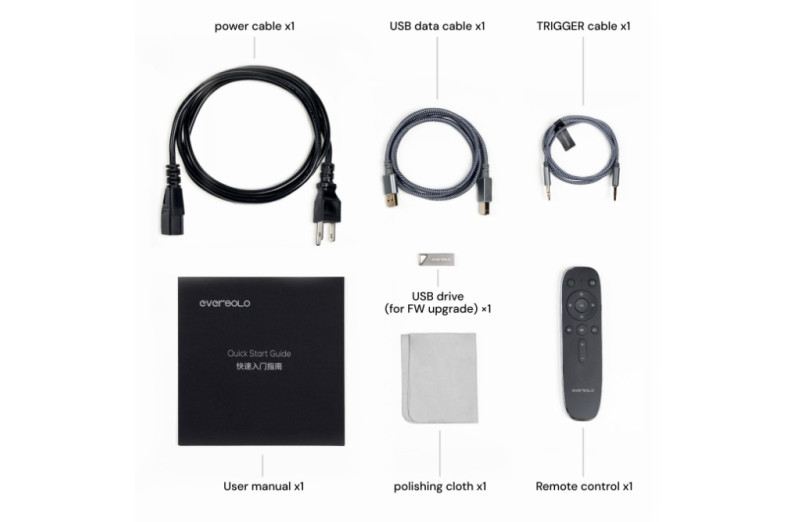

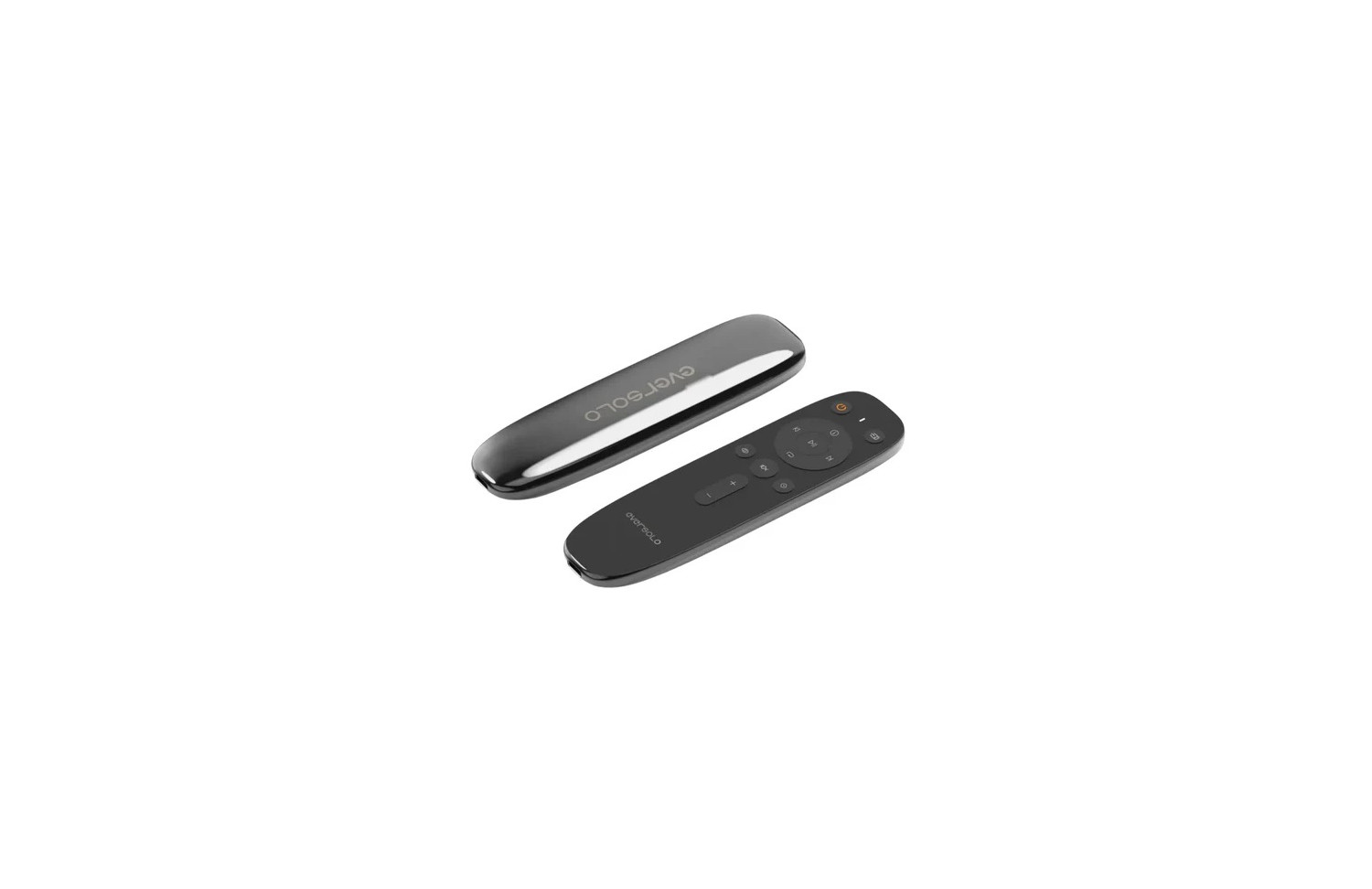

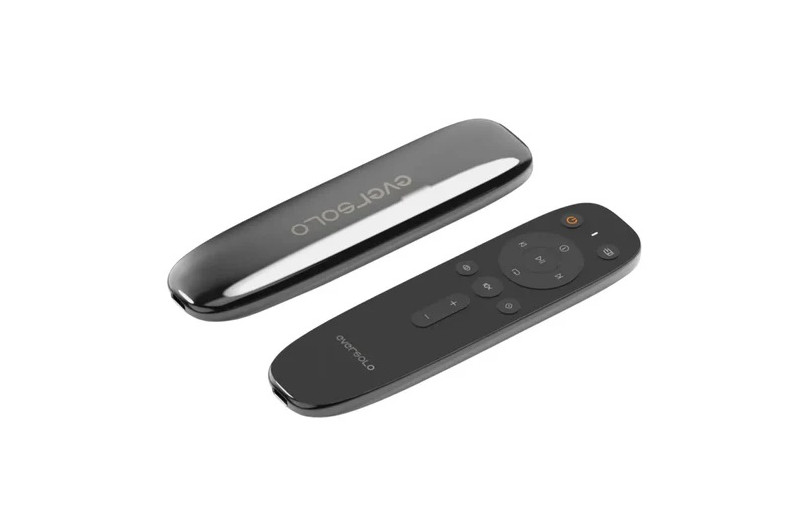

- Controllable via its touchscreen, a free iOS and Android app, or its remote control.
- Dimensions: 365 mm wide x 310 mm deep x 78 mm high.
