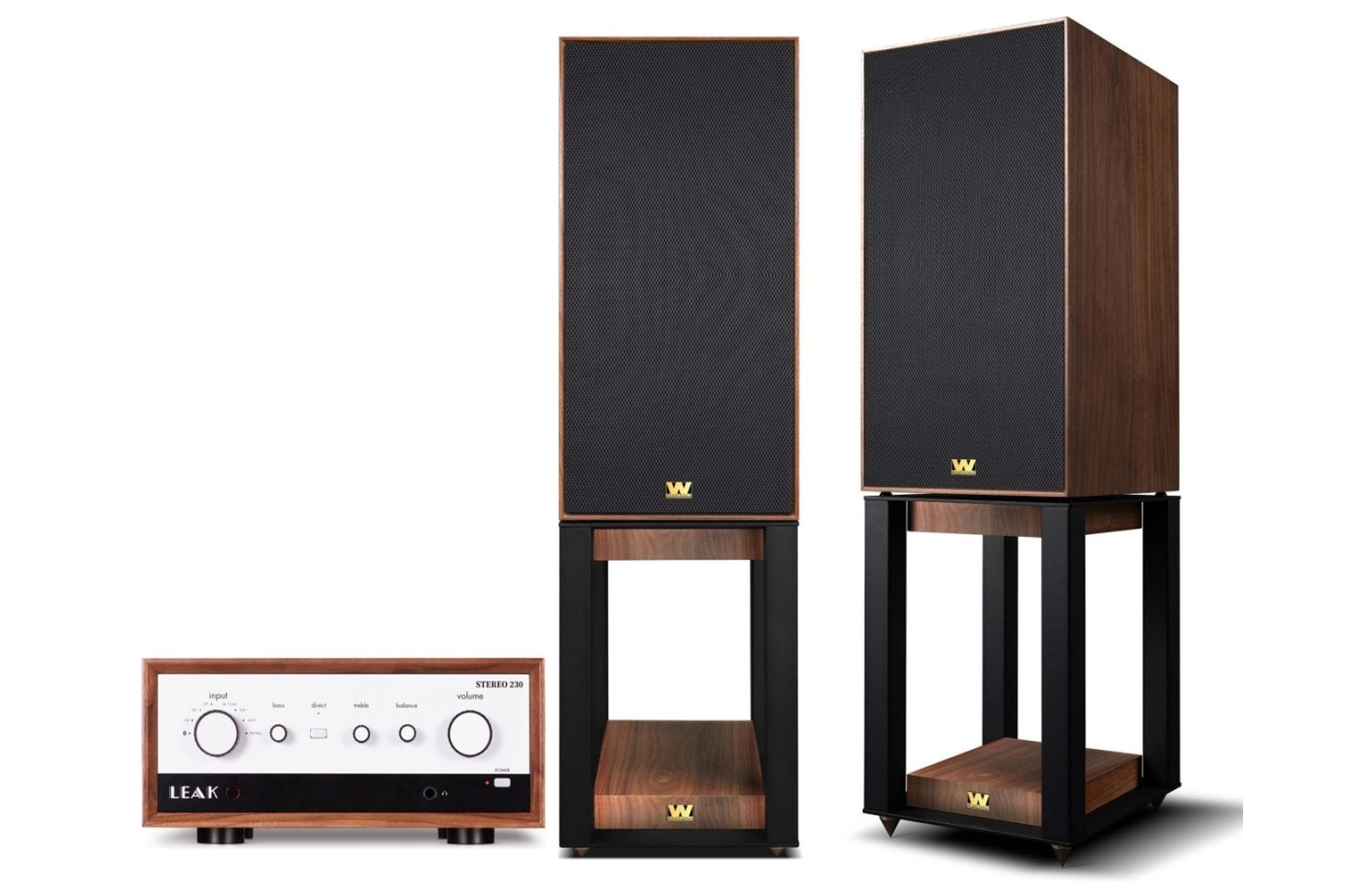

Leak Stereo 230 + Wharfedale Super Linton
Pack content

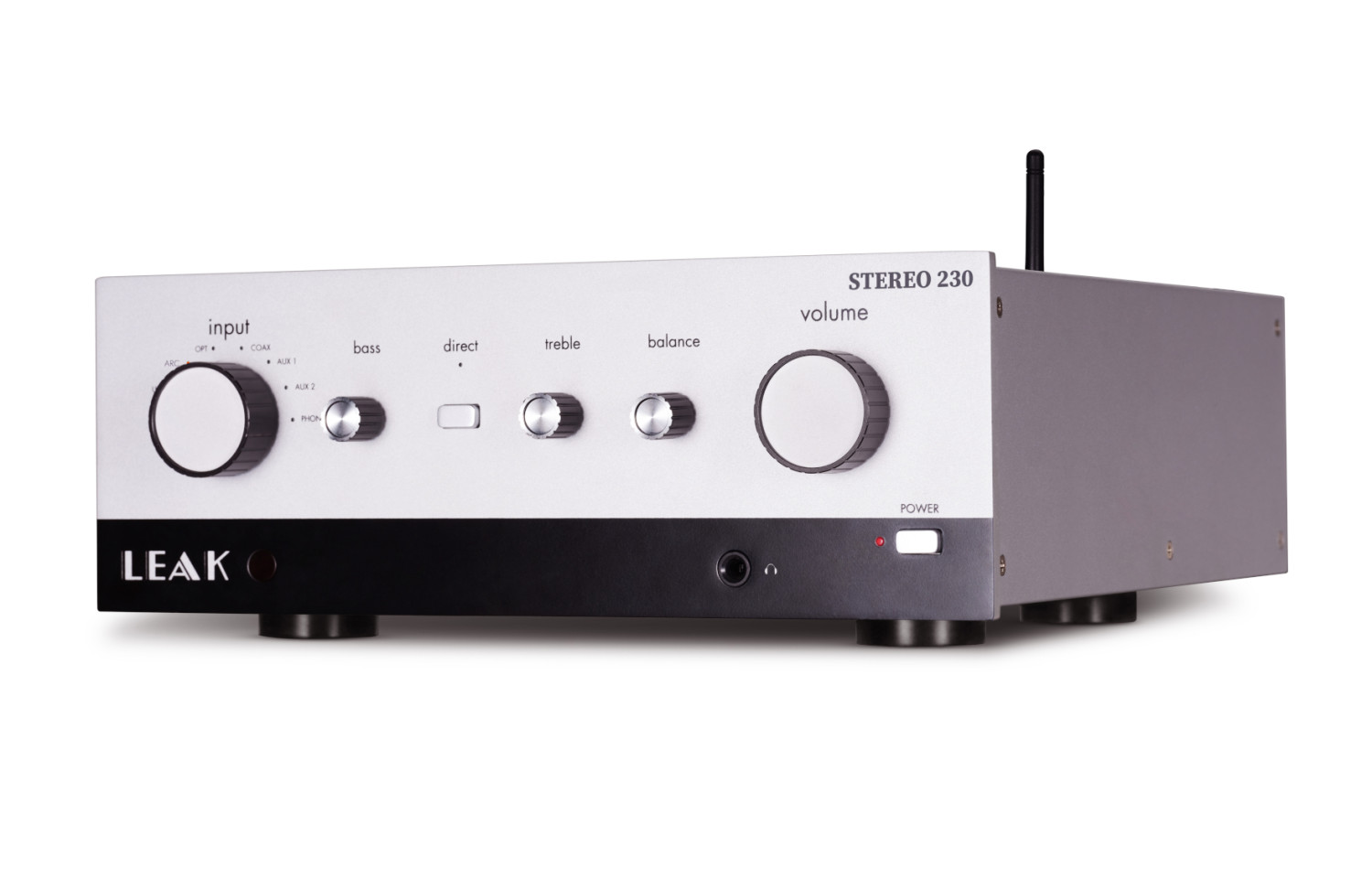

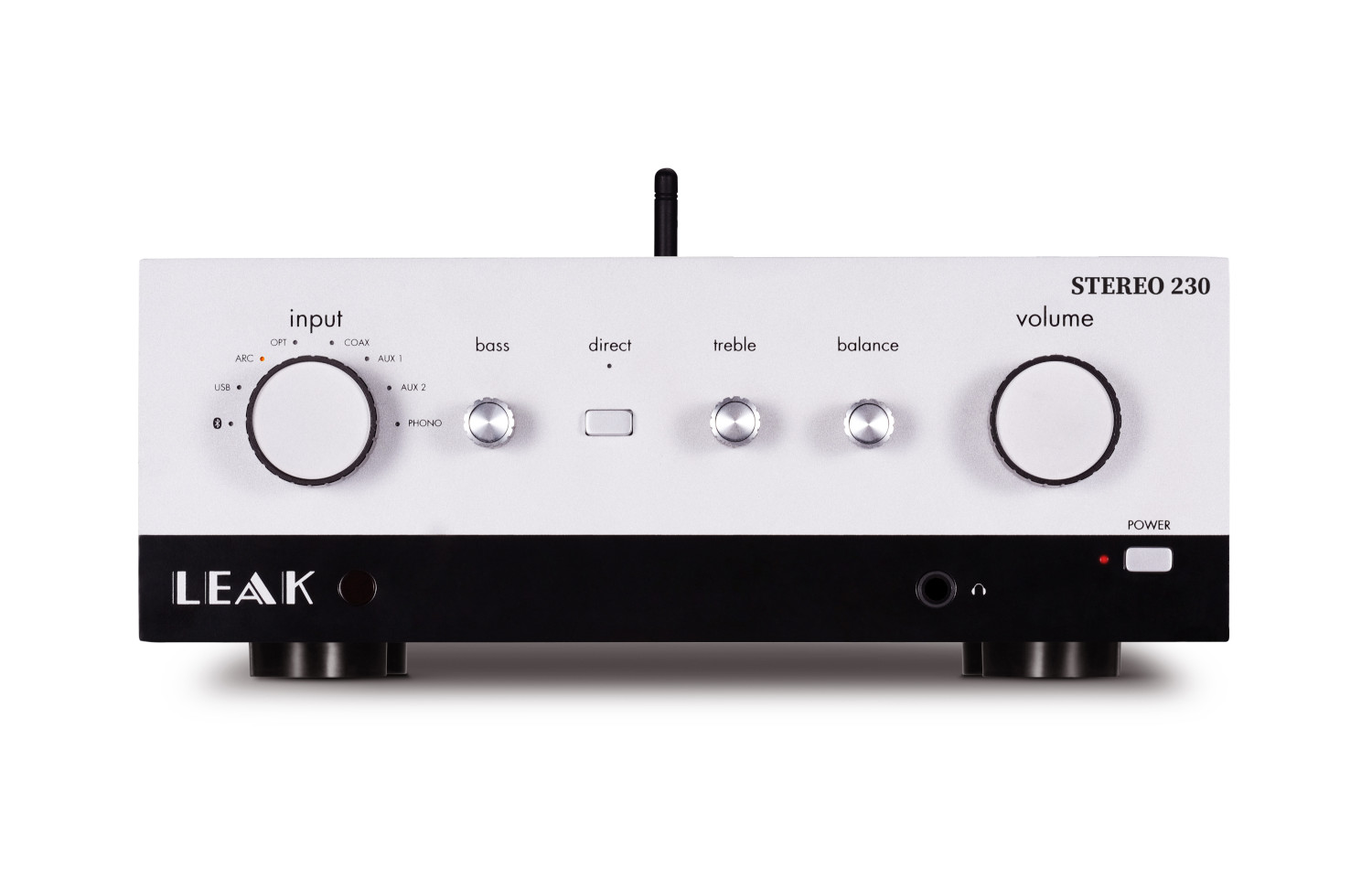

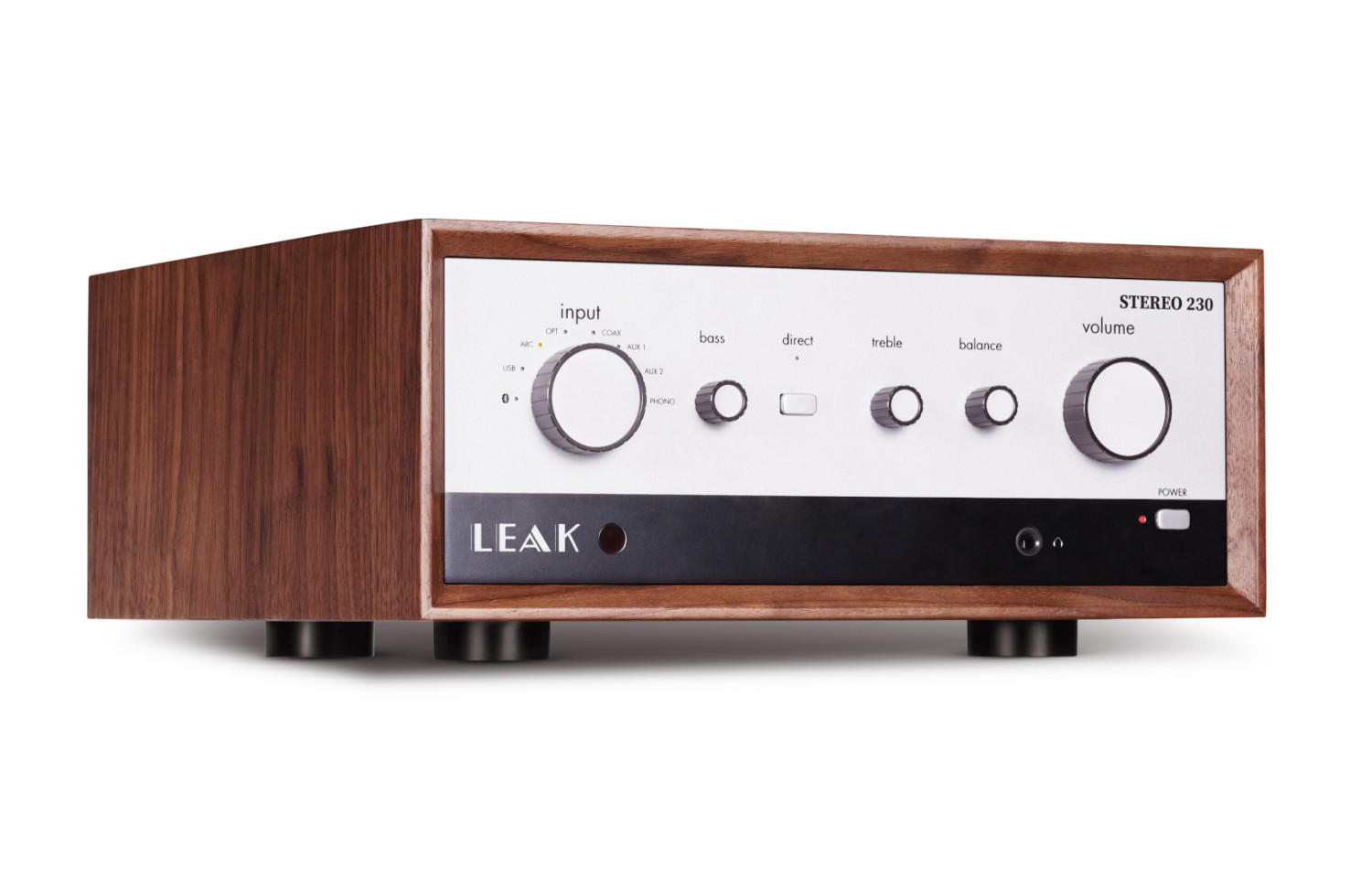

Building on the legacy of the celebrated STEREO 130, the STEREO 230 is a stereo integrated amplifier that delivers 75 watts continuous per channel into 8 ohms or 115 watts continuous per channel into 4 ohms, while an ARC-compatible HDMI socket ensures top-level sound quality during playback of audio-visual content.
The new LEAK can also be connected to an extensive repertoire of audio sources, from turntables equipped with a moving magnet (MM) cartridge to optical disc players, streamers and even Bluetooth devices.
The purist ethos of the STEREO 230 is reflected in many details of its design, such as the use of JFET transistors in the RIAA equalisation stage of the phono section to ensure full compatibility with the standards set by the audio industry for the playback of vinyl records.
The new LEAK is also equipped with a dedicated headphone amplifier with current feedback topology whose performance is perfectly comparable to the best designs on the market.
The exquisite engineering of the STEREO 230 also manifests itself in an uncompromisingly designed DAC section, using one of the renowned ES9018 Sabre32 Reference 32-bit ESS Technology chips from California-based ESS Technology, which allows the LEAK to exhibit particularly sparkling registers in terms of background noise and dynamic range, both essential parameters in the restitution of both traditional digital content and Hi-Res files.
Features:
- Stereo integrated amplifier with an exceptional price/performance ratio.
- DAC section compatible with PCM up to 32-bit/768 kHz and DSD up to DSD512.
- Executed with audiophile grade components.
- Class AB configured power amplifier circuitry
- MM compatible phono section based on high quality JFET technology.
- Separate treble and bass controls.
- Headphone amplifier with current feedback topology.
- Continuous output power of 2 x 75 W at 8 ohms or 2x115 W at 4 ohms.
- Frequency response 20-20,000 Hz, +/-0.5 dB.
- Input sensitivity of 550 mV Line and 4.8 mV Phono (MM).
- Signal-to-noise ratio greater than 110 dB on Line and 75 dB on MM Phono.

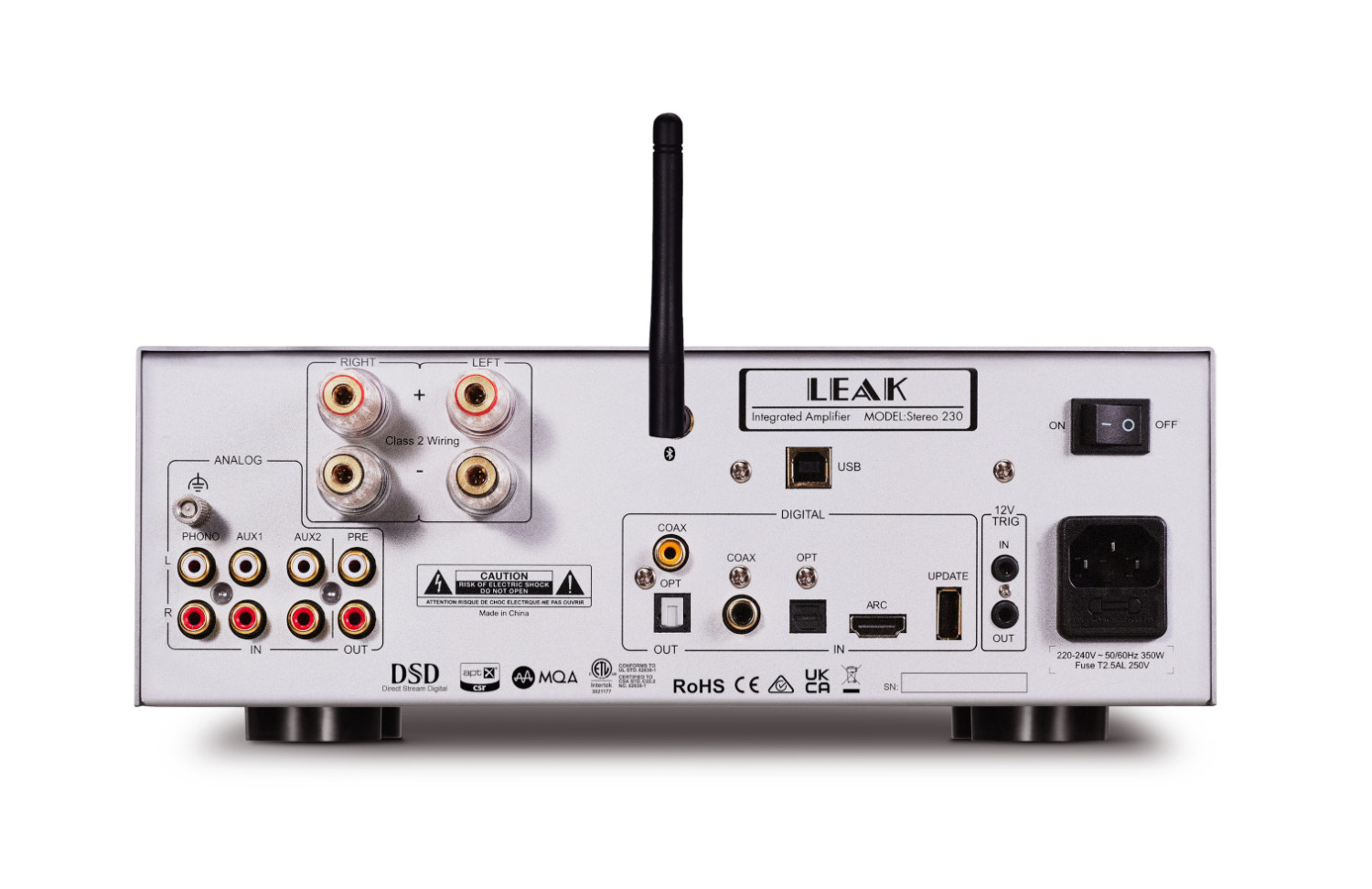

- Optical (1), coaxial (1), USB-B (1) and HDMI ARC (1) digital inputs.
- Real wood enclosure available as an option.
- Dimensions: 328 x 147 x 210 mm (W x H x D).
- Weight: 12.7 kg.
Bookshelf speakers

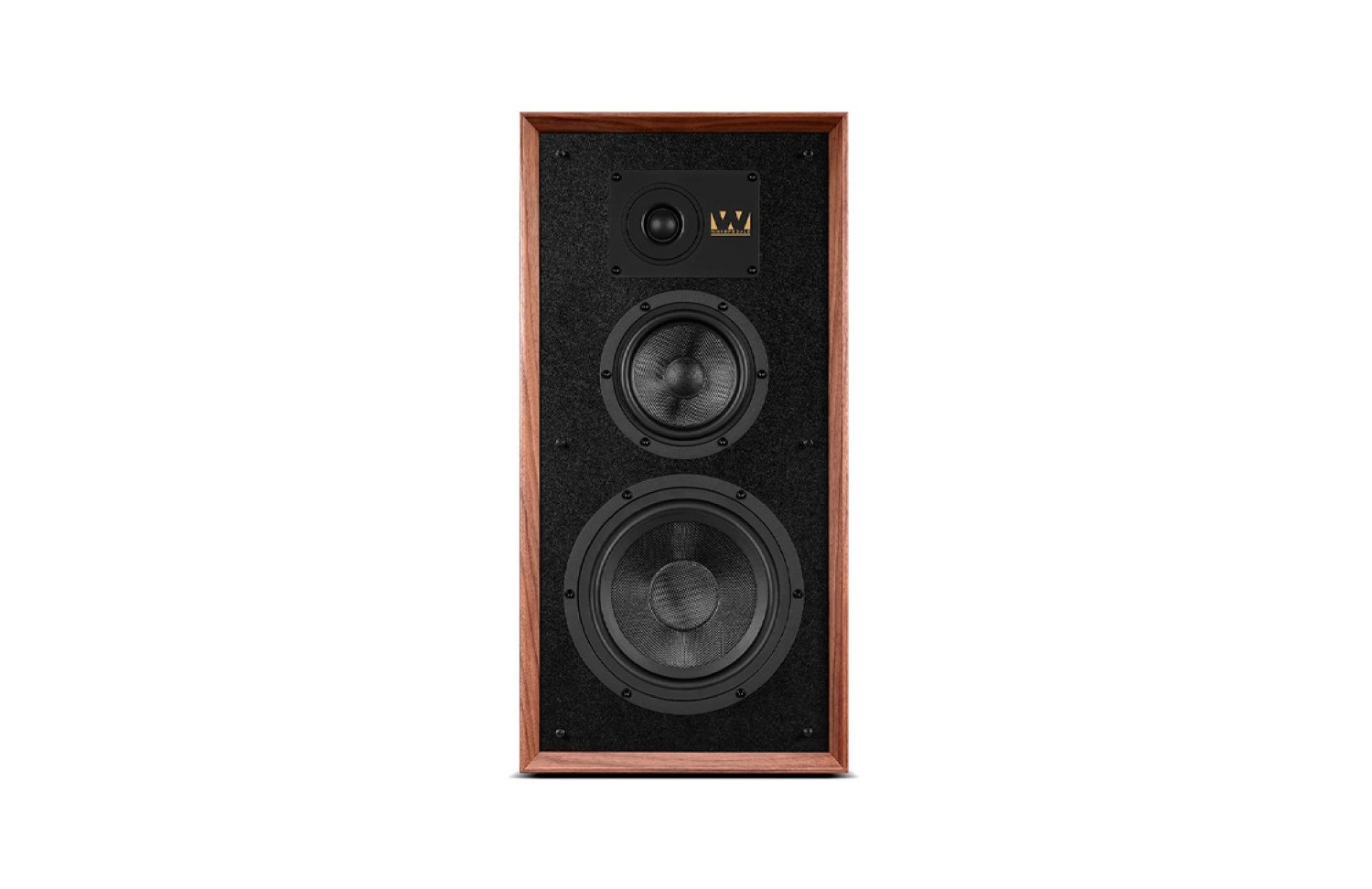

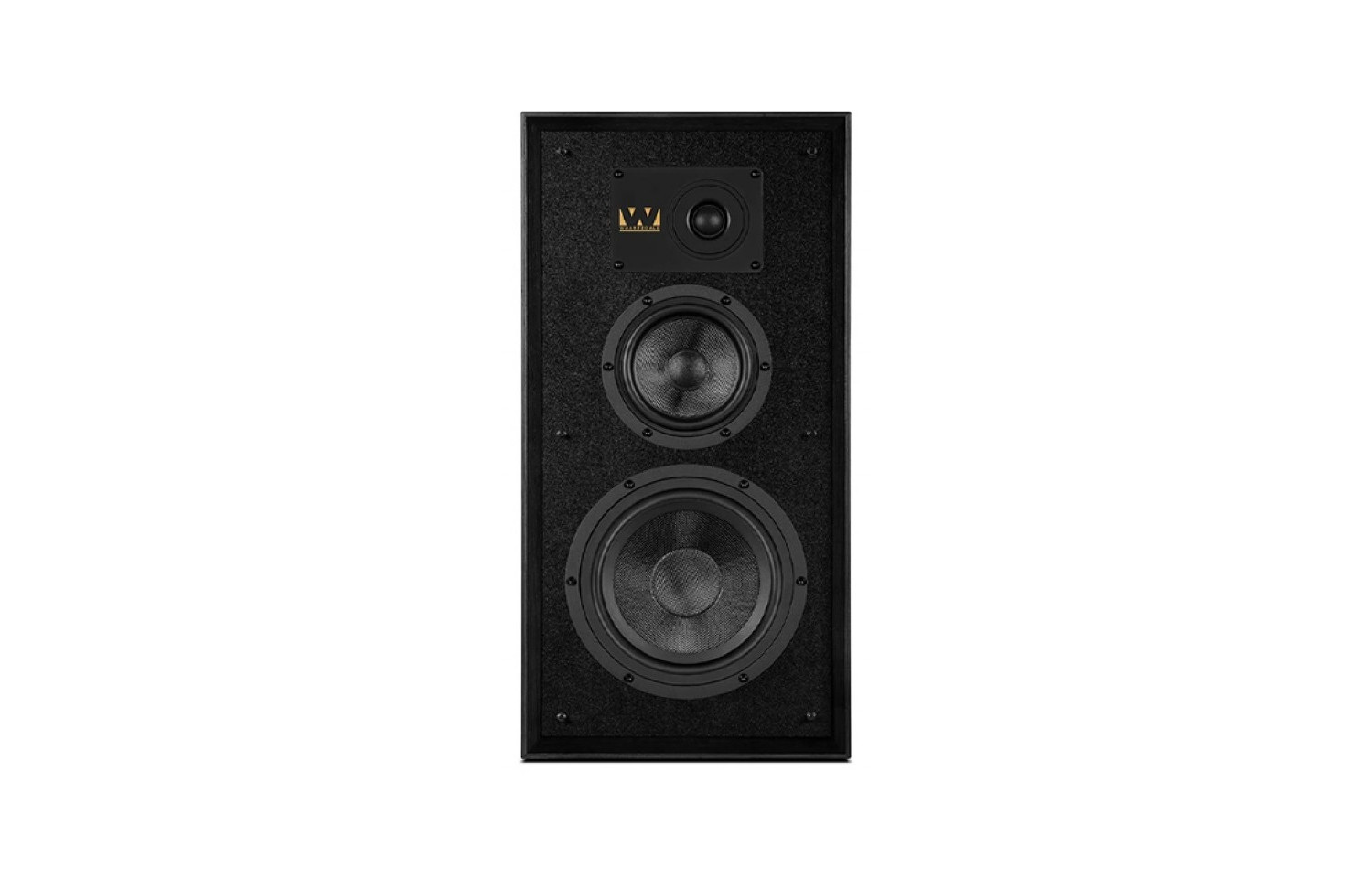

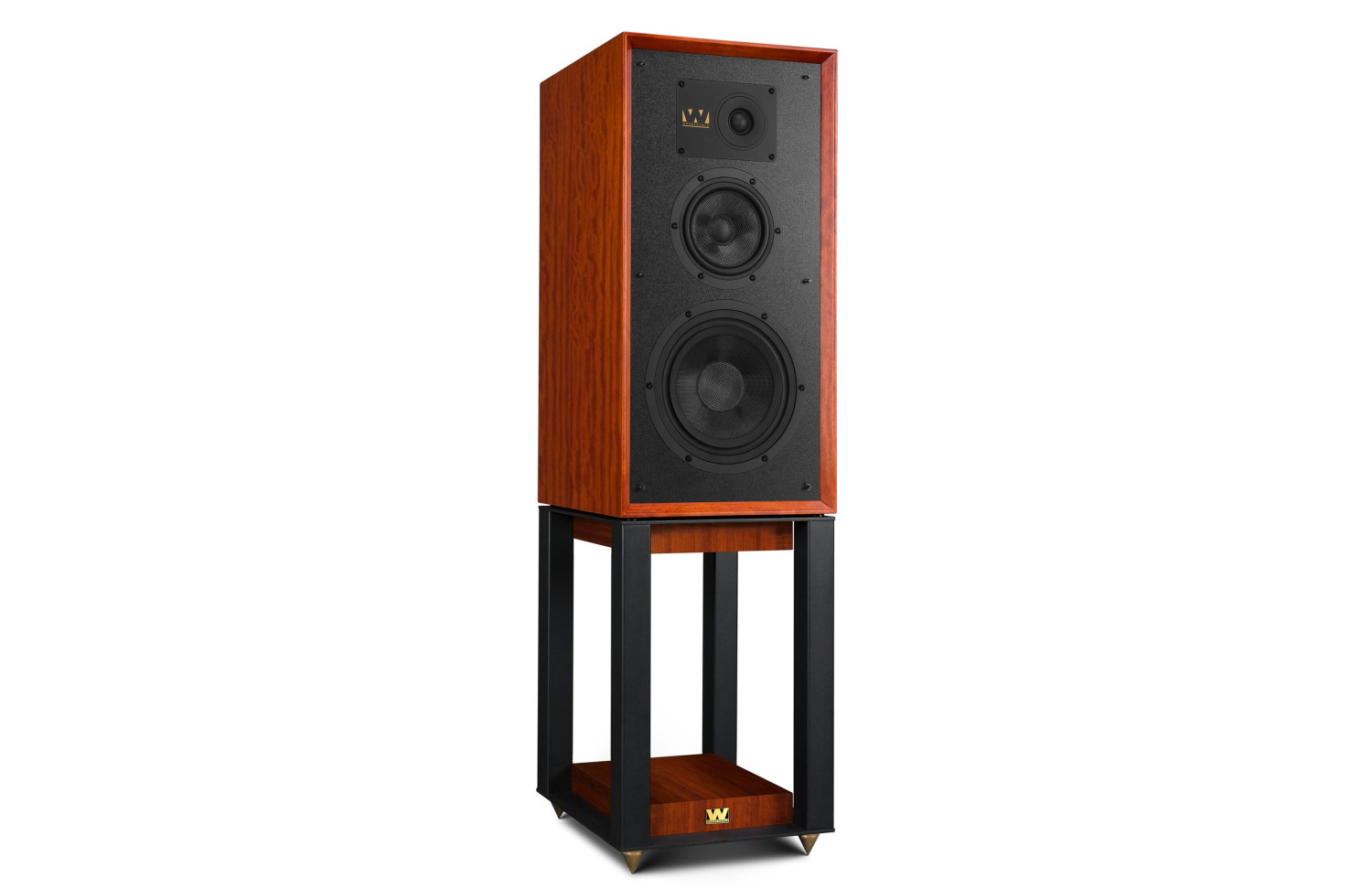

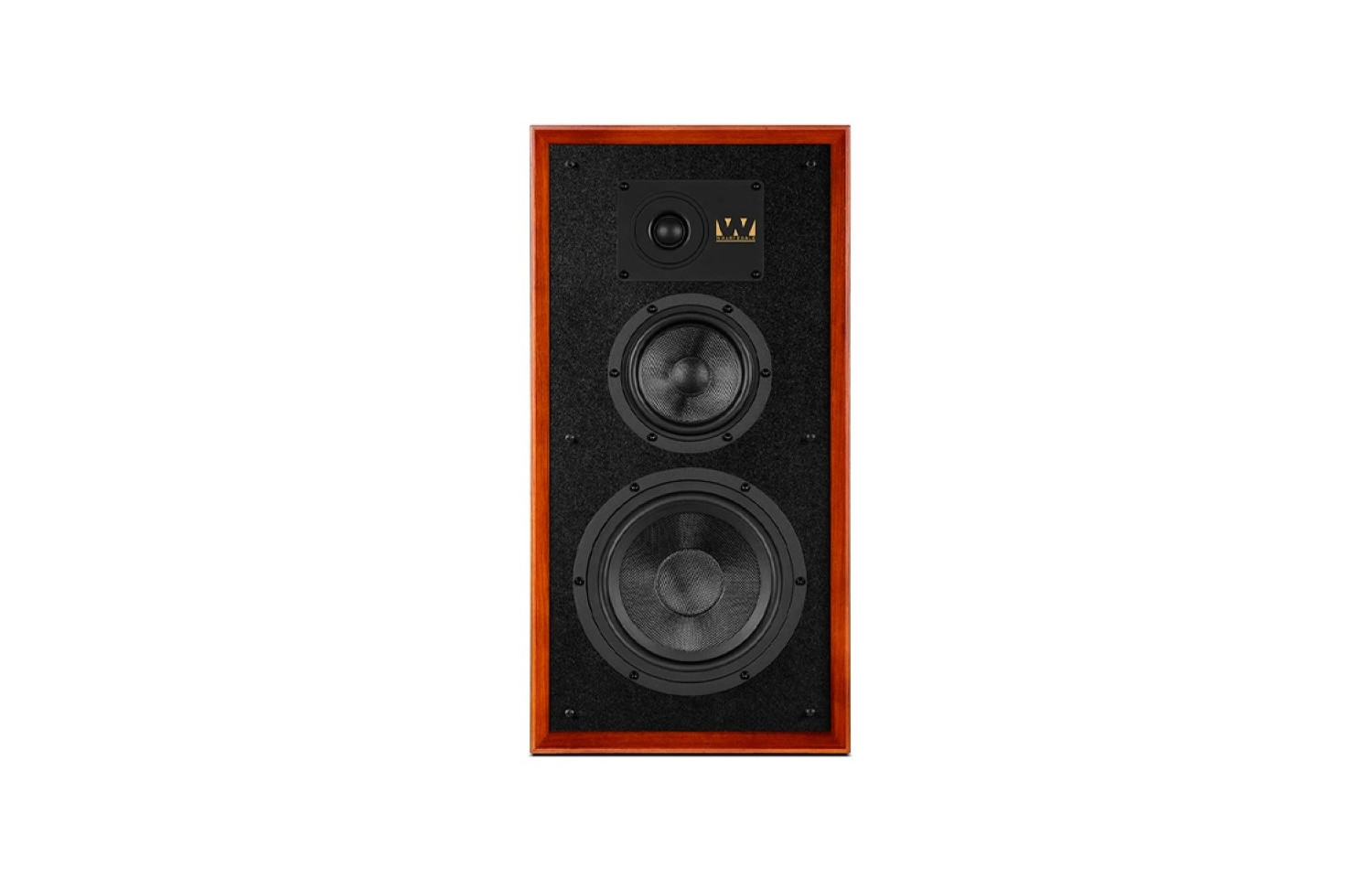

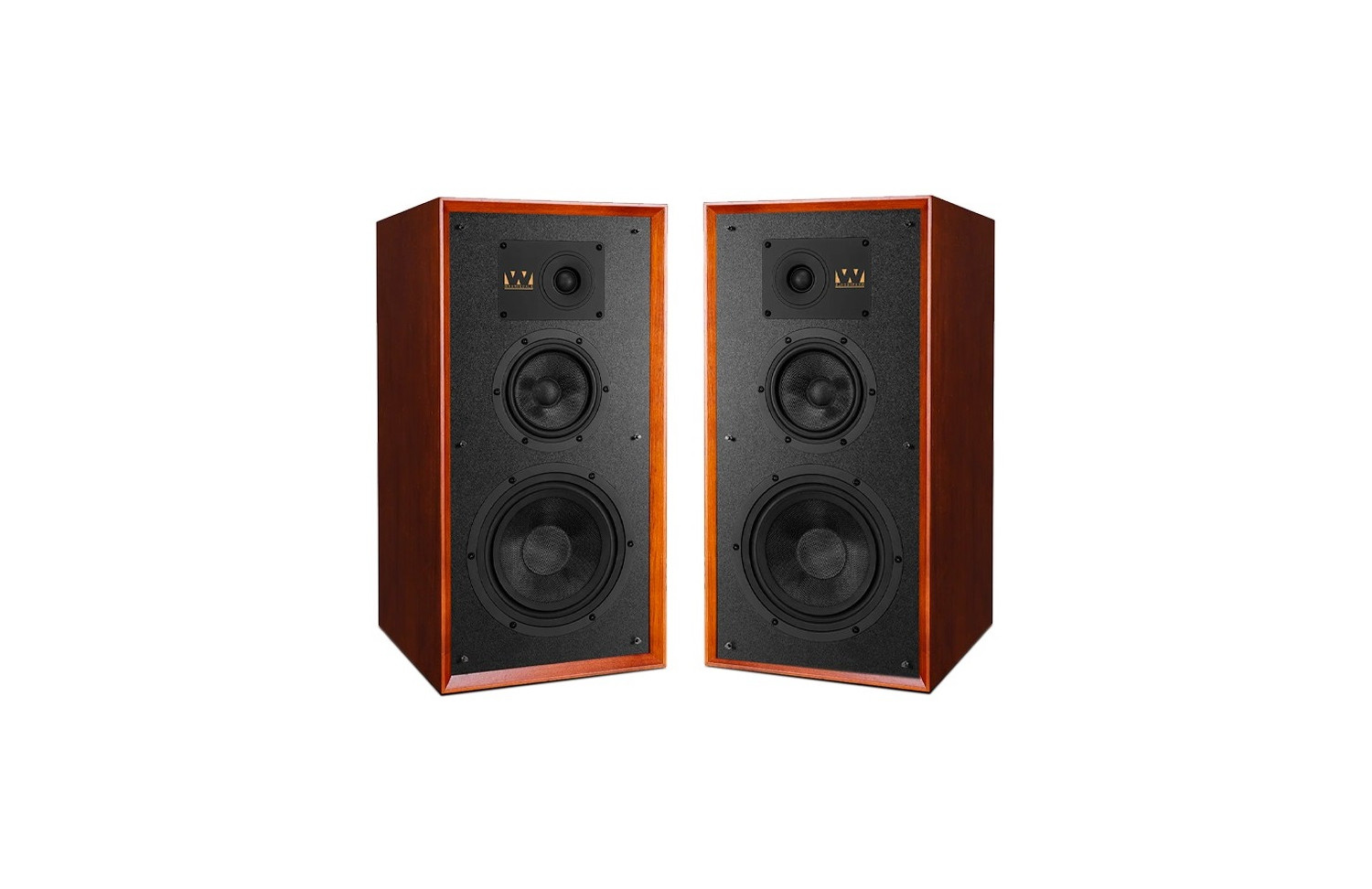

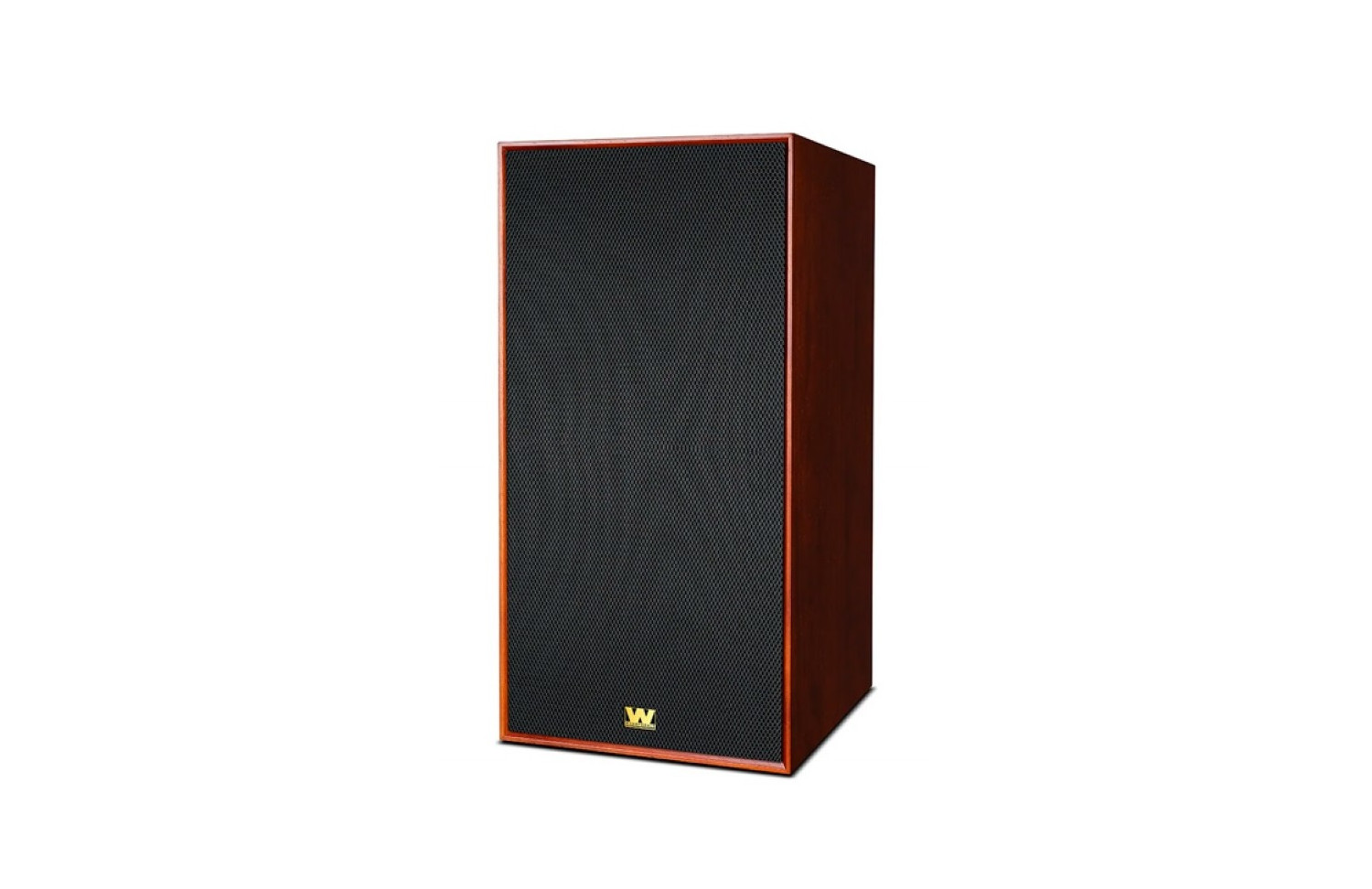

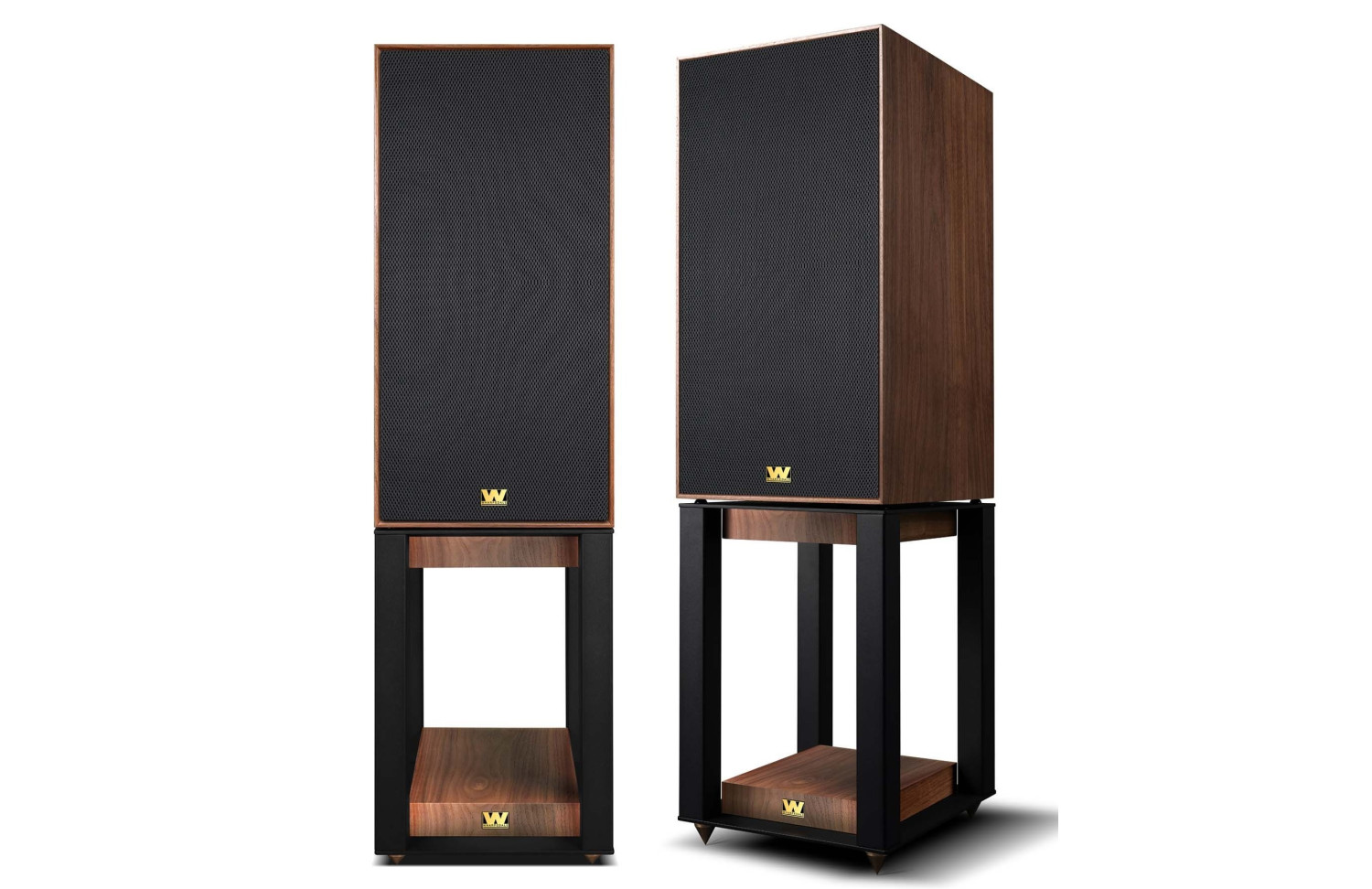

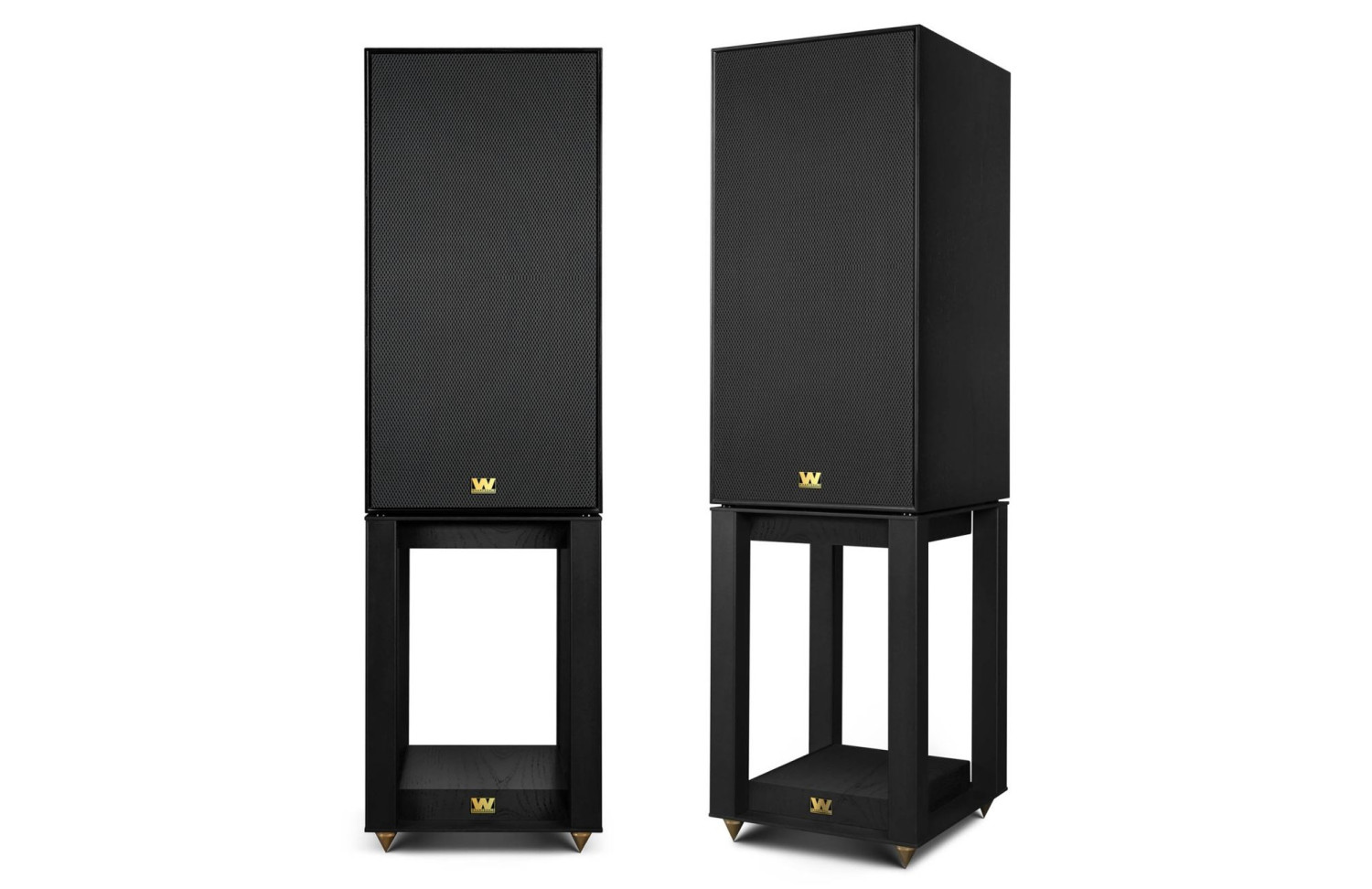

The Wharfedale Super Linton loudspeakers are the maximised version of the iconic Linton loudspeaker. Wharfedale has upgraded the drivers, crossover, and cabinet to give you the best possible performance.
Wharfedale has a rich history in loudspeaker manufacturing dating back to 1932, and its Heritage Series celebrates this legacy with redesigned classics from the 1960s and 1970s. The new Super Linton joins this line, following the success of the original Linton and the recently introduced Super Denton.

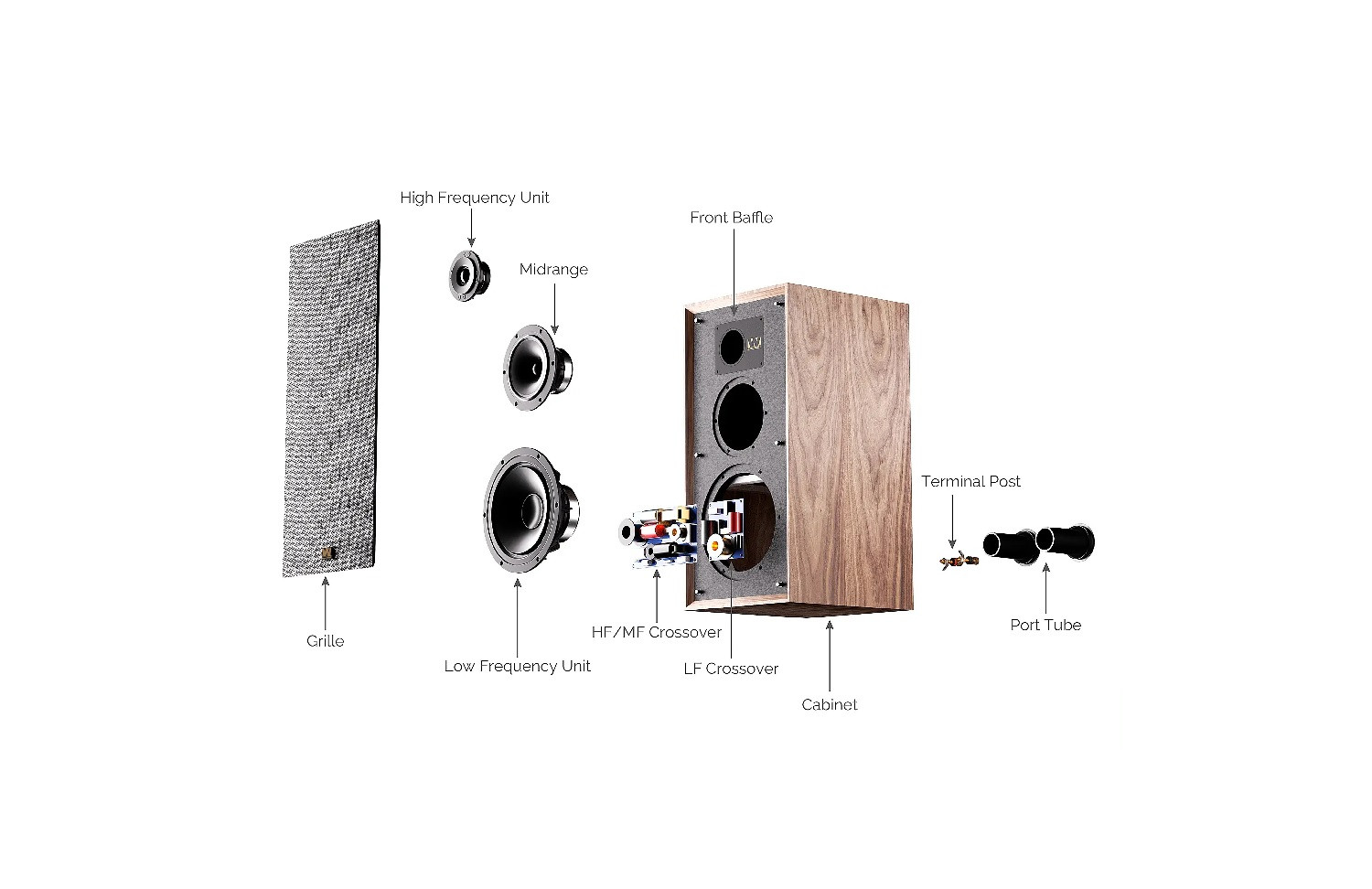

Maintaining the classic styling that made the original Linton popular, the Super Linton features a taller, more acoustically refined cabinet. Its dimensions increase the internal volume, which improves sound quality. The cabinet construction uses double layers of fibreboard bonded with specialised damping glue to minimise resonance, while the interior is filled with long pile fibre and acoustic damping foam.

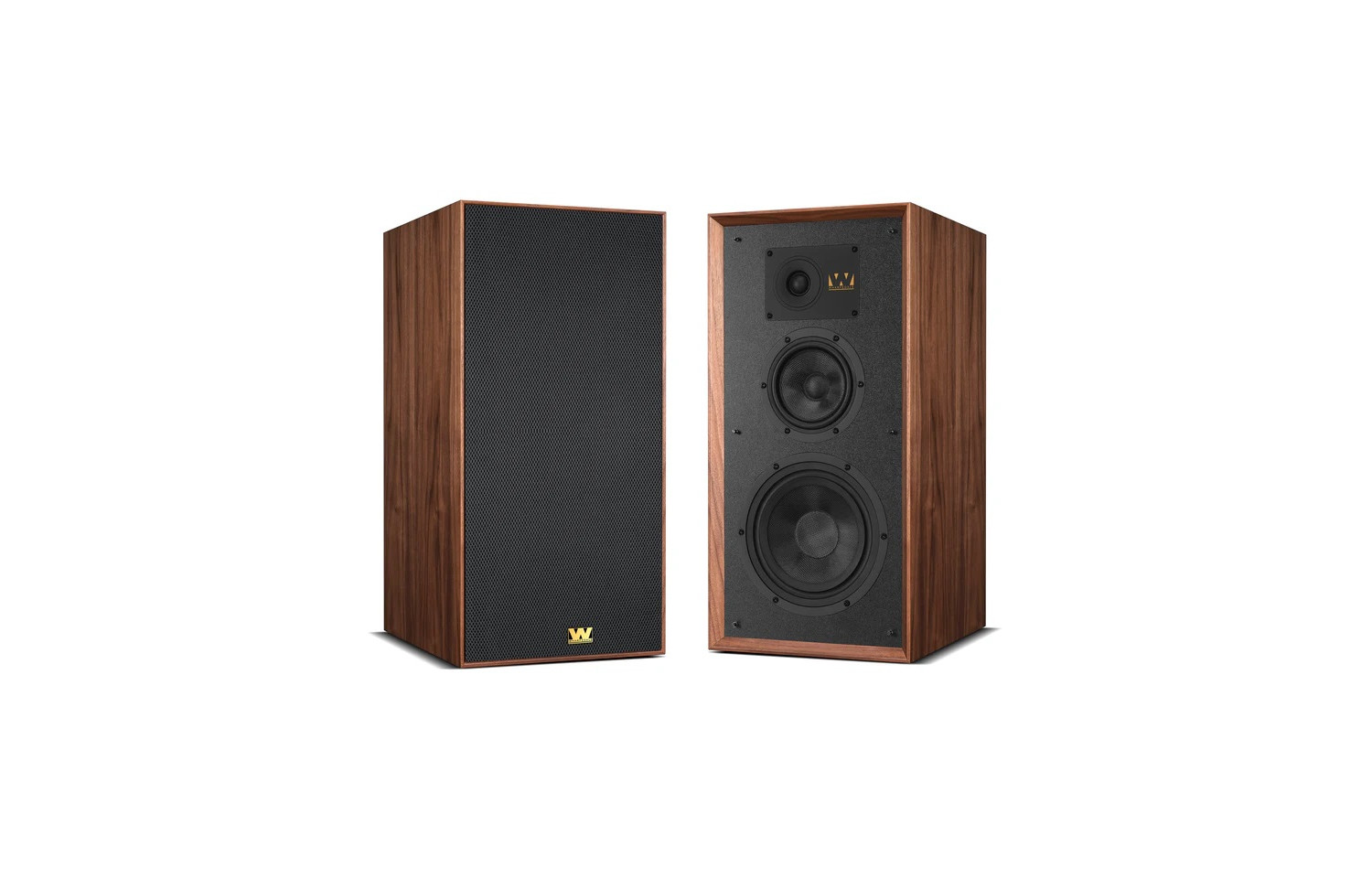

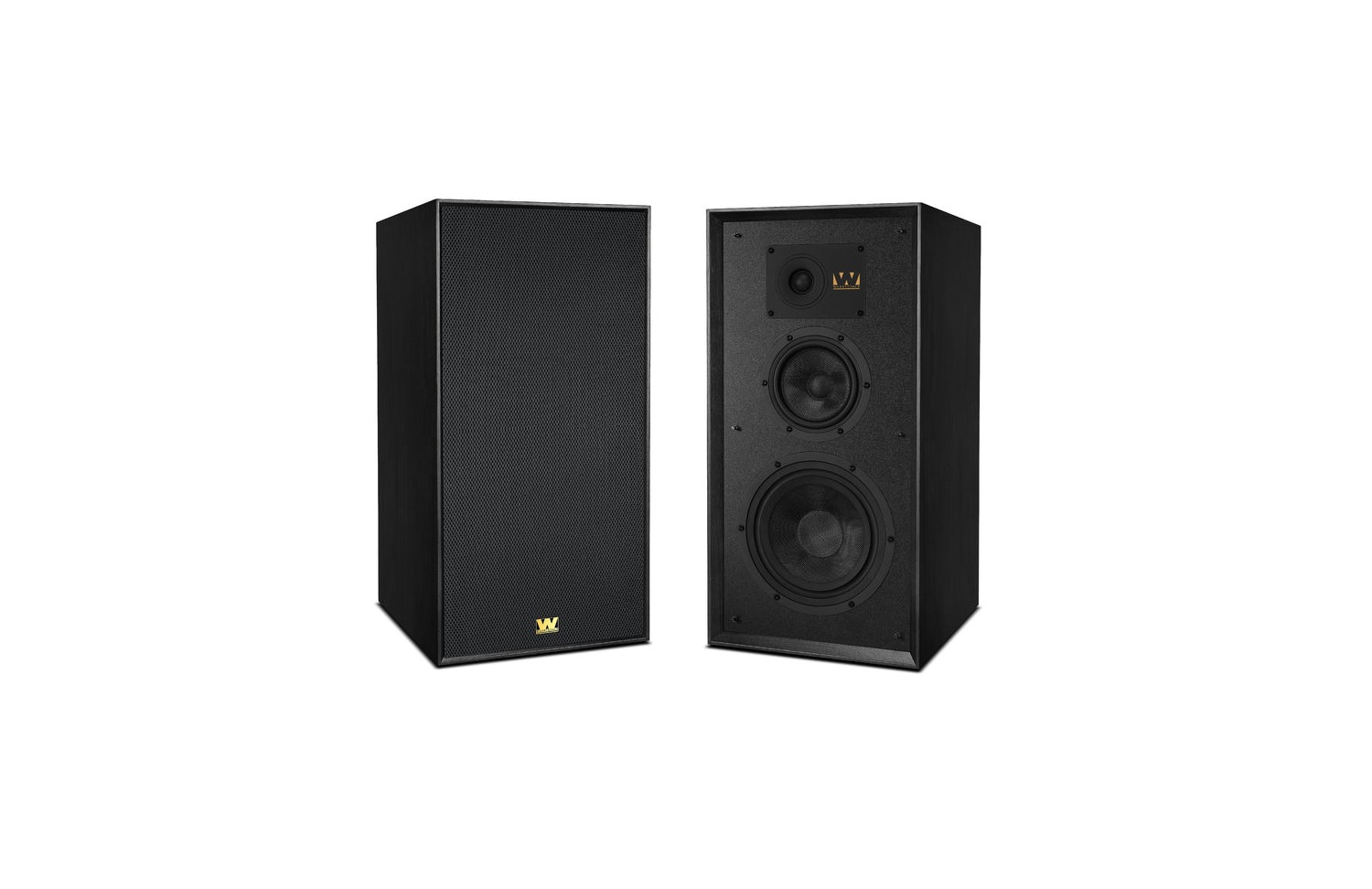

The Super Linton features upgraded drivers that improve audio performance at all frequencies. The 200mm woven Kevlar bass driver, combined with a powerful motor system, extends the low frequency response down to 32Hz, delivering deep, punchy bass.
The new tweeter unit features a fine weave and a damped rear chamber, allowing for exceptional clarity and detail in the treble range. The midrange transducer, housed in a specially designed chamber, ensures seamless integration with the bass and treble for a cohesive listening experience.
At the heart of the Super Linton is an all-new crossover, designed to minimise electromagnetic interference. This split-circuit arrangement uses high-quality inductors and capacitors to ensure transparency and audio fidelity. Improved internal wiring further optimises signal transfer, allowing for a richer sound.
The Super Linton is finished with hand-combined wood veneers and a satin lacquer finish, adding a modern touch to its vintage aesthetic. It maintains a high sensitivity of 90 dB, making it compatible with a wide range of amplifiers, from 25 W to 200 W per channel.
With its remarkable blend of rich heritage and modern technology, the Super Linton elevates every aspect of the original design. It delivers deep bass, expressive mids and detailed highs, allowing music lovers to fully immerse themselves in their favourite albums.
Acoustic Design Director at Wharfedale, Peter Comeau, emphasises that the Super Linton enhances the pleasure of listening to music while remaining true to the authenticity of its design. The speaker embodies a perfect fusion of classic charm and advanced audio performance, making it a must-have product for any music enthusiast.
Features:
- 3-way, 3-speaker design.

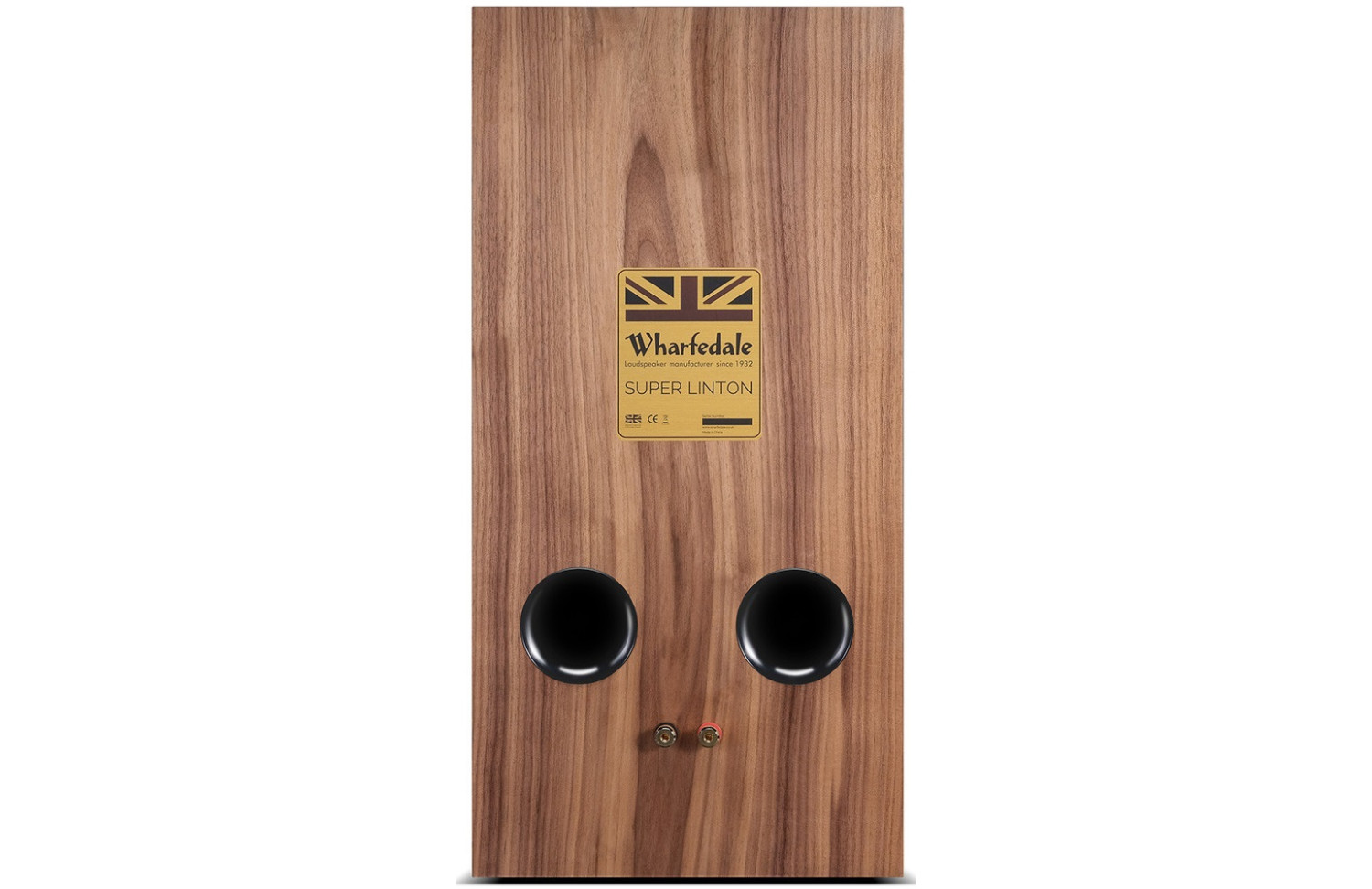

- Dual rear bass reflex ports.
- 25 mm silk dome tweeter.
- 135 mm kevlar cone midrange.
- Woofer with 200 mm kevlar cone.
- Sensitivity: 90 dB (2.8 V at 1 m).
- Nominal Impedance: 6 ohms (8 ohms compatible).
- Recommended amplifier power rating: 25 to 200 W.
- Frequency Response: 39 Hz to 20kHz (+/-3 dB).
- Maximum bass extension: 32 Hz.
- Dimensions: 605 mm high x 330 mm wide x 300 mm deep.
- Weight: 19.8 kilos per unit.
Price per pair.
